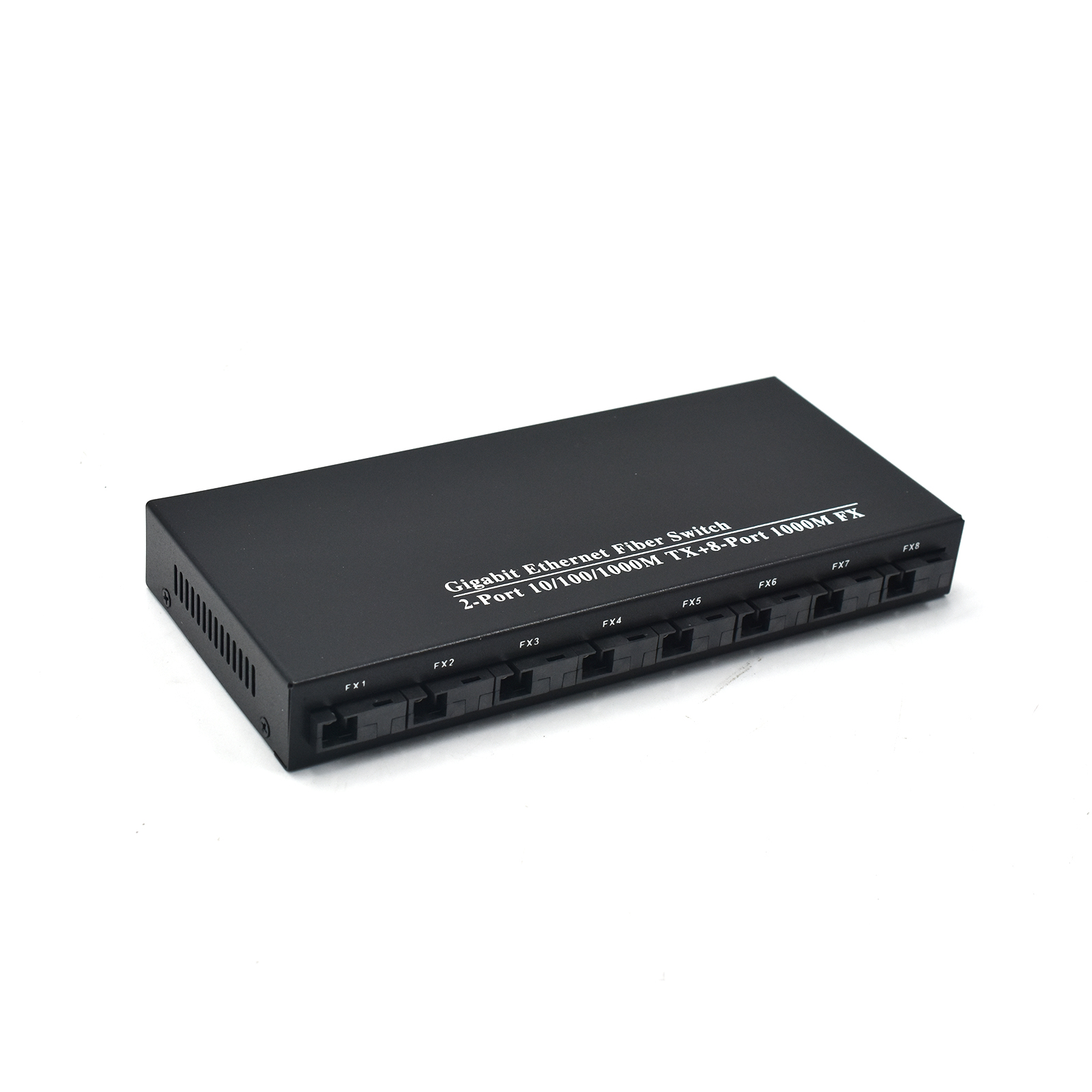

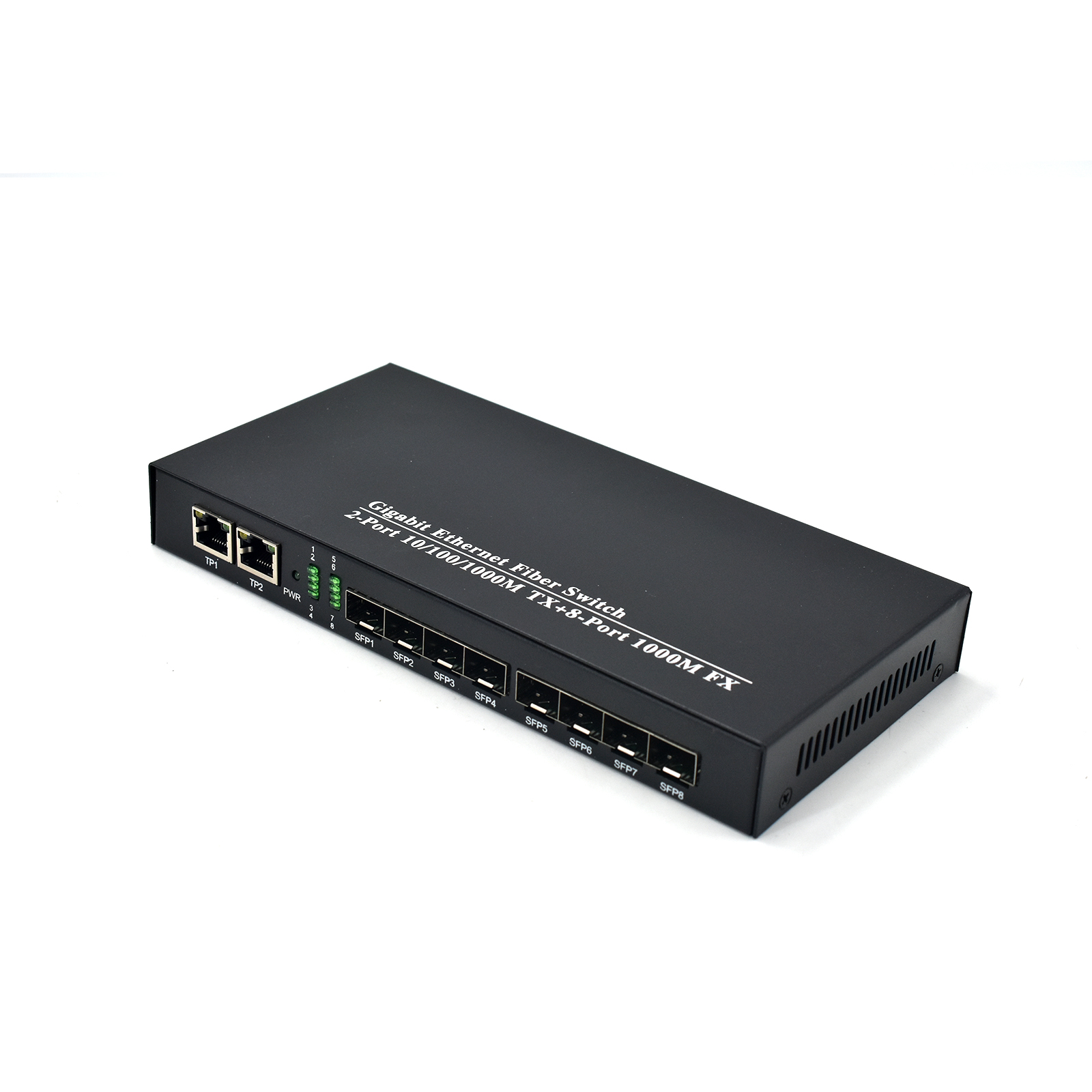

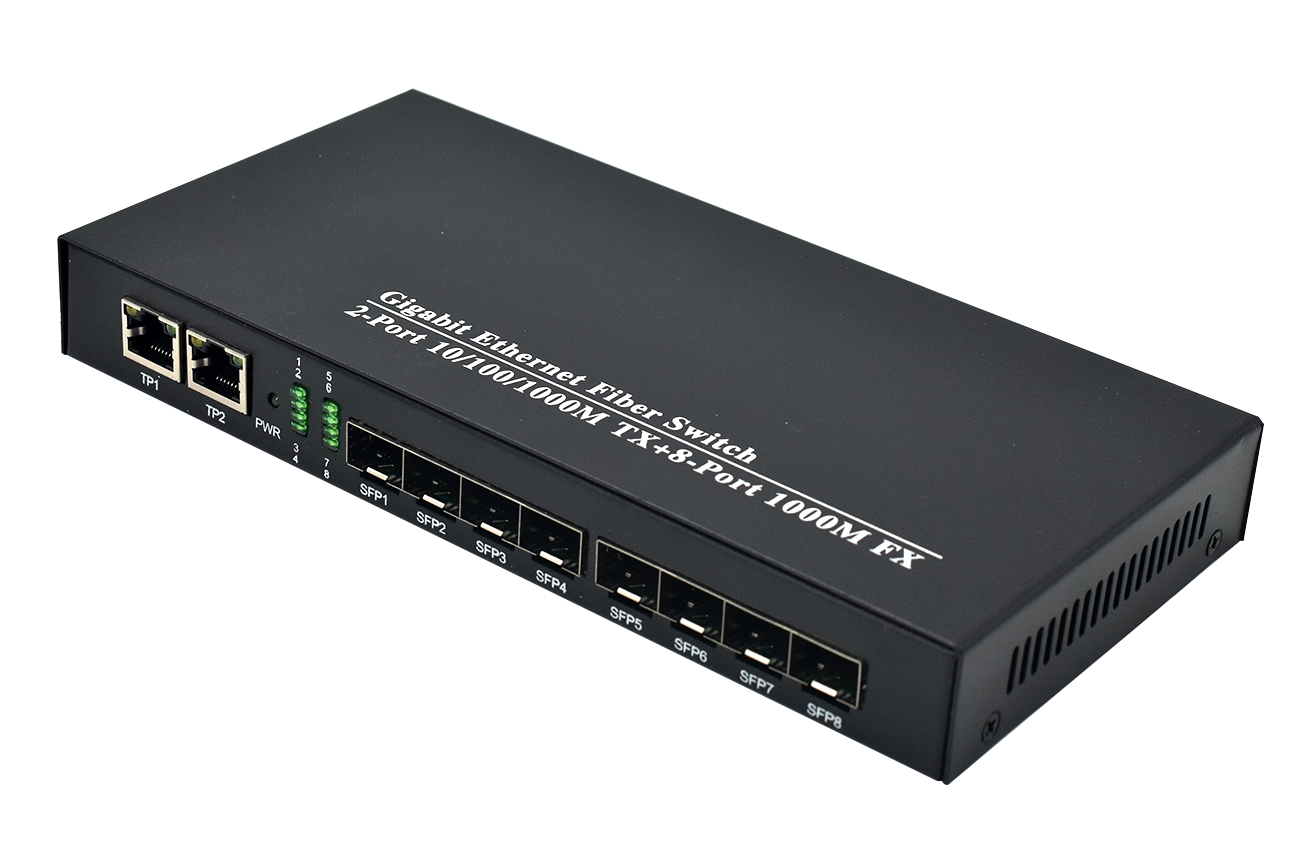

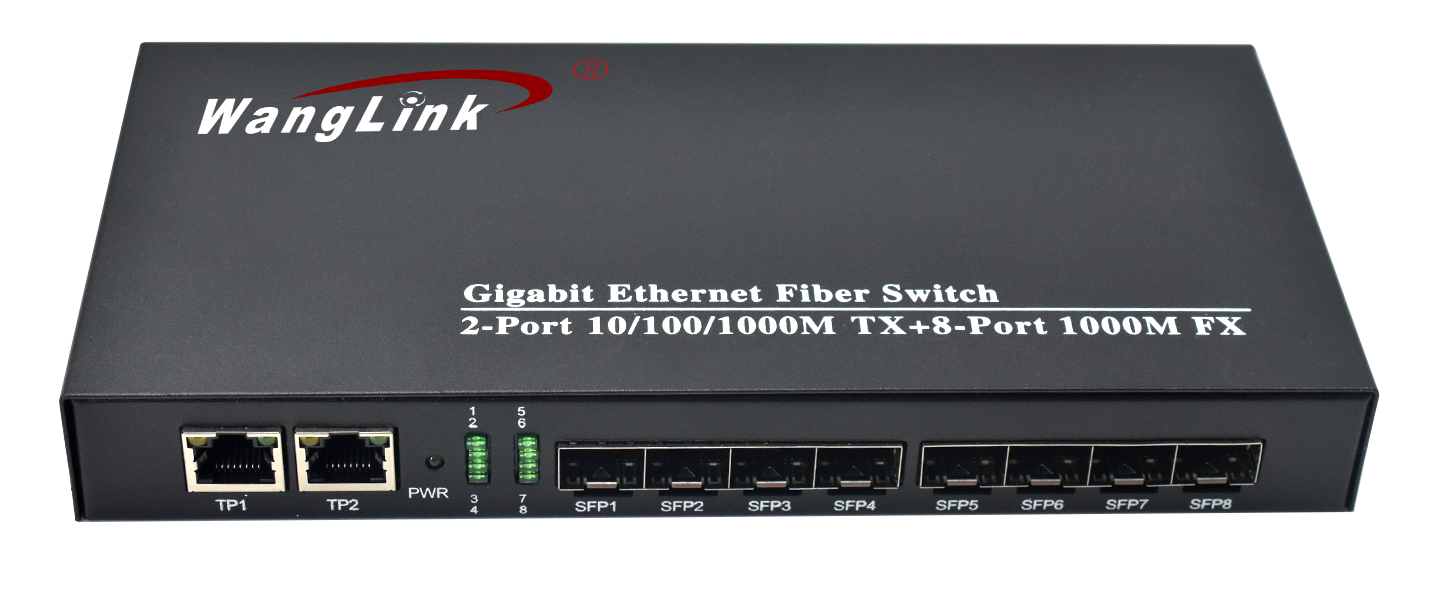

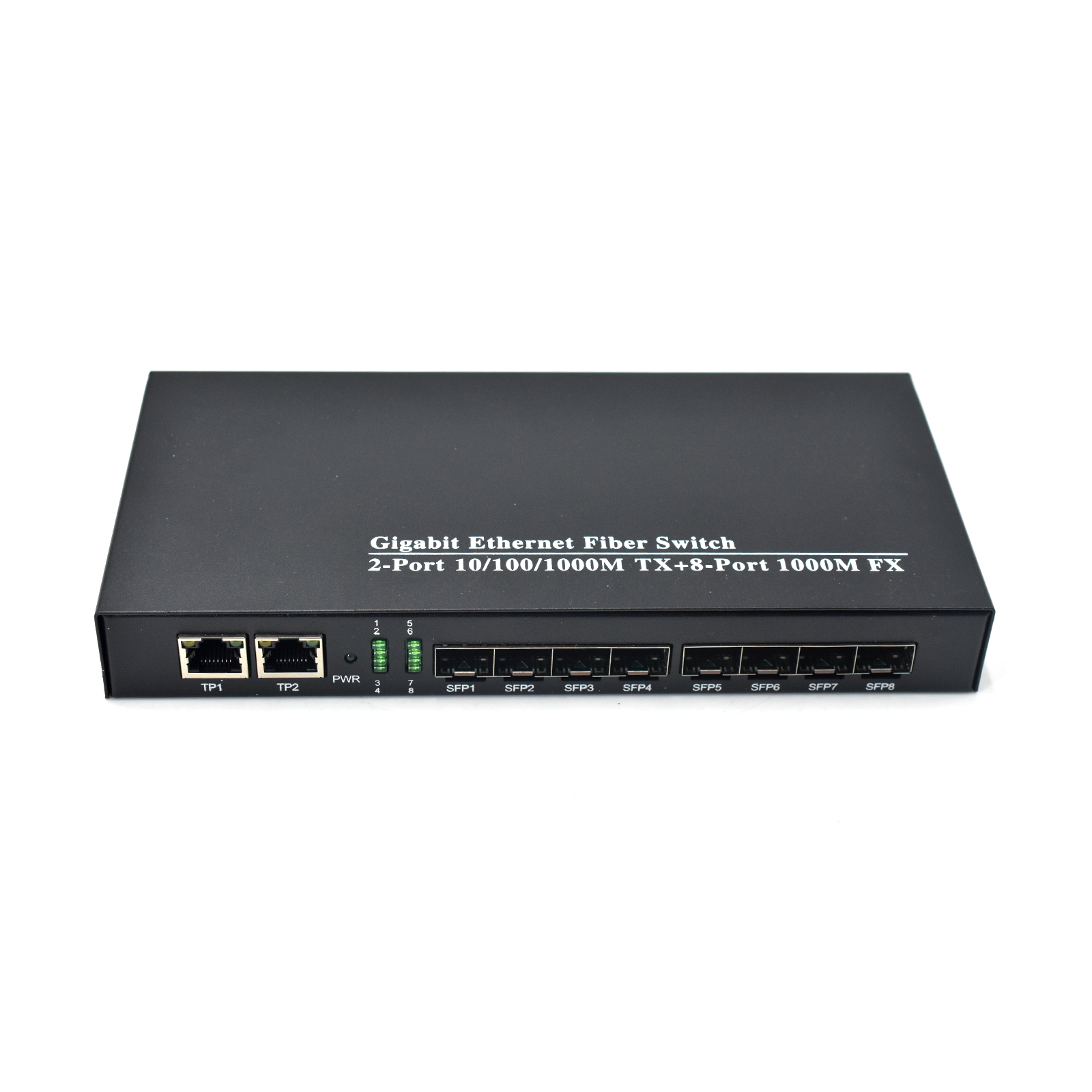

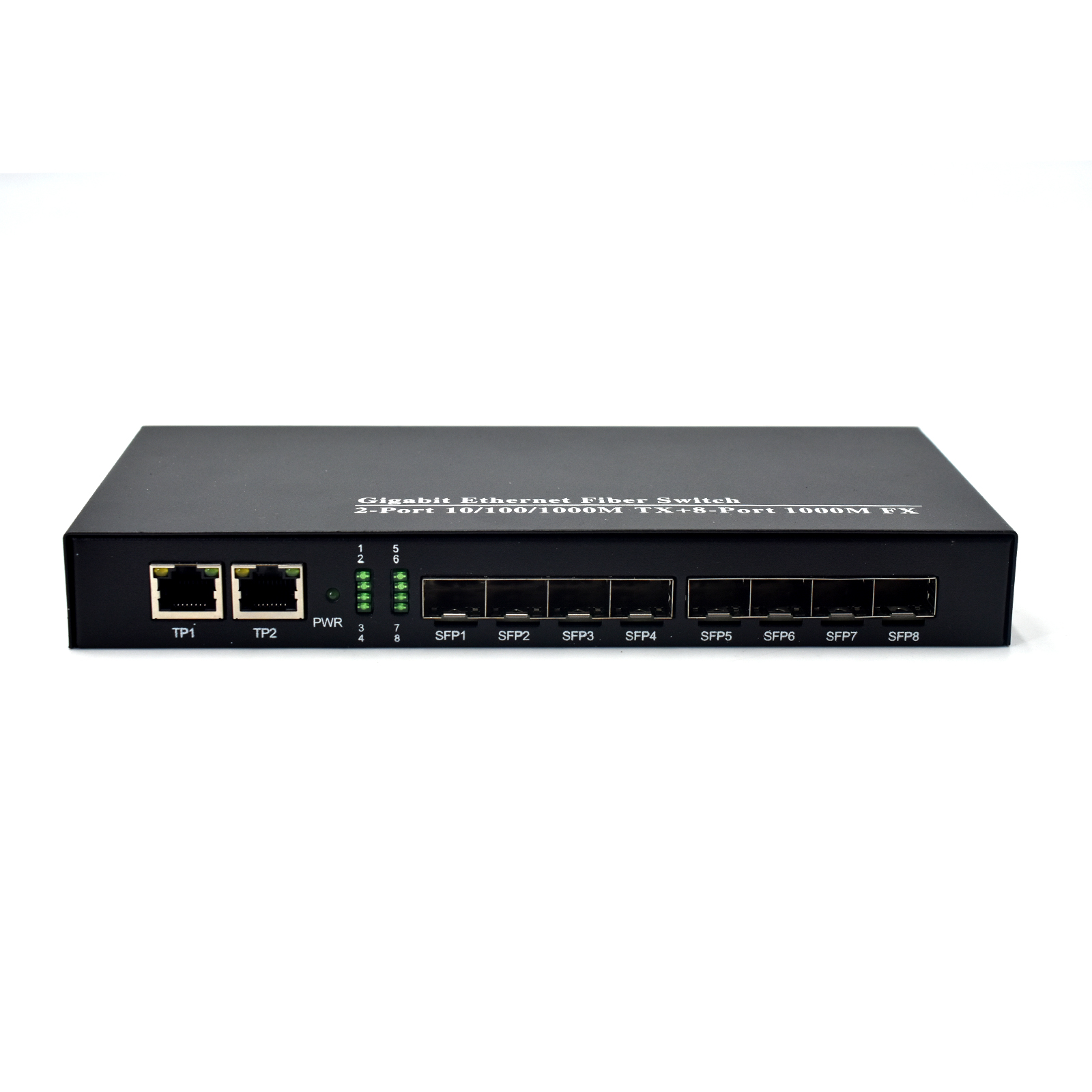

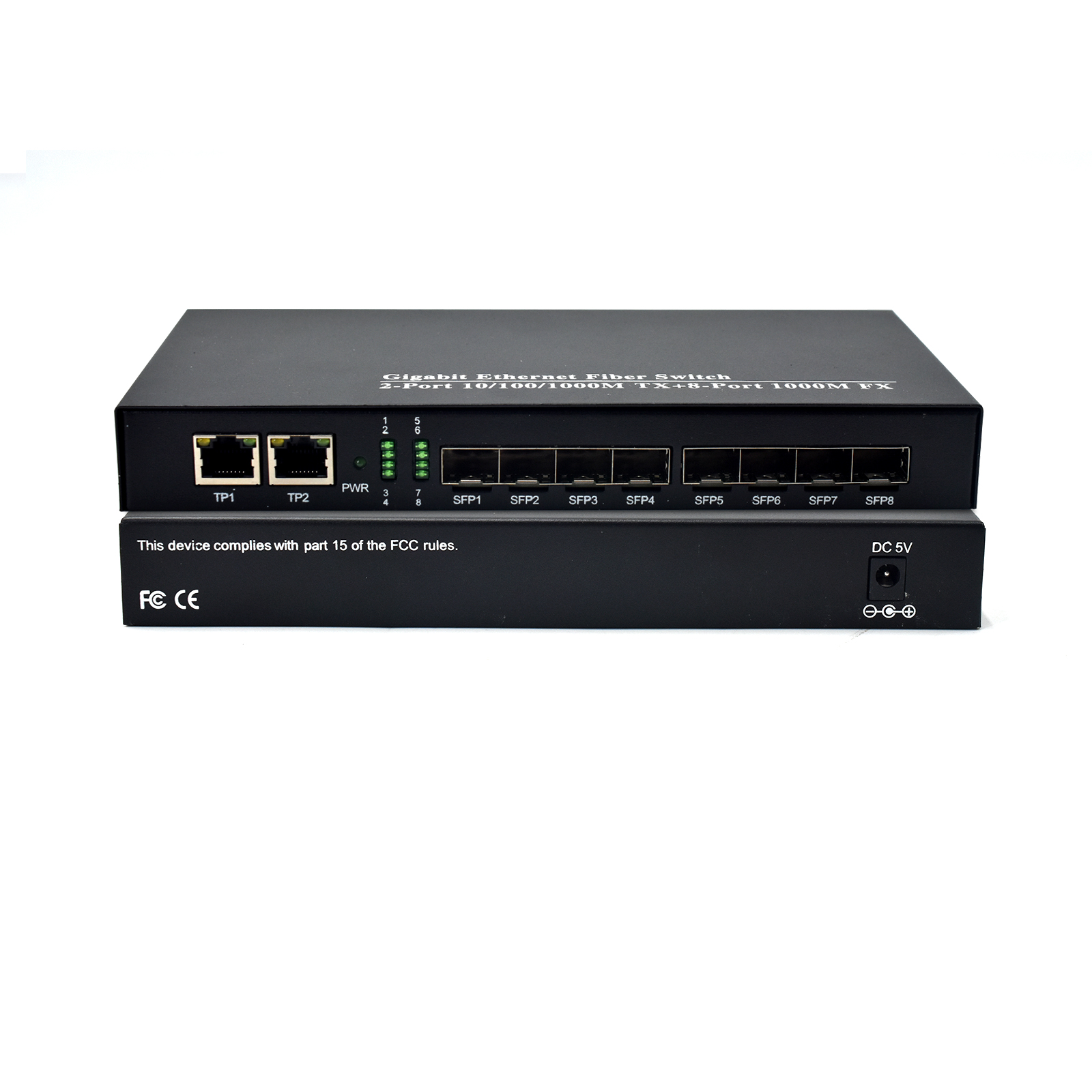

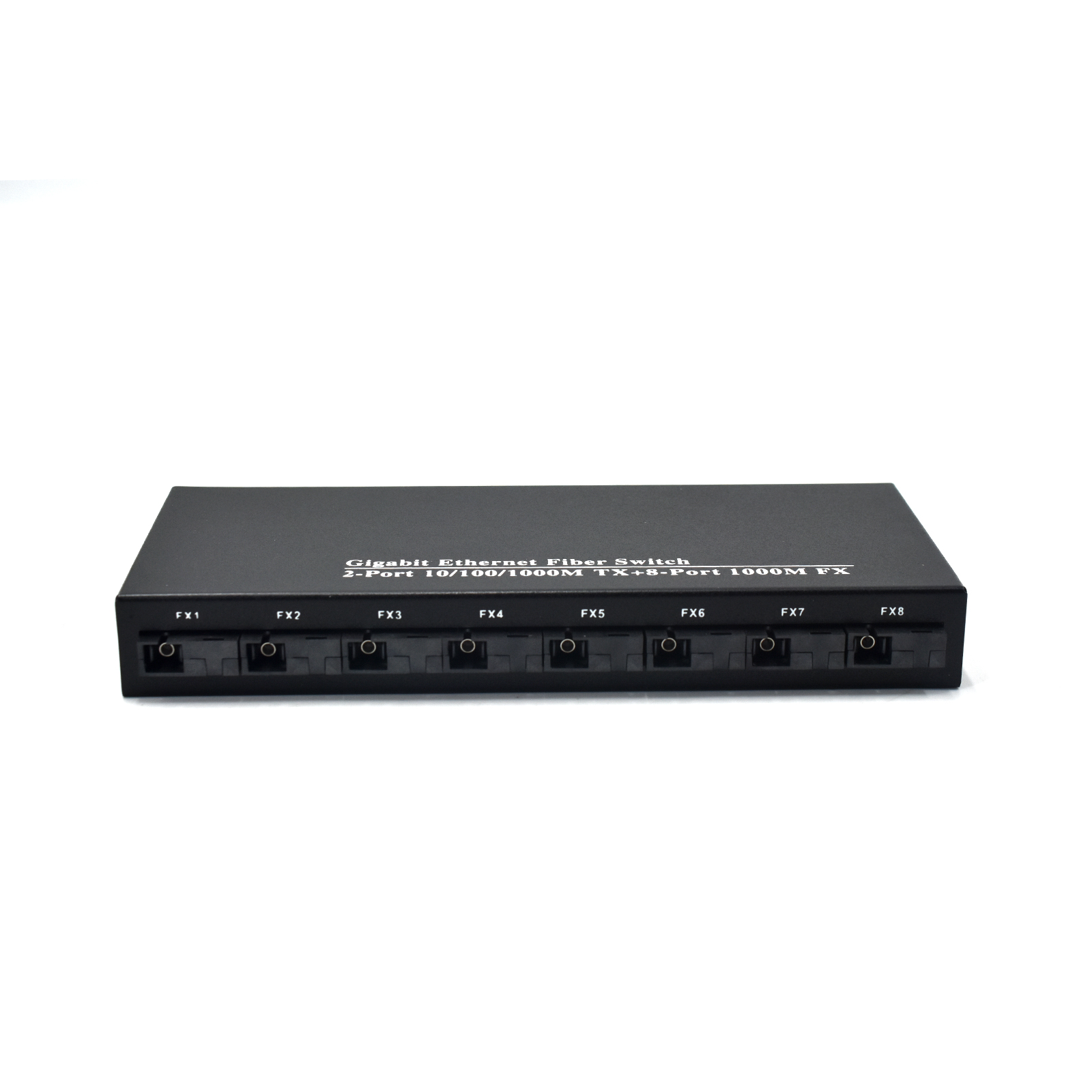

Unmanaged Media Converter Fiber to Ethernet Switch, 8 SFP Fiber Ports 1.25Gbps, 2 Gigabit RJ45, Plug-and-Play Metal Case for Industrial & Office Networks

Cost-effective media converter fiber to ethernet switch with 8 SFP 1.25Gbps ports and 2 Gigabit RJ45 ports. Plug-and-play, no configuration needed. Ideal for extending network up to 120km over fiber.

CG802

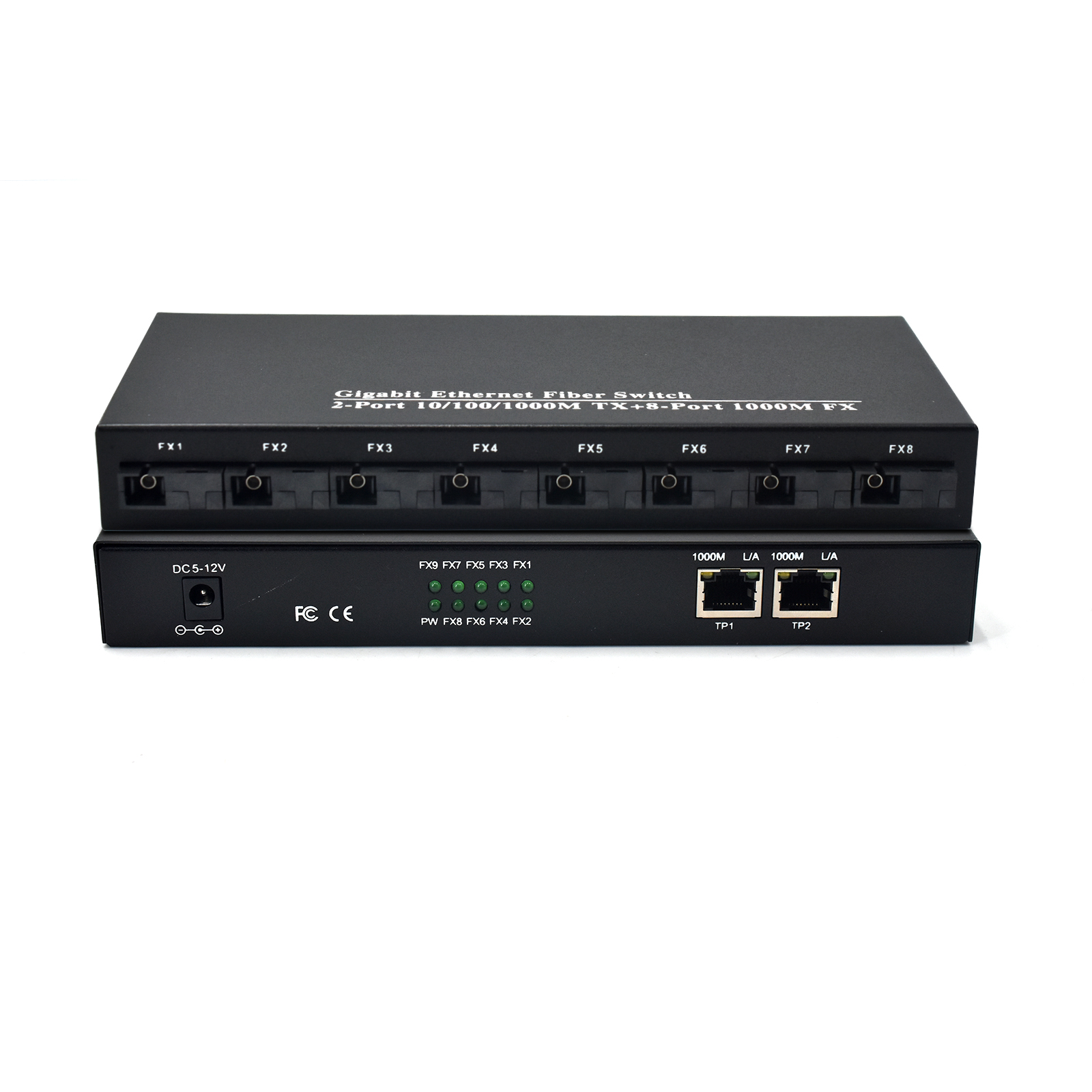

Port Description

8 SFP fiber ports (1.25Gbps each) and 2 RJ45 10/100/1000Mbps auto-negotiating copper ports.
  • Combines media converter & switch in one unit — reduces hardware count.
  • 8 SFP ports support up to 120km fiber distance (single-mode).
  • 2 Gigabit RJ45 ports for local copper devices.
  • True plug-and-play: zero configuration required.
  • Metal enclosure for passive cooling and long-term stability.
  • Low power consumption ≤6W, ideal for 24/7 operation.









Extend Your Network Without Breaking the Bank

If you’re searching for a media converter fiber to ethernet price that actually delivers reliable performance without hidden costs, this switch is exactly what you need. Designed for IT managers, system integrators, and small-to-medium business owners, the CG802 combines 8 SFP fiber ports (1.25Gbps each) with 2 Gigabit copper ports in a single unmanaged unit. No need to buy separate media converters for each fiber link — this switch consolidates conversion and switching into one box, slashing both hardware costs and cabling complexity.

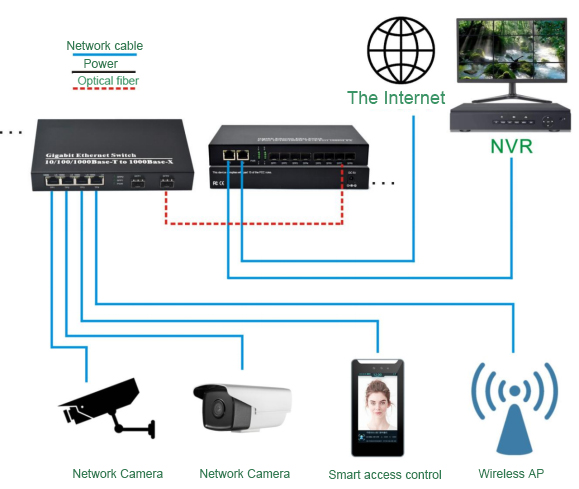

Why does this matter for your daily operations? Because running fiber to remote cameras, access points, or office extensions usually means dealing with distance limits of copper (100 meters). With this device, you can push your network up to 120 kilometers using single-mode fiber, all while keeping the same simple plug-and-play setup. No VLAN configs, no static IPs — just plug in your SFP modules and copper cables, and traffic flows instantly.

The all-metal housing handles heat naturally, so it stays stable in warm server rooms, factory floors, or outdoor cabinets (as long as it’s protected from direct rain). With low power draw under 6W, it’s also kind to your electricity bill. Whether you’re upgrading an old coax-based surveillance system or bridging two buildings across a campus, this switch gives you a practical, budget-friendly fiber entry point.

  • True media converter fiber to ethernet hybrid: no extra gear required.
  • 8 SFP ports for uplink or downlink fiber links — mix single-mode and multi-mode.
  • 2 Gigabit RJ45 ports for local copper devices like NVRs or PCs.
  • Full wire-speed forwarding at 20Gbps non-blocking bandwidth.
  • Jumbo frame support up to 10K for efficient large data transfers.

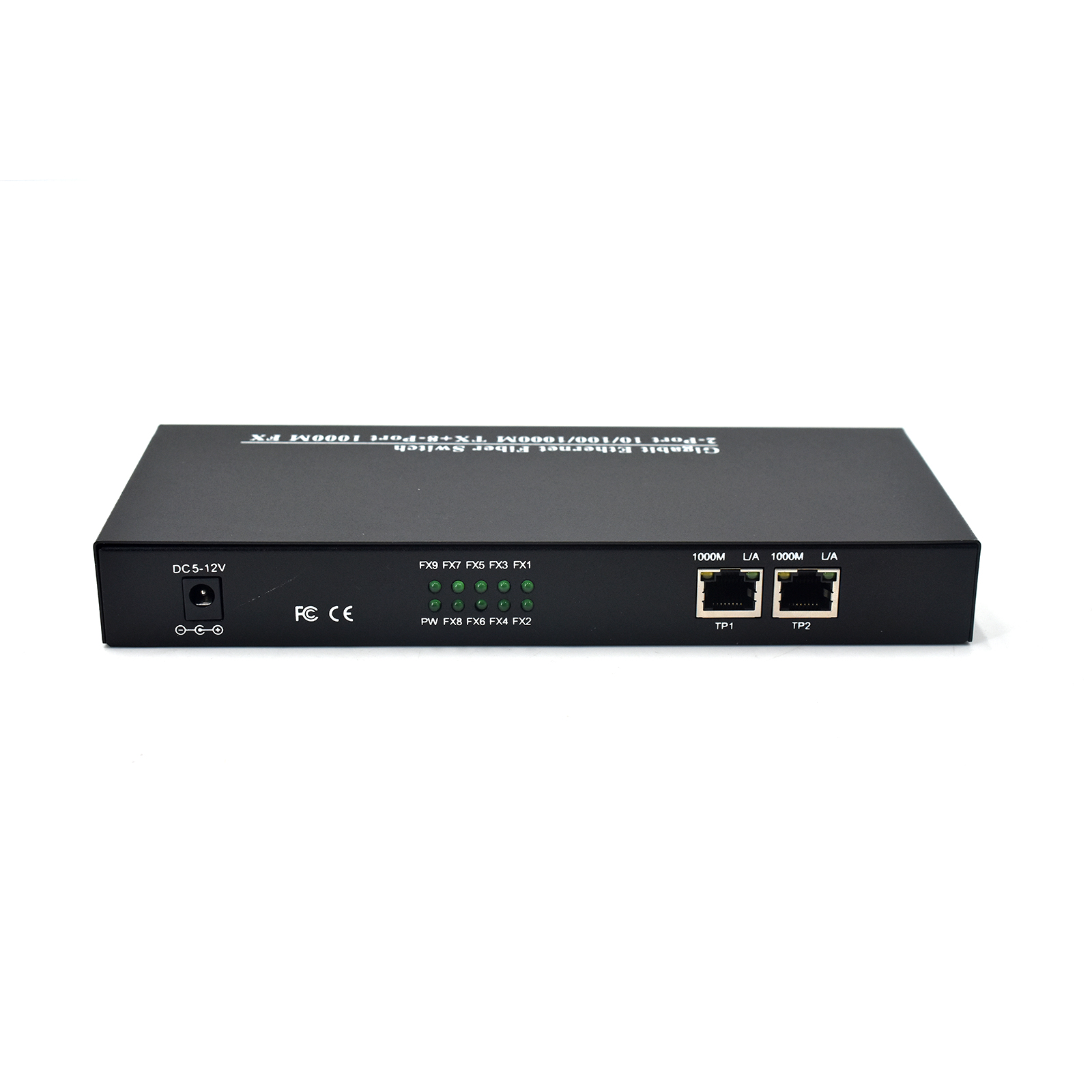

  • DC 5~12V input — works with standard wall adapters or industrial power supplies.

Technical Specifications

Standards IEEE802.3 10Base-T, 802.3u 100Base-TX, 802.3ab 1000Base-T, 802.3z 1000Base-SX/LX, 802.3x Flow Control
Fiber Ports 8 x SFP (1.25Gbps); Distance: MM 550m/2km, SM up to 120km; Wavelength: 850/1310/1550nm
Copper Ports 2 x RJ45 10/100/1000Mbps auto-negotiate, auto MDI/MDI-X, distance ≤100m
Switching Capacity 20Gbps non-blocking
Packet Forwarding Rate 8.928Mpps (64-byte packets)
MAC Address Table 1K
Jumbo Frame 10K
Forwarding Method Store-and-forward, full wire-speed
LED Indicators PWR (green), SFP1-8 (green), TP1-2 Link/Act (green)

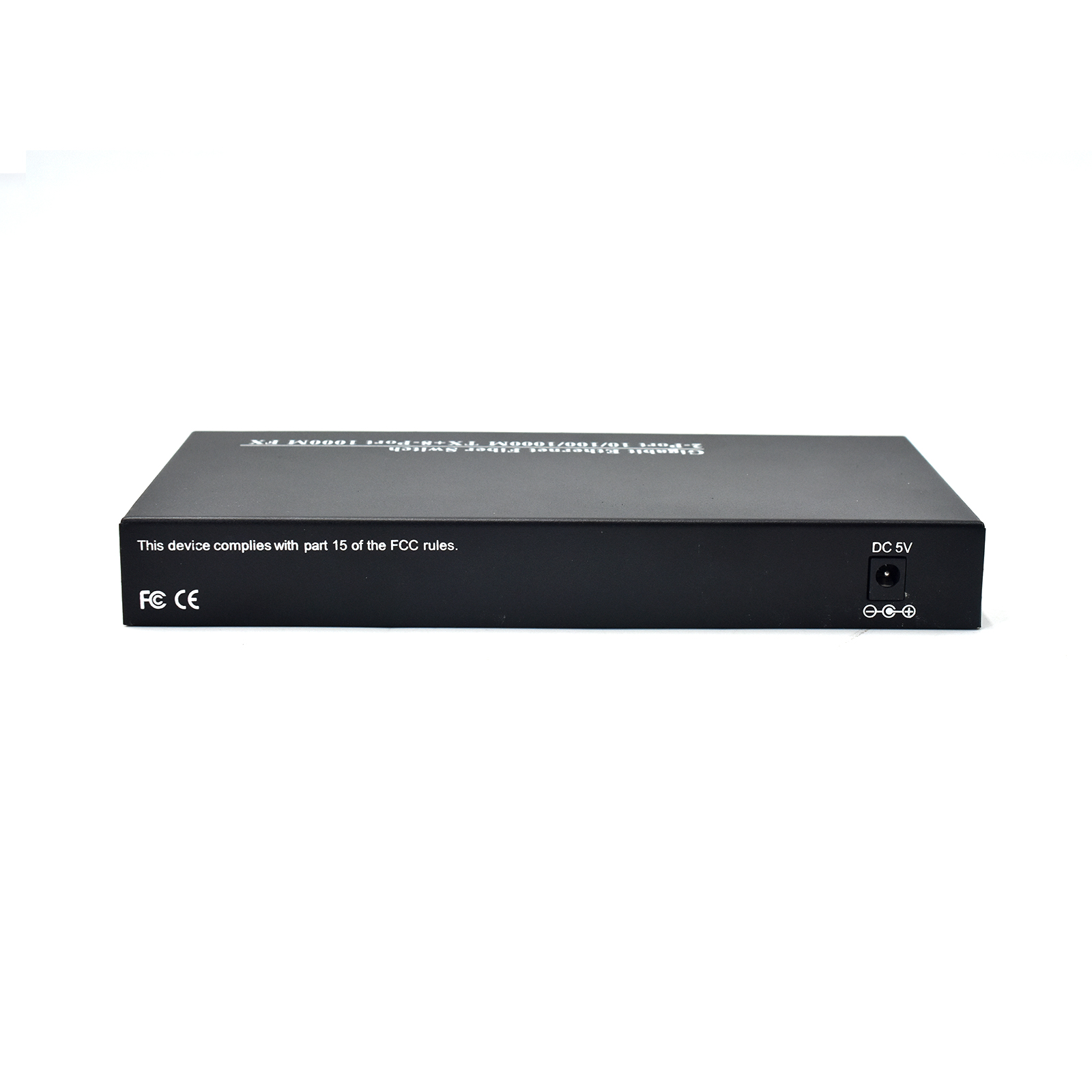

Power Input DC 5~12V, ≤6W
Operating Temperature -20°C to 60°C
Storage Temperature -40°C to 85°C
Humidity 5%~95% non-condensing
Heat Dissipation Natural convection (metal case)

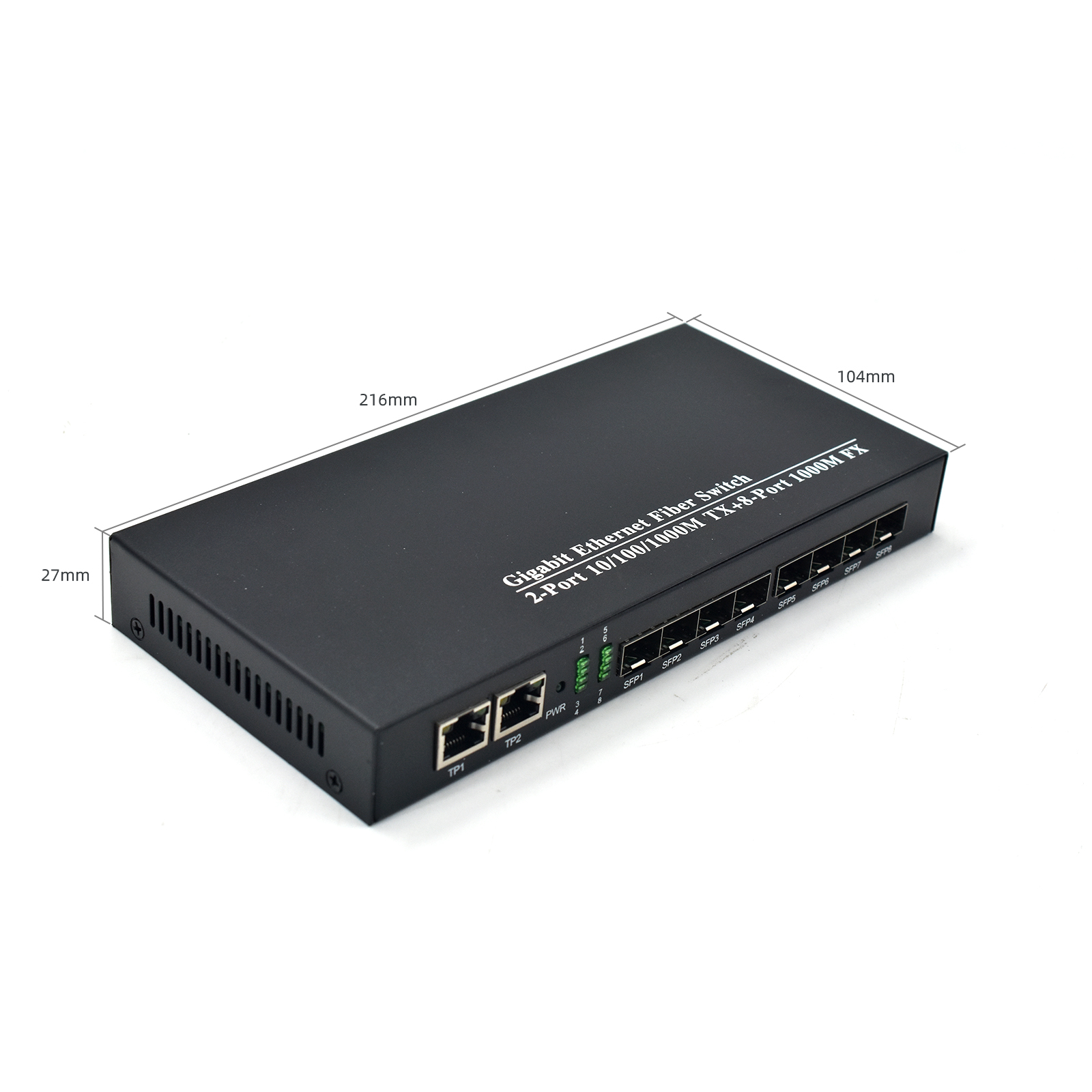

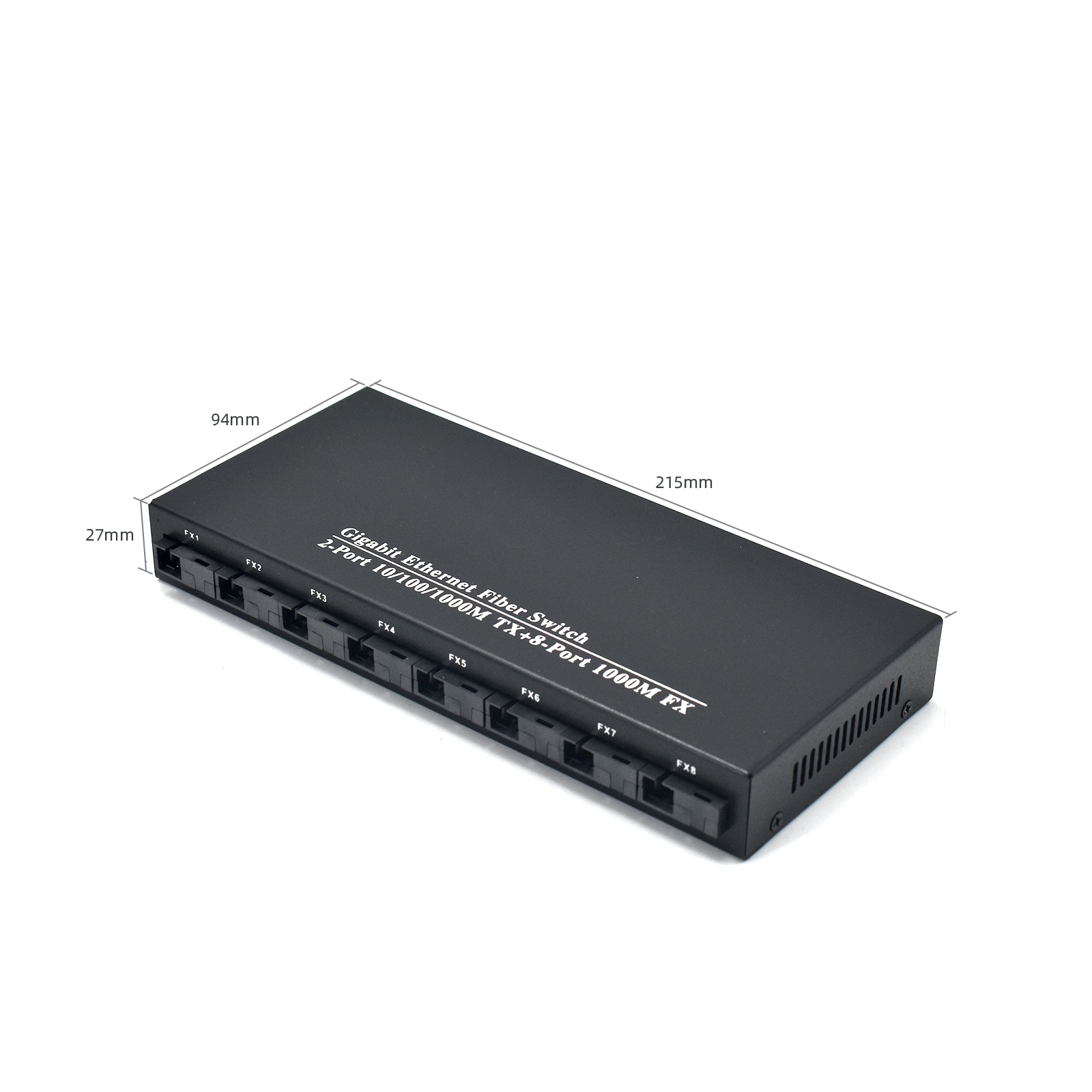

Dimensions 216×104×27mm
Weight 0.5kg
