Gigabit Media Converters

Gigabit Media Converters: industrial, PoE, fiber-to-Ethernet for security. Browse specs for network.

Explore All Gigabit Media Converters

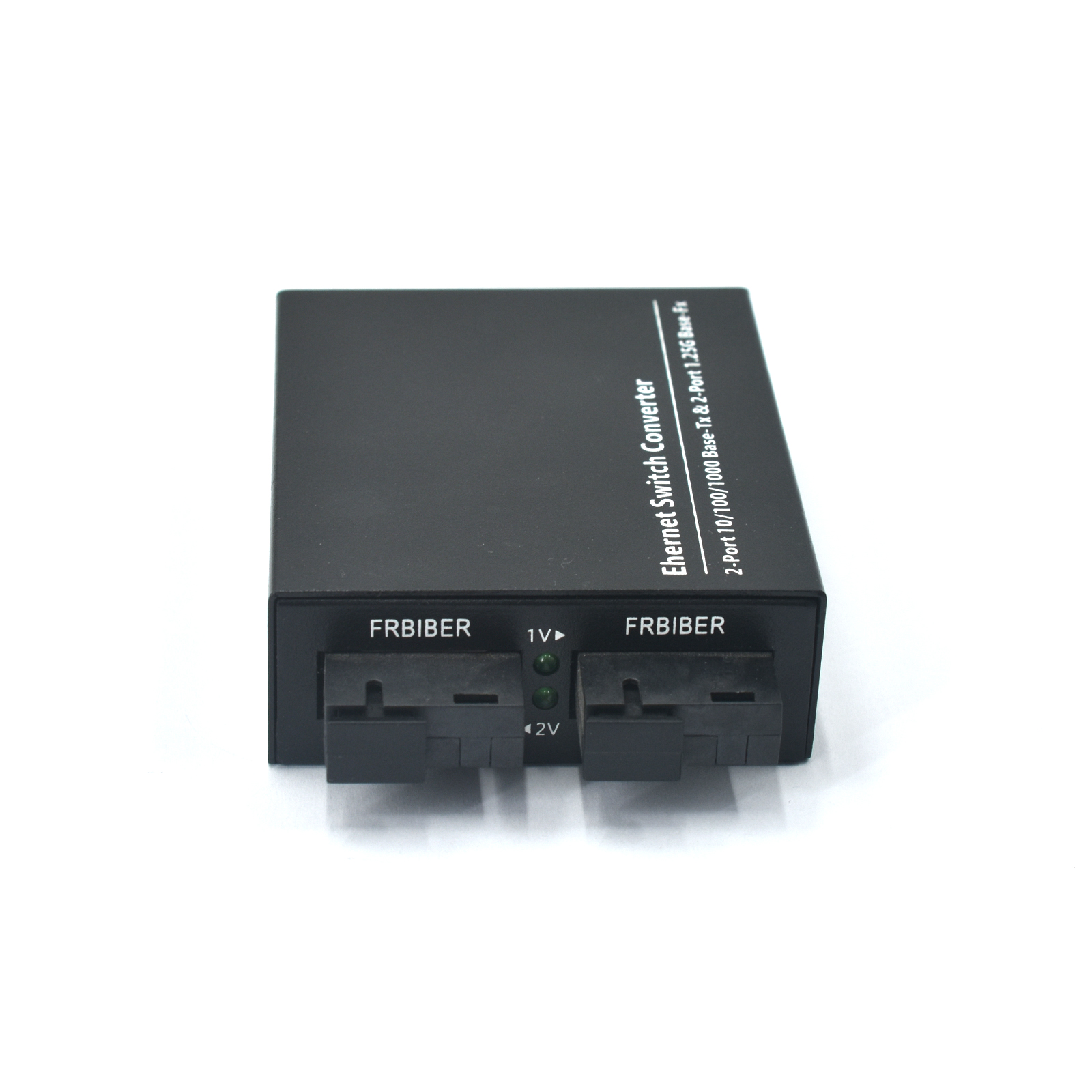

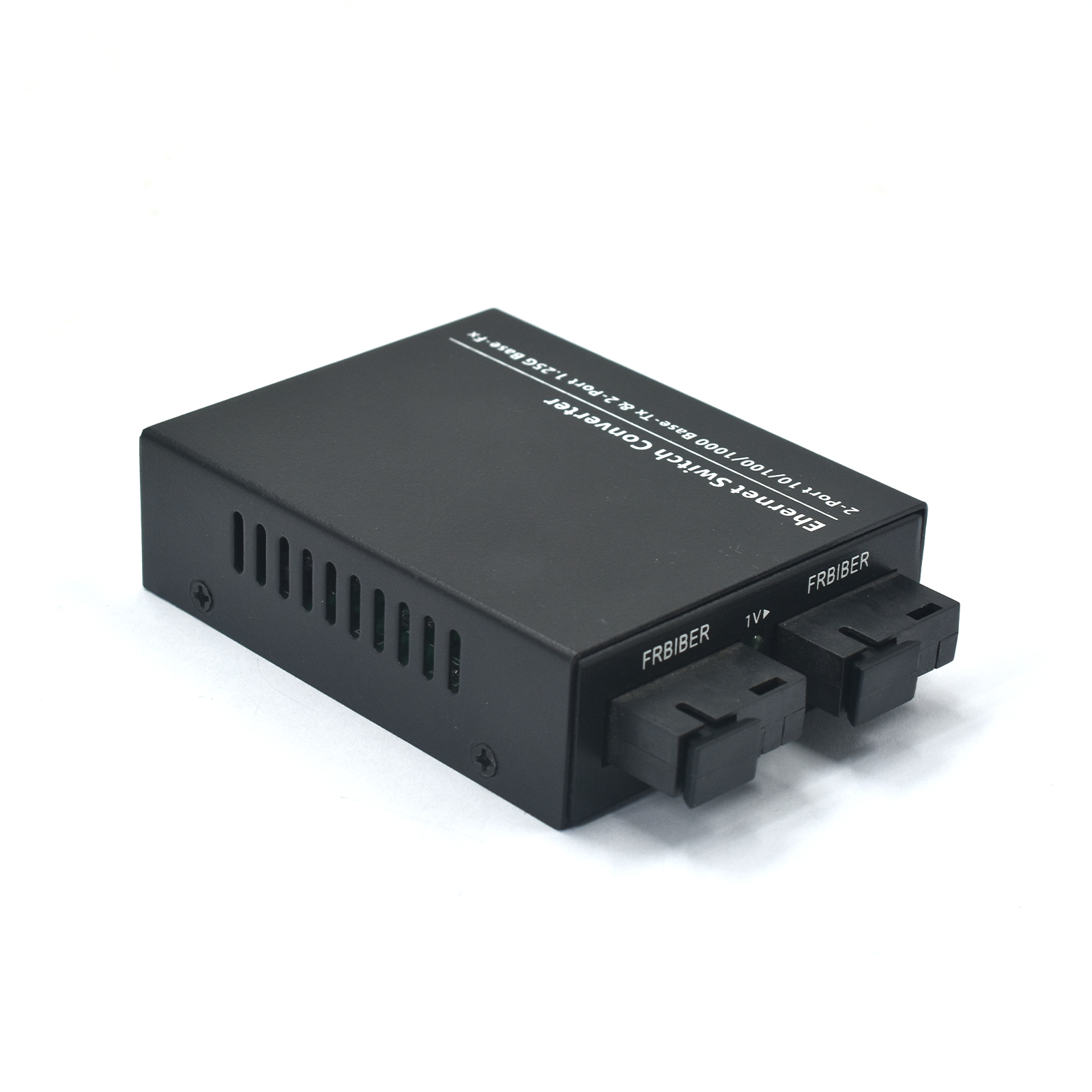

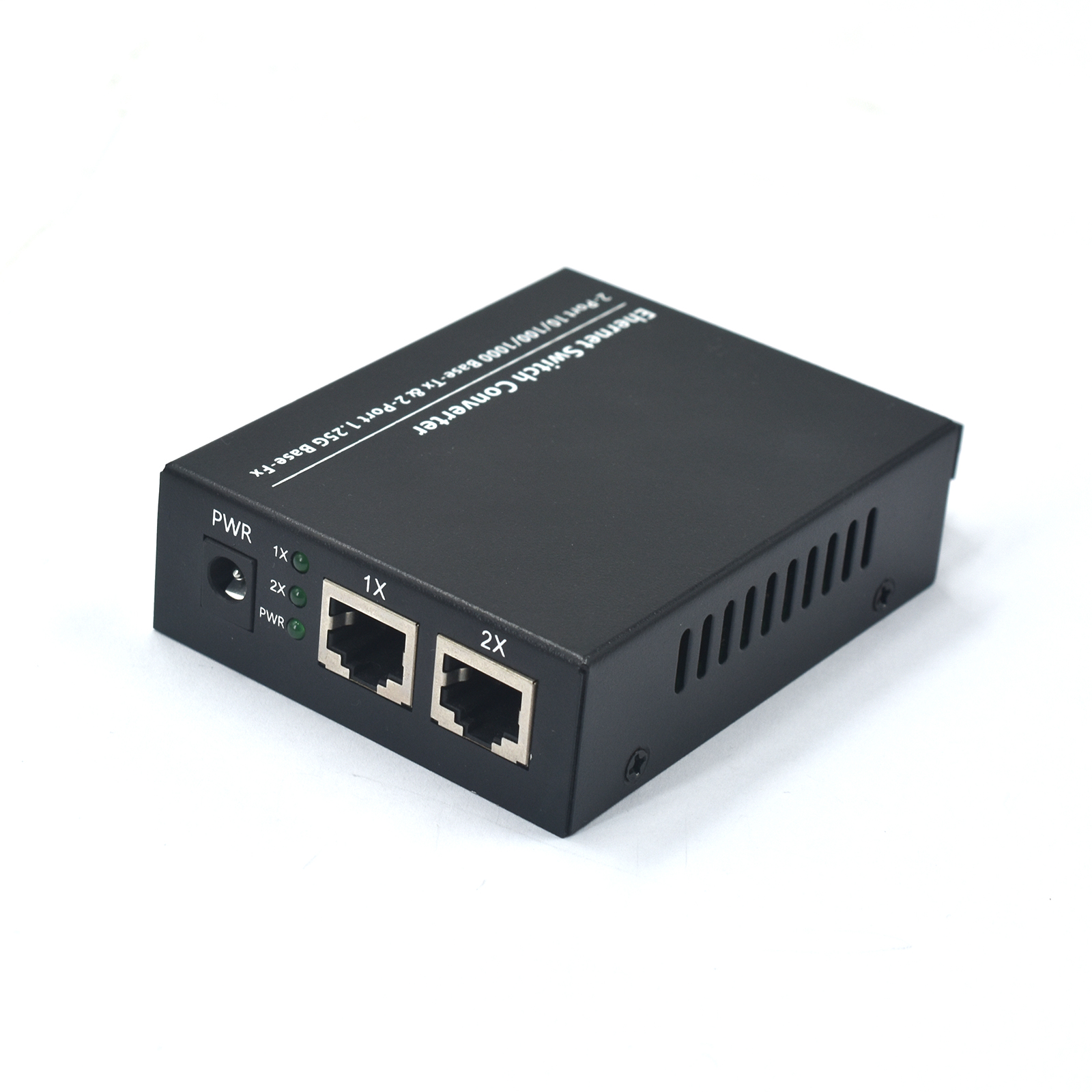

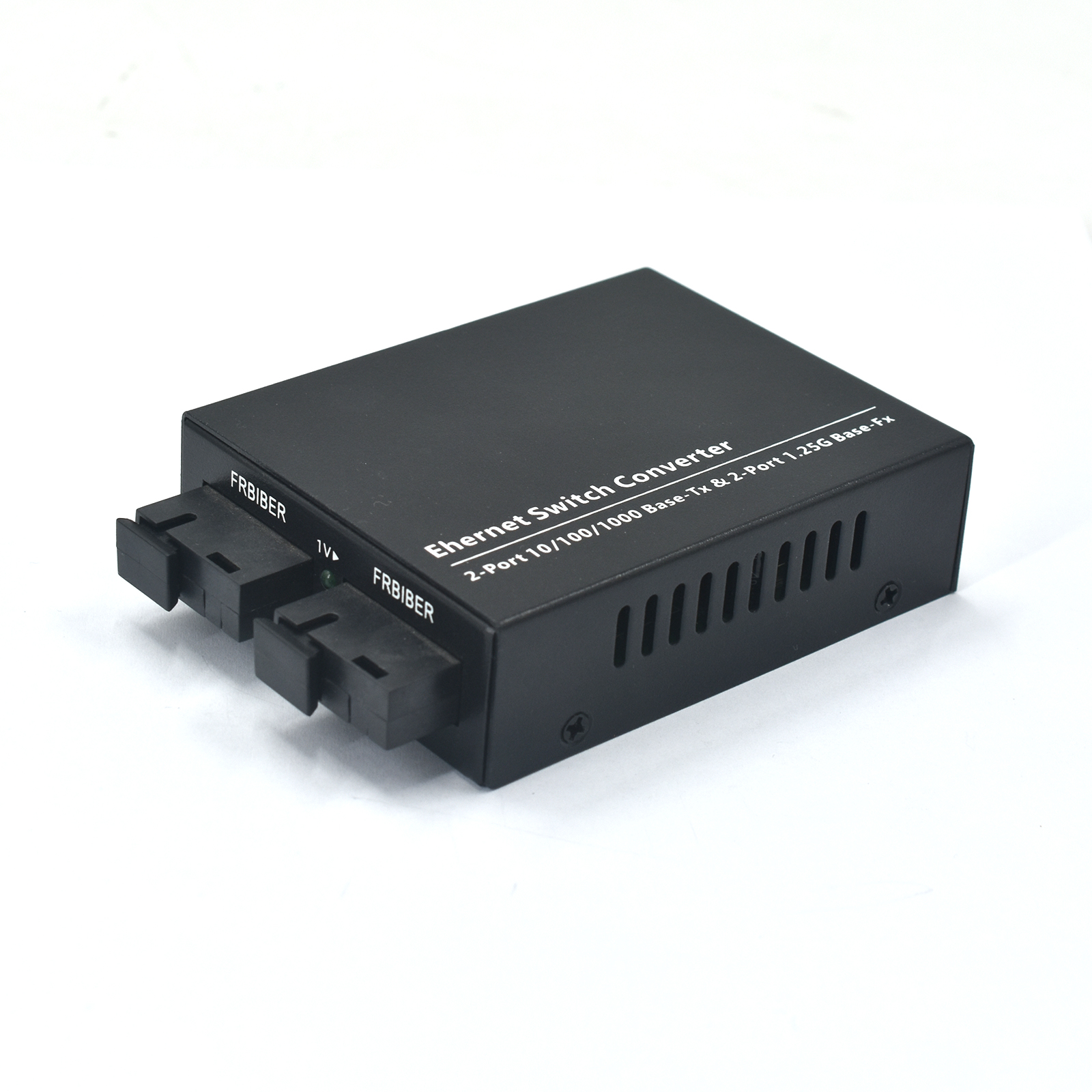

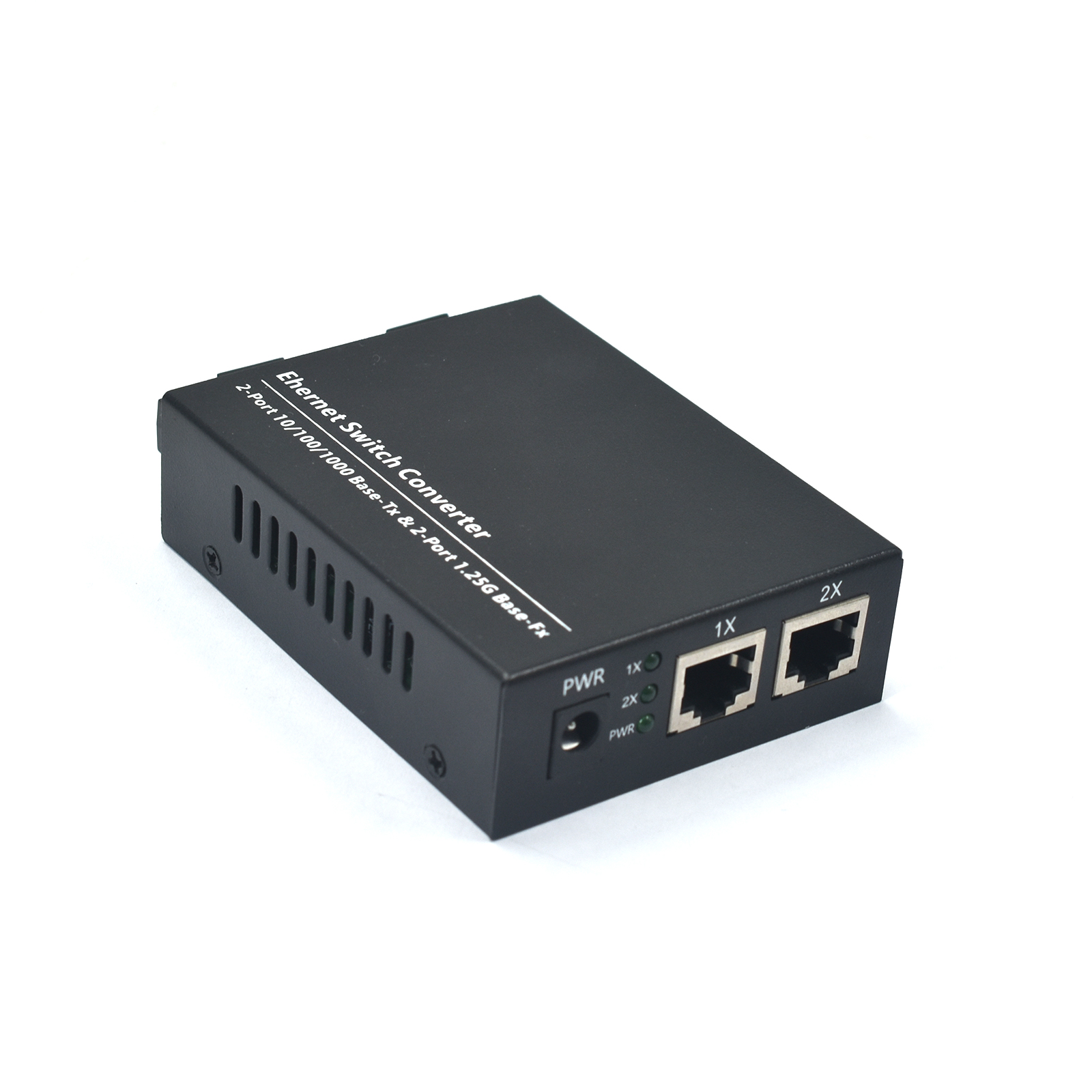

Unmanaged Fiber Transceiver Media Converter, 2 SC Fiber Ports 1.25G, 2 RJ45 10/100/1000Mbps, Desktop/Wall Mount for Office & Industrial Use

This fiber transceiver media converter extends network reach up to 120km via single-mode fiber. Plug-and-play, metal housing, 2 fiber + 2 copper ports. Ideal for CCTV, LAN extension, and industrial setups.

CG202-Mini
Port Description

2 SC fiber ports (1000Base-X, 1.25Gbps) and 2 RJ45 ports (10/100/1000Mbps auto-negotiation, half/full duplex, auto MDI/MDI-X)
  • Plug-and-play – no configuration, just connect and run
  • Jumbo frame support up to 10K for efficient data transfer
  • Metal housing for passive cooling and long-term stability
  • Extends network distance up to 120km with single-mode fiber
  • Works in wide temperature range (-20°C to +60°C)
  • Compact size (88x69x25mm) fits desktop or wall-mounted setups









Extend Your Network Reliably with a Compact Fiber Transceiver Media Converter

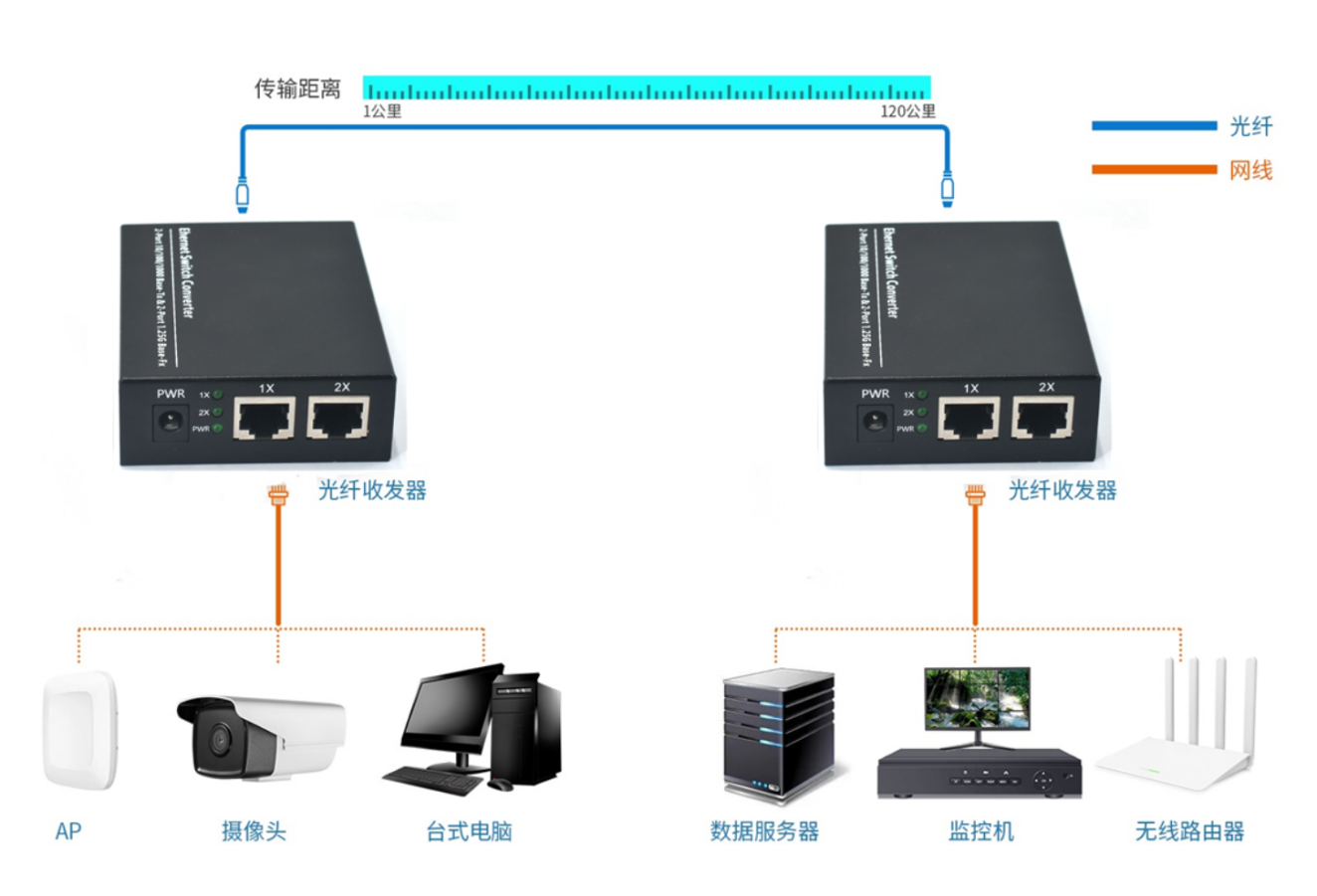

If you need to bridge copper Ethernet and fiber optic cabling without headaches, this unmanaged fiber transceiver media converter is a straightforward solution. It comes with two 10/100/1000Mbps RJ45 ports and two 1000Base-X SC fiber ports that run at 1.25Gbps. The real value here is distance: fiber lets you go from the usual 100-meter limit of twisted-pair cables all the way up to 120 kilometers when using single-mode fiber. That makes it a solid pick for connecting remote buildings, extending IP camera feeds, or linking equipment rooms across a campus.

Setup takes seconds – just plug in the cables and power, no software configuration or extra tools required. The metal housing pulls heat away effectively, so the converter can handle continuous operation in environments where temperatures swing from -20°C to +60°C. It also supports jumbo frames up to 10K, which helps keep data throughput efficient when moving large files or video streams. Whether you’re an IT admin looking to expand an existing network or a system integrator deploying fiber links in a factory, this device gives you reliable media conversion without unnecessary complexity.

Standards & Protocols
IEEE802.3 10Base-T, IEEE802.3u 100Base-TX, IEEE802.3ab 1000Base-T, IEEE802.3z 1000Base-SX/LX, IEEE802.3x Flow Control
Fiber Ports
2 x SC (1000Base-X, 1.25Gbps); Multi-mode: 550m/2km; Single-mode: up to 120km; Wavelengths: 850nm/1310nm (MM), 1310nm/1550nm/1490nm (SM)
Copper Ports
2 x RJ45 (10/100/1000Mbps auto-negotiation, auto MDI/MDI-X, half/full duplex); Cable distance: ≤100m (Cat3/4/5 UTP)
Switching Capacity
8.0 Gbps
Packet Forwarding Rate
5.952 Mpps
MAC Table
8K
Packet Buffer
1M
Jumbo Frame
10K
Power
DC 5V input, consumption < 3W
Indicators
Ethernet port: 1000M (Green); Fiber port: FX (Green); Power: Green
Mechanical
Metal housing; 88×69×25 mm; weight < 0.18 kg; Desktop or wall-mount; Natural cooling (fanless)
Environment
Operating temp: -20°C ~ +60°C; Storage: -20°C ~ +85°C; Humidity: 5% ~ 95% non-condensing
