Designed for IP Camera Deployments That Need Reliability and Reach

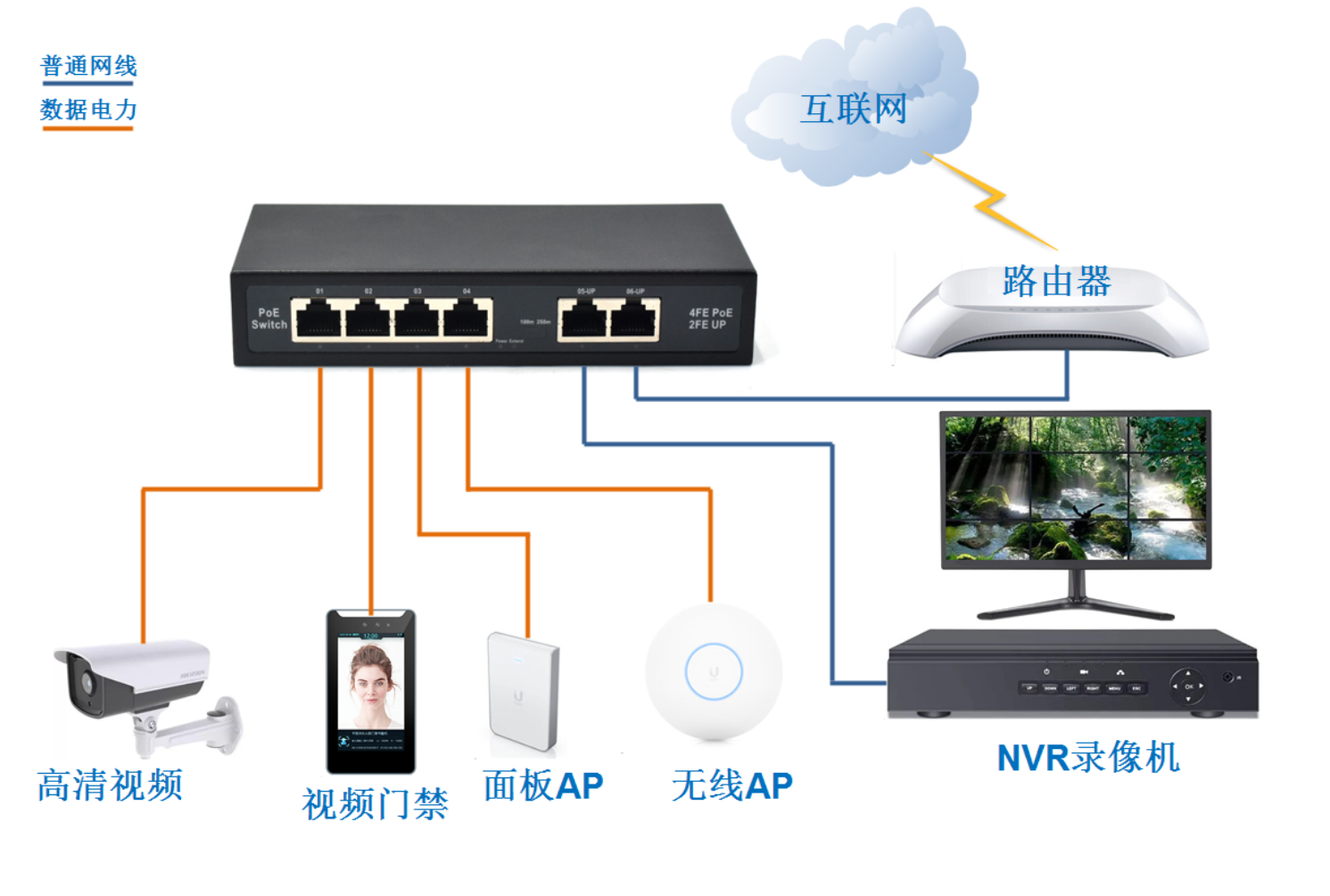

When you’re wiring up a surveillance system—whether it’s a dozen cameras in a retail store or a handful of outdoor units at a small office—the last thing you want is a switch that drops connections or forces you to run extra power cables. This unmanaged PoE network switch for IP cameras is built exactly for those scenarios. It gives you 4 PoE ports (ports 1-4) that follow standard IEEE802.3 af/at, automatically detecting your PoE cameras (or other PDs) and delivering up to 25.4W per port, with a total PoE budget of 65W. That’s enough for most fixed indoor cameras and even some PTZ models. The remaining 2 uplink ports connect back to your main network or NVR.
What really sets this switch apart is the hardware DIP switch. Flip it to Extend mode, and ports 1-4 drop to 10Mbps but can push signals up to 250 meters over standard Cat5e cable. Combined with port isolation that blocks traffic between those ports (they can only talk to uplink ports 5-6), you cut down broadcast storms and keep video streams flowing cleanly. This long-distance PoE switch for IP cameras is perfect when your camera locations are far from the wiring closet—think parking lots, warehouse aisles, or long hallways. The switch also offers optional surge protection (6KV common mode / 4KV differential mode) and an AI watchdog (network self-healing) to automatically reboot a stuck camera. All ports support wire-speed forwarding and auto MDI/MDI-X, so you don’t need crossover cables.

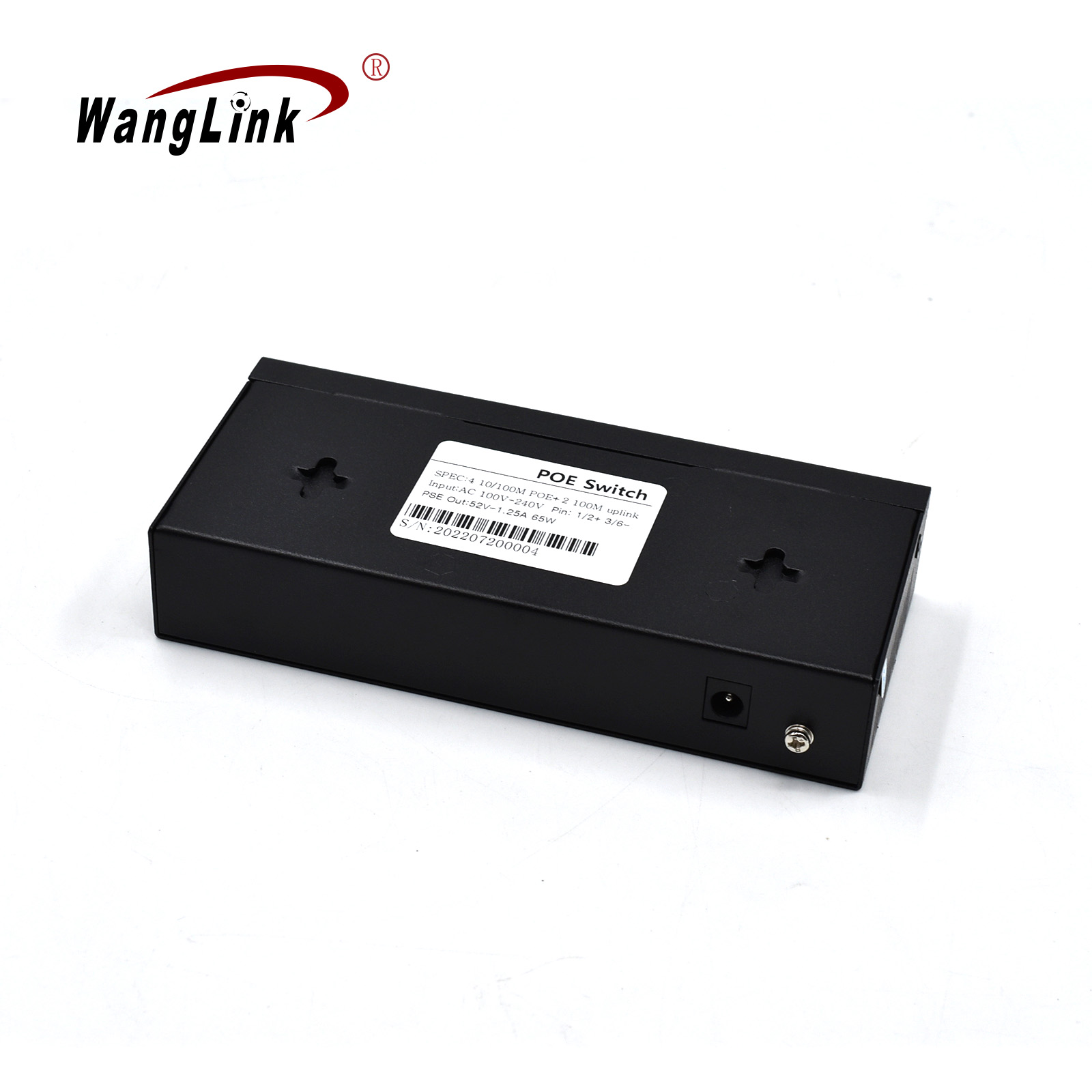

Installation is straightforward: it sits on a desk or mounts on a wall, and there’s zero configuration required. The rugged metal housing (optional according to order) handles -20 to 60°C operating temperature, making it suitable for unventilated enclosures. For network administrators, IT managers, or small business owners who need a no-fuss backbone for their IP camera network, this PoE network switch delivers the distance, isolation, and reliability you’d expect from a dedicated surveillance switch.
