Reliable 24V Passive PoE Switch for Cost-Conscious Small Networks

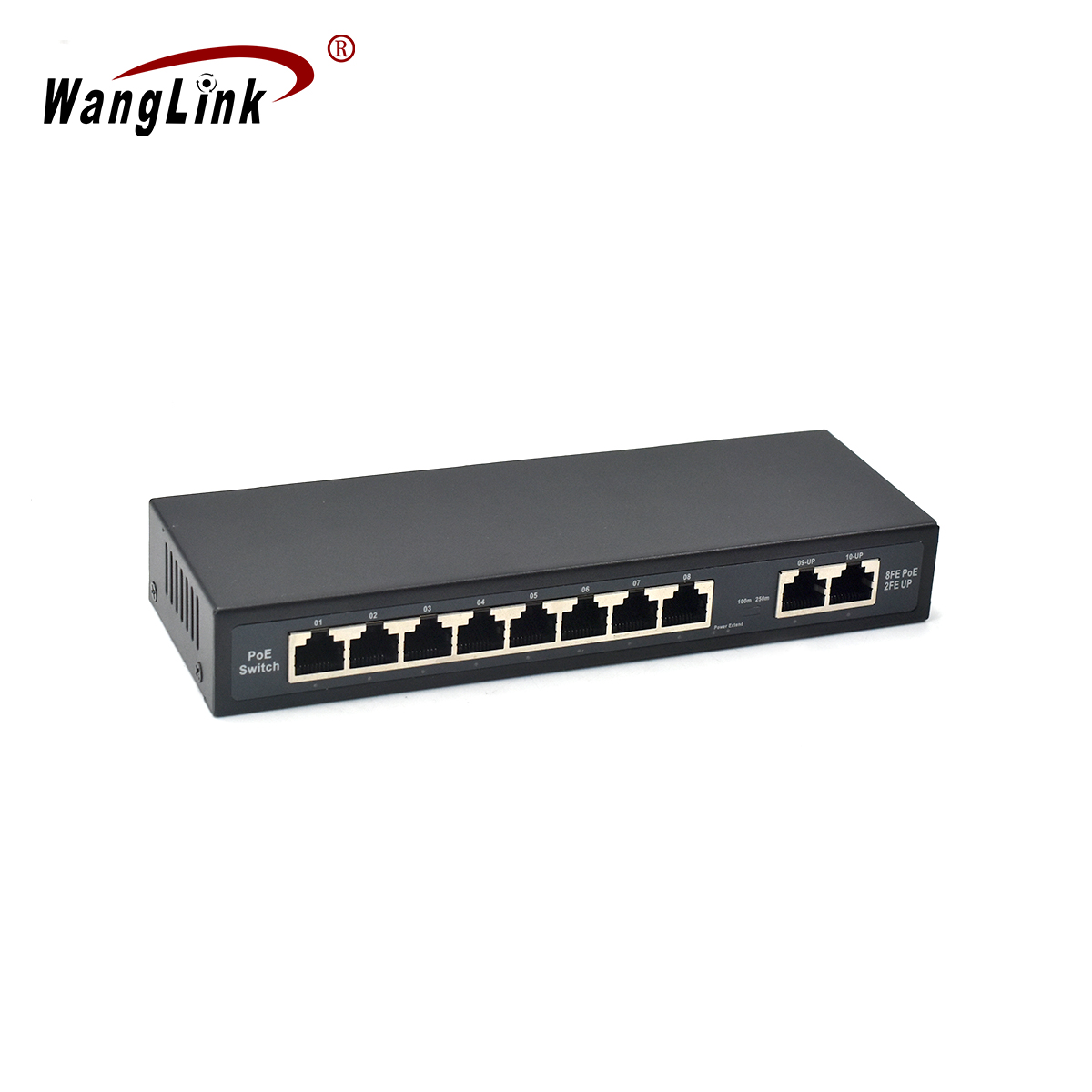

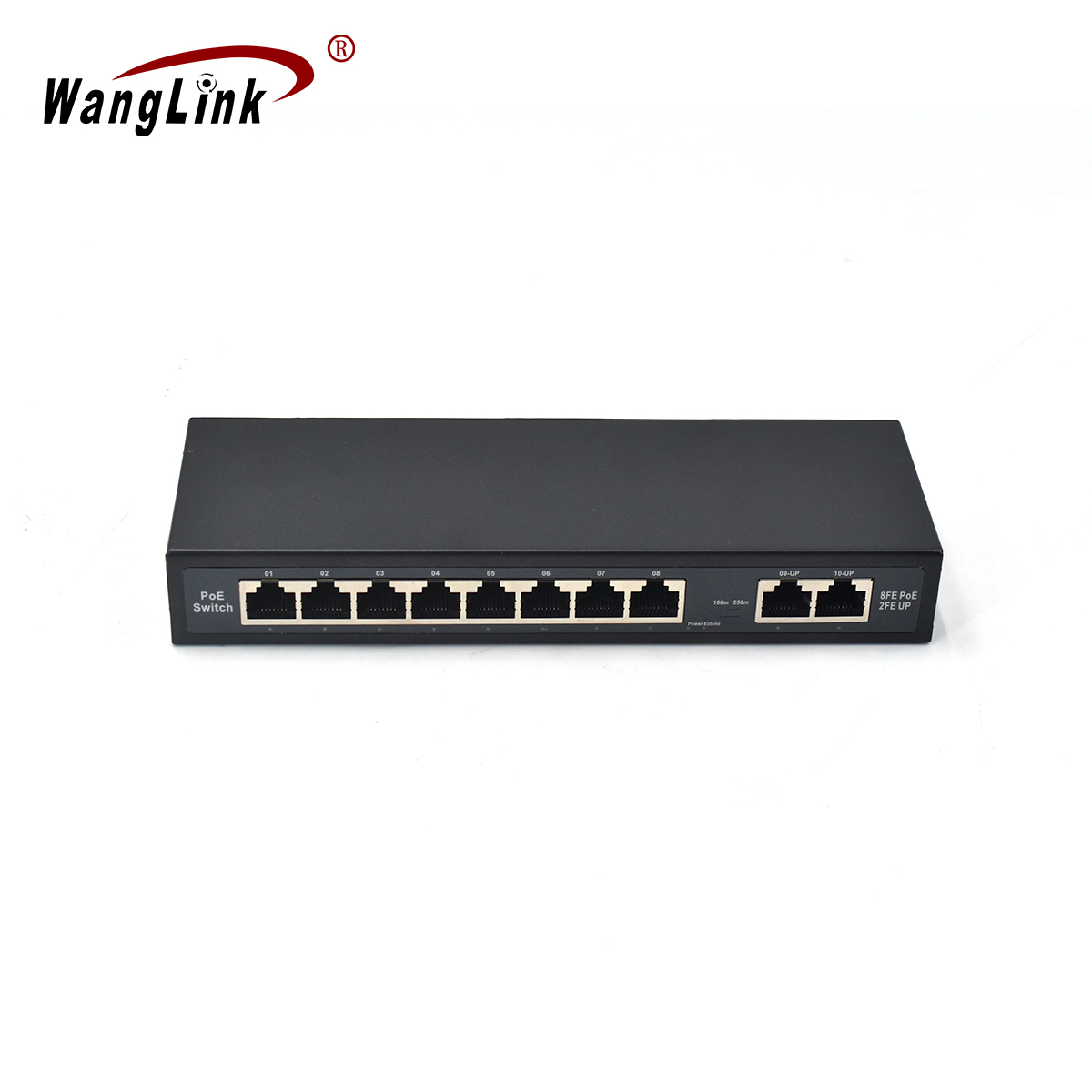

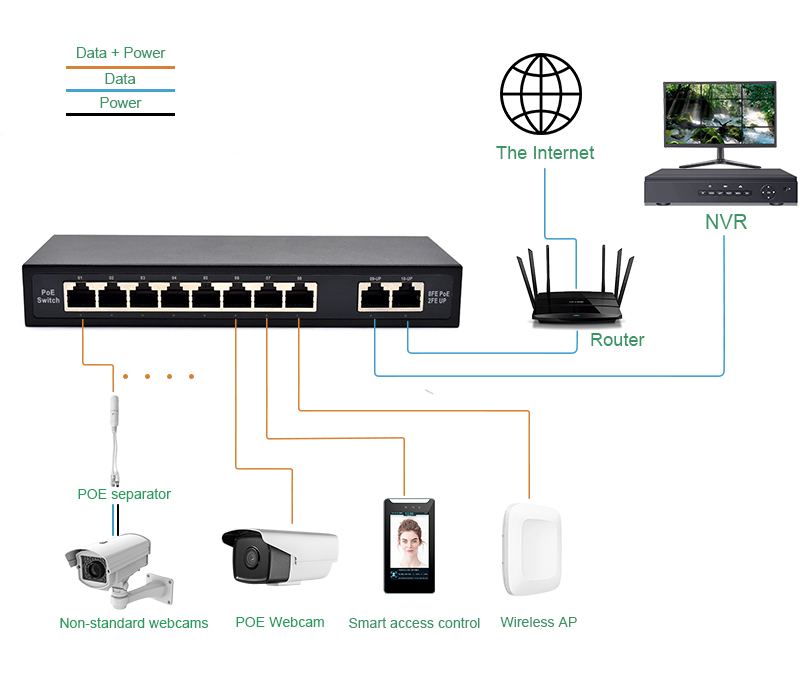

If you’re deploying IP cameras, VoIP phones, or Wi-Fi access points in a small office, warehouse, or retail shop, you don’t need a managed switch with complex VLANs — you need a simple, affordable power-and-data solution. The SF820NP is an unmanaged 10-port Fast Ethernet switch that delivers 24V passive PoE on ports 1-8, each capable of up to 24W (1A). This means you can run standard low-voltage PoE devices without expensive injectors or separate power cabling.

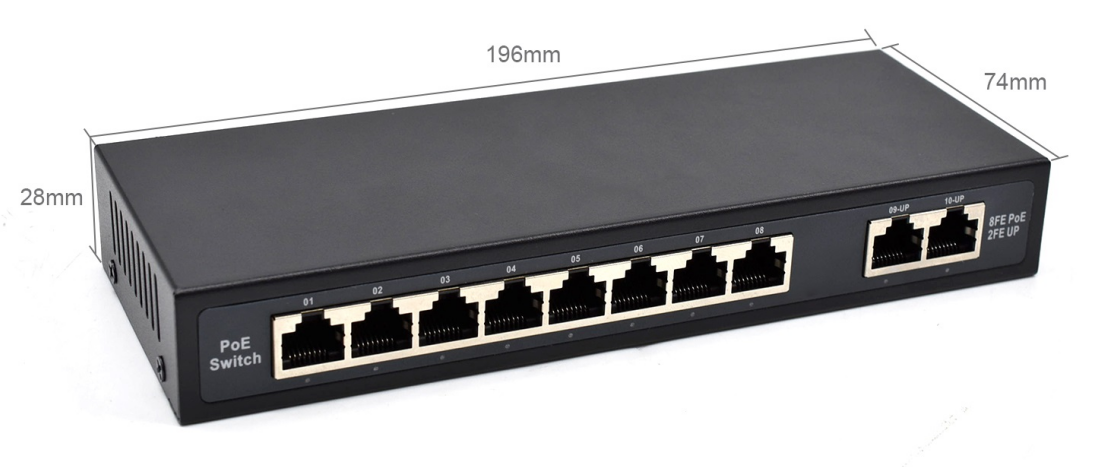

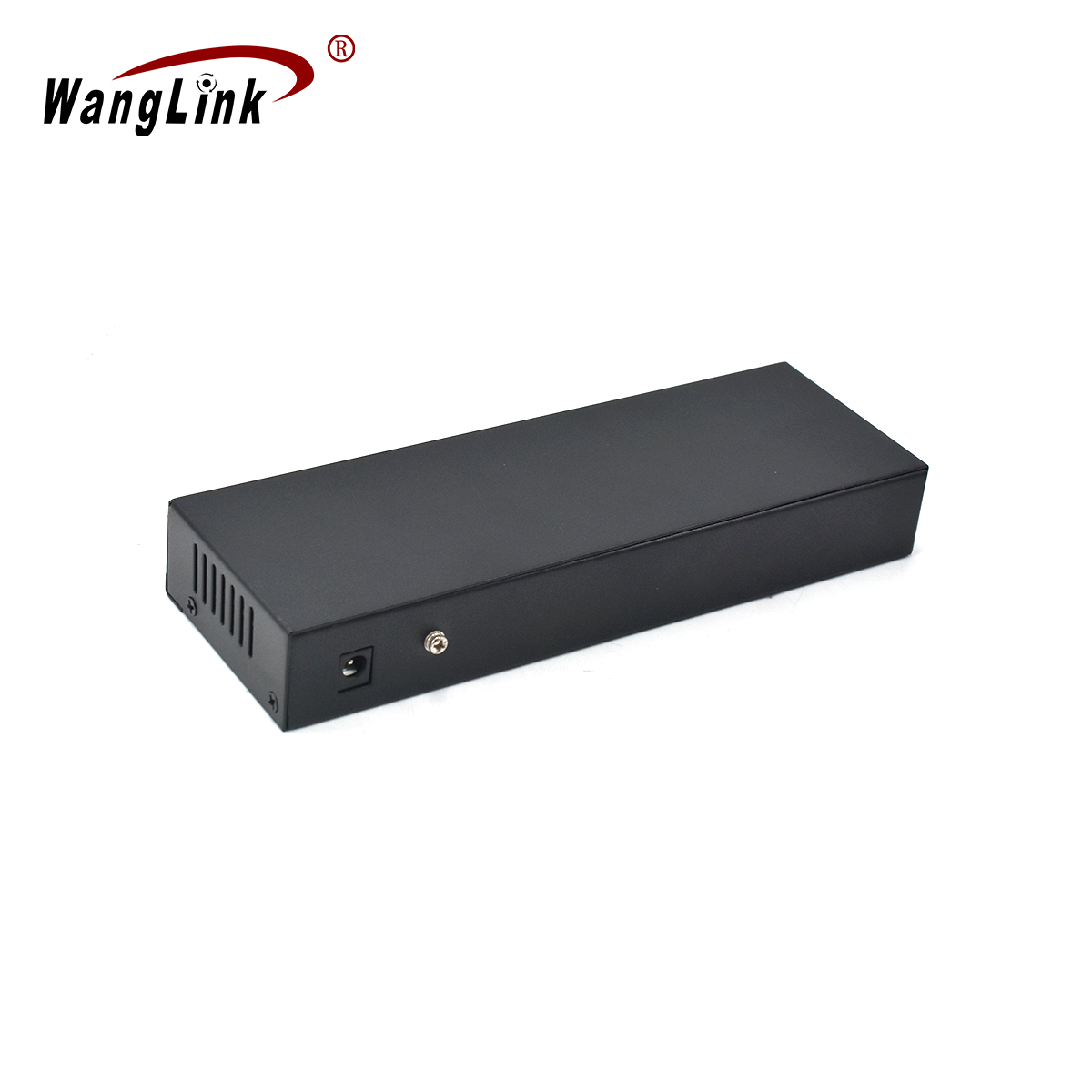

Built with a metal chassis for natural heat dissipation, this 24V passive PoE switch handles continuous operation in environments where temperatures range from -20°C to 60°C. The compact size (196×74×28mm) fits neatly on a desktop or mounts on a wall, making it a space-efficient choice for tight wiring closets or above-ceiling installations.
All 10 ports support auto-negotiation and auto MDI/MDI-X, so you can use straight or crossover cables without thinking about it. The store-and-forward architecture with 2K MAC address table and 1Mb frame buffer ensures smooth forwarding even under moderate traffic. For small businesses that prioritize simplicity and reliability over fancy features, this 24v passive PoE switch is a straightforward workhorse.
- 8 PoE ports (24V passive, up to 24W per port) for powering devices directly
- 2 dedicated uplink ports to connect to your router or upstream switch
- Plug-and-play deployment — no configuration needed, just connect and power
- Metal housing with natural convection cooling for long-term stability
