Practical Power & Distance for IP Surveillance Deployments

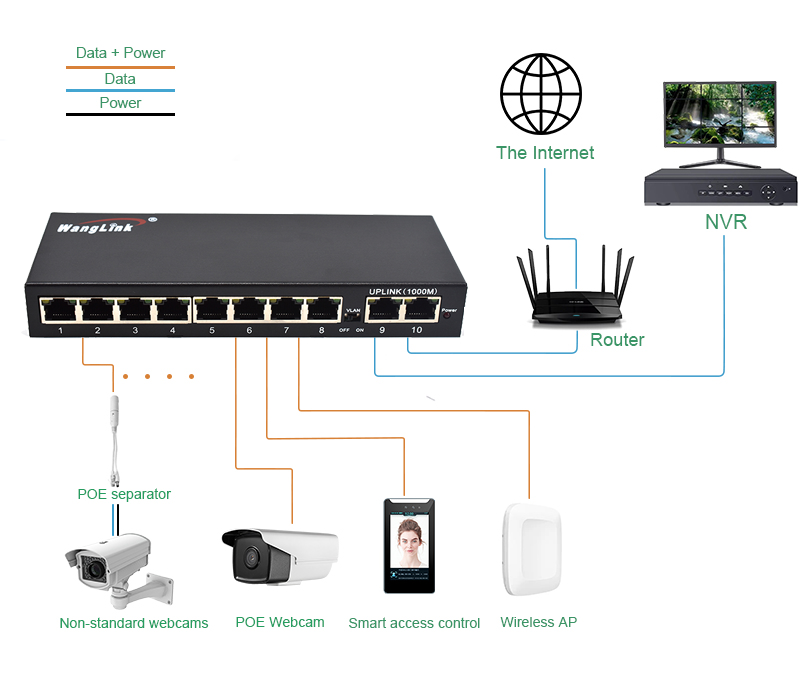

Setting up an 8 port gigabit switch poe for a video surveillance network often hits two snags: power distance limits and broadcast chaos. The SG820NP tackles both head-on. It provides passive PoE (12V or 24V selectable) on all eight downlink ports, following the 4/5+ and 7/8- polarity – exactly what many fixed IP cameras, door access controllers, and older PTZ units expect. No need for extra injectors or messy power cabling near each device.
When you flip the toggle switch to force ports 1-8 into 10Mbps mode, the switch extends transmission up to 250 meters over existing Cat5e or Cat6 cable. That’s a solid answer for long corridors, parking lot corners, or warehouse ceilings where running new cable is expensive or impossible. And because all eight PoE ports are isolated from each other, broadcast storms won’t jump between cameras – they only communicate through the two gigabit uplink ports (ports 9-10). This isolation keeps the network stable even with dozens of cameras streaming simultaneously.

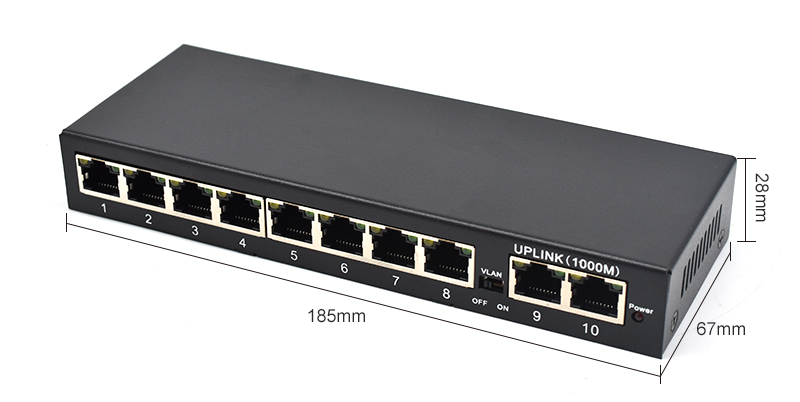

For small to medium hotels, retail shops, supermarkets, or residential complexes with 8-16 cameras, this switch is a straightforward, no-configuration solution. Plug in the cameras, connect the uplink to your main router or NVR, select the voltage that matches your devices, and you’re live. The metal shell dissipates heat passively (no fan noise), and the external power adapter keeps the unit slim enough for desktop or shelf placement.
