16 Ports Gigabit PoE++ Switch with Digital Power Meter – Built for IP Camera Deployments and Small Business Networks
If you are running IP cameras across a hotel, supermarket, office, or multi-floor building, the 16 ports Gigabit PoE++ switch with digital power meter gives you a single box to power and connect up to 16 Gigabit PoE devices. Port 1 outputs up to 60W per the IEEE 802.3bt PoE++ standard, which is useful for pan-tilt-zoom cameras, high-power outdoor APs, or slim LED displays. Ports 2-16 each deliver up to 30W PoE+ (IEEE 802.3af/at), covering standard IP cameras, VoIP phones, and Wi-Fi access points. The built-in digital power meter shows the total PoE power draw in real time, so during installation you can see exactly how much headroom you have without guessing or using a separate tester.
This switch does not require any configuration. Plug in compliant PDs and it automatically detects whether the device needs PoE, then supplies power only to those that support it – so non-PoE devices stay safe. In addition, two one-key modes solve common network headaches. The 10M mode extends the transmission distance on ports 1-16 up to 250m using existing CAT3 or CAT5 cabling, ideal for long-run camera wiring. The VLAN mode isolates ports 1-16 from each other while still allowing them to communicate with the two RJ45 uplink ports and the SFP slot, which cuts down broadcast storms and keeps surveillance traffic contained.
- 16× 10/100/1000Base-T PoE ports: Port 1 supports IEEE 802.3bt PoE++ up to 60W; Ports 2-16 support IEEE 802.3af/at up to 30W
- 2× 10/100/1000Base-T uplink ports plus 1× 1000Base-X SFP slot for fiber backbone or daisy-chain uplinks
- Digital power meter displays total PoE power consumption for easy on-site troubleshooting
- One-key 10M mode extends PoE port transmission up to 250m
- One-key VLAN mode isolates ports 1-16 to reduce broadcast domains and improve network efficiency
- Metal housing, built-in AC power supply, and natural cooling for stable 24/7 uptime

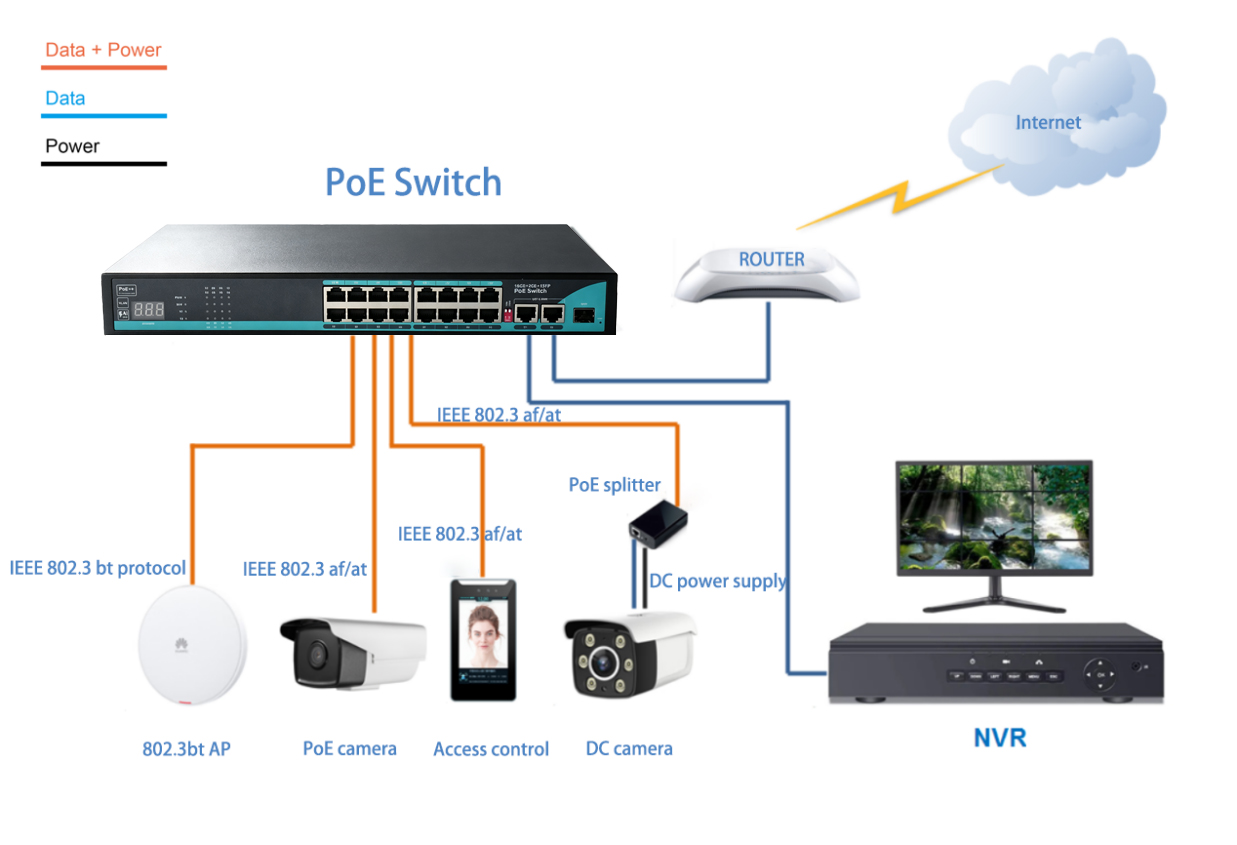

For an IT admin or installer, with 16 ports, this Gigabit PoE++ switch with digital power meter fits perfectly into small to medium video surveillance projects where distance, budget, and ease of deployment matter. You get the flexibility of two copper uplinks and one SFP fiber uplink, so the switch can work as a top-of-rack aggregation point or a PoE edge switch in a distributed network.
