Real-World PoE Switching for Surveillance and Small Business
Setting up a reliable network for IP cameras or office workstations often hits two snags: cabling distance and power delivery. This 24 port PoE smart switch addresses both head-on. It gives you 24 gigabit PoE ports — 23 supporting IEEE 802.3af/at (up to 25.4W per port) and a dedicated port that pumps out 60W via PoE++ for high-power devices like PTZ cameras or wireless APs. The switch auto-detects PoE compliant devices and protects non-PoE gear, so no fried equipment.
What sets it apart is the DIP switch on the front. Flip it to activate VLAN isolation mode, which separates ports 1-24 from each other while keeping them connected to uplink ports (25-28). This cuts down broadcast storms and collision domains — a real headache-saver in crowded surveillance networks. Another flip gives you 250-meter transmission at 10M over standard twisted pair, perfect for outdoor cameras or gateways where long runs are needed. A small digital tube on the panel shows real-time PoE power utilization, so you know exactly how much headroom you have.

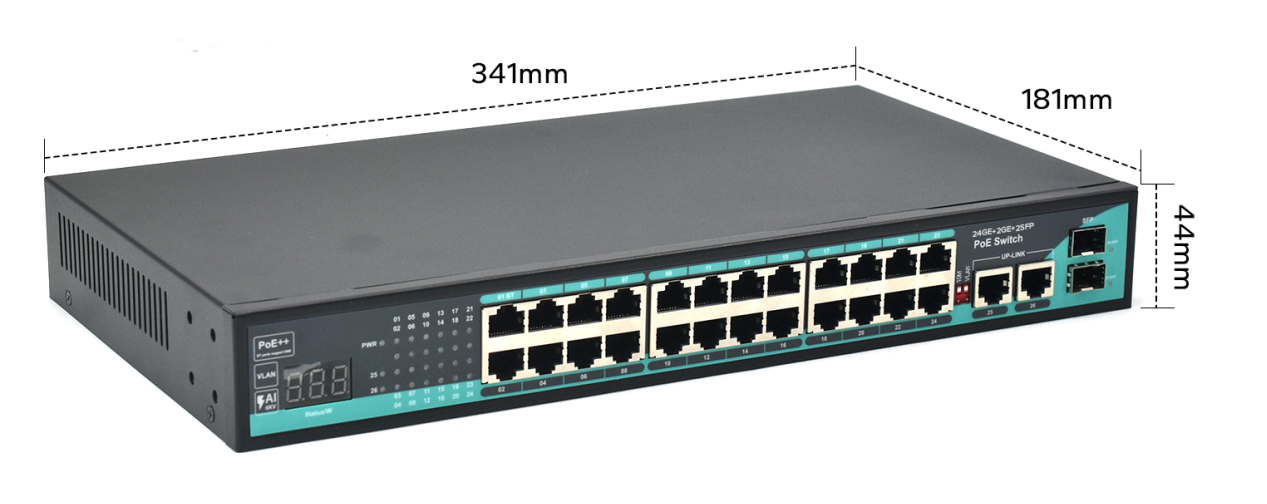

Hardware-wise, it’s built for continuous operation. The metal shell acts as a heatsink (no fan, no dust buildup), and the internal power supply handles AC100-240V. You can desktop it or wall-mount it. For extra peace of mind, optional surge protection (6KV common mode / 4KV differential mode) and an AI watchdog that auto-restarts a port if data communication stops for about 3 minutes are available. This switch is plug and play — zero configuration needed, yet the smart VLAN and long-distance modes give you control without complexity.

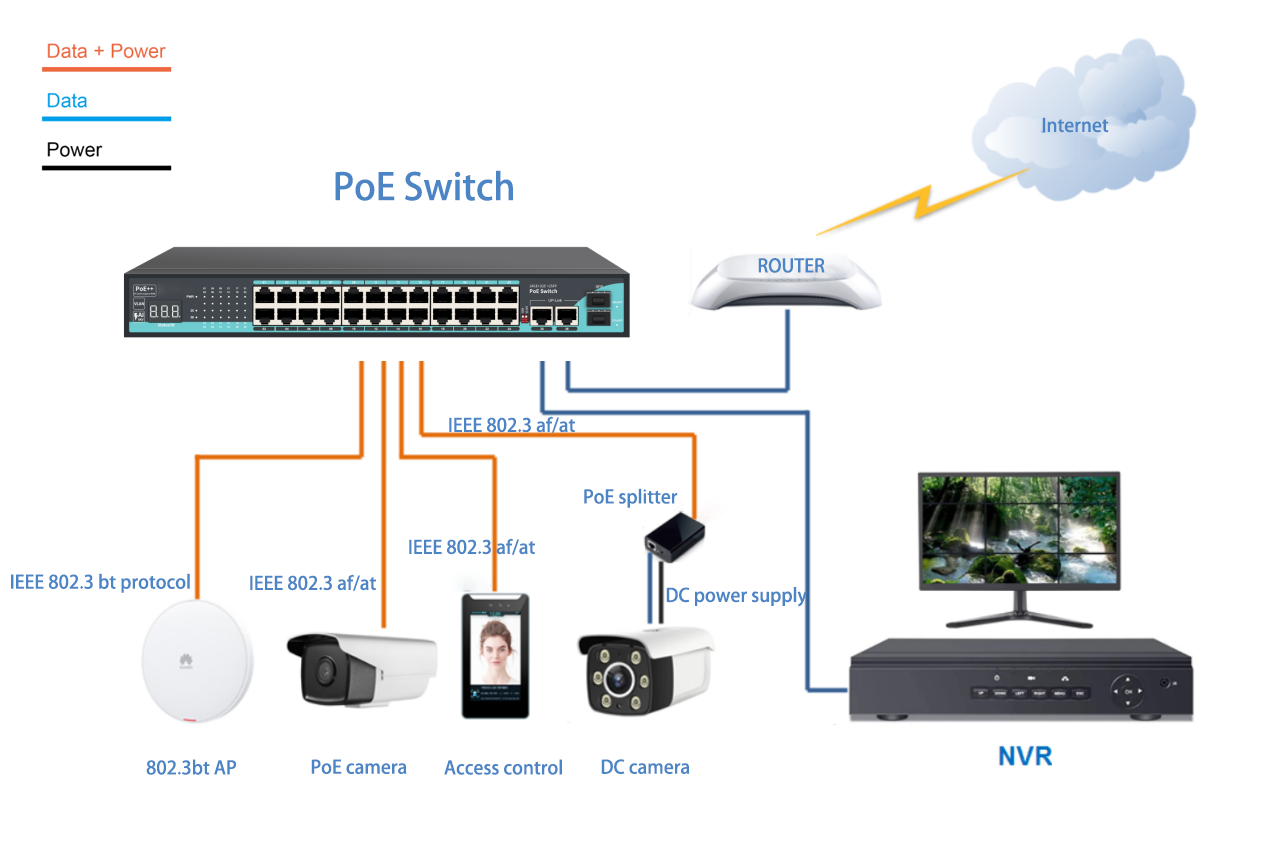

Who is this for? IT admins deploying IP cameras in hotels, shops, supermarkets, or residential complexes. SMEs that need a cost-effective, stable backbone for their office LAN. Network installers who want a hassle-free device that just works out of the box.
