What Makes This 4 Channel PoE Switch Different for Your Network?
If you’re setting up a small surveillance system or expanding an office LAN, you’ve probably hit the wall with distance limits or power budget issues. This unmanaged 4 channel PoE switch gives you exactly what you need without the complexity of managed gear. It’s a straightforward workhorse: six Gigabit ports total, with four of them delivering Power over Ethernet. One port (port 1) supports IEEE 802.3bt PoE++ up to 60W — enough to drive a high-power PTZ camera or a Wi-Fi 6 access point. The other three PoE ports (ports 2-4) deliver 25.4W each per IEEE 802.3af/at, covering most standard IP cameras and VoIP phones.
Here’s the real kicker for long runs: flip the DIP switch, and ports 1-4 drop to 10 Mbps but extend transmission up to 250 meters over existing twisted-pair cable. That’s a lifesaver when you’re trying to reach a far corner of a warehouse or a parking lot. At the same time, those four ports enter VLAN isolation (they cannot talk to each other), which cuts broadcast storms and improves security — perfect for isolating camera traffic from the rest of your network. The two uplink ports (5-6) remain open for upstream connections.
No configuration, no software headaches. Just plug in your PoE devices, and the switch auto-detects whether the powered device supports PoE before delivering power, so non-PoE gear stays safe. The front digital tube shows you the current PoE power usage percentage at a glance — handy for planning expansion. The metal case dissipates heat naturally (no noisy fan), and you can set it on a desk or mount it on a wall. For extra peace of mind, an optional surge protection (6KV common mode / 4KV differential mode) and AI watchdog (auto-restart port if no data traffic for ~3 minutes) are available.

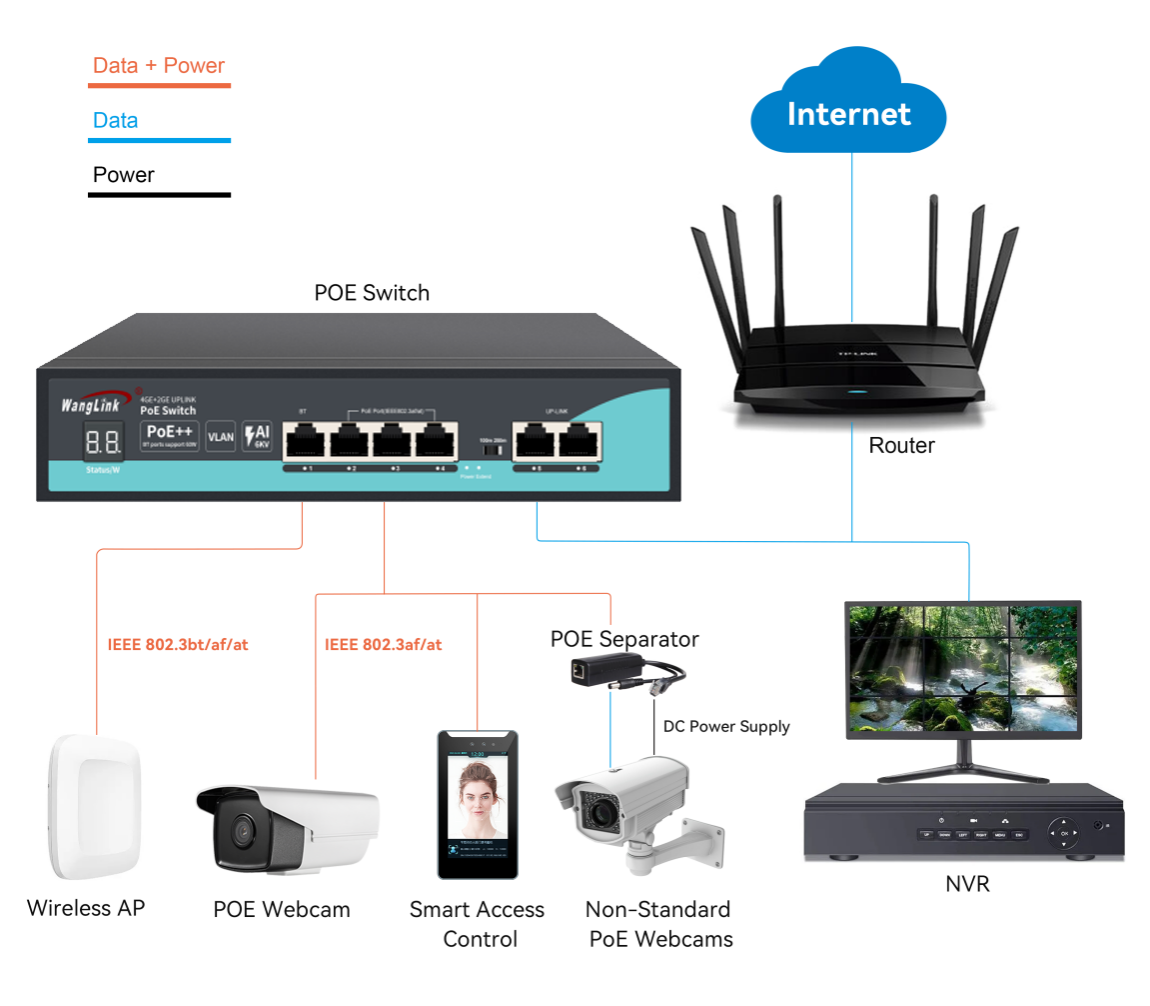

Who uses this? Hotel maintenance teams deploying cameras in corridors, small retail shops integrating POS and IP cameras, IT admins setting up remote monitoring in multi-tenant buildings, and any small-to-medium business that needs reliable PoE without the IT overhead.
