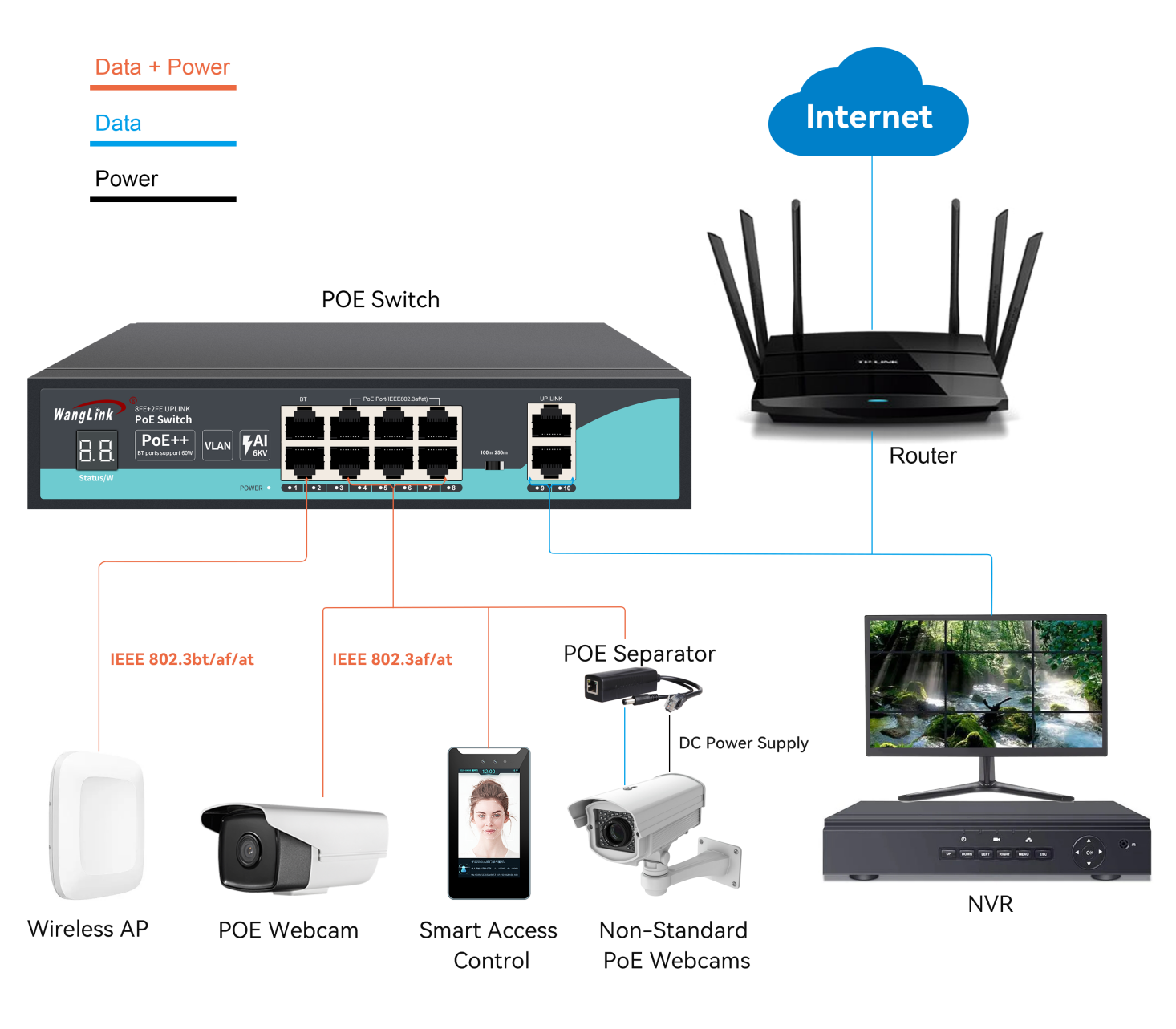

Built for Real-World Surveillance and Small Business Networks
If you’re setting up IP cameras in a hotel, shop, or warehouse, or expanding your small office network, this 10 port PoE switch handles the job without extra configuration. It gives you 8 PoE ports—one of them delivers up to 60W for high-power devices like PTZ cameras or wireless access points, while the other seven provide standard 25.4W per port for typical PoE gear. The two uplink ports (ports 9 and 10) connect to your router or upstream switch, keeping data flowing smoothly.
What makes this switch stand out in daily use is the DIP switch on the front. Flip it to ‘Extend’ mode, and ports 1–8 drop to 10Mbps but push signal up to 250 meters over existing Cat5e cable—a real lifesaver when the camera is far from the wiring closet. In the same mode, those ports are isolated from each other to cut broadcast storms, while they can still talk to the uplink ports. Switch back to standard mode, and all ports communicate normally. No software, no VLAN configs, just a physical switch.
For IT admins and facility managers, the digital tube on the panel shows PoE power usage percentage at a glance—no need to log into a web interface. The metal casing helps with heat dissipation, and the internal power supply means one less bulky adapter to deal with. It’s desktop-friendly and also wall-mountable with the included brackets.
- 1 PoE++ port (60W) for high-power PDs like PTZ cameras
- 7 PoE+ ports (25.4W each) covering most IP cameras, phones, and APs
- DIP switch toggles between standard switching and 250m extend mode with VLAN isolation
- Digital tube displays real-time PoE budget utilization
- Plug and play – no configuration needed
- Metal housing, internal power, desktop and wall mount
Whether you’re wiring up a small hotel with 8 cameras or adding a few PoE devices in a retail store, this 10 port poe switch keeps installation simple and operation stable.
