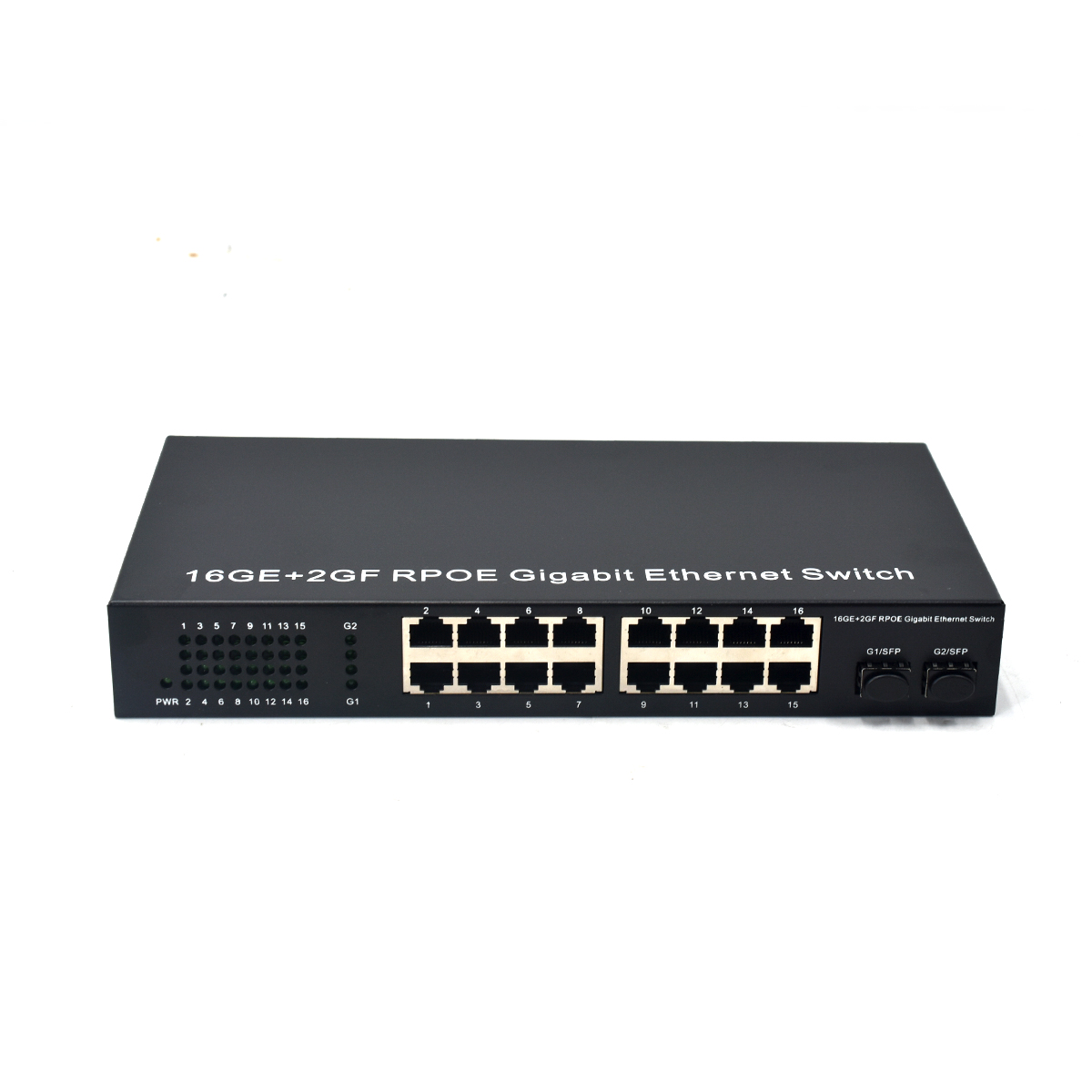

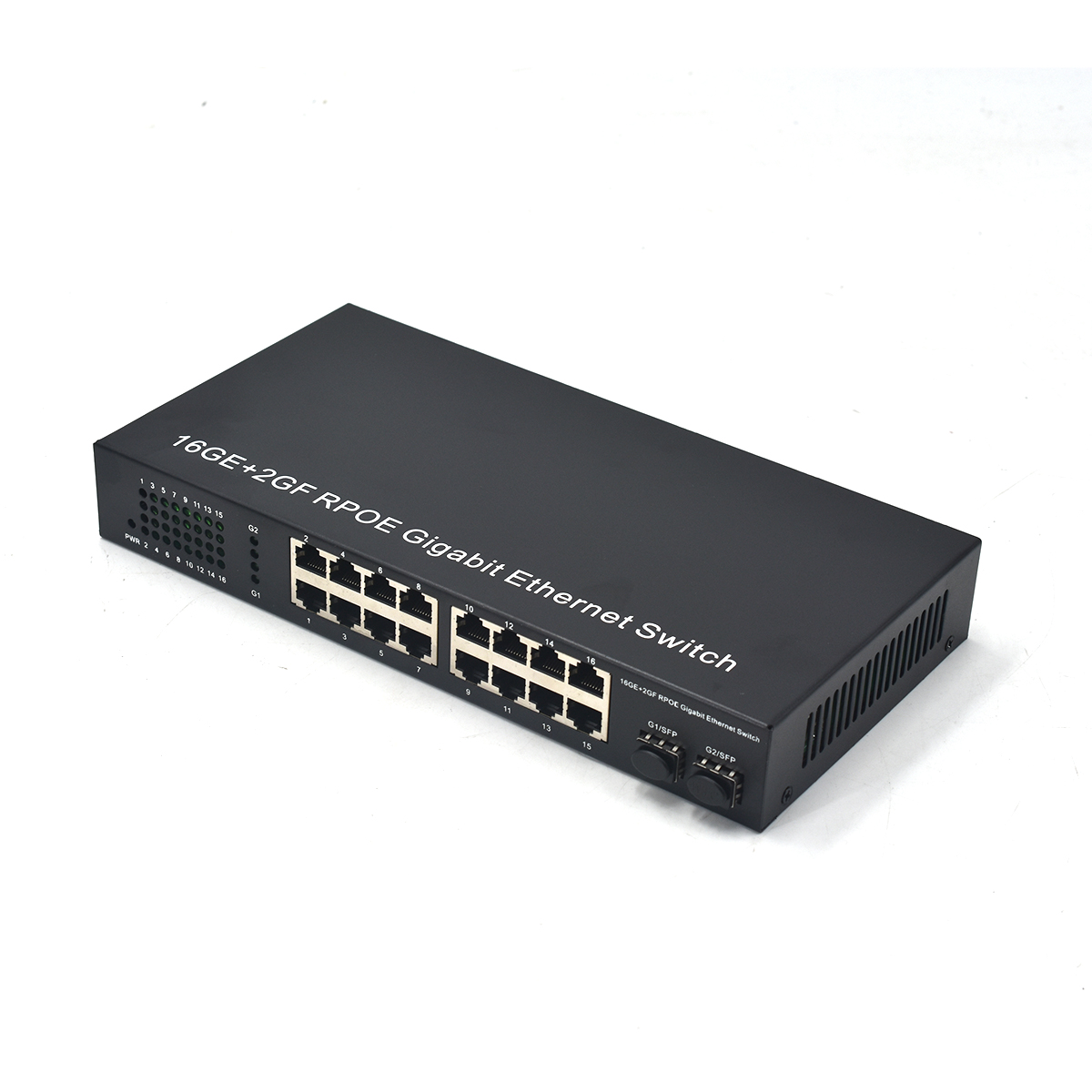

Unmanaged PoE Powered Network Switch, 16 Gigabit Ports with 2 SFP Fiber Uplinks, Desktop Metal Case for Remote Power Input

16-port Gigabit PoE powered network switch with 2 SFP fiber uplinks. Accepts PoE input on ports 1-15, provides PoE output on port 16 plus DC 12V. Plug-and-play, metal case, ideal for remote or hard-to-power locations.

SG1602RP
Port Description

16 Gigabit ports (ports 1-15: PoE input; port 16: PoE output), 2 SFP fiber slots (1.25G), 1 DC 12V output jack
  • PoE powered network switch – accepts PoE input on ports 1-15, no local AC required

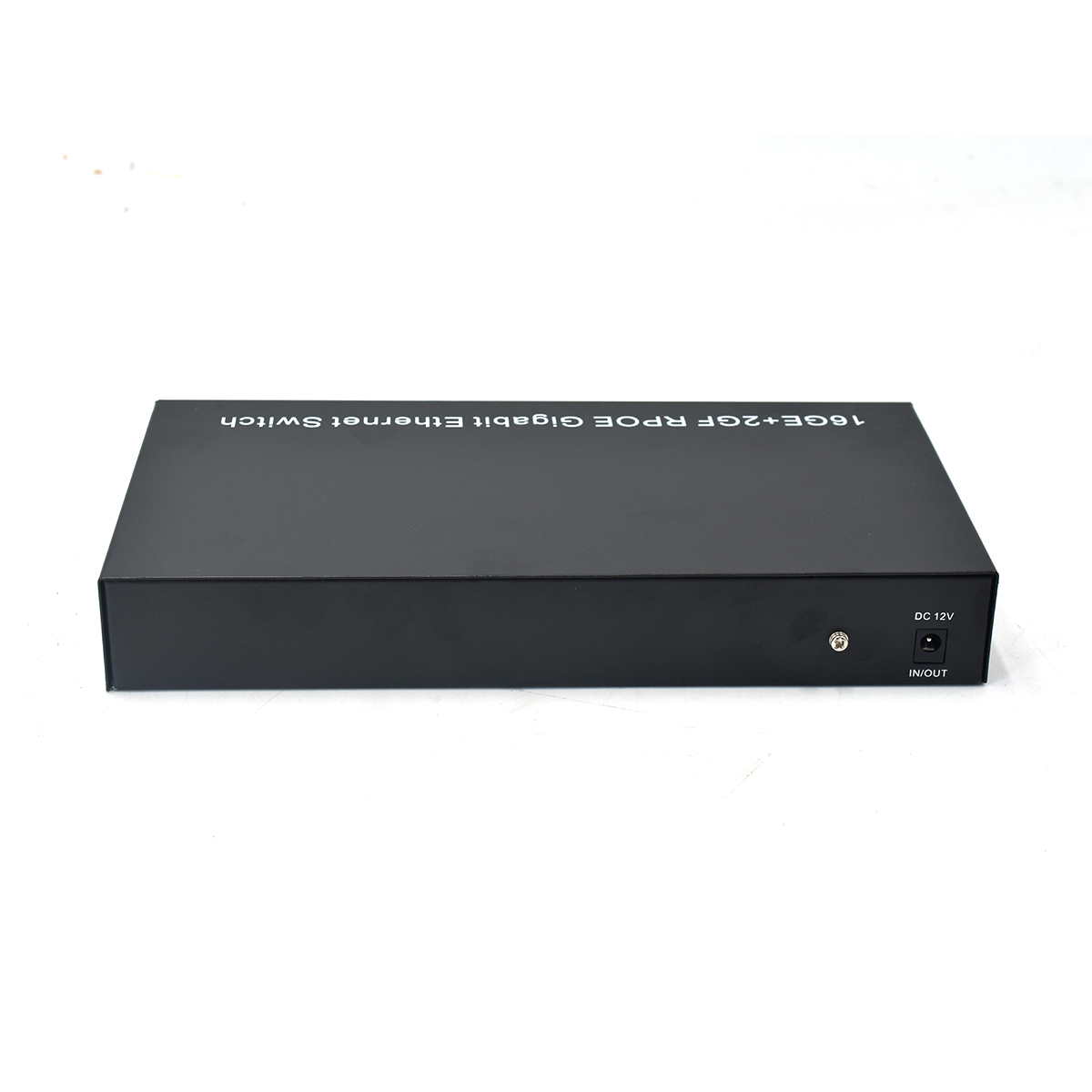

  • PoE output on port 16 plus a DC 12V jack for powering additional devices
  • 2 SFP fiber slots for long-range connectivity up to 100km
  • Plug-and-play, unmanaged – no configuration needed, reduces deployment time
  • Metal enclosure, passive cooling, works from -20°C to +60°C
  • 4KV common mode / 2KV differential mode surge protection
  • Supports 10K jumbo frames for efficient large data transfers









Why This PoE Powered Network Switch Fits Tough Deployments

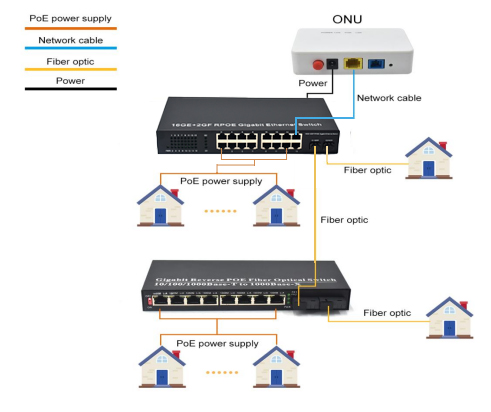

When you’re setting up cameras or access points in a parking lot, warehouse, or outdoor kiosk, running a dedicated power cable often becomes the bottleneck. The SG1602RP is a PoE powered network switch that flips the script: instead of needing its own AC adapter at the installation point, it draws power directly through its Ethernet ports (ports 1-15 support PoE input at 12-24V). That means you can power this switch from a remote PoE injector or another PoE switch located in a convenient spot, then use port 16 to daisy-chain power to a downstream device or use the built-in DC 12V output jack for a small router or sensor.

For IT managers who need to cover long distances, the two SFP fiber ports (1.25G each) let you connect sites up to 100km apart without signal loss. The switch is unmanaged, so there’s zero configuration—plug in the fiber transceivers, connect your copper devices, and it just works. The metal case and fanless design handle -20°C to +60°C, making this PoE powered network switch a reliable workhorse for industrial environments, temporary event networks, or security installations where reliability matters more than fancy management features.

Standards IEEE802.3 10Base-T, 802.3u 100Base-TX, 802.3ab 1000Base-T, 802.3z 1000Base-SX/LX, 802.3x Flow Control
Ports 16 x 10/100/1000M RJ45 (ports 1-15 PoE input, port 16 PoE output), 2 x 1000Base-X SFP, 1 x DC 12V output
PoE Mode Reverse PoE: Input 12-24V on ports 1-15 (12+/36-, 45+/78-); Output 12-24V on port 16 (45+/78-)
Switching Capacity 36 Gbps
Packet Forwarding Rate 26.784 Mpps
MAC Table 8K
Jumbo Frame 10K
Surge Protection 4KV common mode, 2KV differential mode
Shell Material Metal
Mounting Desktop
Power Supply DC 12V (external adapter); PoE input 12-24V
Power Consumption < 12W
Operating Temperature -20°C ~ +60°C
Storage Temperature -20°C ~ +85°C

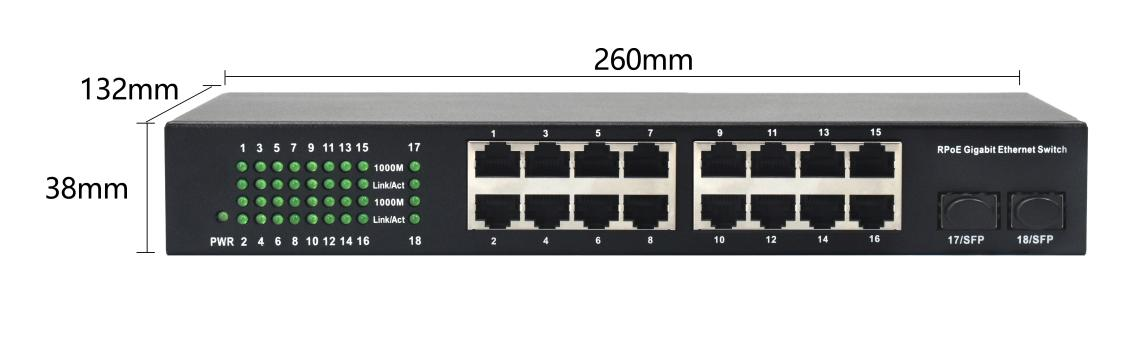

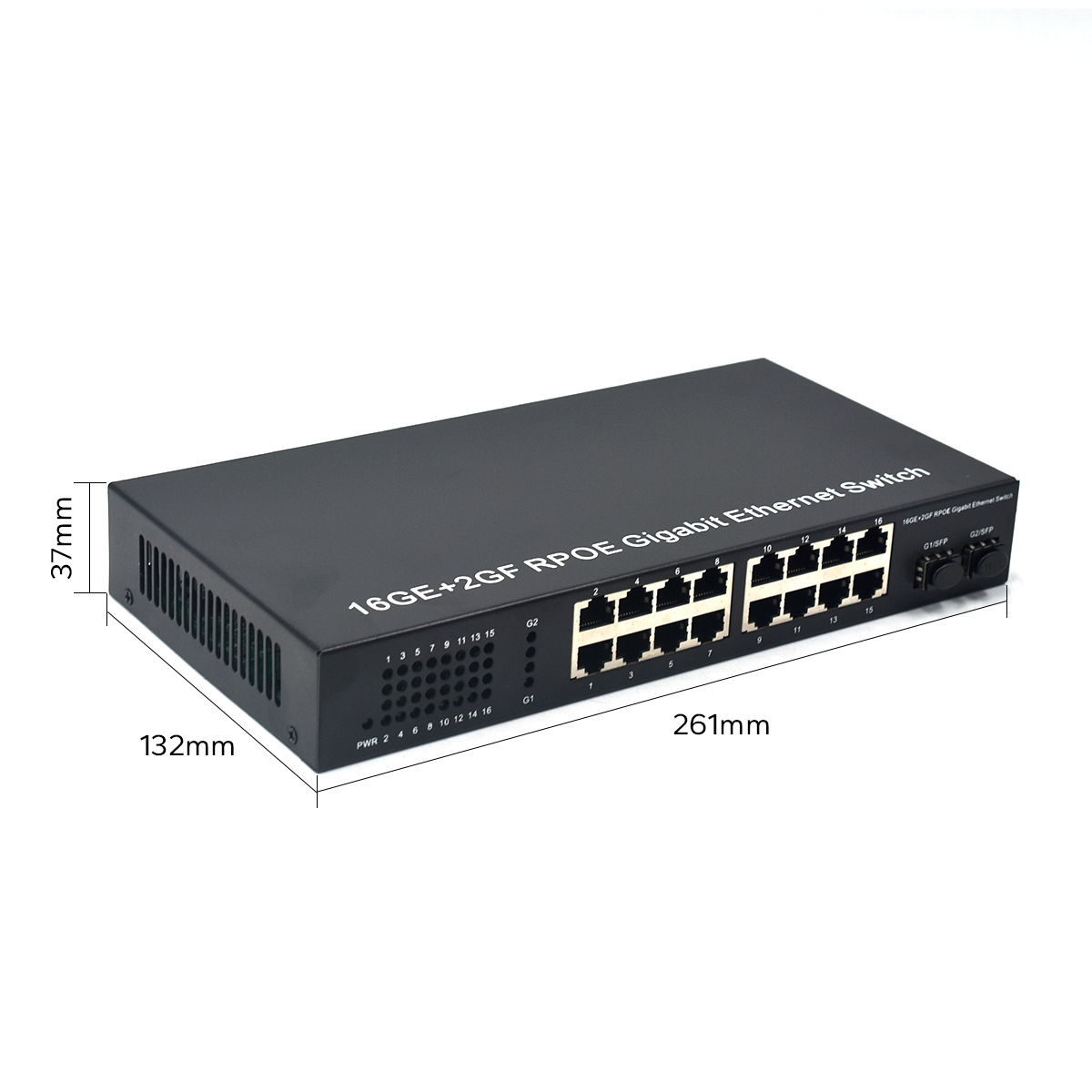

Dimensions 260mm x 132mm x 38mm
Weight < 0.828 kg
