8-Port PoE Powered Switch for Challenging Power Environments

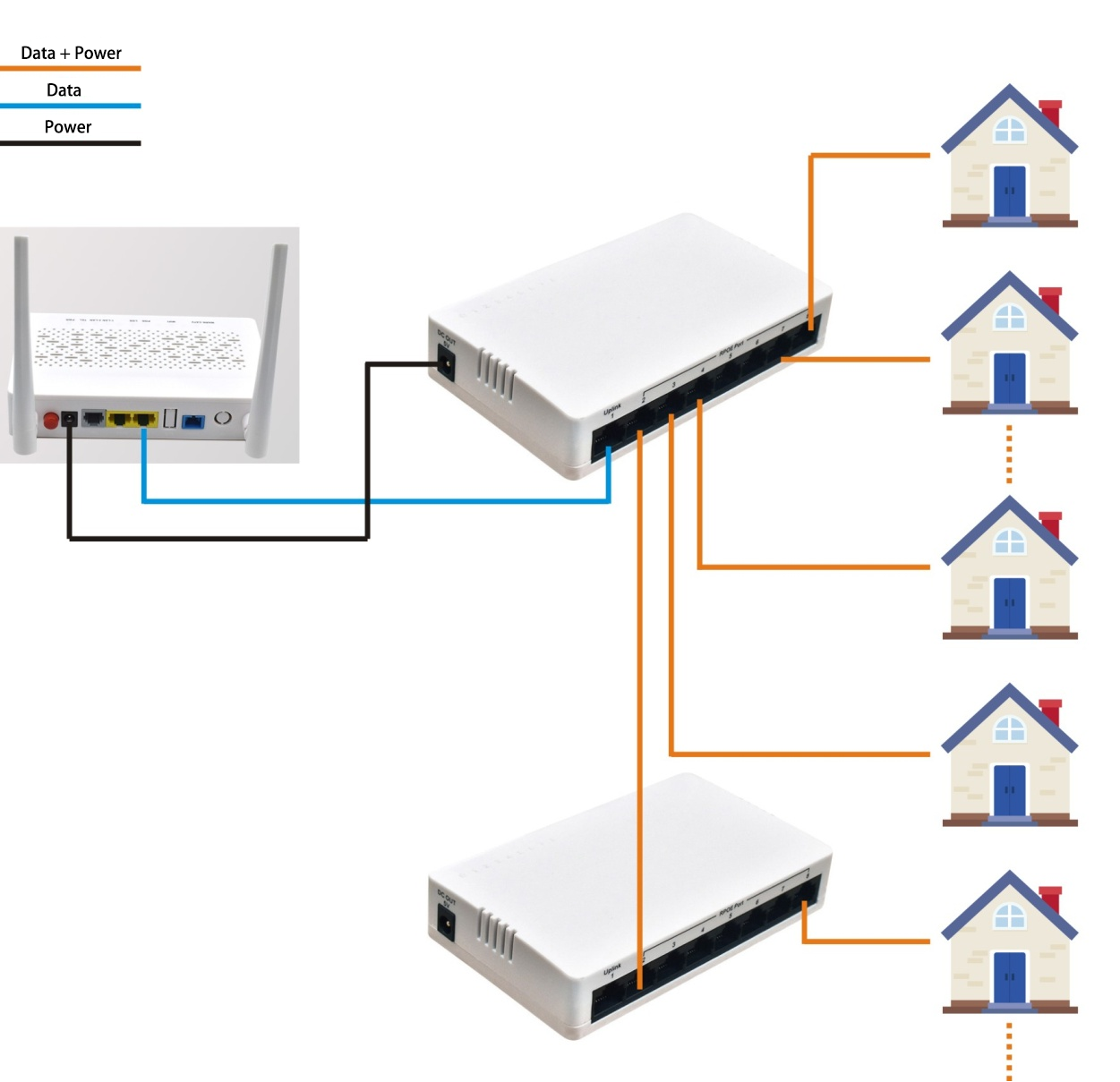

When you’re deploying network gear in a location where AC outlets are scarce—think outdoor cabinets, ceiling drops, or roadside enclosures—getting power to access switches or ONUs is a real headache. That’s where this 8-port PoE powered switch comes in. It’s designed to act as both a standard Gigabit switch and a power relay, using idle pairs (4/5+, 7/8-) on its uplink ports to receive PoE from an upstream source, then delivering 12V/1A and 5V/1A via DC jacks or feeding PoE out on Port 1.

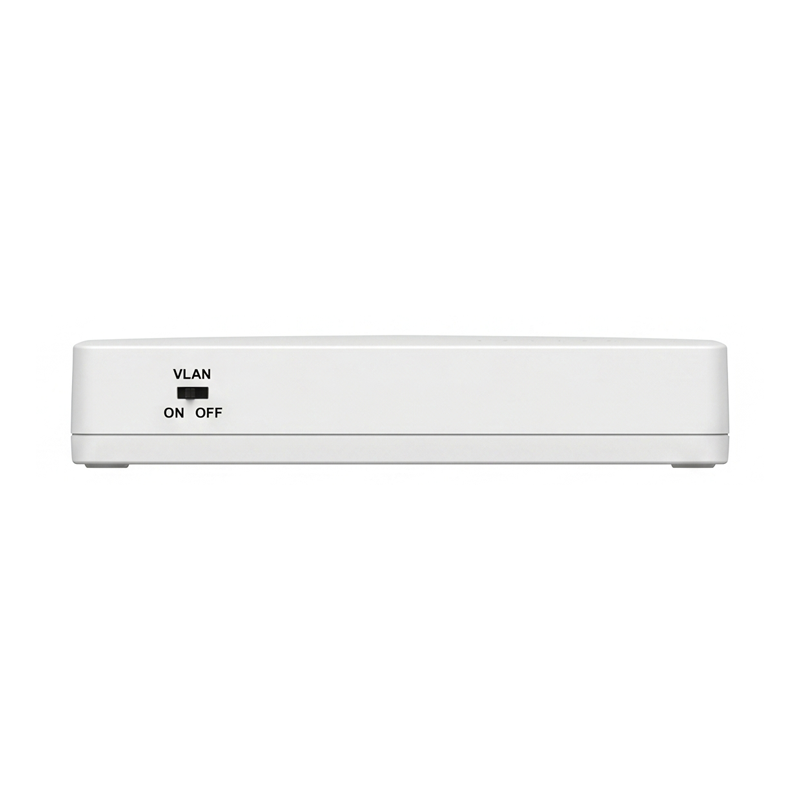

For network admins and integrators, this means you can place the switch further away from a central UPS or power board without running separate power lines. The wide input voltage range (15–48V DC) lets you pair it with existing DC supplies or solar battery systems. With 8 Gigabit ports, 4K MAC table, and 9K jumbo frame support, it handles typical LAN traffic without bottlenecking. The one‑button VLAN physical isolation feature is a nice touch for segmenting guest traffic or isolating IP cameras from the main network.

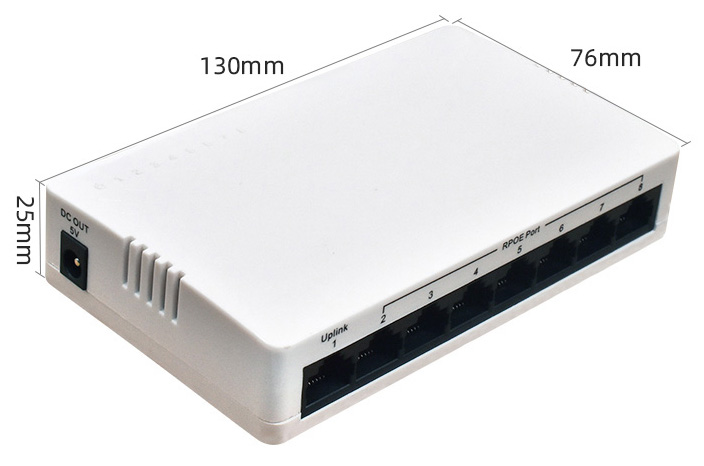

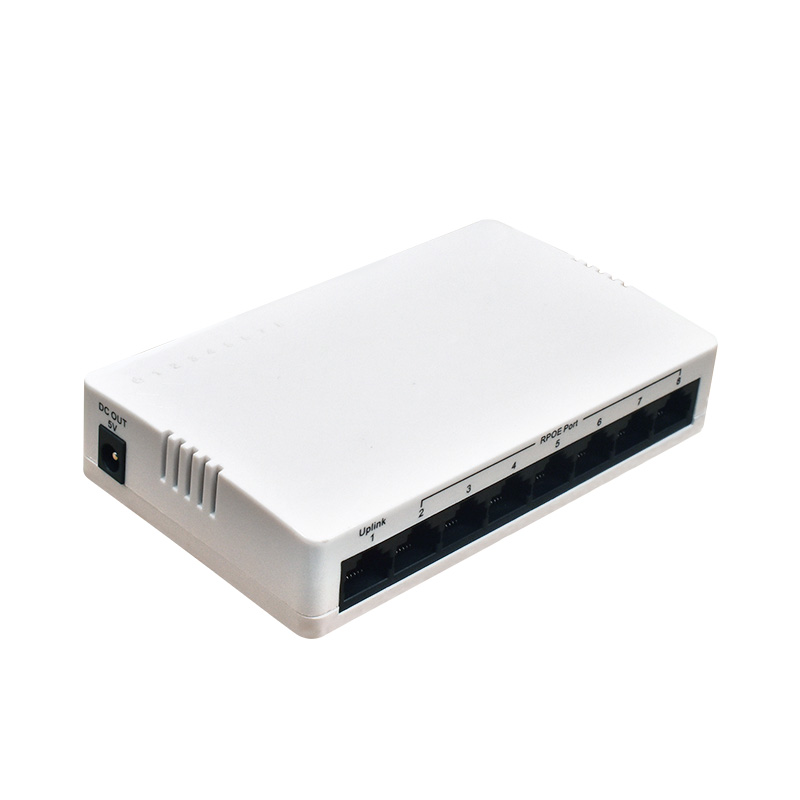

We built this for real‑world installs—ISP field teams, security system contractors, and facility managers who need a reliable, low‑cost way to extend both data and power. It’s truly plug‑and‑play: no software config, just connect cables and it works. The compact metal‑free housing (130×76×25mm) sits on a desktop or mounts on a wall, and the natural heat dissipation keeps it cool in environments from -20°C to 60°C.
