Unmanaged PoE Switches

Our Unmanaged PoE Switches category offers plug-and-play solutions for surveillance, VoIP, and wireless access points. Featuring affordable unmanaged PoE switch for cameras and basic PoE switch for surveillance models, these switches provide reliable power and data over a single cable. As a factory manufacturer, Wanglink delivers cost-effective 8/16/24-port options with no configuration needed.

Explore All Unmanaged PoE Switches

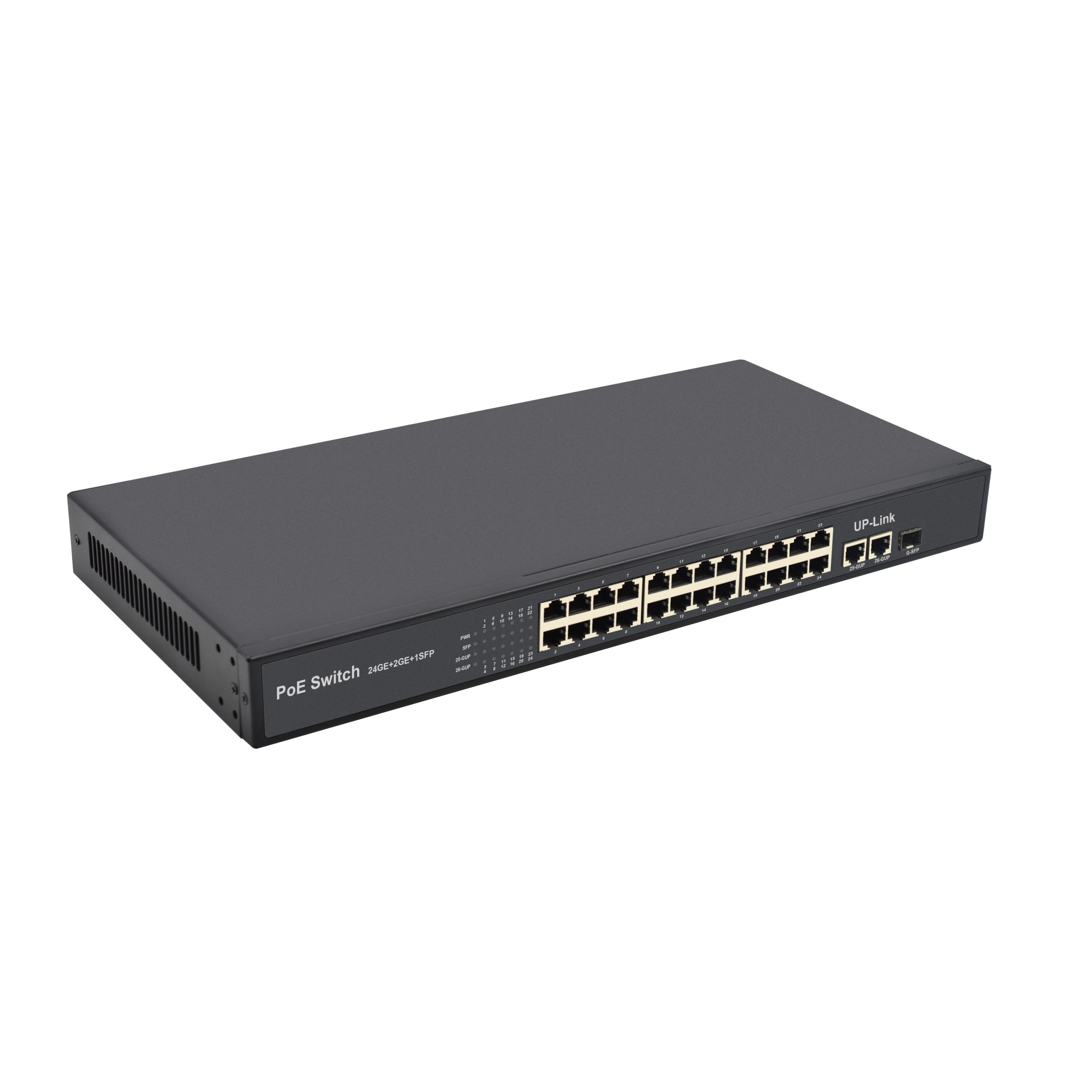

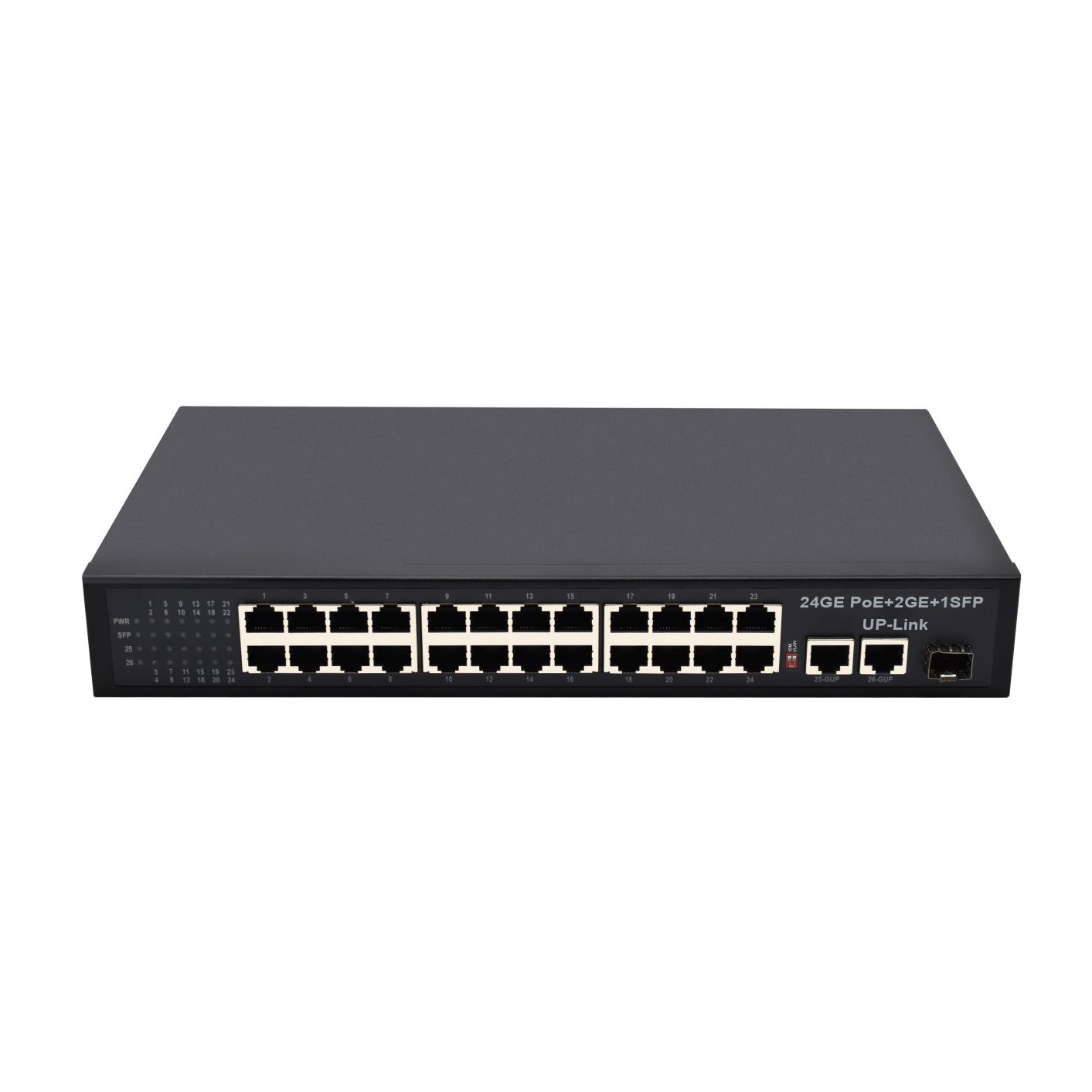

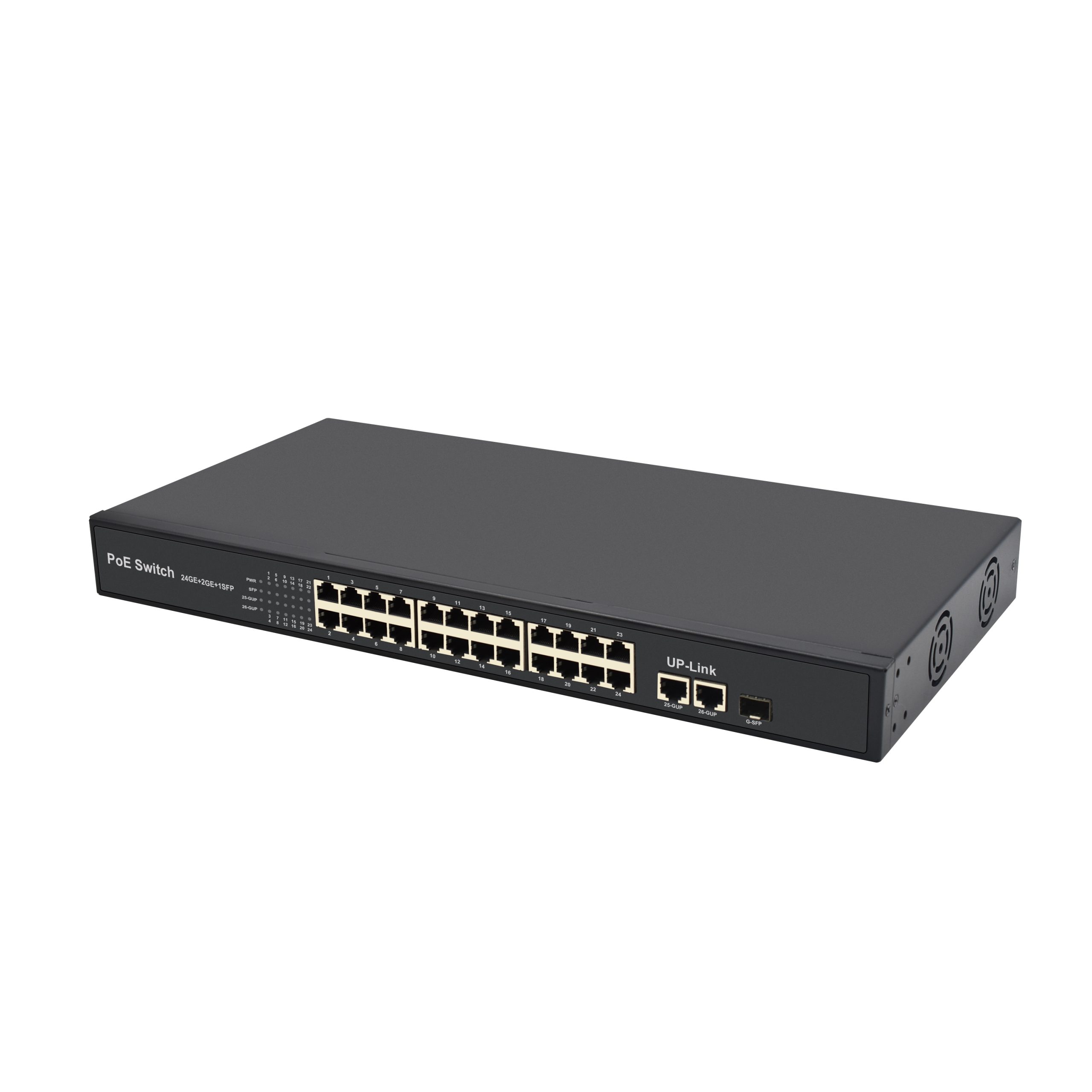

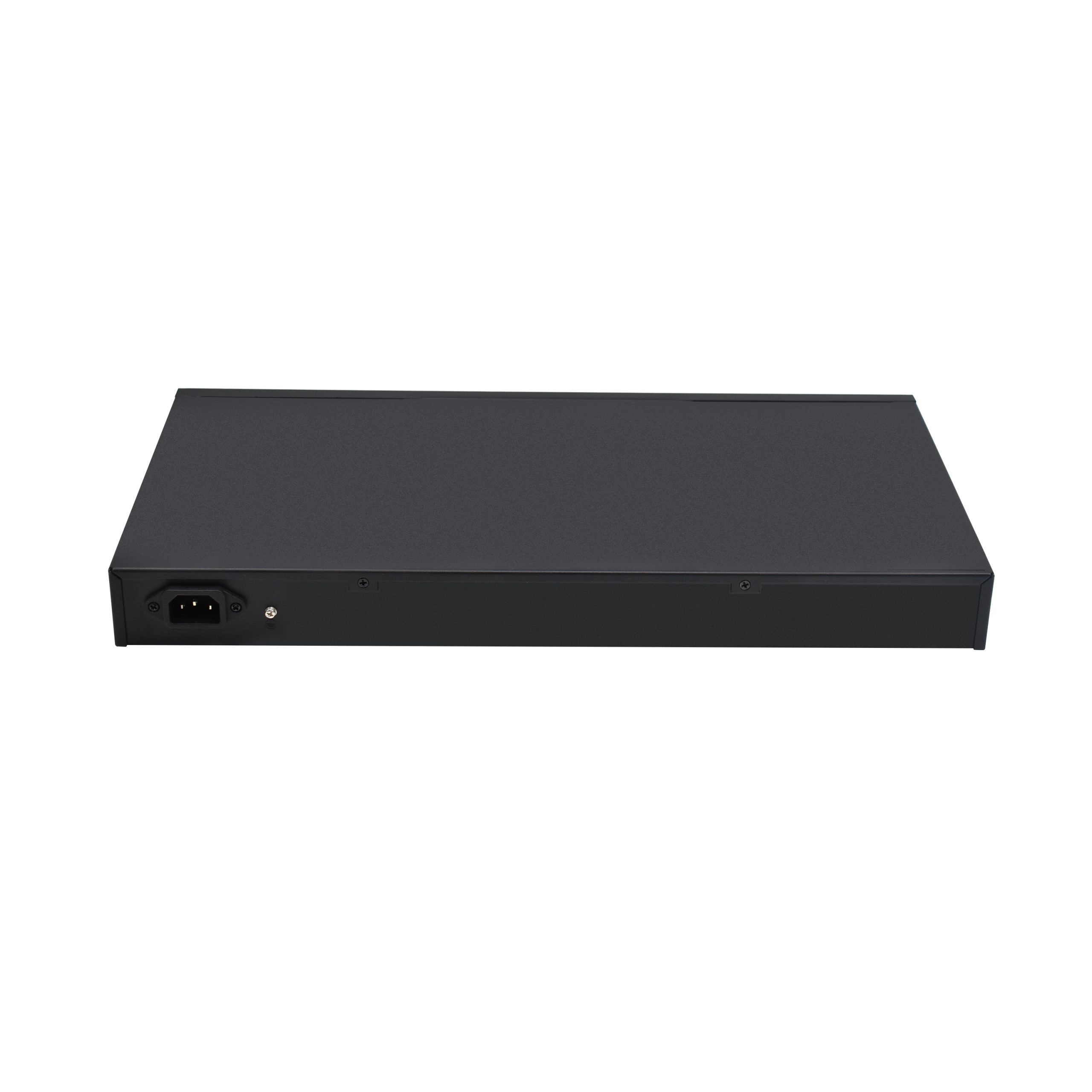

Unmanaged 24-Port Gigabit PoE Network Switch, 2 RJ45 Uplink + 1 SFP Slot, Desktop/Wall Mount for IP Surveillance & Office

24-port PoE network switch with 2 Gigabit uplinks and 1 SFP slot, 250W budget, 25.4W per port, plug-and-play, metal housing for stable surveillance and office deployments.

SG2421P-R
Port Description

24 x Gigabit PoE+ RJ45 ports (25.4W max each), 2 x Gigabit RJ45 uplink ports, 1 x 1000Base-X SFP slot for fiber extension.
  • 24 Gigabit PoE+ ports (IEEE 802.3af/at) deliver up to 25.4W per port, total 250W budget
  • 2 additional Gigabit copper uplinks + 1 SFP slot for fiber backbone connections
  • Plug-and-play operation – zero configuration, auto MDI/MDI-X, speed auto-negotiation
  • Metal housing with internal power supply, natural cooling, and optional surge protection (6KV/4KV)
  • Desktop and wall-mount installation, ideal for offices, retail, and IP surveillance









Plug-and-Play 24-Port PoE Network Switch for Cost-Conscious Deployments

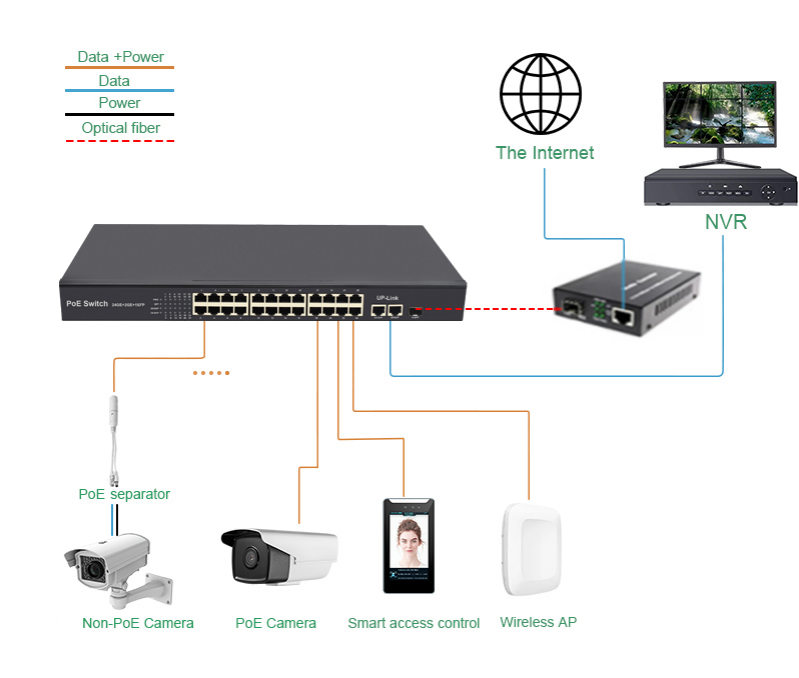

If you’re setting up a mid-sized IP camera system or expanding an office LAN, this unmanaged PoE network switch 24 port delivers exactly what you need without the complexity of managed switches. It combines 24 Gigabit PoE+ ports with two copper uplinks and one SFP fiber slot, giving you flexibility to connect both local devices and backbone links. The switch auto-detects PoE devices (IEEE 802.3af/at) and only powers them, so non-PoE gear stays safe – no configuration required. Just plug in cables and it works, cutting down installation time for busy IT admins or small business owners.

Built with a metal enclosure and internal power supply, this 24-port PoE switch handles continuous operation in less-than-ideal environments like utility closets or wall-mounted racks. The natural cooling (plus optional fan) keeps temperatures stable even when all 24 ports are drawing power. Each port supports up to 25.4W, enough for standard PTZ cameras or Wi-Fi access points, and the total PoE budget of 250W covers most mid-density setups. For locations that need longer distance connections, the SFP port accepts 1000Base-X modules (multi-mode or single-mode) to extend the network beyond 100 meters.

This switch is ideal for hotels, retail stores, supermarkets, and small offices where reliability and simplicity matter more than VLAN configuration. The included wall-mount brackets let you fix it under a desk or on a wall, saving floor space. With surge protection options (6KV common mode / 4KV differential mode) and an optional watchdog AI self-healing feature, it’s built to survive power fluctuations and reduce maintenance visits.

Standards: IEEE 802.3, 802.3u, 802.3ab, 802.3z, 802.3af/at, 802.3x
Ports: 24x 10/100/1000M PoE+ RJ45, 2x 10/100/1000M RJ45 uplink, 1x 1000Base-X SFP
PoE Budget: ≤250W total, ≤25.4W per port
Switching Capacity: 54 Gbps
Packet Forwarding Rate: 40.176 Mpps
MAC Table: 4K
Buffer: 1.5 Mbit
Jumbo Frame: 9K
Power Input: AC 100~240V, 50Hz
Power Consumption: standby ≤5W, full ≤300W
Operating Temp: -20°C ~ +60°C
Storage Temp: -20°C ~ +85°C
Humidity: 5% ~ 95% non-condensing
Dimensions: 305×150×44 mm
Weight: <2.1 kg
Housing: Metal, desktop/wall-mount
