Unmanaged PoE Switches

Our Unmanaged PoE Switches category offers plug-and-play solutions for surveillance, VoIP, and wireless access points. Featuring affordable unmanaged PoE switch for cameras and basic PoE switch for surveillance models, these switches provide reliable power and data over a single cable. As a factory manufacturer, Wanglink delivers cost-effective 8/16/24-port options with no configuration needed.

Explore All Unmanaged PoE Switches

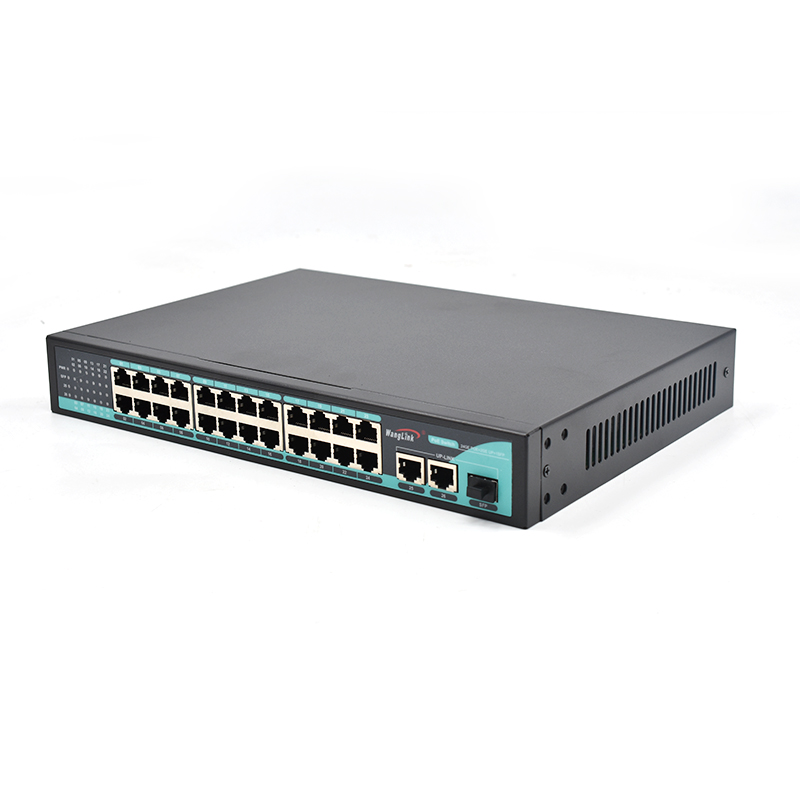

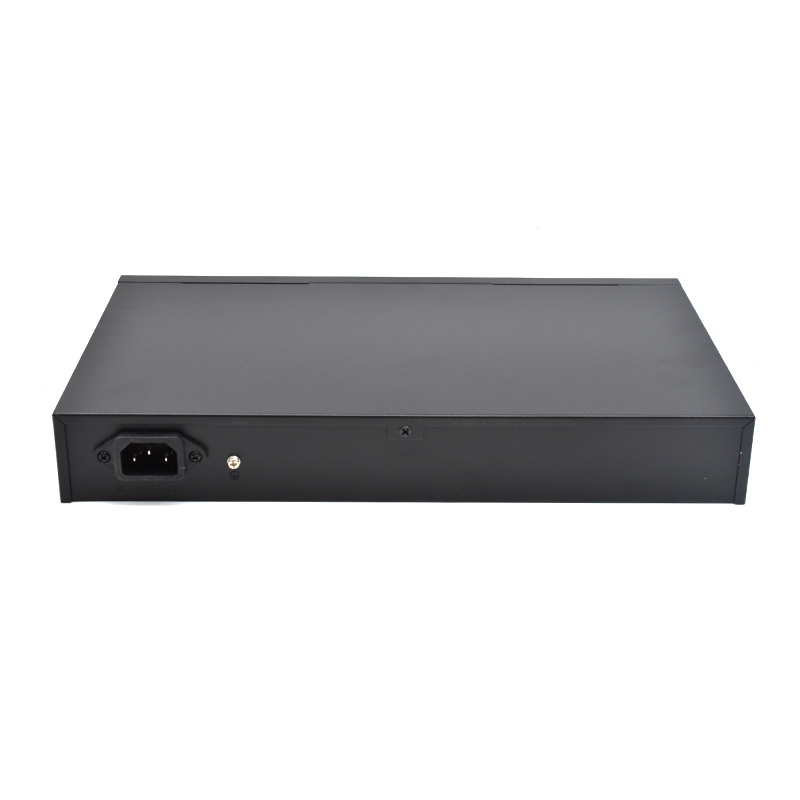

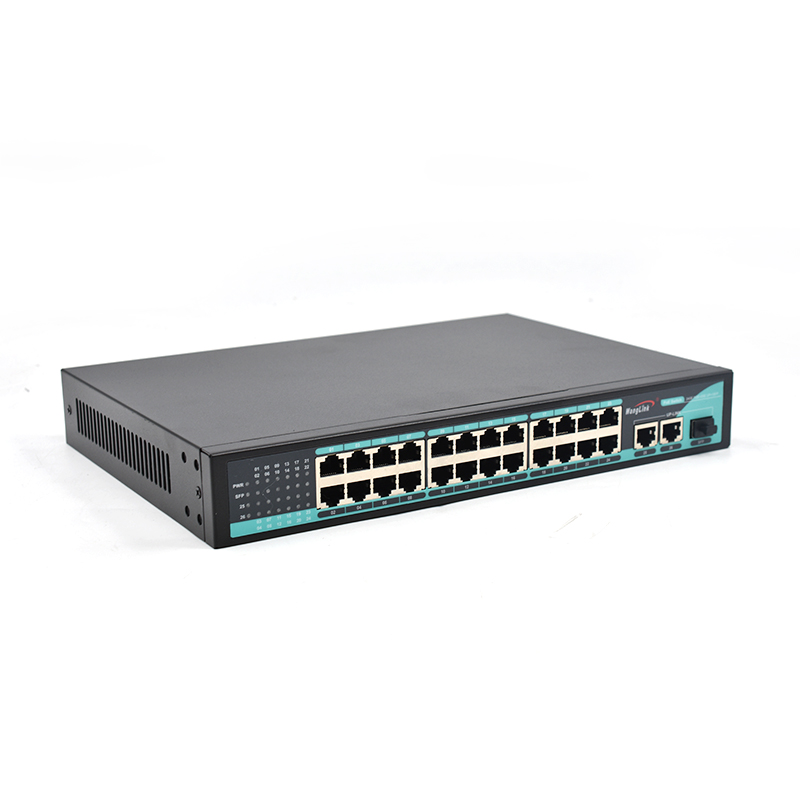

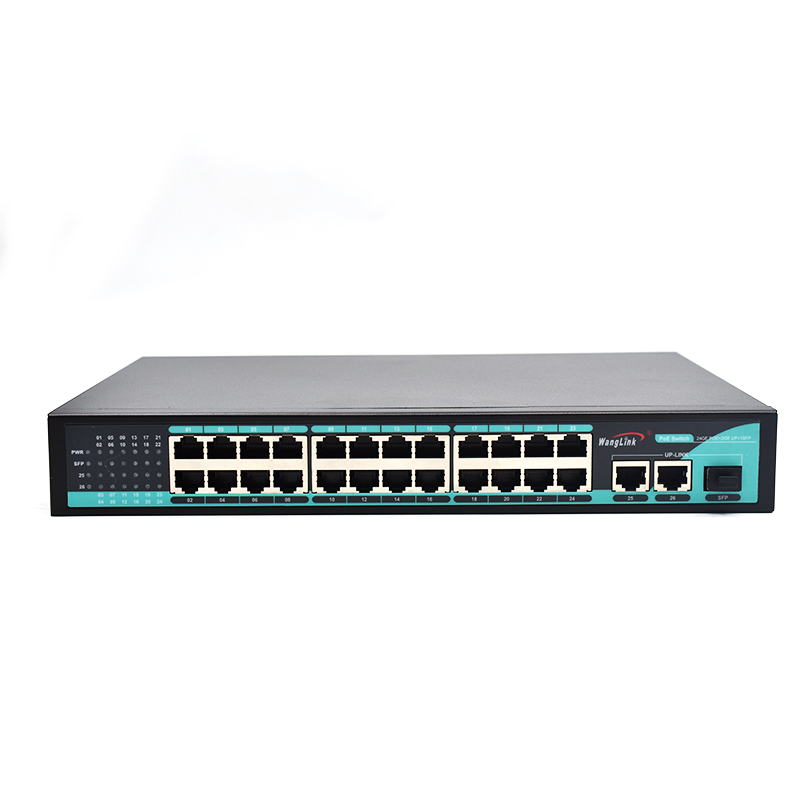

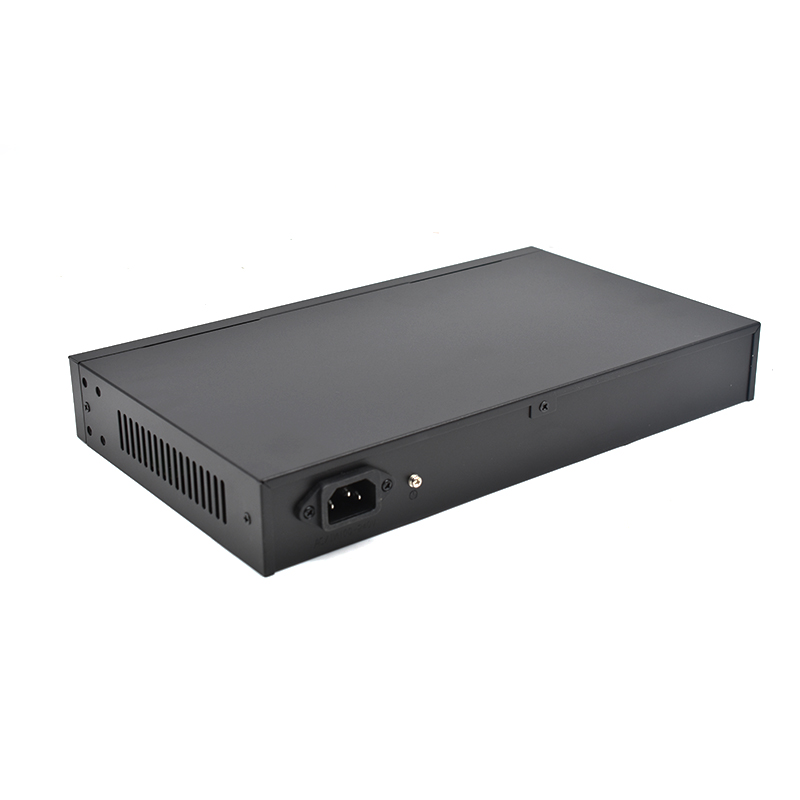

Unmanaged 24-Port Gigabit PoE Switch with 1 SFP Slot, 360W Budget, Metal Case, Desktop/Wall/Rack Mount for IP Cameras & Office Network

24-port PoE switch with 360W budget, 26 Gigabit ports (24 PoE+), 1 SFP uplink, plug-and-play, metal housing, ideal for surveillance and small business networks.

SG2421P
Port Description

24x PoE+ 10/100/1000Mbps RJ45 ports (Ports 1-24), 2x additional Gigabit RJ45 ports (Ports 25-26), 1x 1000Base-X SFP slot
  • 24 PoE+ ports (IEEE802.3af/at) with 360W total budget – enough for 24 standard IP cameras or a mix of APs and phones
  • Two extra Gigabit copper ports + one SFP slot for flexible uplink (fiber or copper)
  • Metal housing with natural heat dissipation – stable operation from -20°C to 60°C
  • Plug-and-play, no software configuration needed – auto-negotiation, auto MDI/MDI-X, store-and-forward switching
  • Smart PoE detection prevents damage to non-PoE devices
  • Supports desktop, wall-mount, and 19-inch rack-mount installation









Reliable 24-Port PoE Switch for Day-to-Day Network Expansion

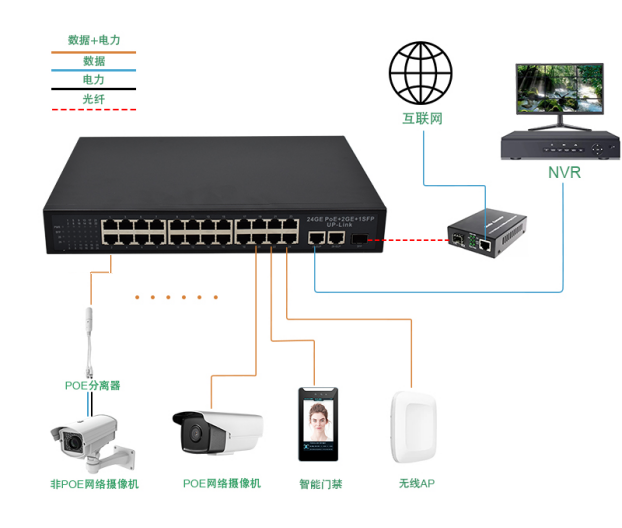

If you’re setting up a handful of IP cameras, VoIP phones, or wireless access points in a small office, warehouse, or retail space, the SG2421P gives you exactly what you need—no extra complexity. This unmanaged 24-port PoE switch delivers power and data over a single Ethernet cable, so you don’t have to run separate power outlets to each device. With 24 PoE+ ports (each up to 25.4W) and a total budget of 360W, it can handle most common PoE devices without breaking a sweat.

The switch also includes two extra non-PoE Gigabit ports and one 1000Base-X SFP slot for uplinking to a core switch or fiber backbone. That means you can connect a long-distance fiber link to another building or simply use the SFP slot to free up a copper port. All 26 RJ45 ports support auto-negotiation (10/100/1000Mbps), half/full duplex, and auto MDI/MDI-X, so you can just plug in standard Cat5e/6 cables and let the switch handle the rest.

Built with a metal case and internal power supply, the SG2421P runs cool even under heavy load. It supports desktop, wall-mount, and rack-mount installations, making it flexible for different environments. Because it’s unmanaged and plug-and-play, you won’t waste time on configuration—just power it on, connect your devices, and it works. The smart PoE detection also protects non-PoE gear by only sending power to devices that request it, so you don’t accidentally fry a standard PC or printer.

Who is this for? IT administrators expanding a small network, security installers deploying 24 PoE cameras, facility managers adding Wi-Fi coverage in a warehouse—anyone who needs a cost-effective, no-fuss 24-port PoE switch that just works out of the box.

Model SG2421P
Standard IEEE802.3 10Base-T, 802.3u 100Base-TX, 802.3ab 1000Base-T, 802.3z 1000Base-SX/LX, 802.3x flow control
Ethernet Ports 26× 10/100/1000Mbps RJ45 (Ports 1-24 PoE+, Ports 25-26 non-PoE)
SFP Slot 1× 1000Base-X, 1.25Gbps, supports multi-mode (550m/2km) and single-mode (2/20/40/60/80/100km)
PoE Budget 360W total; per port max 25.4W
PoE Pin Assignment 1/2+, 3/6-
Switching Capacity 54Gbps non-blocking
Packet Forwarding Rate 40.176Mpps (64-byte packets)
MAC Address Table 4K
Jumbo Frame 9216 bytes
Buffer 1.5Mb
Forwarding Mode Store-and-forward, wire-speed
Power Input AC 100-240V, 50Hz
Power Consumption Standby ≤5W, Full load ≤320W
Operating Temperature -20°C to 60°C
Storage Temperature -40°C to 85°C
Humidity 5% – 95% non-condensing
Cooling Natural heat dissipation (fanless)

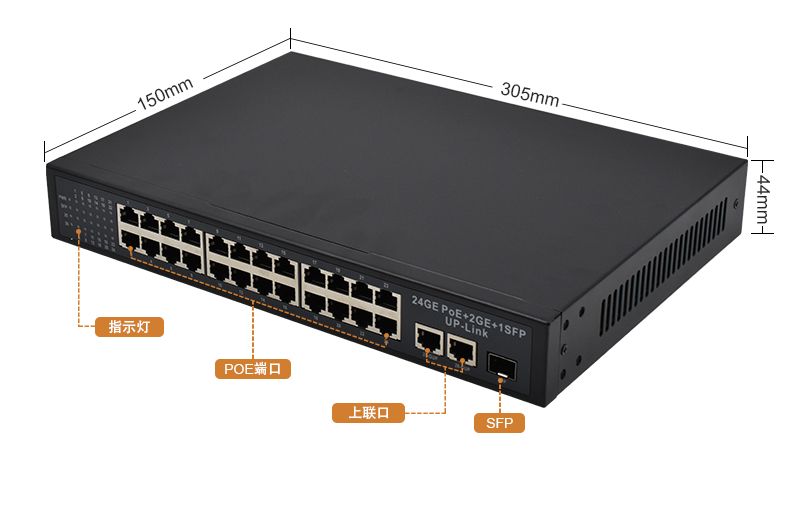

Dimensions (W×D×H) 305×220×44mm
Weight Net 2.1kg, Gross 2.3kg
