Unmanaged PoE Switches

Our Unmanaged PoE Switches category offers plug-and-play solutions for surveillance, VoIP, and wireless access points. Featuring affordable unmanaged PoE switch for cameras and basic PoE switch for surveillance models, these switches provide reliable power and data over a single cable. As a factory manufacturer, Wanglink delivers cost-effective 8/16/24-port options with no configuration needed.

Explore All Unmanaged PoE Switches

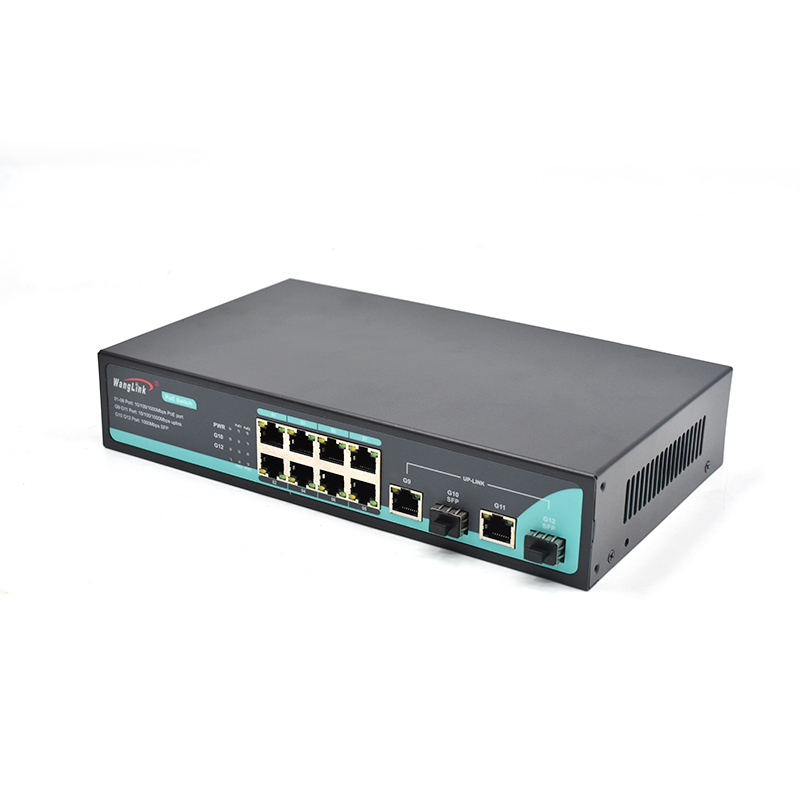

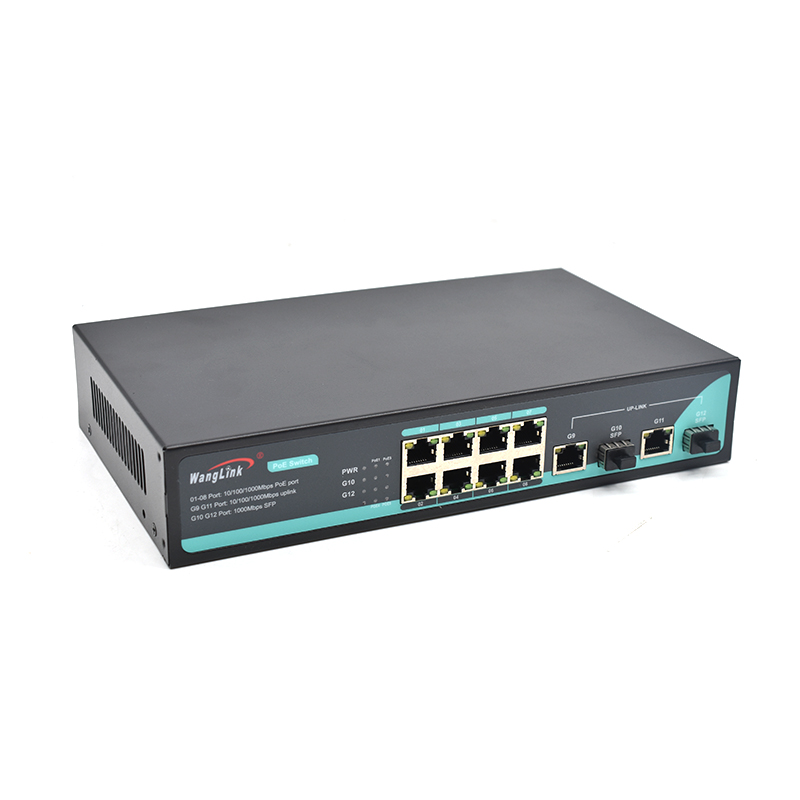

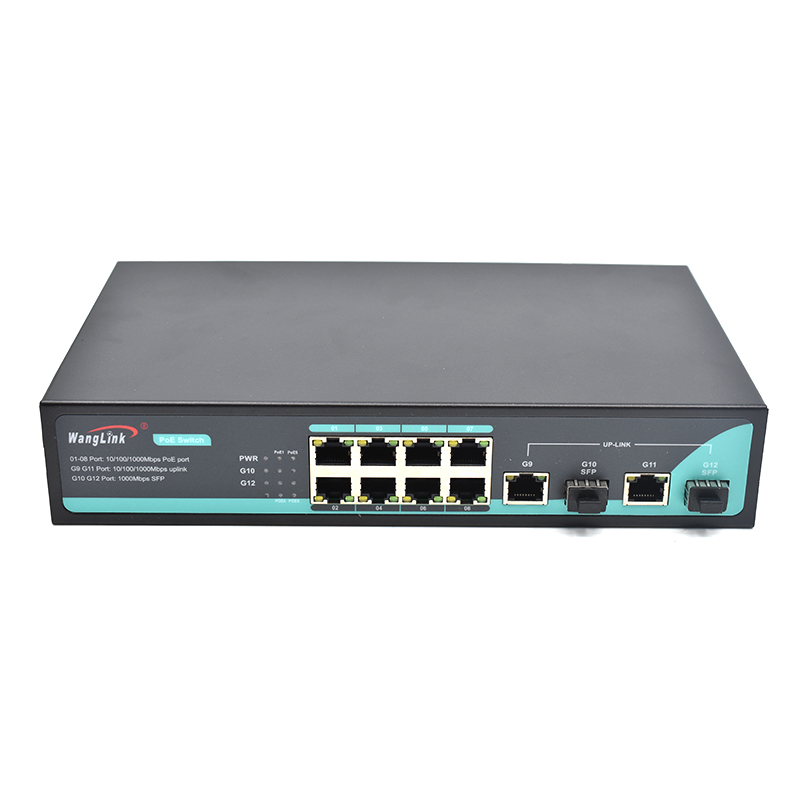

Unmanaged 8 Port PoE Switch with 2 SFP, Gigabit, 96W Budget, Metal Case, Desktop/Wall/Rack Mount for IP Cameras & Small Office

8 Port PoE switch with 2 SFP uplink delivers 96W total PoE budget IEEE802.3 af/at. Plug-and-play metal design for stable surveillance and office networking.

SG822P
Port Description

10 x 10/100/1000Base-T RJ45 (ports 1-8 PoE, ports 9-10 Gigabit uplink) + 2 x 1000Base-X SFP slots
  • 8 PoE+ ports with 96W total budget – enough for most IP cameras and APs
  • 2 SFP slots for fiber uplink – extend your network up to 100km
  • Auto-detection of PoE vs non-PoE devices – safe to mix
  • Plug-and-play, zero configuration – saves IT time
  • Metal housing with internal power – reliable in industrial temperature range (-20°C to 60°C)
  • Supports jumbo frames (9216 bytes) for high-throughput transfers









Why an 8 Port PoE Switch with 2 SFP Uplink Makes Sense for Your Mid-Sized Network

If you’re managing a small office, a retail store, or a handful of IP cameras, you don’t want to overthink your switch. This 8 port PoE switch with 2 SFP slots gives you exactly what you need: eight PoE+ ports that feed power and data over a single cable, plus two fiber uplink ports to connect to your core network or extend distance beyond 100 meters. The whole unit runs on a 96W PoE budget, enough to power eight standard cameras or access points at about 12W each, or fewer high-draw devices like PTZ cameras that need up to 25.4W per port.

We’ve kept it unmanaged on purpose. No VLANs, no CLI, no web interface to mess with. Plug in your devices, and the switch auto-negotiates speed (10/100/1000 Mbps), duplex, and MDI/MDI-X. It also detects whether the connected device is PoE-compatible or not – so you can safely plug in a non-PoE laptop or printer without frying anything. The metal case and internal power supply dissipate heat naturally, which means no fan noise and a longer lifespan in dusty or warm environments.

For IT admins who need a simple, reliable backbone for a mixed wired and wireless deployment, this 8 port PoE switch with 2 SFP uplink handles the job without unnecessary complexity. Mount it on a desk, on the wall, or in a 19-inch rack (bracket included).

Who Should Use This Switch?

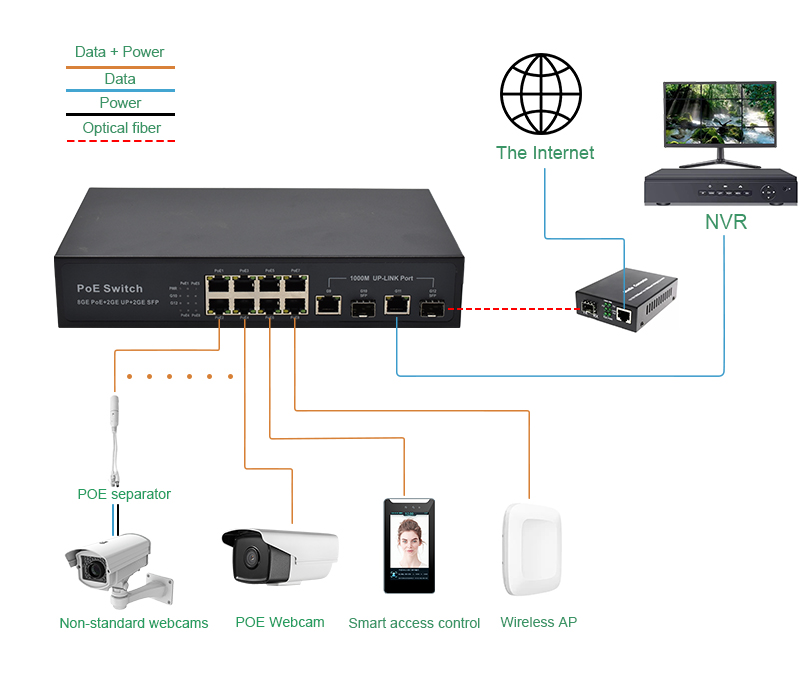

  • Small business owners deploying IP security cameras and Wi-Fi access points
  • IT technicians looking for a cost-effective edge switch for a remote office
  • System integrators setting up temporary or permanent PoE networks in retail, education, or hospitality

Technical Specifications

Standards IEEE802.3 10Base-T, 802.3u 100Base-TX, 802.3ab 1000Base-T, 802.3z 1000Base-SX/LX, 802.3x flow control
Ethernet Ports 10 x 10/100/1000Base-T RJ45 (ports 1-8 PoE)
SFP Slots 2 x 1000Base-X
PoE Power Budget 96W total, up to 25.4W per port
PoE Pin Assignment 1/2(+), 3/6(-)
Switching Capacity 24 Gbps (non-blocking)
Packet Forwarding Rate 17.856 Mpps (64-byte packets)
MAC Address Table 2K
Jumbo Frame Support 9216 bytes

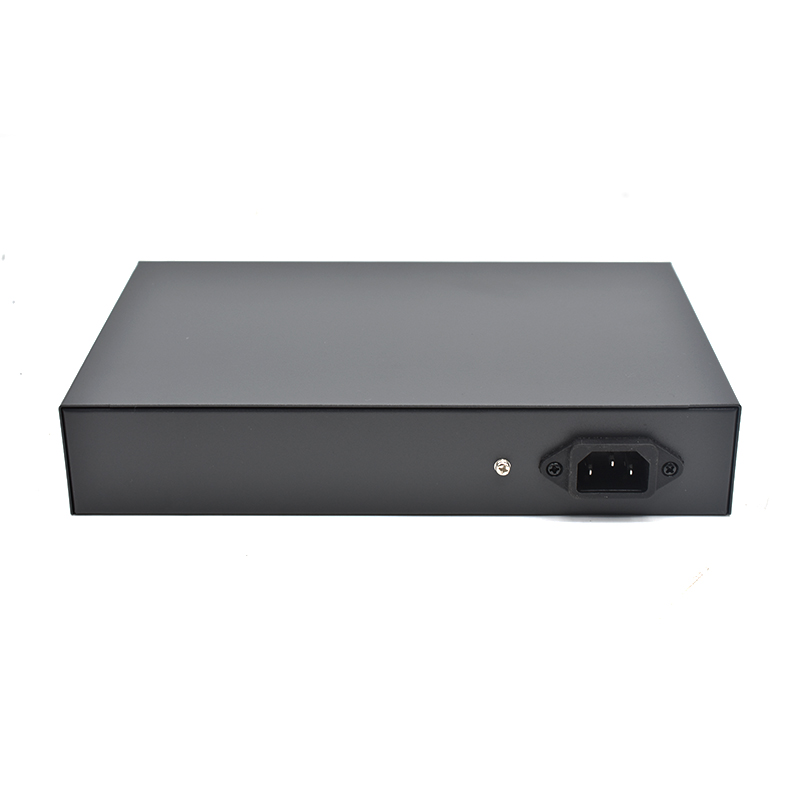

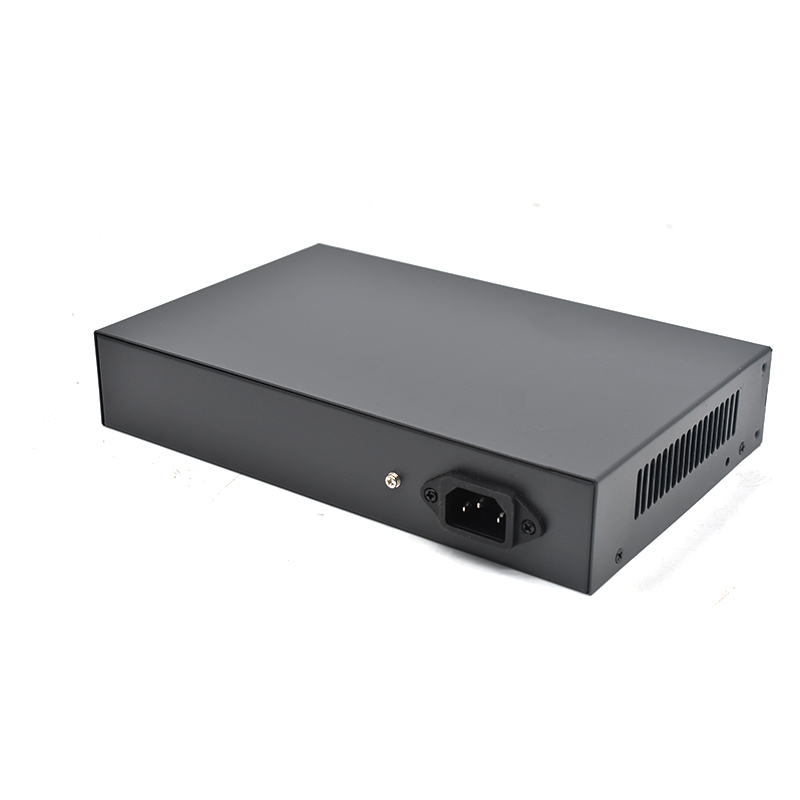

Input Voltage AC 100-240V, 50Hz
Power Consumption Standby ≤3W, Full load ≤96W
Operating Temperature -20°C to 60°C
Storage Temperature -40°C to 85°C
Humidity 5% to 95% non-condensing
Dimensions 201 x 140 x 44 mm
Weight 0.9 kg (net), 1.1 kg (gross)
Heat Dissipation Natural convection (fanless)
LED Indicators PWR (green), SFP link/act (green per port), Ethernet link/act (yellow/green), PoE (green per port), 1000M (green for uplink G9-G10)
