Unmanaged PoE Switches

Our Unmanaged PoE Switches category offers plug-and-play solutions for surveillance, VoIP, and wireless access points. Featuring affordable unmanaged PoE switch for cameras and basic PoE switch for surveillance models, these switches provide reliable power and data over a single cable. As a factory manufacturer, Wanglink delivers cost-effective 8/16/24-port options with no configuration needed.

Explore All Unmanaged PoE Switches

8 Port Gigabit Unmanaged PoE Switch, 10/100/1000Mbps, 2 RJ45 Uplink, 96W PoE Budget, Metal Case, Wall Mount & Desktop for Small Business Surveillance

8 port gigabit unmanaged PoE switch with 96W budget, 8 PoE+ ports (25.4W each), plug-and-play, metal housing, ideal for IP cameras and VoIP deployments.

SG820P
Port Description

8 x 10/100/1000Base-T PoE ports (ports 1-8) + 2 x 10/100/1000Base-T uplink ports (ports 9-10).
  • 8 gigabit PoE+ ports (25.4W per port, 96W total budget)
  • 2 additional gigabit uplink ports for backbone connection
  • Auto-detection of PoE vs non-PoE devices – no risk of damage
  • Plug-and-play, zero configuration required
  • Metal housing with internal power supply for stable long-term operation
  • Optional 6KV/4KV surge protection and AI watchdog for challenging environments









8 Port Gigabit Unmanaged PoE Switch – Built for Reliable PoE+ Deployment

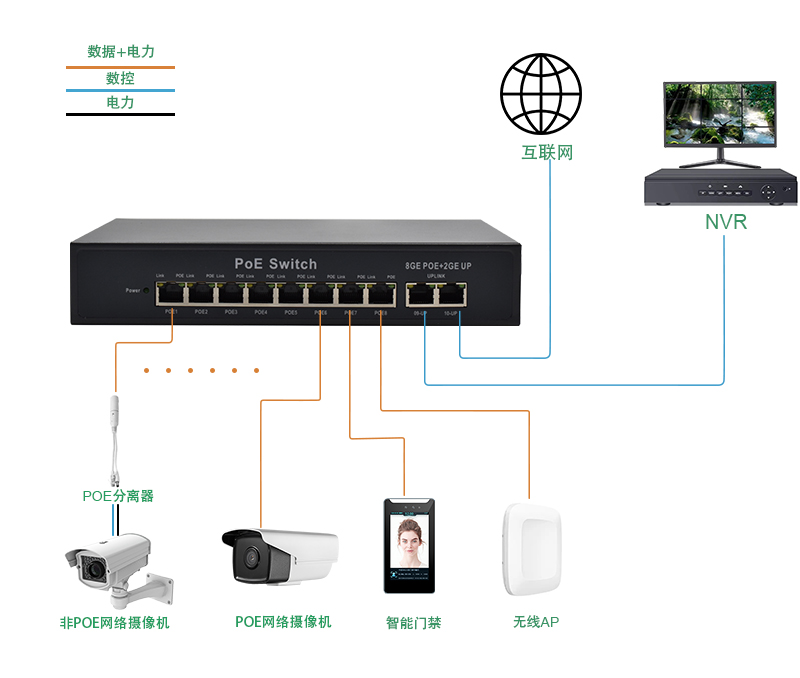

If you are setting up a small office network, adding IP cameras to a retail store, or expanding a warehouse monitoring system, this 8 port gigabit unmanaged PoE switch delivers what you need without unnecessary complexity. It comes with 8 IEEE802.3af/at PoE ports and 2 Gigabit uplink ports, offering a total PoE budget of 96W – enough to power multiple PTZ cameras or wireless access points simultaneously. The switch is truly unmanaged: plug in your devices, and it automatically detects whether a connected device requires PoE. Non-PoE gear like a regular PC or printer will not get damaged because the switch only powers devices that follow the standard PoE protocol. That saves you from costly mistakes during installation.

The metal case and internal power supply help with heat dissipation, so this 8 port gigabit unmanaged PoE switch can run 24/7 in a dusty closet or an outdoor surveillance cabinet without overheating. For environments where surge risks exist, you can opt for the version with 6KV common mode / 4KV differential mode surge protection. There is also an AI network self-healing (watchdog) option that automatically reboots a connected PD if it stops responding – a real time-saver for remote sites. With a 20Gbps non-blocking switching capacity and store-and-forward forwarding, you get full wire-speed performance even under heavy traffic. Whether you are powering eight 4MP IP cameras or six VoIP phones plus two access points, this switch keeps your network stable and your deployment simple.

  • 8 PoE+ ports (25.4W per port, 96W total) – enough for demanding PDs
  • Auto-detection of PoE devices, safe for non-PoE equipment
  • Metal housing with natural heat dissipation for long-term reliability
  • Optional 6KV/4KV surge protection and AI watchdog for remote operation
  • Desktop or wall-mountable, no configuration needed

Target users: IT administrators, small business owners, security system integrators, and network technicians who need a cost-effective, drop-in PoE switch without VLAN or QoS management requirements.

Standards: IEEE802.3 10Base-T, IEEE802.3u 100Base-TX, IEEE802.3ab 1000Base-T, IEEE802.3x flow control

Ports: 8×10/100/1000Base-T PoE (ports 1-8), 2×10/100/1000Base-T uplink (ports 9-10)

PoE: IEEE802.3af/at, per port max 25.4W, total 96W, pin assignment 1/2+ 3/6-

Switching capacity: 20Gbps non-blocking

MAC table: 2K | Jumbo frame: 9216 bytes

Packet forwarding rate: 14.88Mpps @ 64 bytes

Transmission distance: 10Base-T up to 250m (cat3/4/5), 100/1000Base-T up to 100m

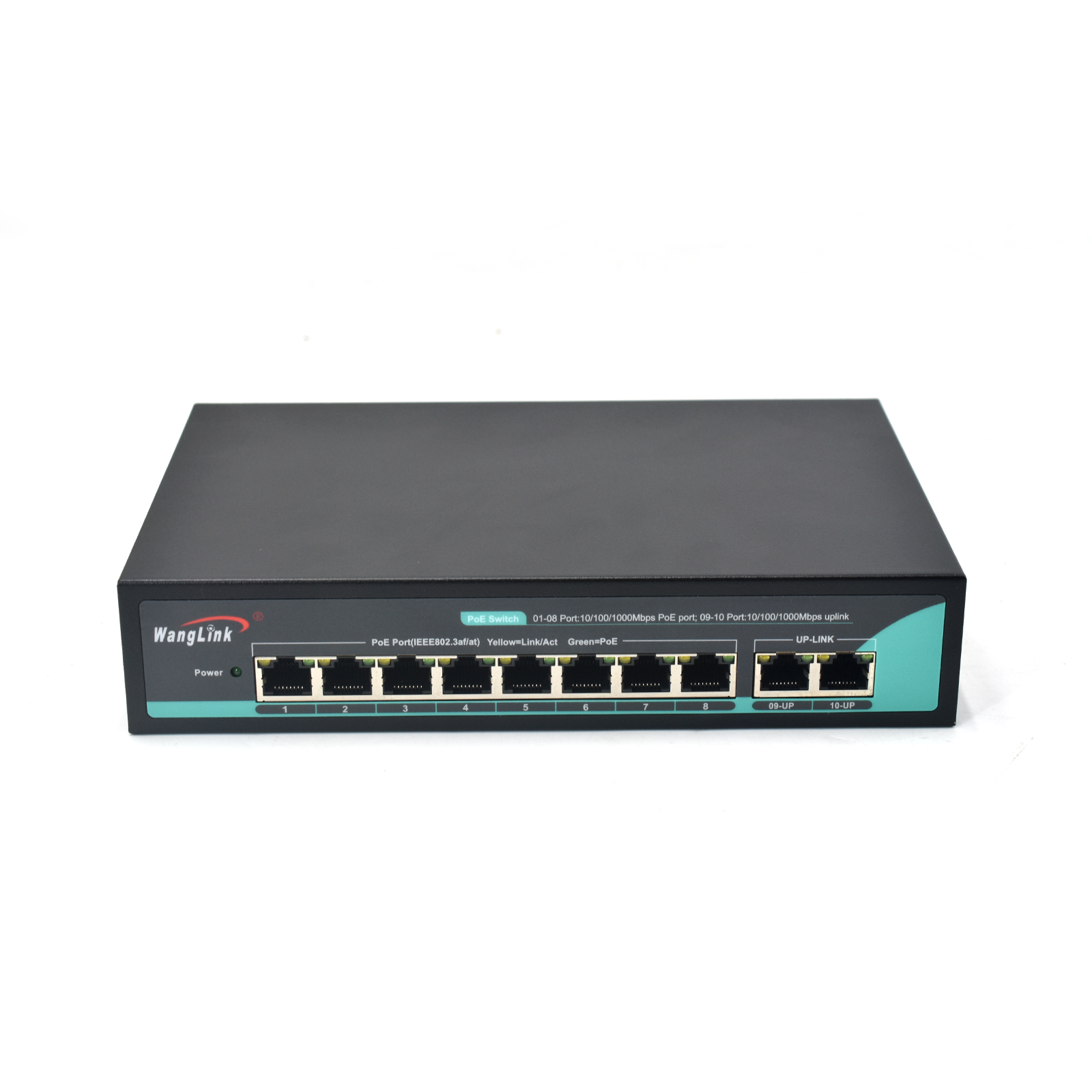

LED indicators: Power, Link/Act per port, 1000M for uplink, PoE per port

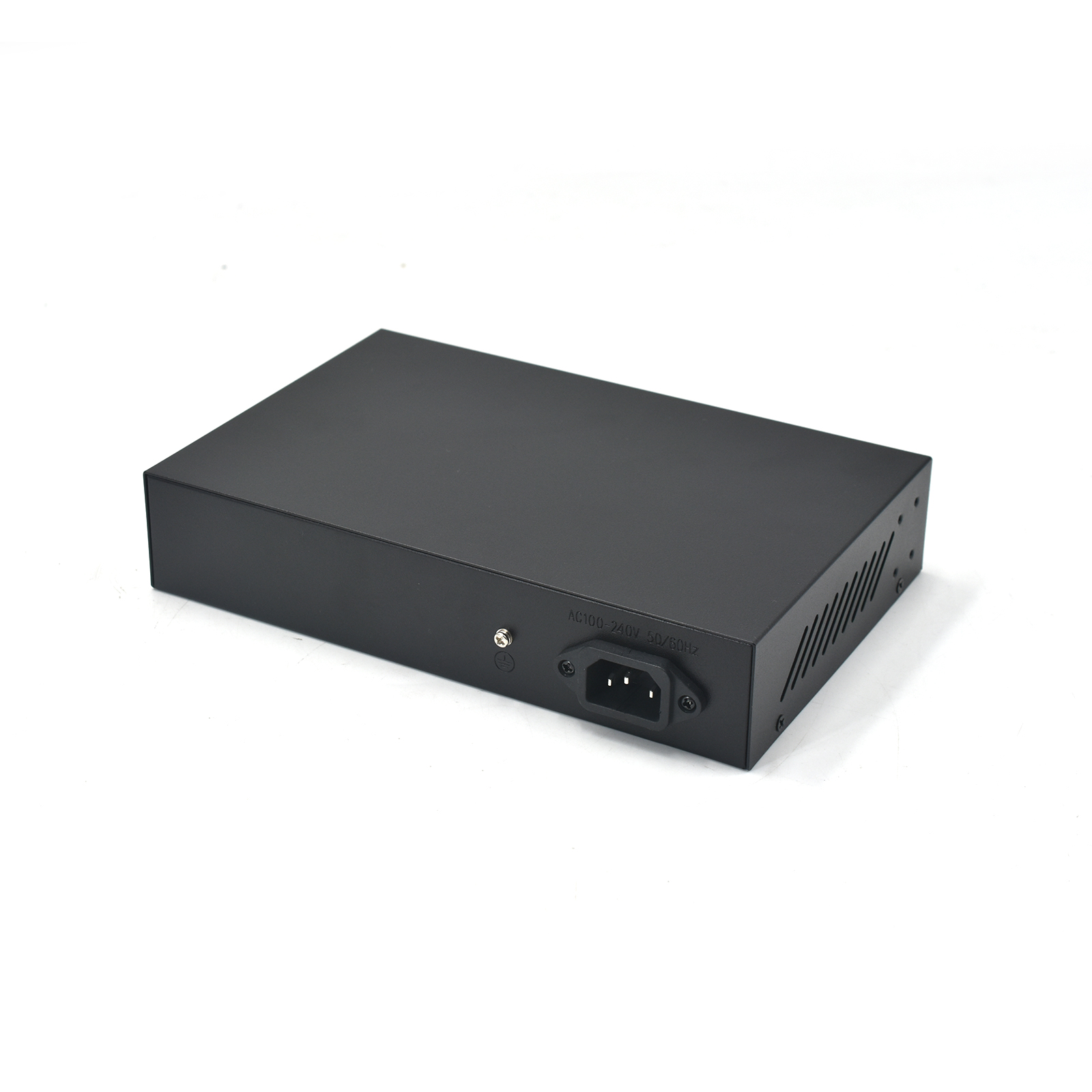

Power input: AC100~240V, 50Hz | Standby power: ≤3W | Full load: ≤96W

Operating temperature: -20℃~60℃ | Storage: -40℃~85℃

Humidity: 5%~95% non-condensing

Heat dissipation: Natural (no fan)

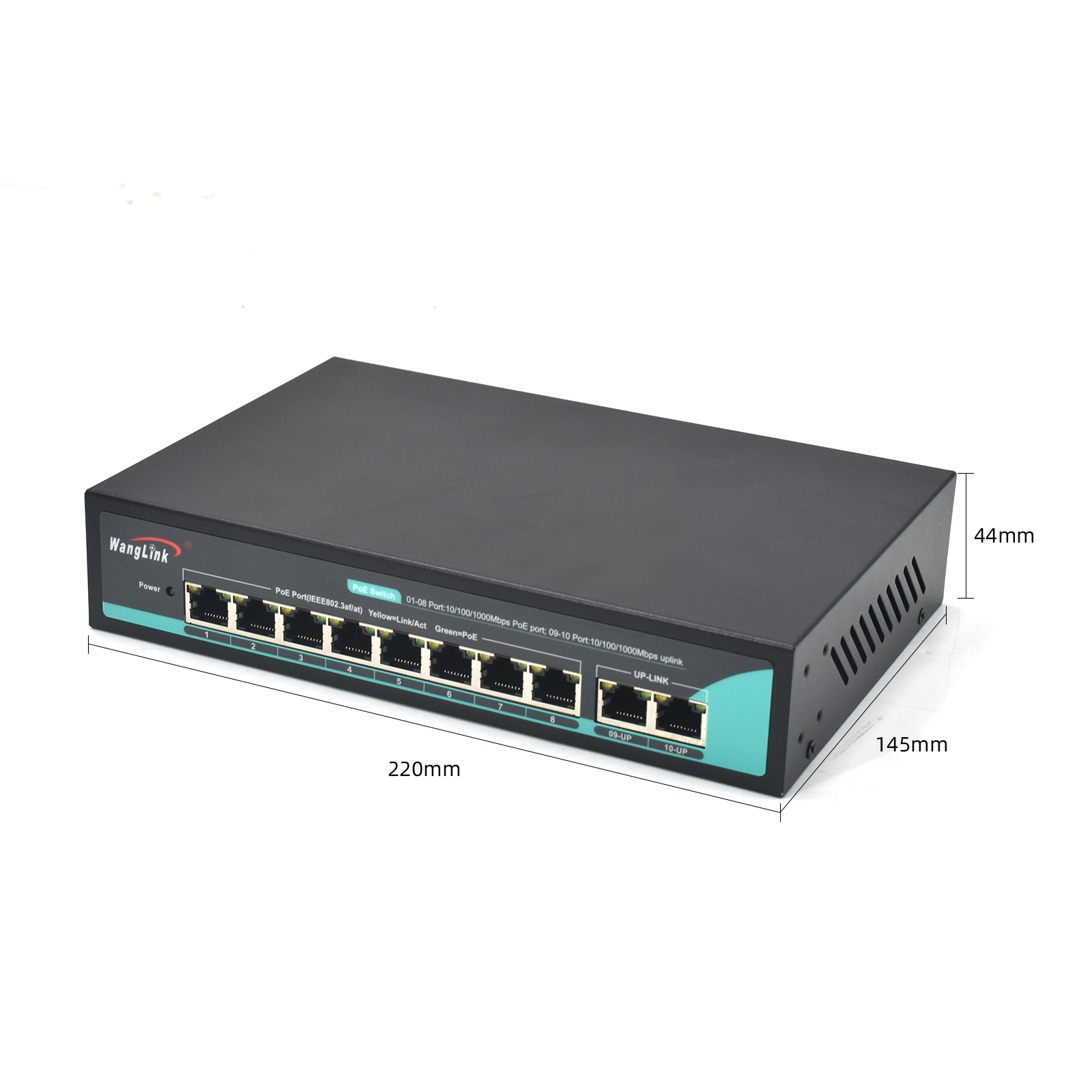

Dimensions: 220×145×44mm | Net weight: 0.8kg | Case: Metal

Installation: Desktop or wall-mount (mounting kit included)

Optional: 6KV common / 4KV differential surge protection, AI network self-healing watchdog
