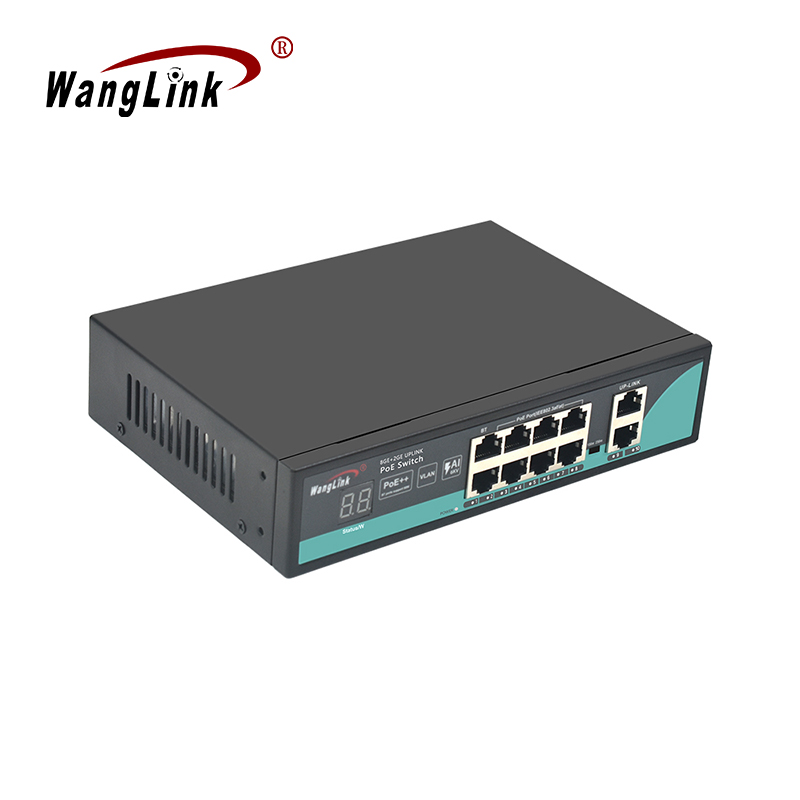

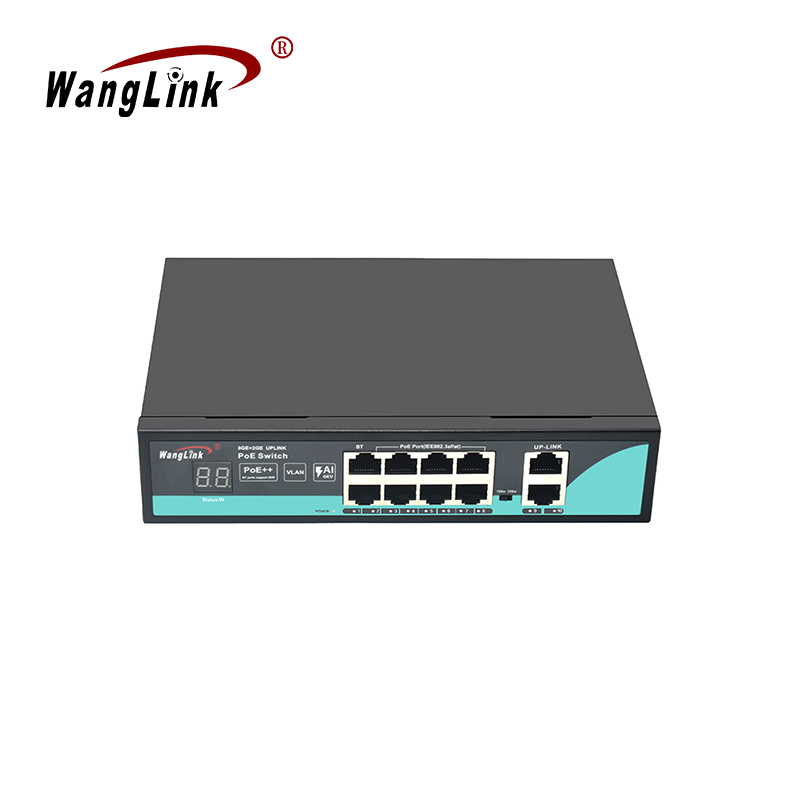

Unmanaged 8 Port PoE Switch Gigabit, 2 RJ45 Uplink, 120W PoE Budget, 250m Long Distance, Metal Case for IP Camera & Small Business

8-port unmanaged PoE switch with 1 PoE++ port (60W) and 7 PoE+ ports (25.4W each), 120W total budget. Plug-and-play, metal housing, DIP switch for VLAN or 250m extend mode. Ideal for surveillance and office networking.

SG820P-DPM
Port Description

8 × 10/100/1000BASE-T PoE ports (port 1: PoE++ up to 60W; ports 2-8: PoE+ up to 25.4W each) + 2 × 10/100/1000BASE-T uplink ports (ports 9-10). Total PoE budget: 120W.
  • 8 gigabit PoE ports with auto-sensing: 1 port supports up to 60W (PoE++), 7 ports support up to 25.4W (PoE+/PoE)
  • DIP switch enables VLAN isolation or 250m long-distance transmission on ports 1-8
  • Digital tube dynamically shows total PoE power usage – quick health check without logging in
  • Plug-and-play, no setup required; auto MDI/MDI-X and auto-negotiation on every port
  • Metal housing with internal power supply; supports desktop or wall-mount installation









Why choose this 8 port PoE switch unmanaged for your network deployment?

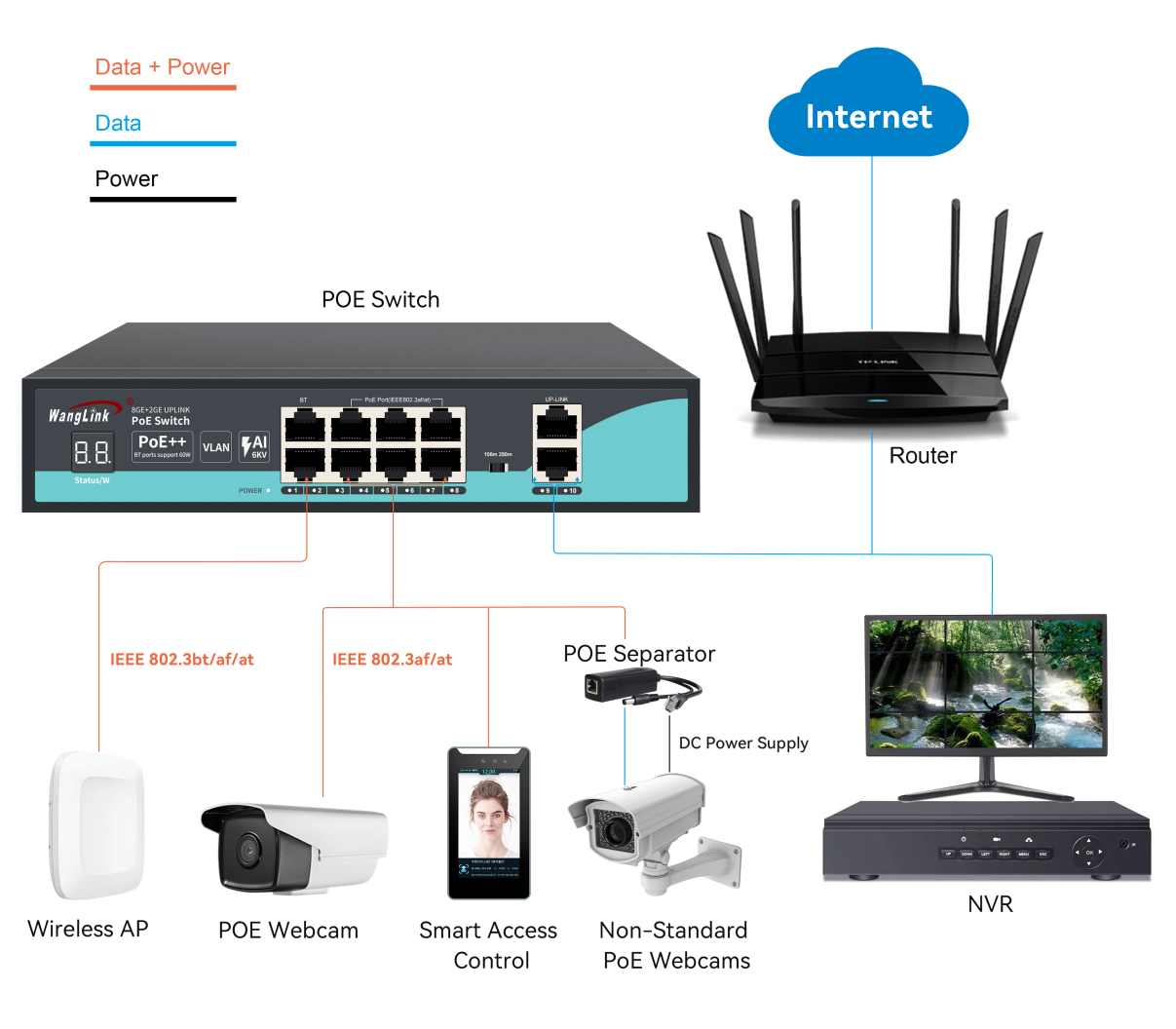

If you’re setting up IP cameras, VoIP phones, or wireless access points in a small office, retail store, or home environment, you need a switch that delivers power and data over a single cable without extra configuration. This 8 port PoE switch unmanaged does exactly that – it automatically detects PoE devices (IEEE 802.3 af/at/bt) and supplies power only to those that need it, protecting your non-PoE gear from damage.

Key strengths you’ll notice on the job

The first port supports PoE++ up to 60W – enough to power high-demand devices like PTZ cameras or outdoor bridges. The remaining seven PoE ports deliver 25.4W each, covering most standard endpoints. With a total PoE budget of 120W, you can run several cameras or APs without needing extra power injectors. The switch also features a DIP switch that toggles between standard 100m mode and 250m extend mode: in extend mode, ports 1-8 are isolated from each other but can still communicate with the two uplink ports, cutting down broadcast storms and extending reach for long cable runs.

Where it fits best

This 8 port PoE switch unmanaged is a practical choice for video surveillance in hotels, supermarkets, and small-to-medium businesses. It’s also good for extending your network to a workshop or garage where running separate power lines is inconvenient. The metal casing and internal power supply make it durable for 24/7 operation, and the natural heat dissipation keeps it running cool without a fan noise.

Technical Specifications

Standards
IEEE 802.3, 802.3u, 802.3ab, 802.1p, 802.3x
Ethernet Ports
8 × RJ45 PoE ports (10/100/1000Mbps) + 2 × RJ45 uplink ports
PoE Pin Assignment
1/2+, 3/6- (Alternative A)
Max PoE Power per Port
Port 1: 60W; Ports 2-8: 25.4W each
Total PoE Budget
120W
Switching Capacity
20 Gbps (non-blocking)
Packet Forwarding Rate
14.88 Mpps (64-byte packets)
MAC Address Table
2K
Jumbo Frame
9216 bytes
DIP Switch Modes
Standard (100m, all ports communicate); Extend (250m, ports 1-8 isolated, communicate with uplinks)

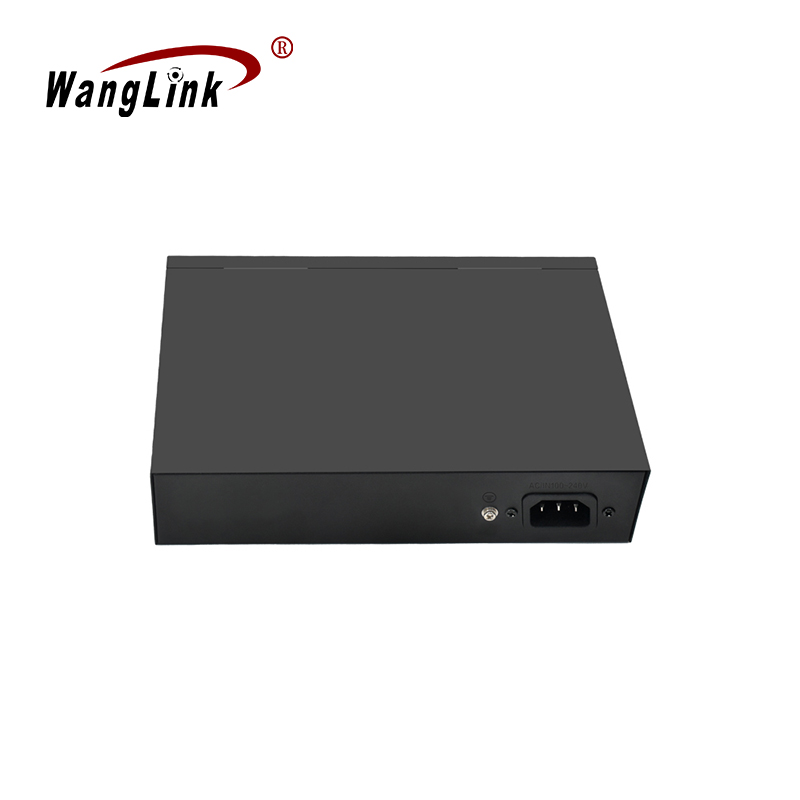

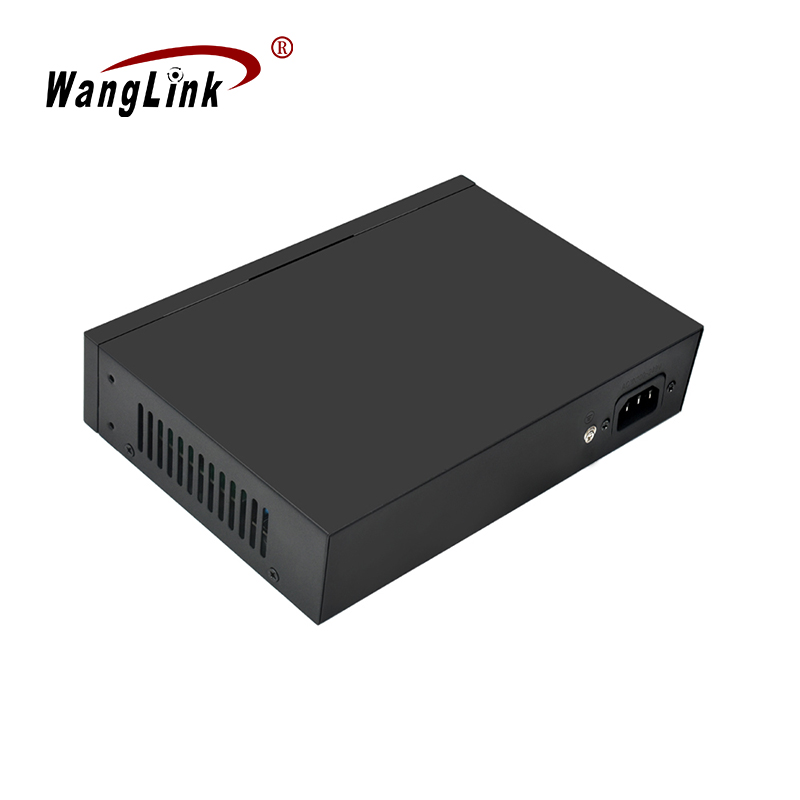

Power Supply
AC 100~240V, 50Hz (internal)
Power Consumption
Standby ≤3W; Full load ≤120W
Operating Temperature
-20°C to 60°C
Storage Temperature
-40°C to 85°C
Humidity
5%–95% non-condensing
Cooling
Natural heat dissipation (fanless)

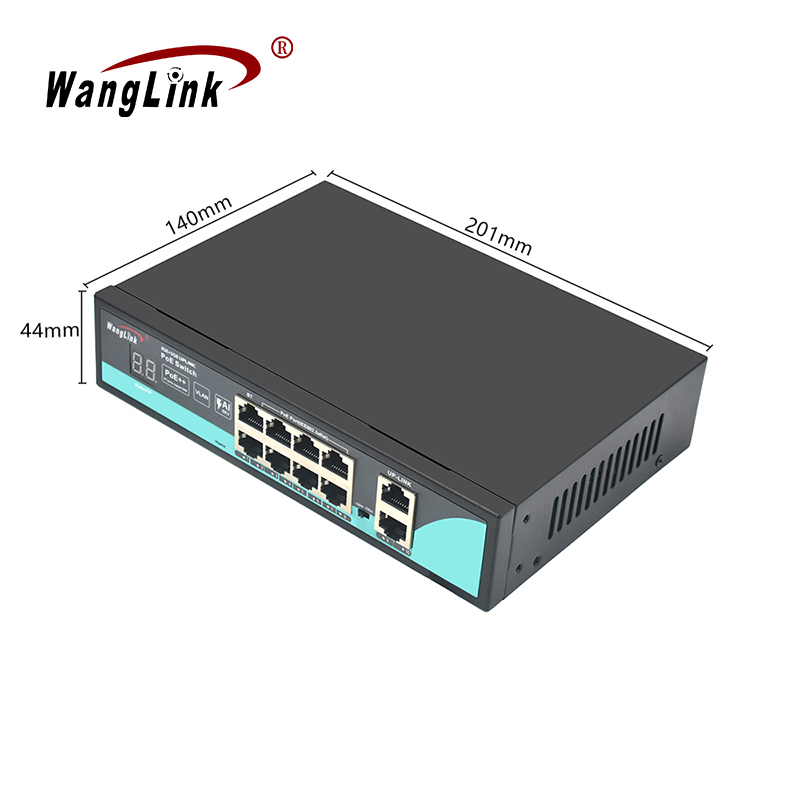

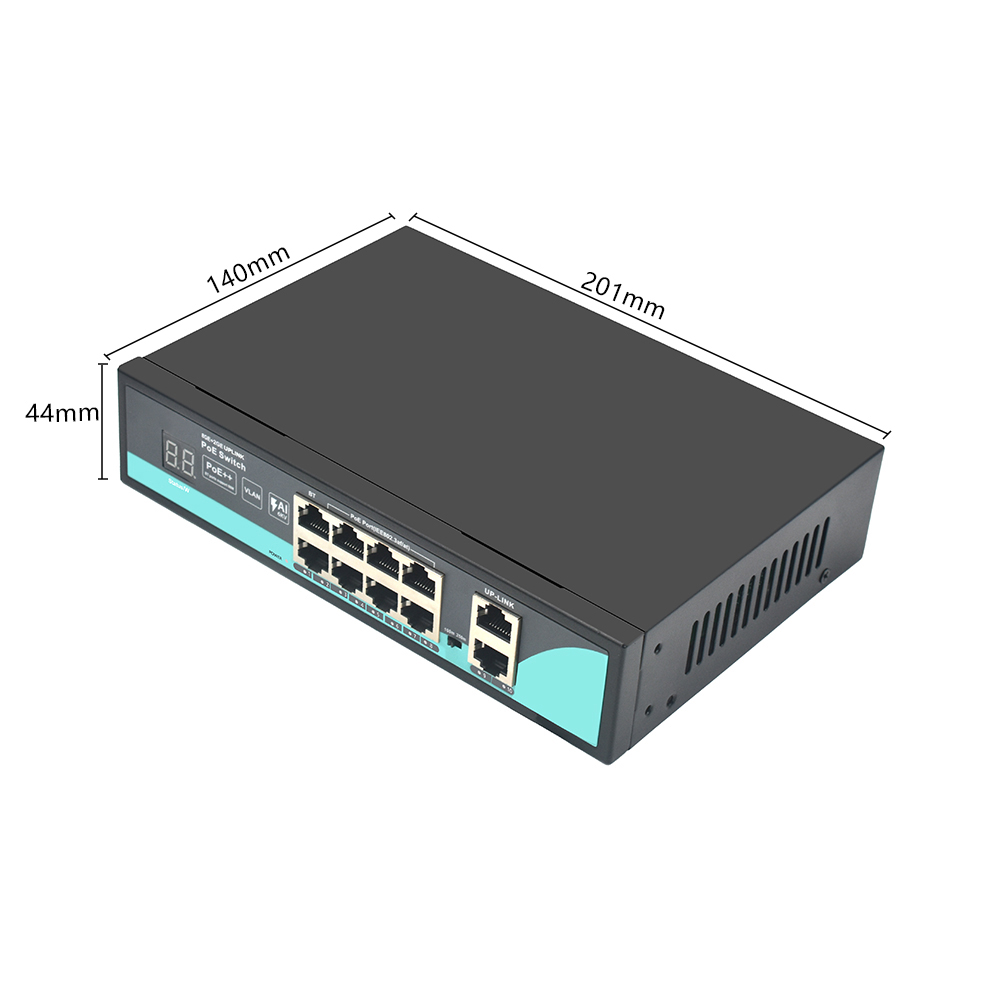

Dimensions (W×D×H)
201 × 140 × 44 mm
Weight
0.7 kg (net), 0.9 kg (gross)
Housing
Metal
Installation
Desktop or wall-mount (brackets included)
Surge Protection (optional)
6KV common mode / 4KV differential mode
AI Watchdog (optional)
Auto-restart if no data communication on port for ~3 minutes
