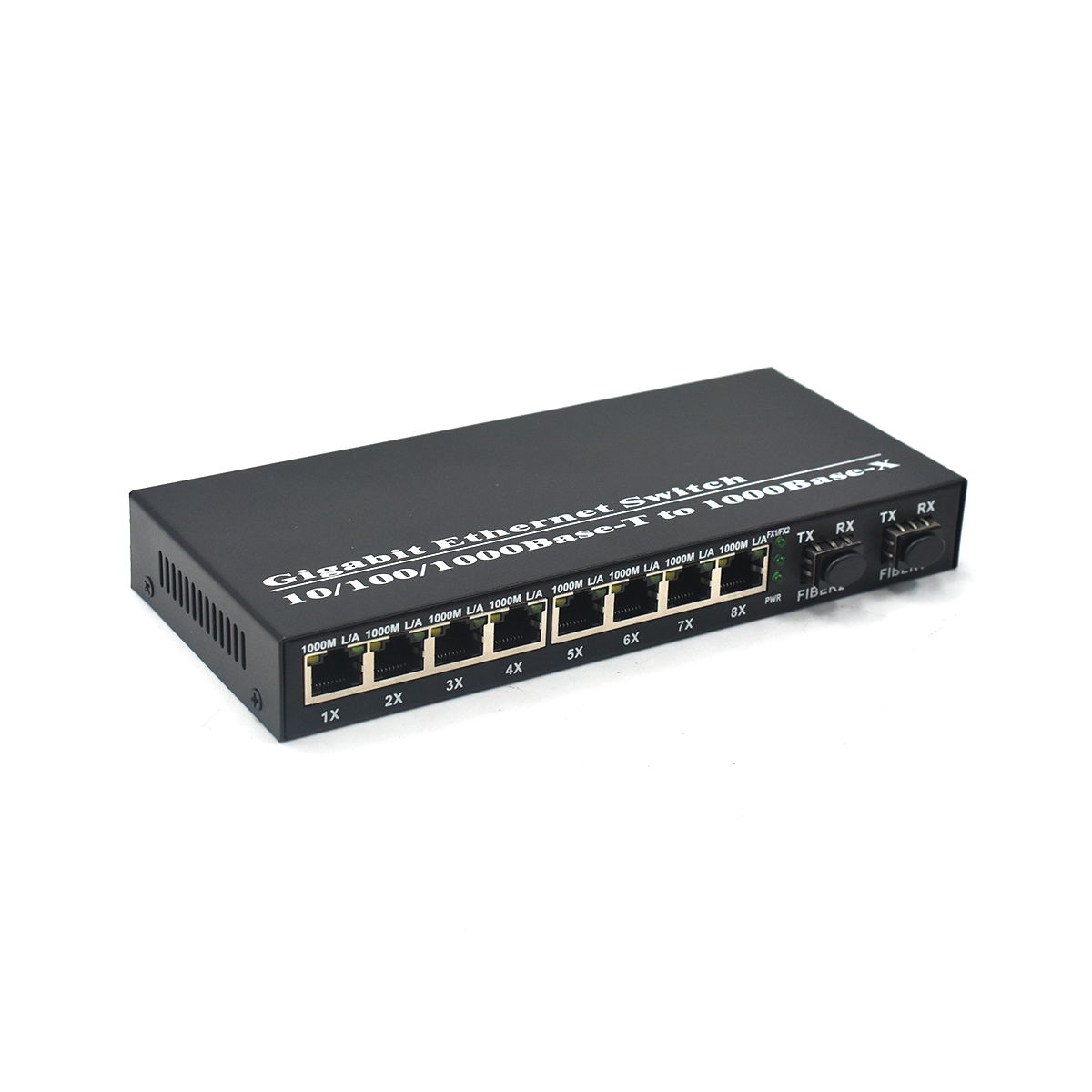

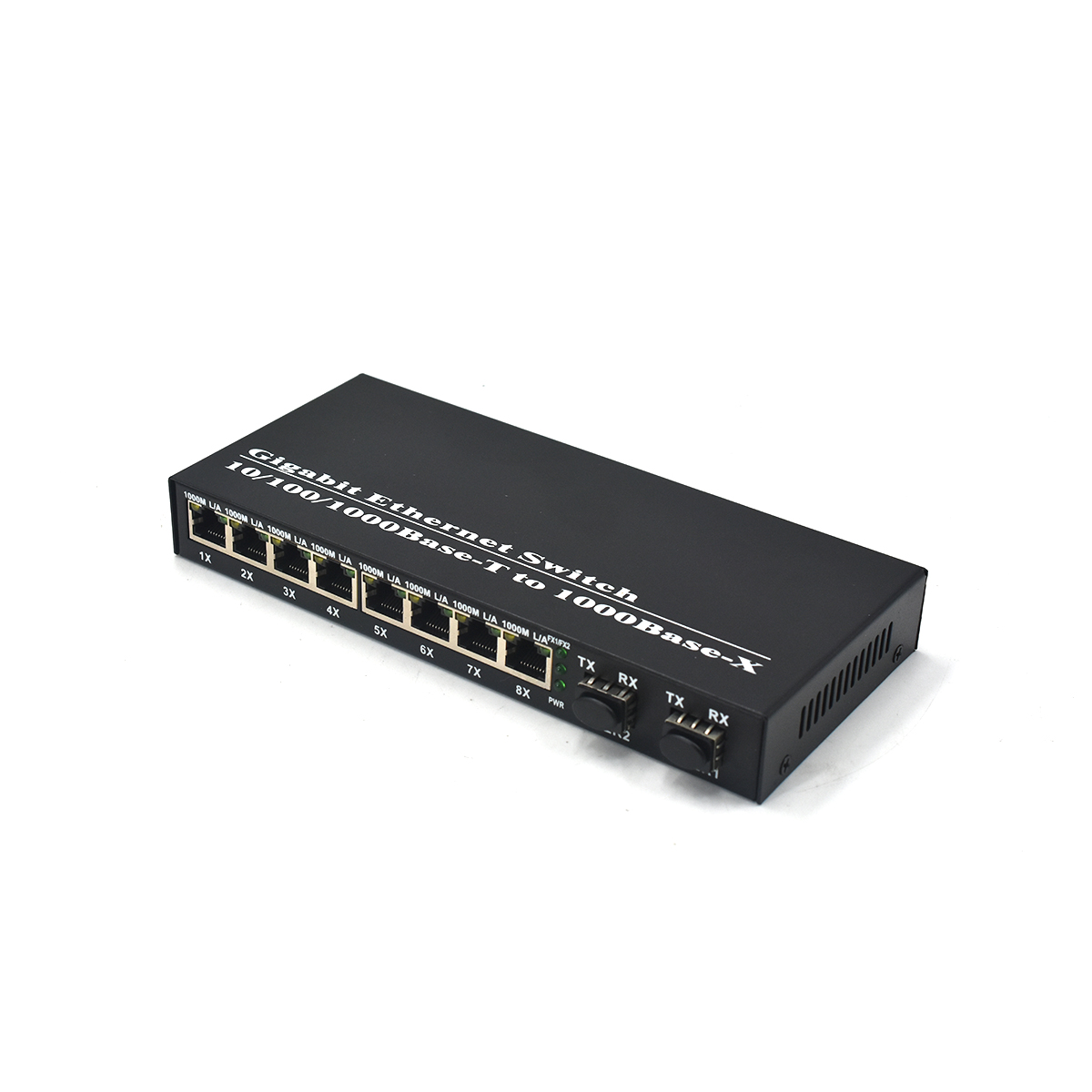

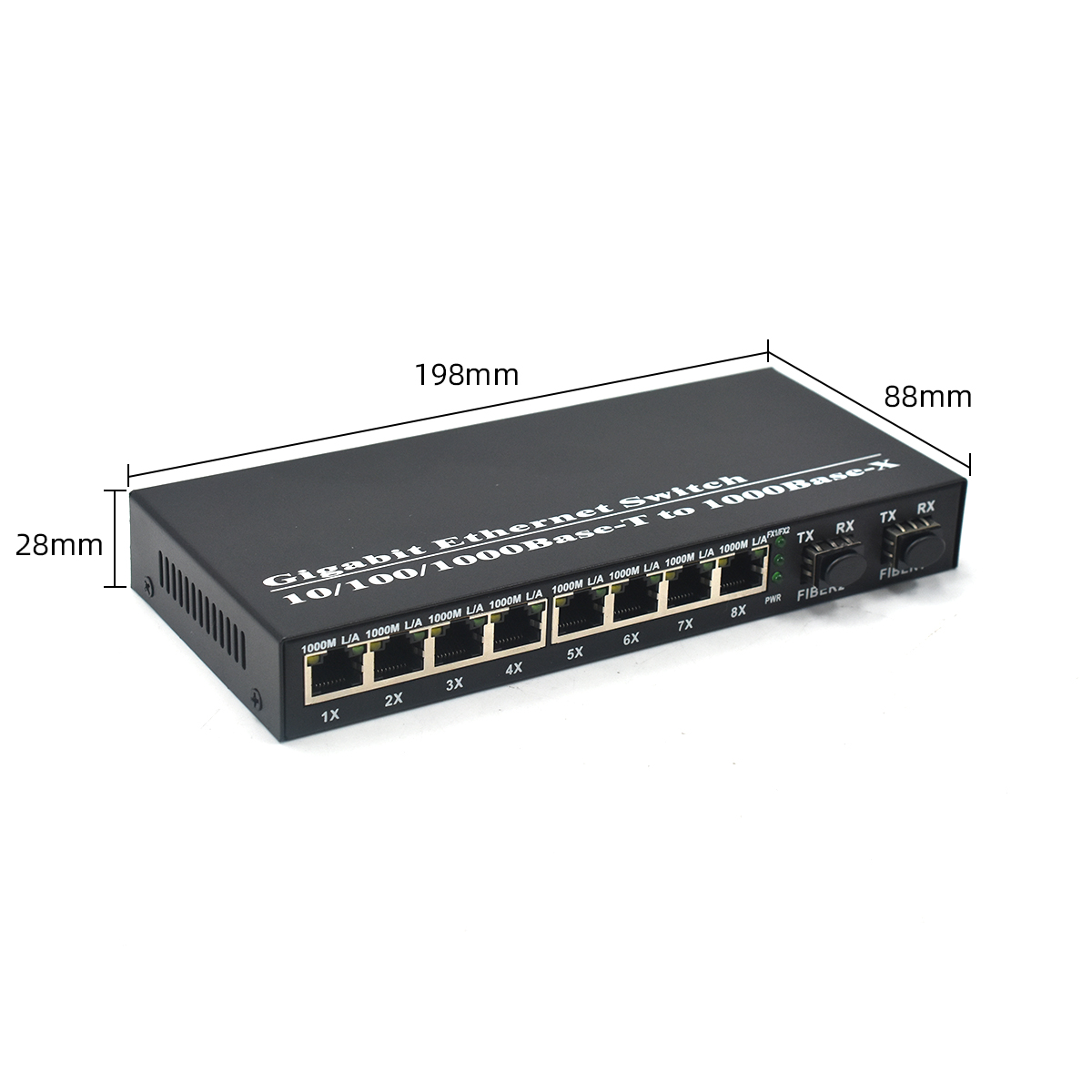

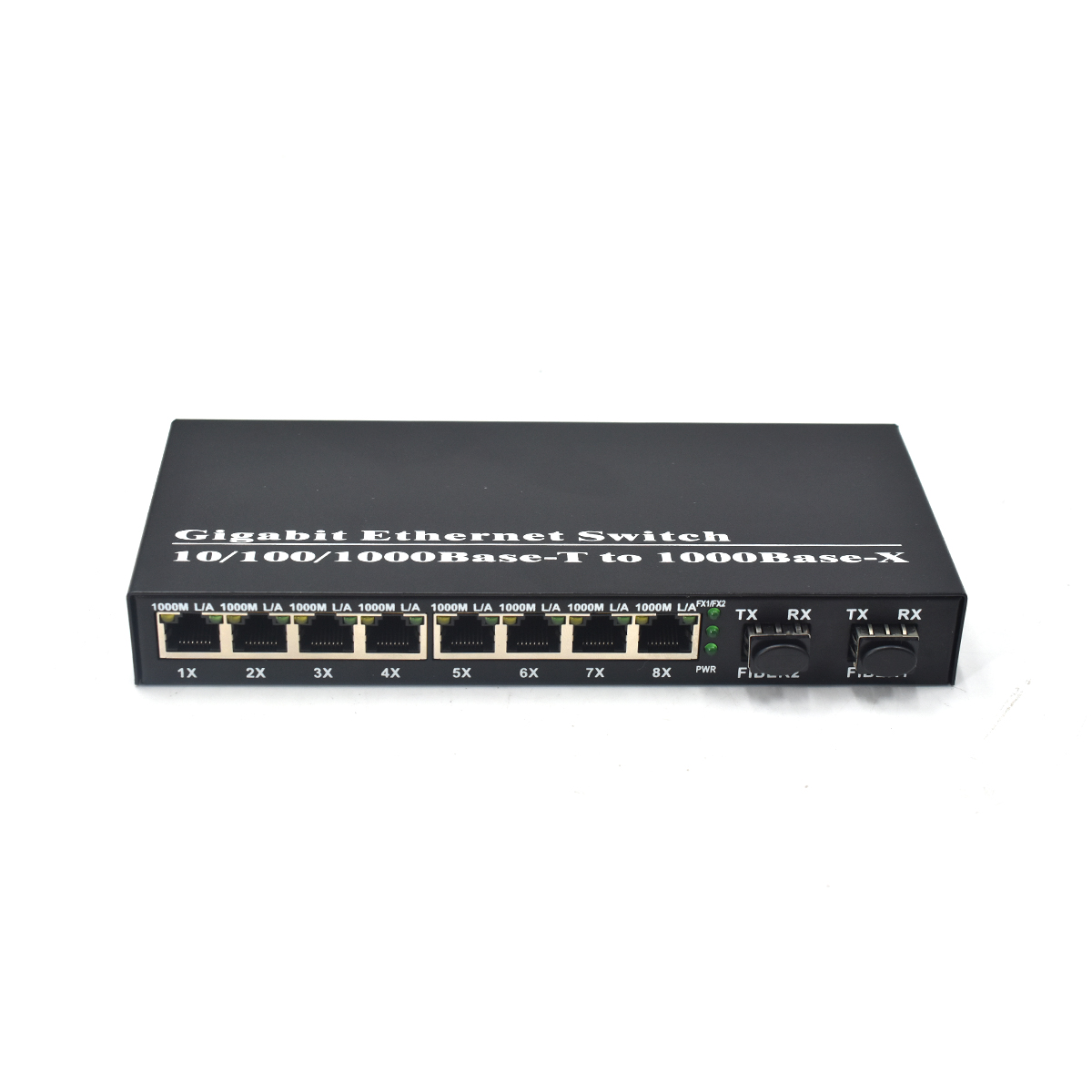

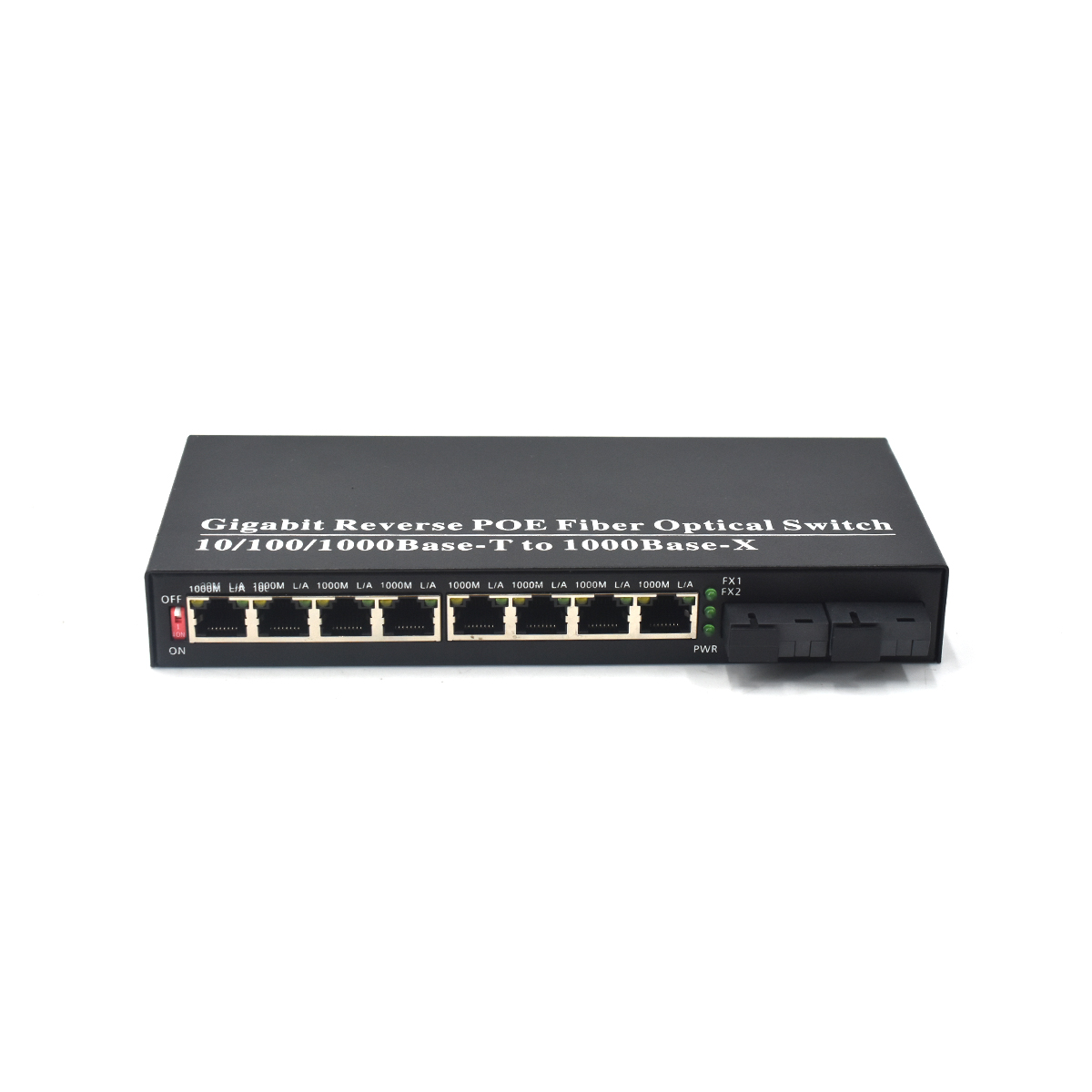

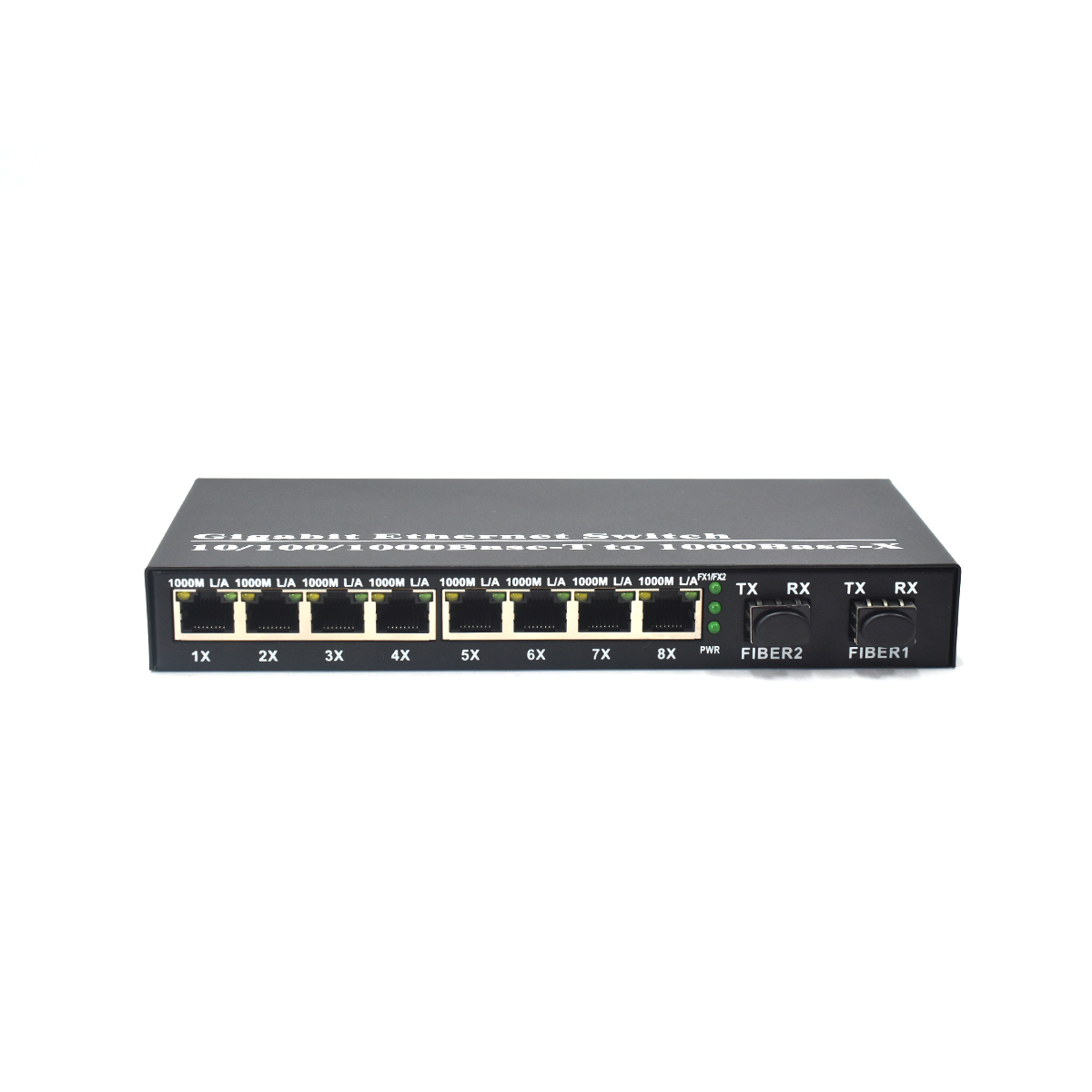

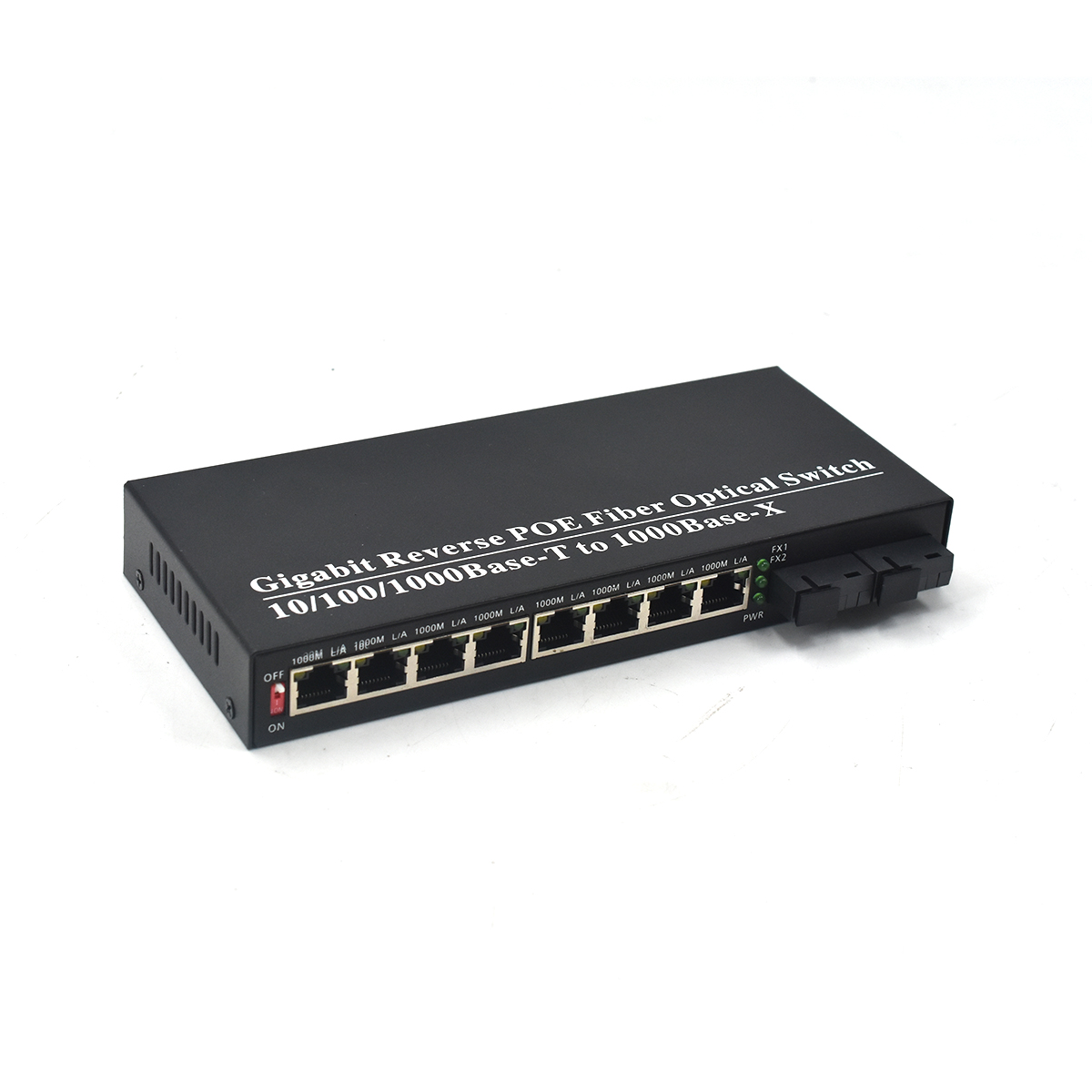

Unmanaged PoE Powered 8 Port Network Switch, 2 SC Fiber Ports, Gigabit, Desktop for Industrial and Commercial Environments

Power your network with 7 PoE input ports and 1 PoE output port plus DC jack. Ideal for remote IP cameras, sensors, and small offices where wall power is scarce. Plug-and-play, no configuration needed.

SG802RP
Port Description

8x 10/100/1000Base-T RJ45 (ports 1‑7 PoE input, port 8 PoE output) + 2x 1.25G SC fiber uplink ports + 1 DC jack (12V/1A).
  • 7 PoE input ports (12-48V) – power the switch itself from any PoE source
  • 1 PoE output port (12-48V) – daisy‑chain power to a camera or AP
  • 1 DC jack (12V/1A output) – power a small sensor or LED light
  • 2 SC fiber uplink ports – extend network up to 100km over single‑mode fiber
  • Plug‑and‑play, zero configuration – auto‑negotiation on all ports
  • One‑button VLAN mode + 250m long‑distance transmission mode
  • 9K jumbo frame support for increased throughput
  • Metal housing, fanless, -20°C to +60°C operating range









Reliable PoE Powered 8 Port Network Switch for Remote Power Delivery

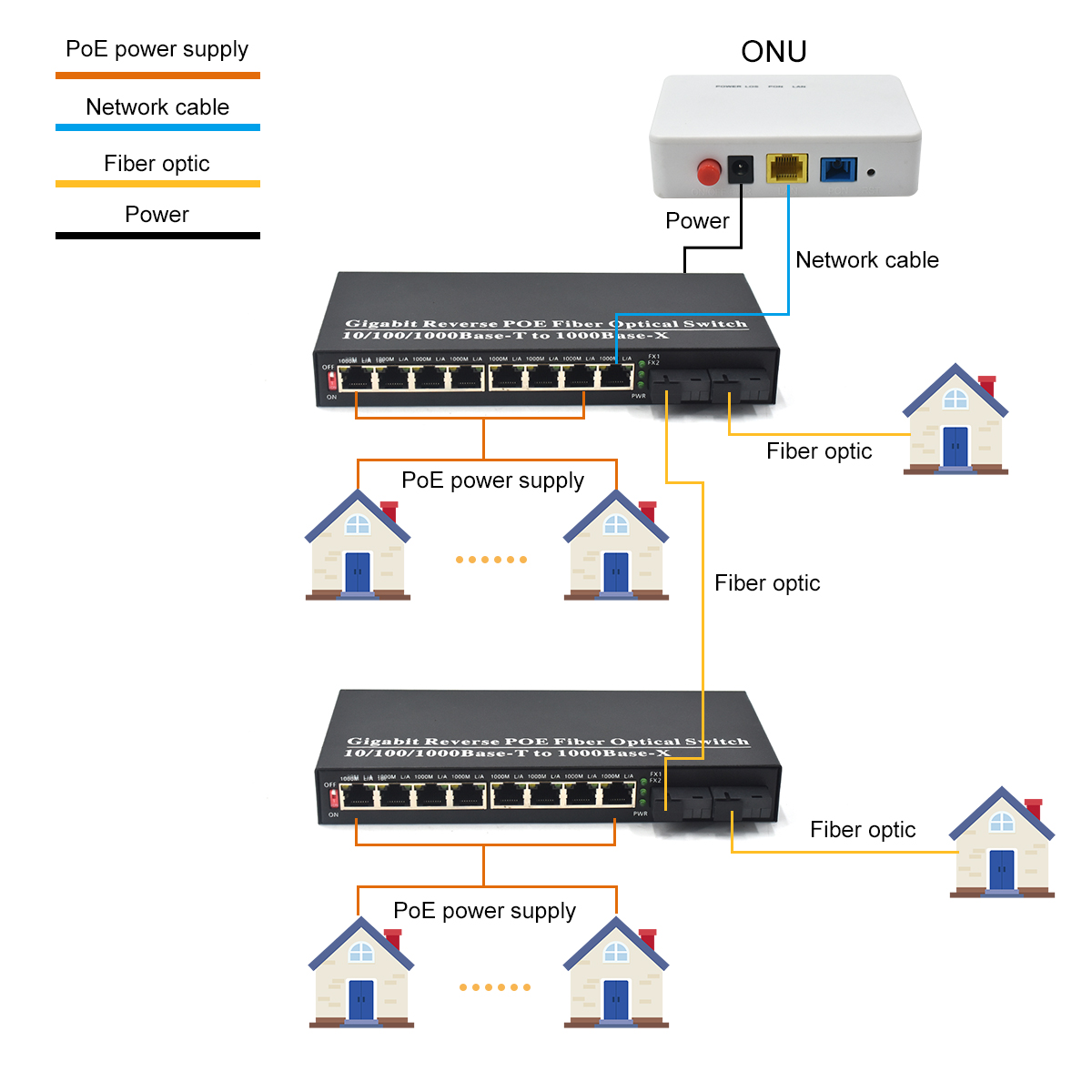

This poe powered 8 port network switch solves a common pain point in field deployments: how to run network gear where AC outlets are far away. With 7 PoE input ports (12-48V) that can draw power from a nearby PoE source or injector, the switch itself becomes the power hub. Port 8 can then output PoE to a downstream device like a camera or access point, while the DC jack provides an additional 12V/1A output for a low-power gadget. No separate power brick needed at the switch location.

Beyond power flexibility, the switch offers 2 SC fiber uplink ports at 1.25G, letting you extend the network over kilometers without signal loss – perfect for campus or warehouse links. All eight copper ports run at Gigabit speed with wire‑throughput forwarding, so your IP surveillance or office traffic flows smoothly. The one‑button VLAN mode isolates traffic for security, and the 250m long‑distance mode extends PoE reach beyond standard 100m. Setup is truly zero‑touch: just plug cables and the switch auto‑negotiates speed, duplex, and MDI/MDI‑X. For IT admins and system integrators, this means less truck rolls and lower total cost of ownership.

Standards & Protocol IEEE802.3 10Base-T, IEEE802.3u 100Base-TX, IEEE802.3ab 1000Base-T, IEEE802.3z 1000Base-SX/LX, IEEE 802.1p, IEEE802.3x
Ethernet Ports 8 RJ45 (10/100/1000Mbps, auto‑negotiation, MDI/MDI-X)
Fiber Ports 2 SC (1.25G, single‑mode: 2/20/40/60/80/100km, multi‑mode: 550m/2km)
PoE Input 12-48V on ports 1-7
PoE Output 12-48V on port 8
DC Output 12V/1A on DC jack
Switching Capacity 20Gbps
Packet Forwarding Rate 14.88Mpps
MAC Table 4K
Jumbo Frame 9K
Power Consumption <3W (without powered devices)
Working Temperature -20°C ~ +60°C
Storage Temperature -20°C ~ +85°C
Humidity 5% ~ 95% (non-condensing)
Shell Material Metal
Installation Desktop
Cooling Natural (fanless)
Weight <0.15kg

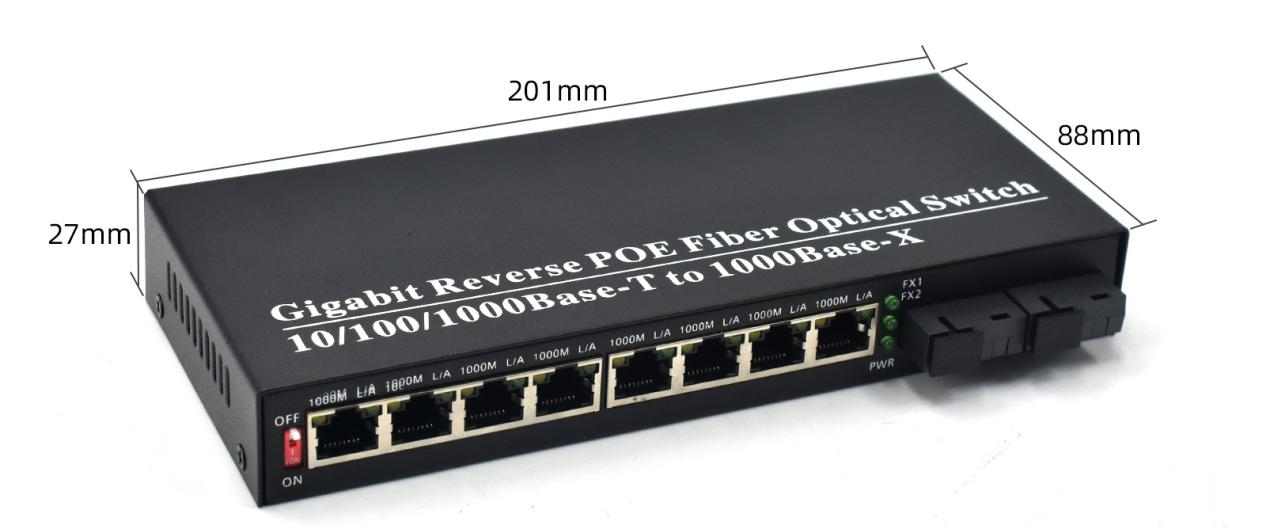

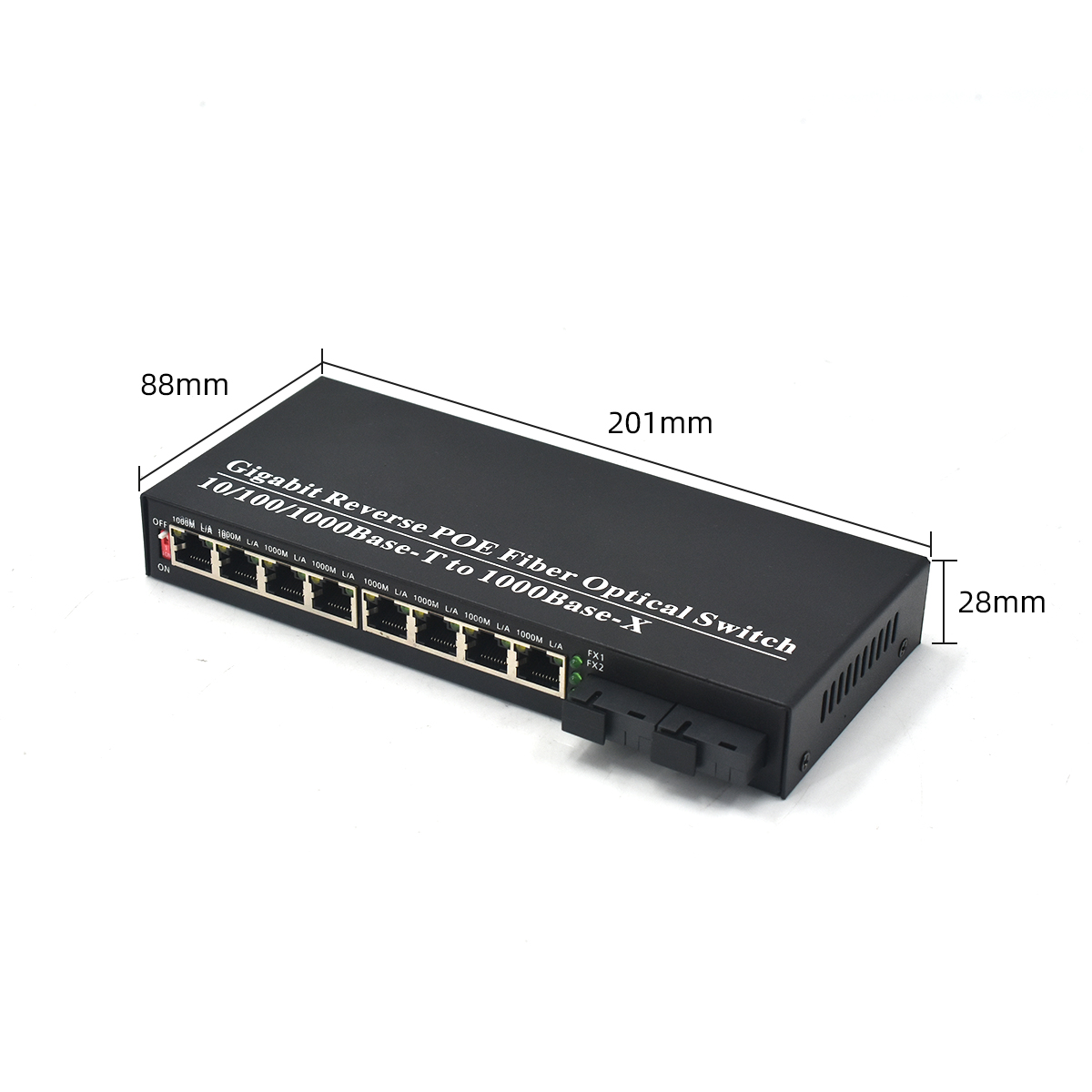

Dimensions 201×88×27 mm
