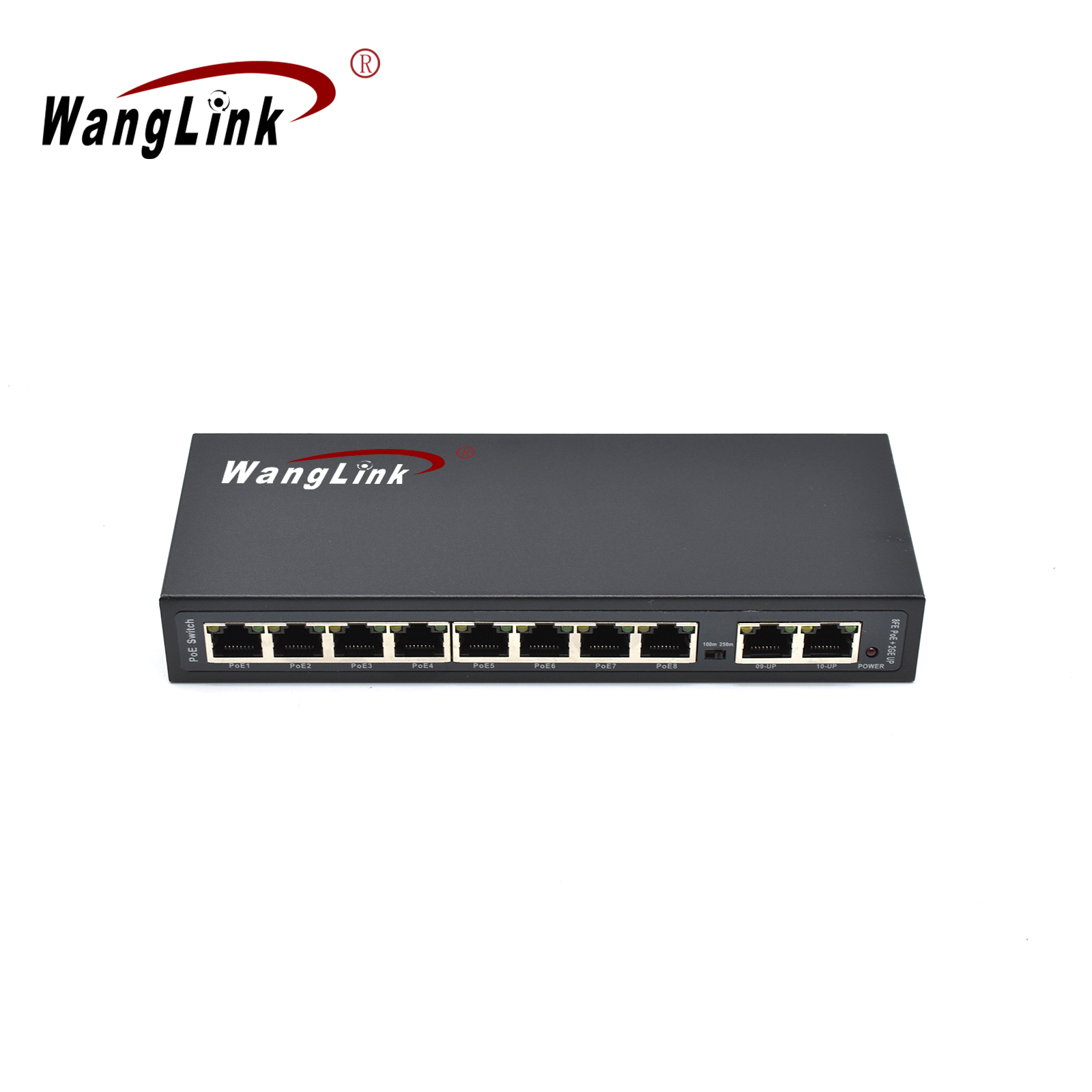

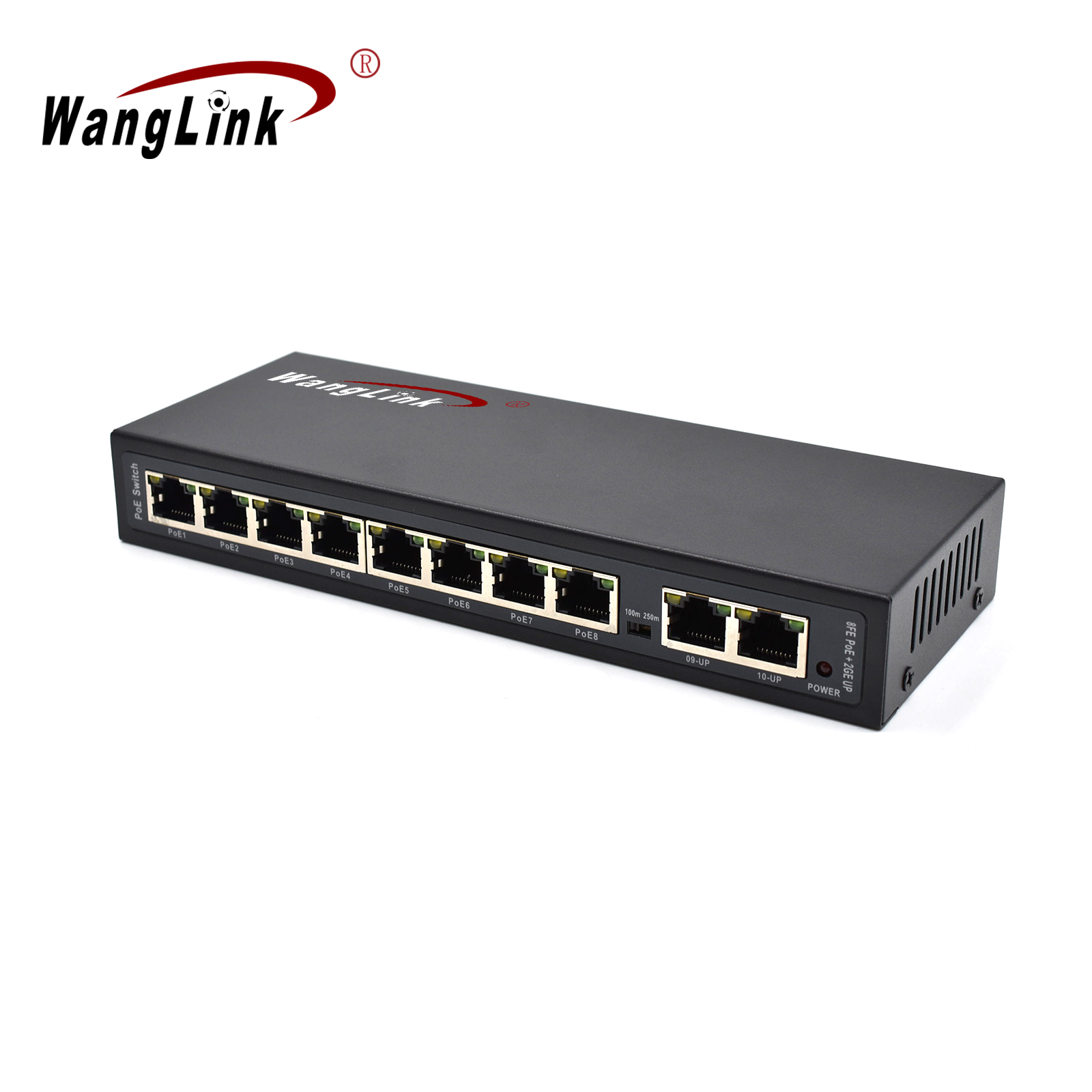

A Practical DC Input 8 Port PoE Switch for Real-World Surveillance

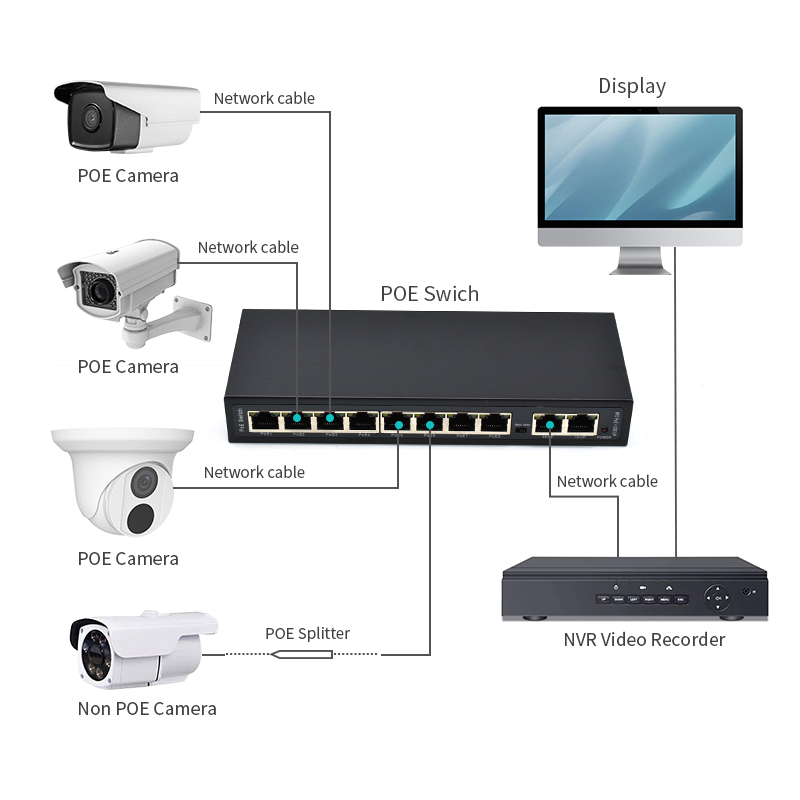

If you’re setting up IP cameras in a small office, retail store, or hotel, you don’t want to juggle separate power adapters for each camera. That’s where this dc input 8 port poe switch comes in. It packs eight 10/100Base-TX ports that deliver up to 25.4W per port using standard IEEE802.3 af/at PoE, so you can power cameras, access points, or VoIP phones directly through the Ethernet cable. The total PoE budget hits 96W, enough to drive three to four high-power PTZ cameras or a mix of devices without extra power bricks.

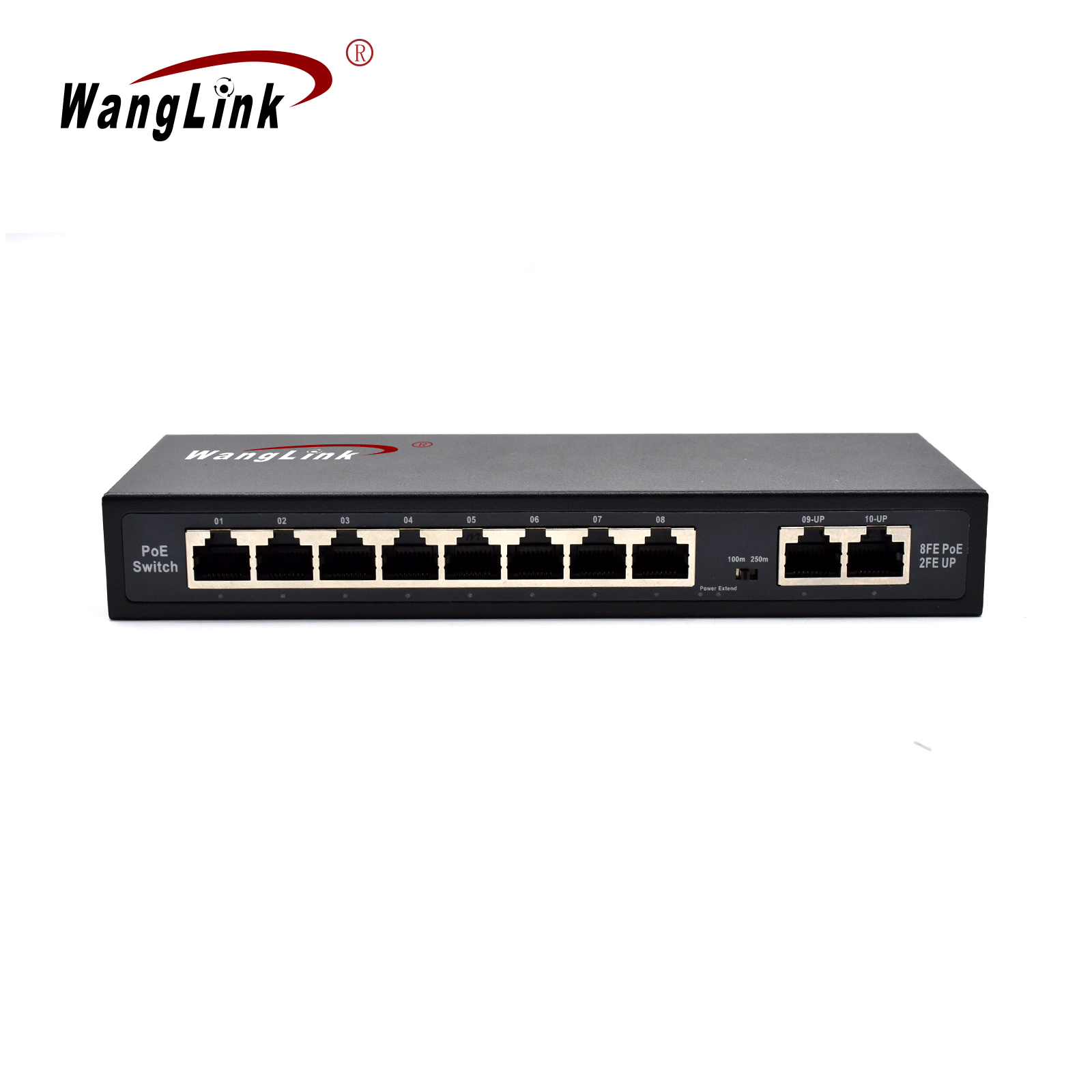

What makes this switch stand out for IT administrators is the DIP switch on the front. Flick it into Extend mode, and ports 1-8 drop to 10Mbps but can push signals up to 250 meters over standard twisted-pair cable. That’s a lifesaver when your camera is mounted at the far end of a warehouse or parking lot. At the same time, that same DIP switch enables VLAN isolation between ports 1-8—those ports can’t talk to each other, but they all reach the two uplink ports (9-10). This cuts down broadcast storms and keeps traffic clean, which matters when you have dozens of cameras broadcasting video streams.

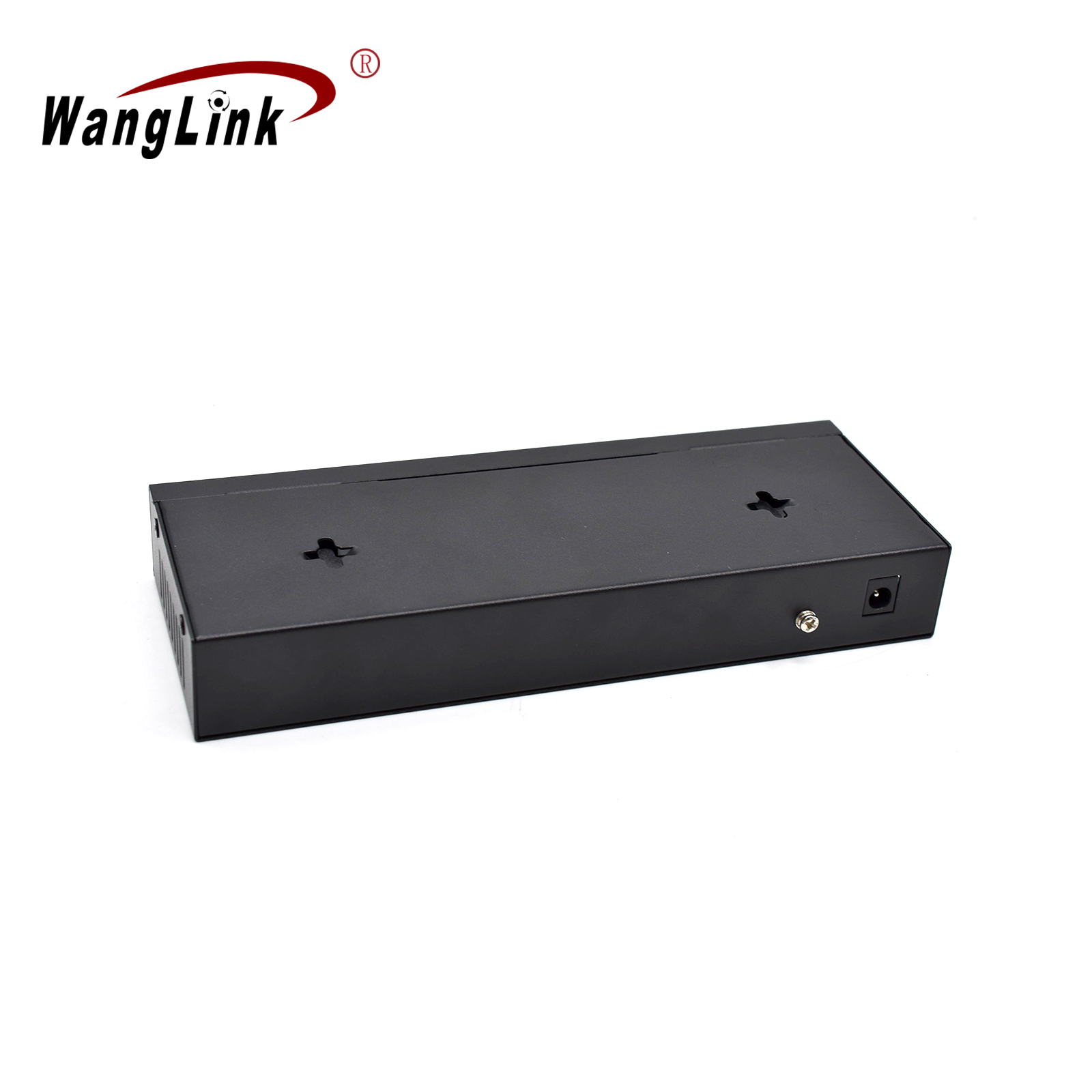

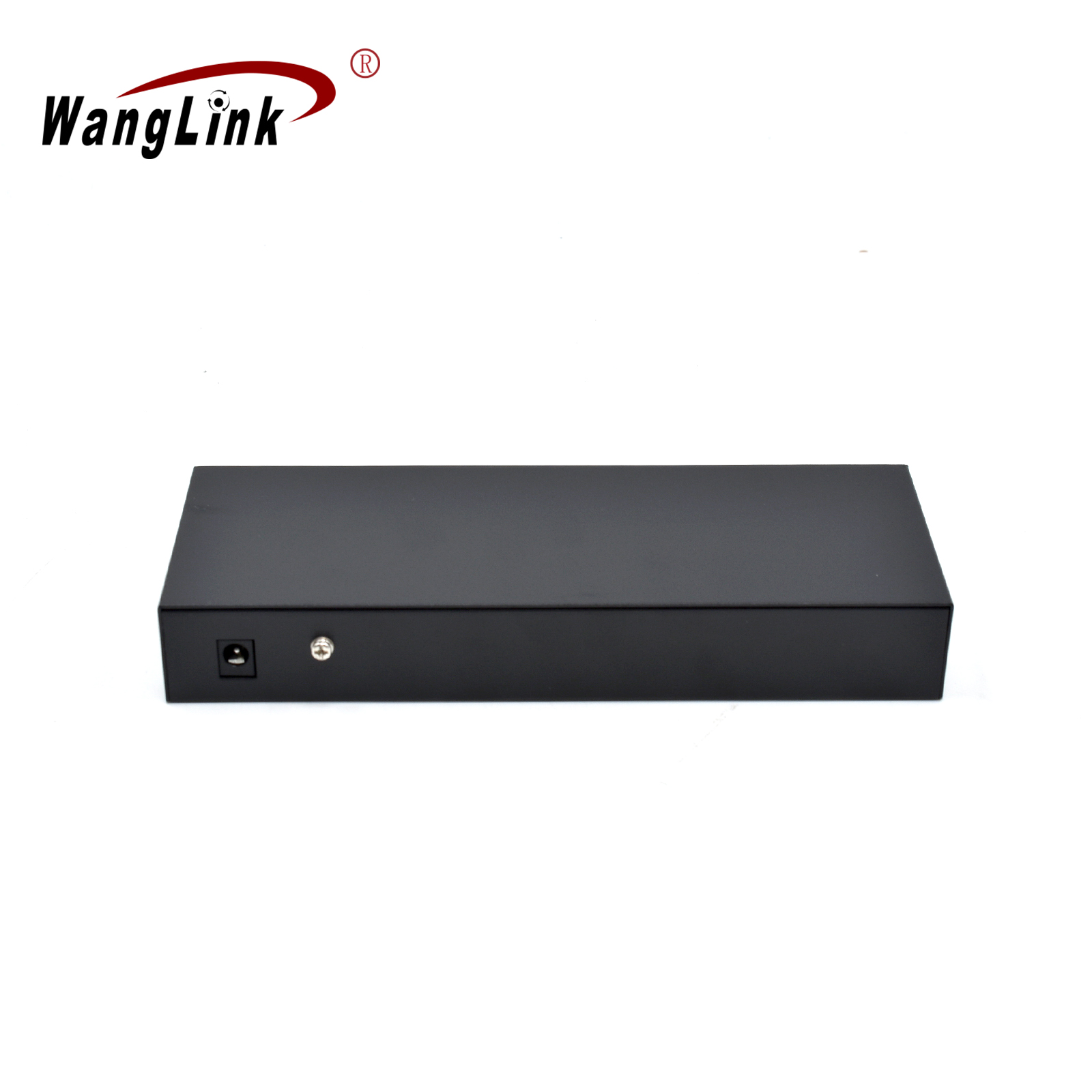

The two uplink ports are Gigabit (10/100/1000Base-T), copper RJ45, so you can connect the switch to your main router or NVR without creating a bottleneck. The entire unit is unmanaged—no web interface, no CLI, just plug and play. That’s exactly what small business owners and non-IT staff need: zero configuration. The metal case dissipates heat naturally (no fan), and the internal DC power supply runs on 48-57V input, making it a true dc input 8 port poe switch that stays cool and quiet even in a dusty cabinet. It also supports a 9216-byte jumbo frame for high-throughput video streams.
If you’re an integrator deploying a camera system in a supermarket or a home office with a few IP cams, this switch gives you the distance flexibility and isolation features you’d normally pay extra for. And with an optional 6KV surge protection and AI watchdog function (check model variant), it’s built to survive outdoor environments and automatically reboot if the network hangs.
