Extend Your Network Reach with a Reliable sm fiber media converter

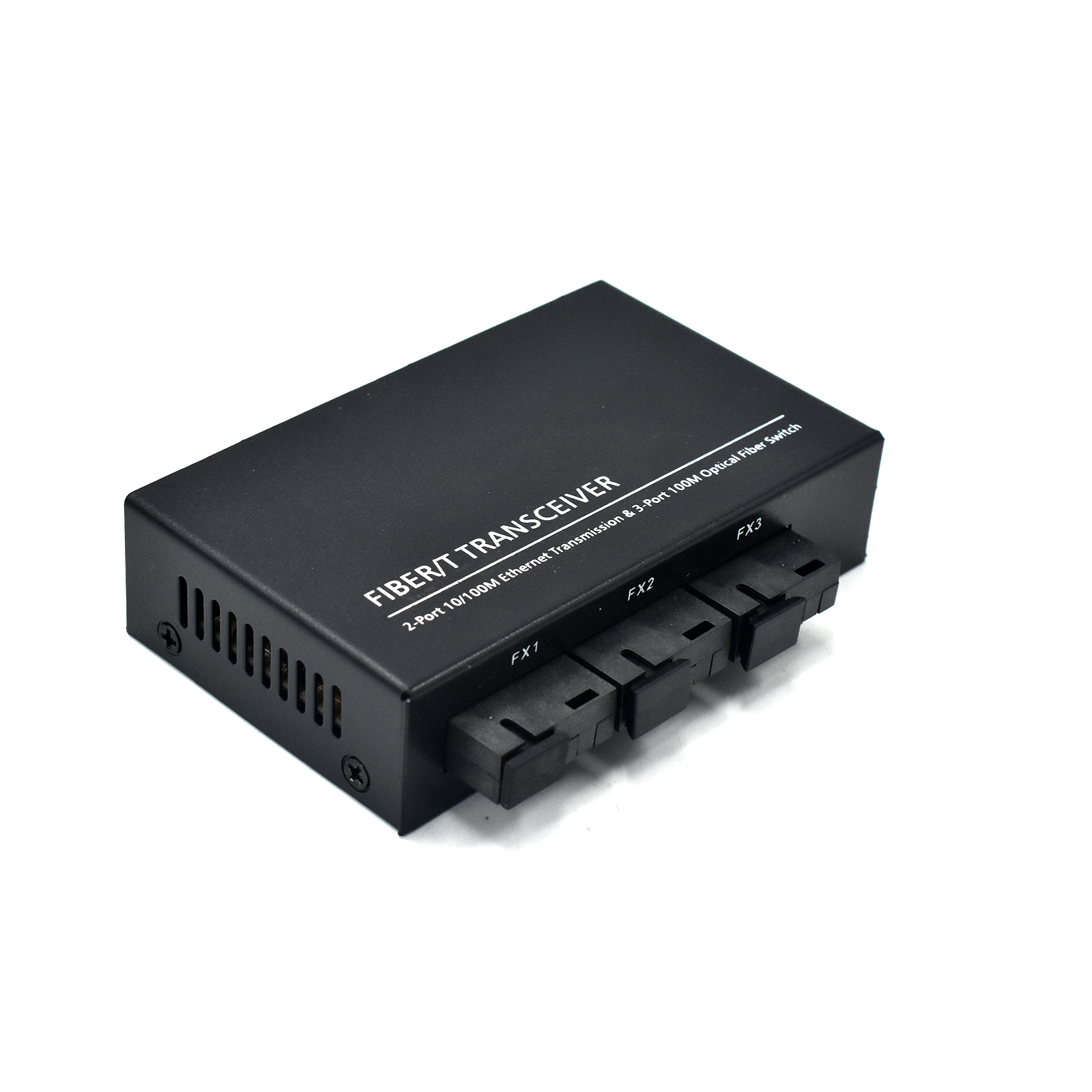

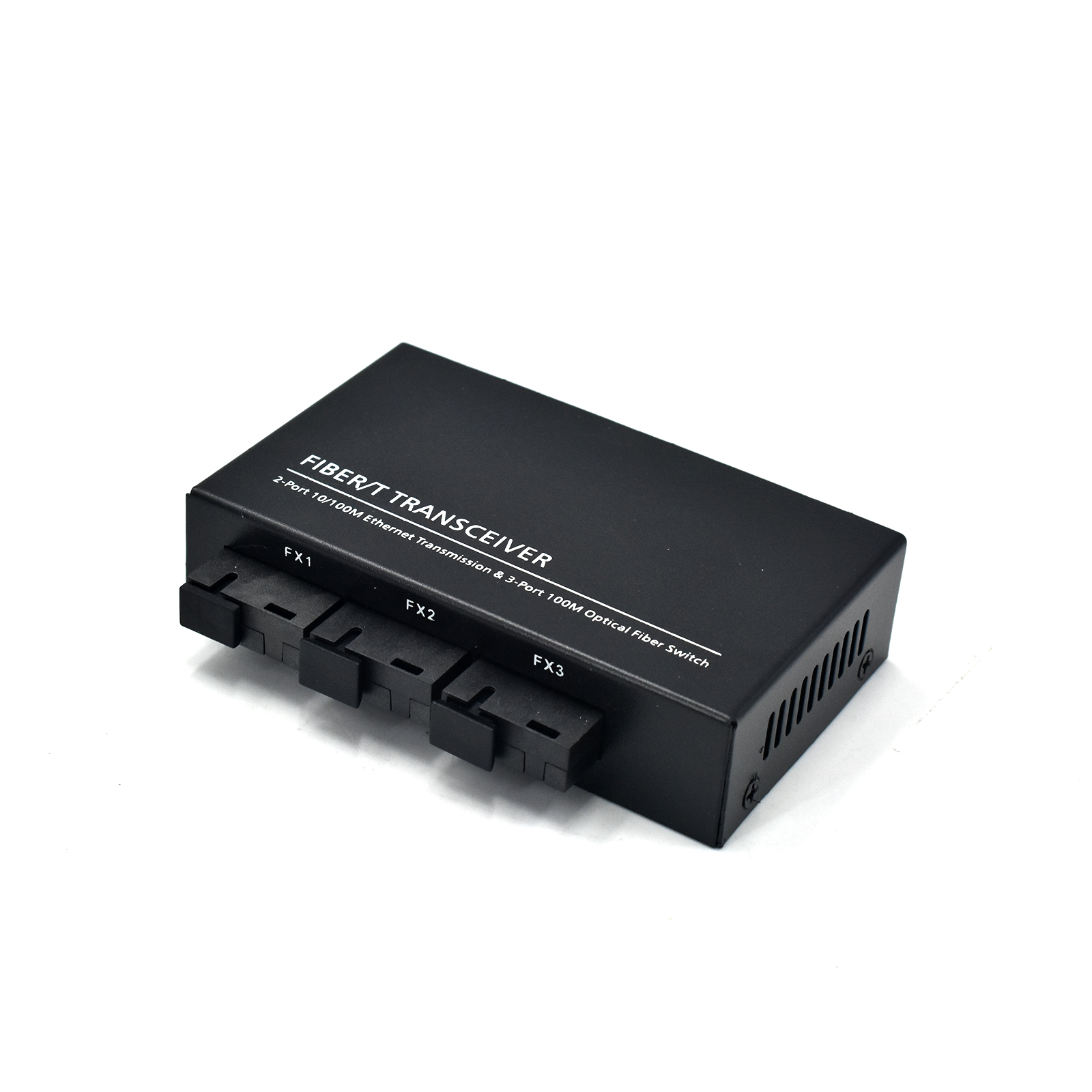

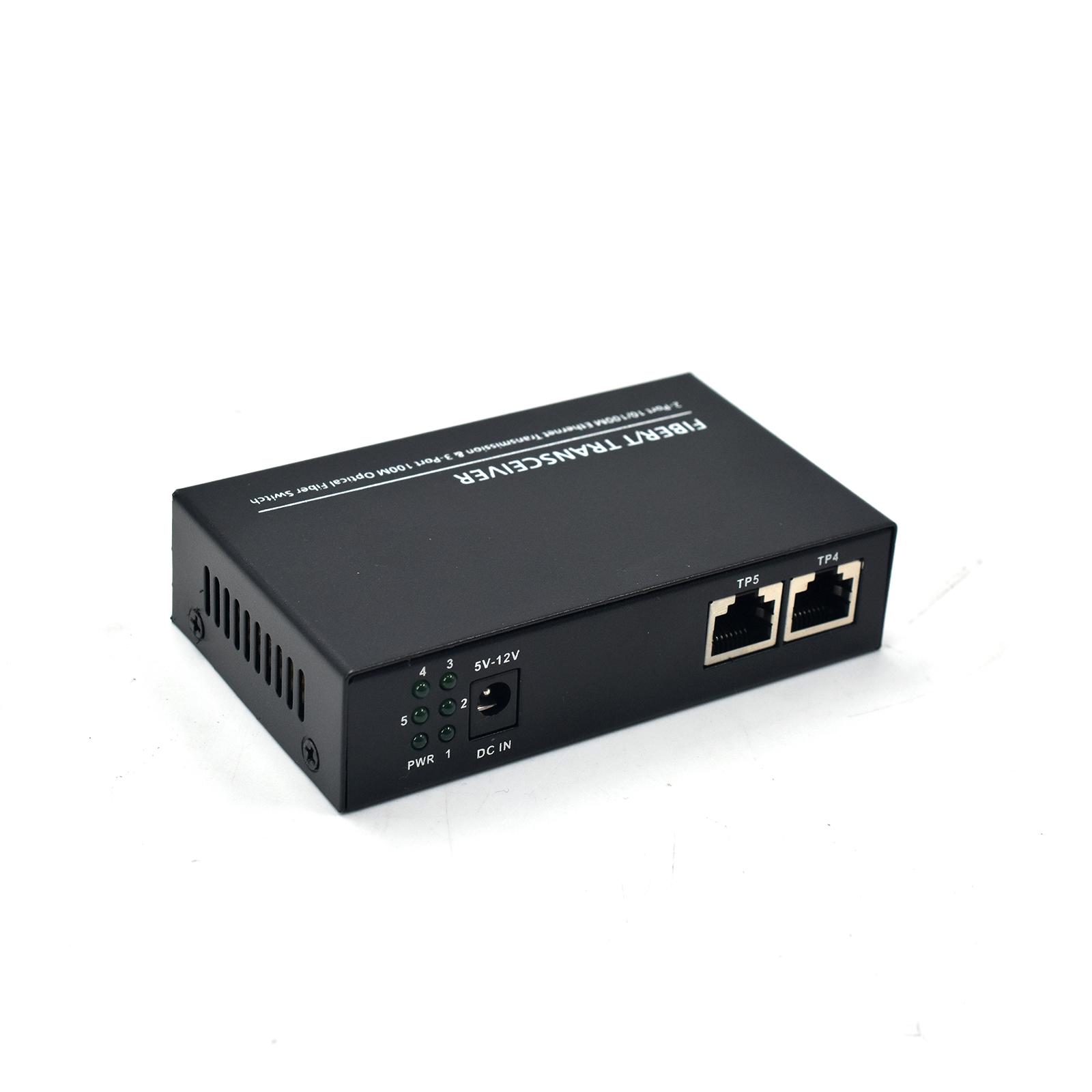

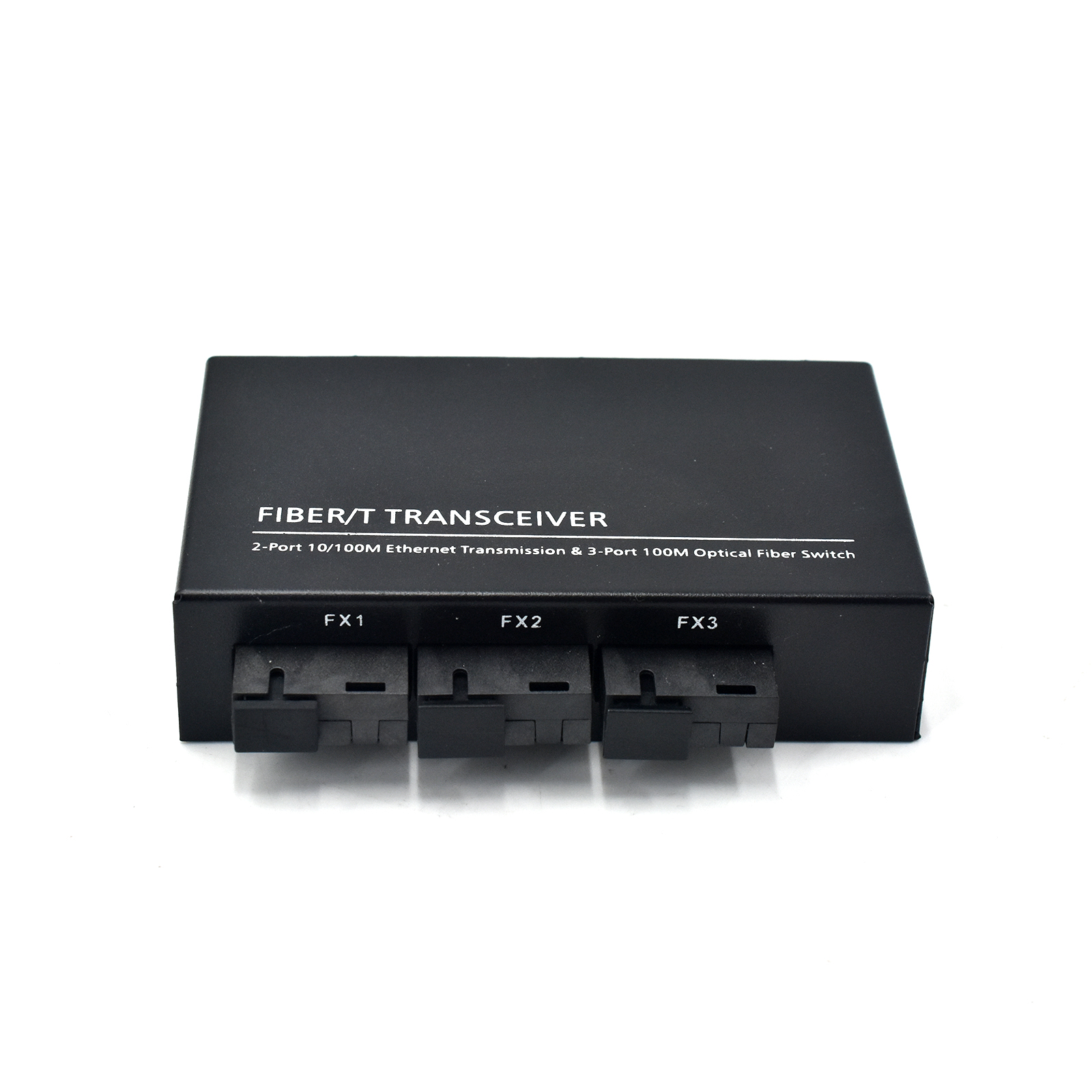

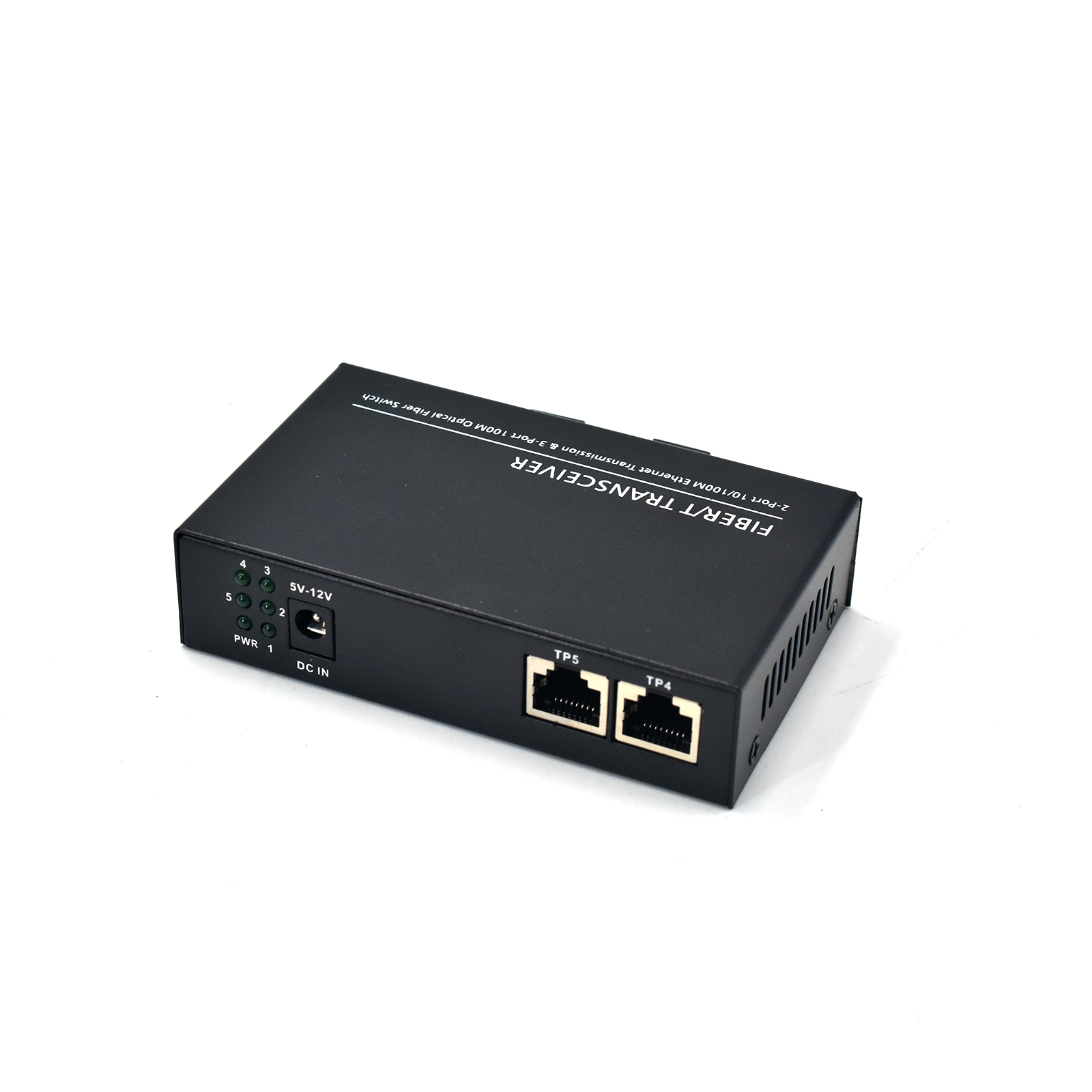

When you need to push Ethernet beyond the 100-meter limit of copper, this sm fiber media converter gets the job done without adding complexity. Built with 3 SC optical ports (155M each) and 2 10/100Base-TX RJ45 ports, it acts as a compact bridge between twisted-pair cable and single-mode fiber. The unit is fully plug-and-play — no IP setup, no VLAN config, no fuss. Just connect your devices and the link comes up automatically.
The metal casing does more than protect the internals: it pulls heat away naturally, so the converter keeps running reliably even in warmer environments like factory floors or outdoor cabinets. Power draw stays under 3W, which makes it friendly for tight power budgets or long battery-backed deployments. And because all ports support auto-negotiation and auto-MDI/MDI-X, you can mix old and new gear without worrying about crossover cables.

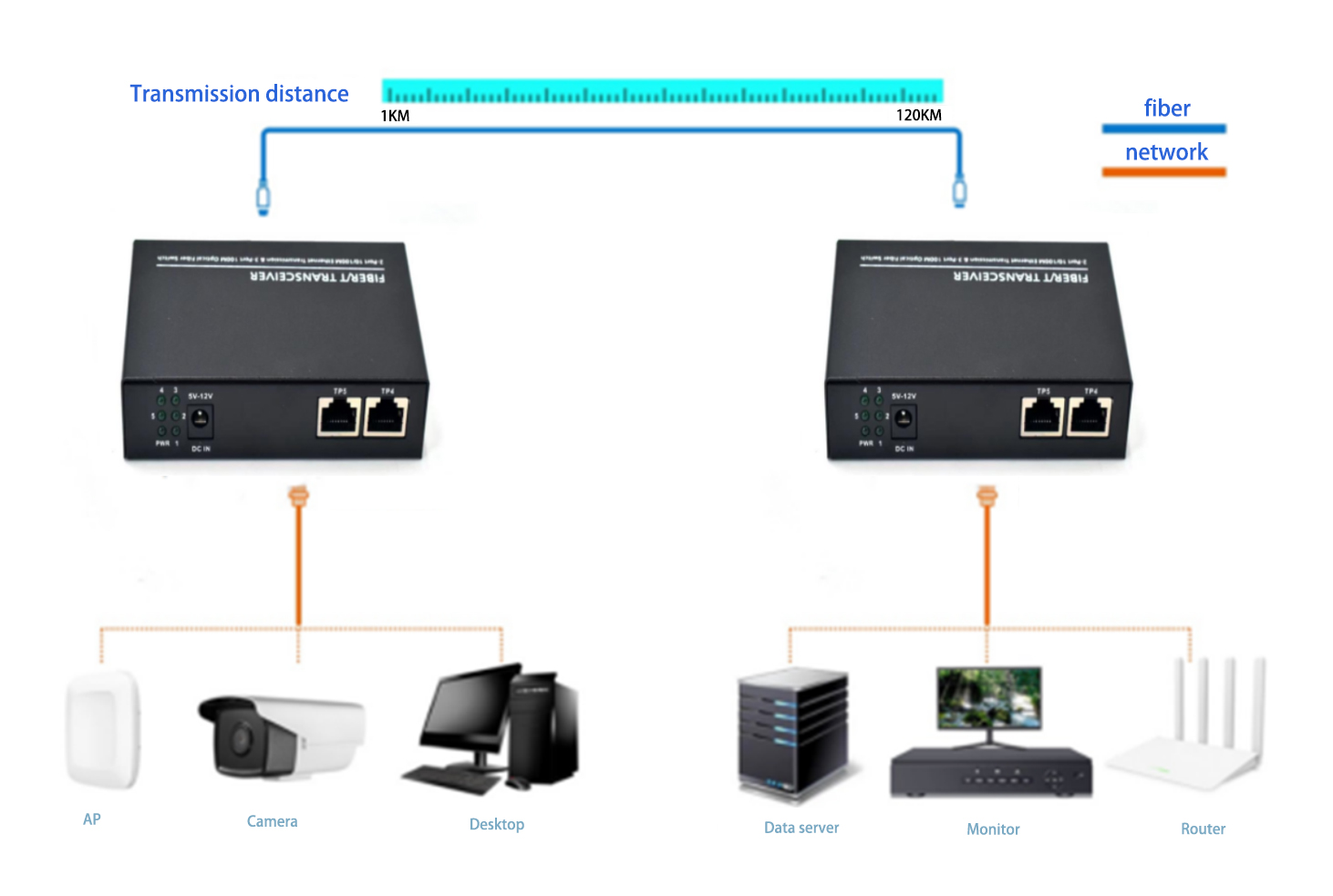

This sm fiber media converter fits scenarios where distance or electrical isolation matters: linking two office buildings across a campus, feeding IP cameras from a remote parking lot, or hooking up a warehouse to the main server room. The 3 optical ports let you daisy-chain or create a small star topology — useful when you need to connect multiple fiber segments back to a central switch.
- 3 SC 100Base-X optical ports (single-mode, distance up to 120km depending on optics)
- 2 10/100Base-TX RJ45 ports with auto-negotiation and auto-MDI/MDI-X
- Store-and-forward switching with 2K MAC table and 768Kbit packet buffer
- Supports 2048-byte jumbo frames for better throughput on large transfers
- Metal enclosure, fanless, natural cooling — no moving parts to fail

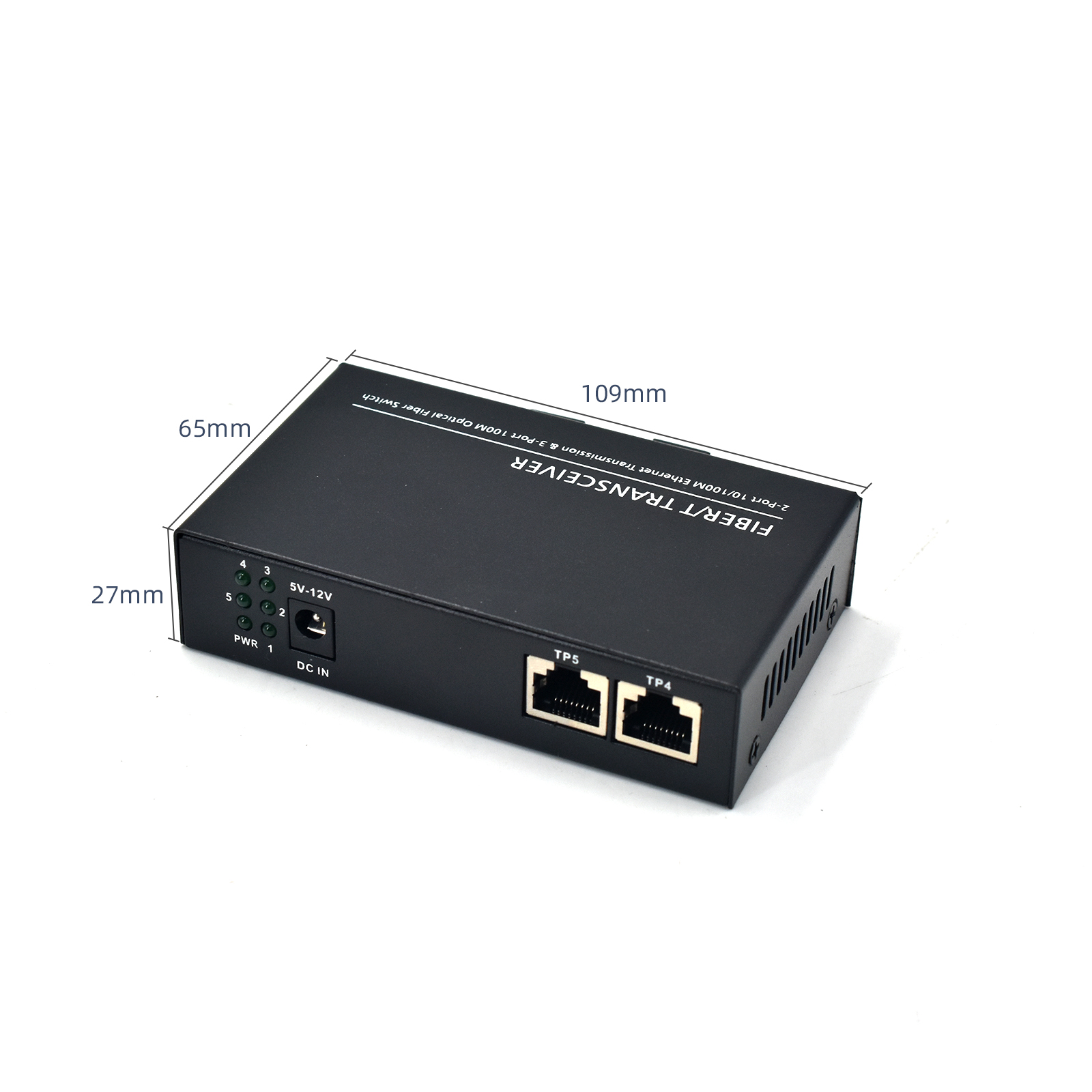

- Desktop or wall-mount installation, <0.3kg lightweight
Designed for IT administrators, system integrators, and facility managers who need a cost-effective, low-maintenance way to extend Ethernet over fiber. No software, no license, no training — just reliable connectivity day after day.
