Overview

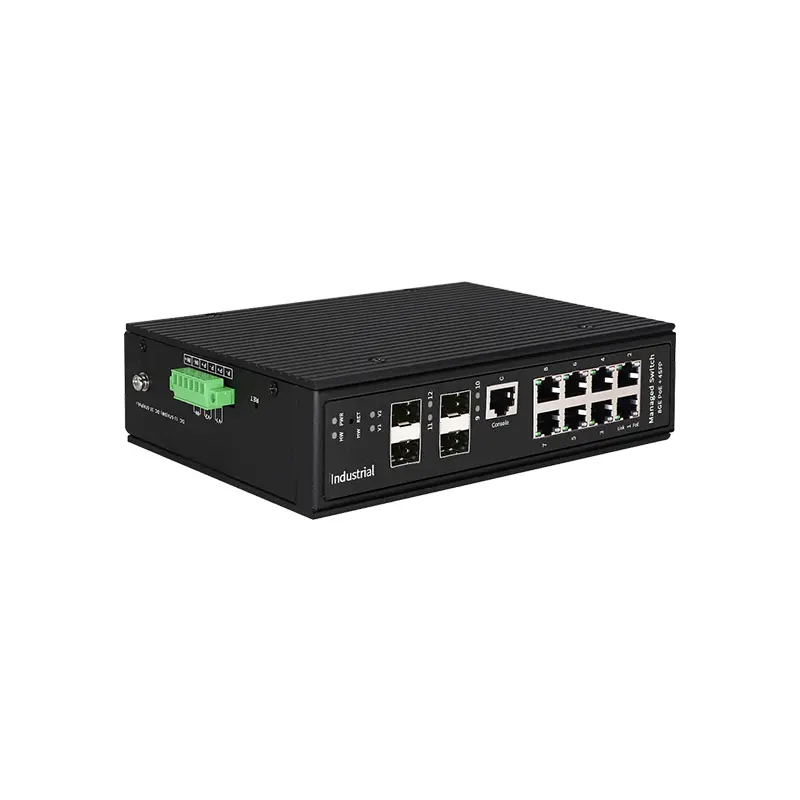

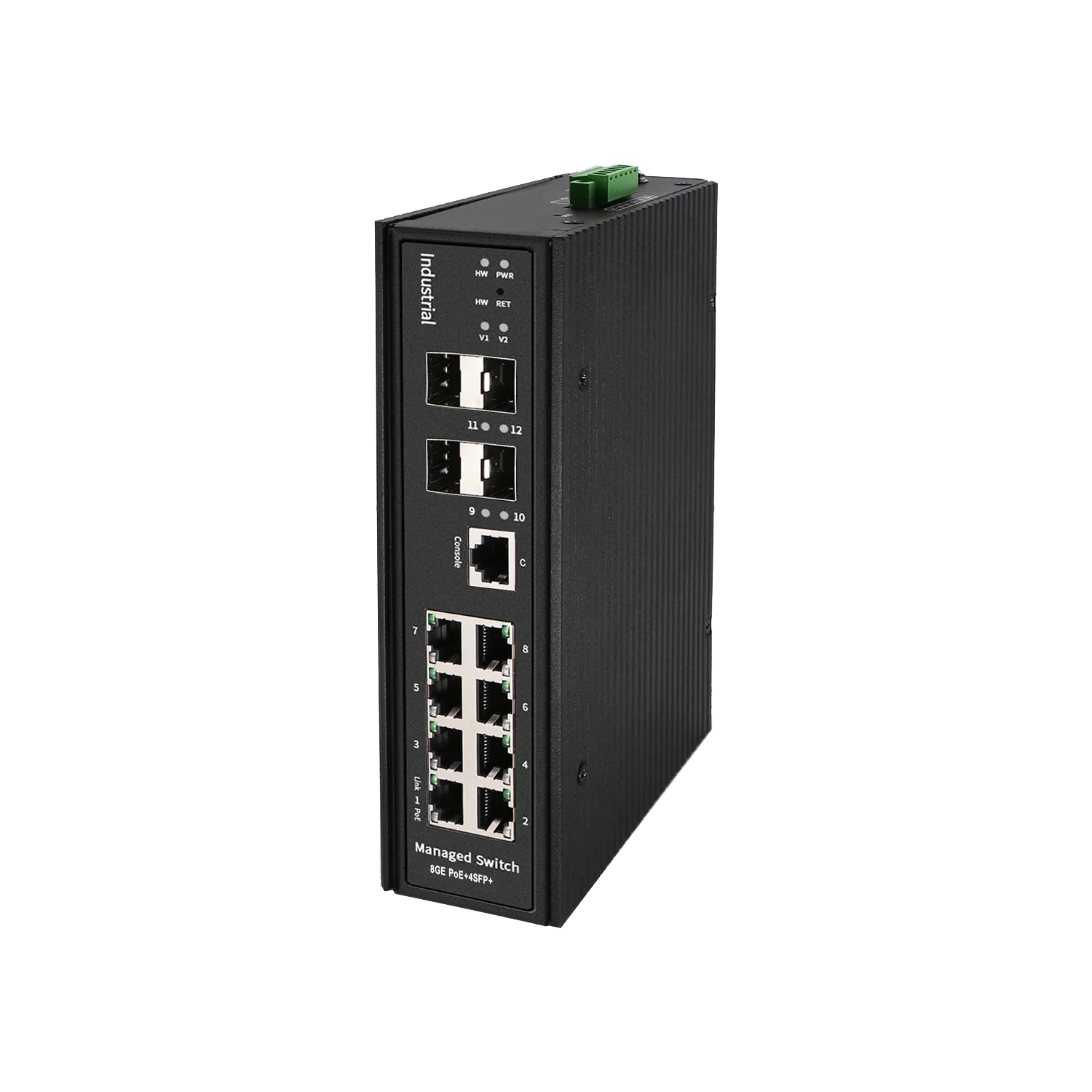

The IS830-8P4F is an Industrial L3 Managed PoE Switch 8GE + 4 10G SFP+ designed for demanding network edge and aggregation roles. It combines eight 1G/100M/10M RJ45 ports with four 10Gbps SFP+ uplinks, delivering a 128 Gbps non-blocking backplane and 95.232 Mpps forwarding rate for wire-speed performance. As an Industrial L3 Managed PoE Switch 8GE + 4 10G SFP+, it provides flexible copper connectivity, high-speed fiber uplinks, and Power over Ethernet for compatible devices. The switch uses Store-and-Forward switching with a 16K MAC address table, 12 Mbit SRAM packet buffer, and 12000-byte jumbo frame support, making it suitable for mixed industrial data, video, and control traffic.

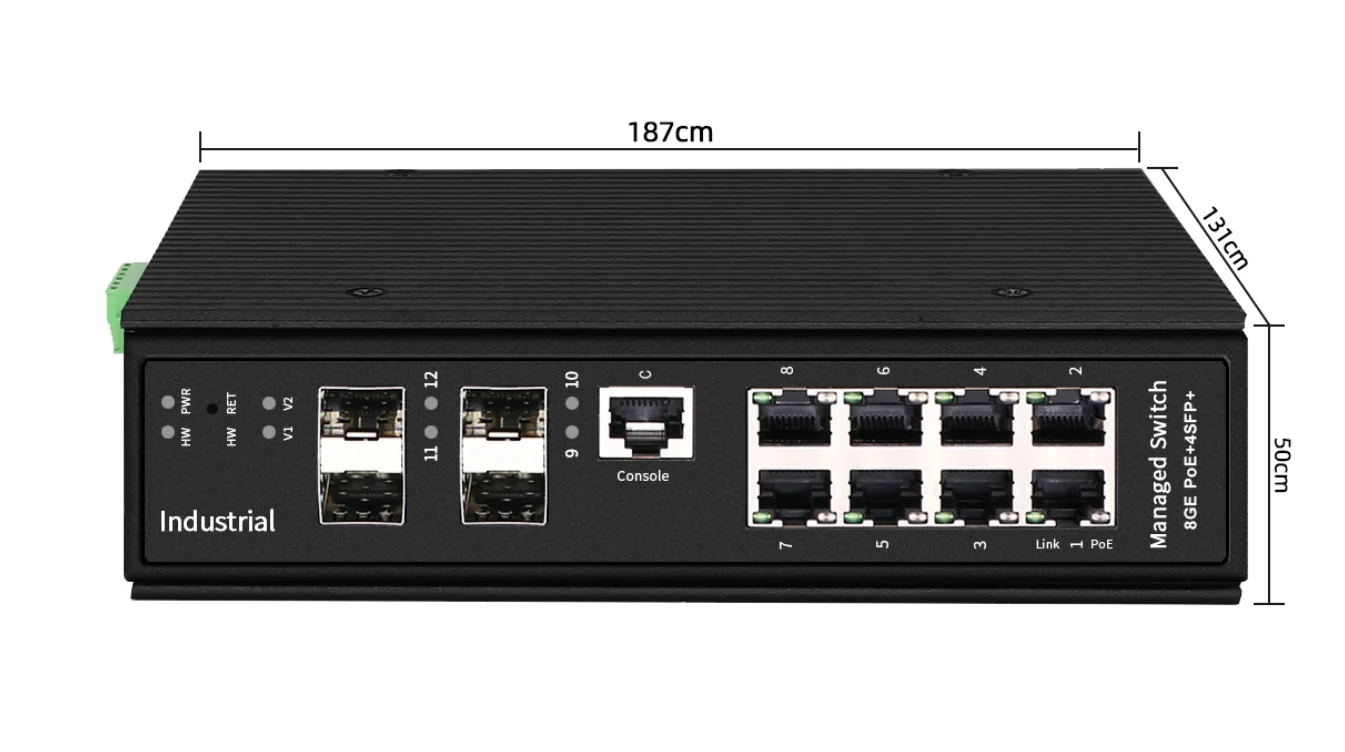

Built for industrial environments, the IS830-8P4F supports redundant dual independent power inputs, a wide operating temperature range of -40°C to 75°C, IP40 protection, and 6KV port surge protection with 8KV ESD protection. The switch includes a Console management port and supports STP, RSTP/MSTP, EPPS, and EAPS ring network protocols. Its DIN-rail mounting design with included wall-mount brackets supports control cabinet and wall installation. Port 1 supports IEEE 802.3af/at/bt PoE up to 90W, while ports 2 through 8 support IEEE 802.3af/at PoE up to 30W. For PoE operation, the power input is DC 37-57V MAX 310W, and for non-PoE operation it is DC 12-57V MAX 2A. The product measures 187mm × 131mm × 50mm and weighs 1.26 kg net, with a 1-year warranty excluding accessories.
Key Features
- 8 x 1G/100M/10M RJ45 ports and 4 x 10Gbps SFP+ uplinks provide high-density copper and fiber connectivity.
- Port 1 supports IEEE 802.3af/at/bt PoE up to 90W, while ports 2-8 support IEEE 802.3af/at PoE up to 30W.
- 128 Gbps non-blocking backplane and 95.232 Mpps forwarding rate enable wire-speed store-and-forward switching.
- Redundant dual independent power inputs support DC 12-57V MAX 2A non-PoE and DC 37-57V MAX 310W PoE operation.
- Industrial -40°C to 75°C operating temperature, IP40 rating, 6KV surge protection, and 8KV ESD protection.
- Managed features include a Console port plus STP, RSTP/MSTP, EPPS, and EAPS ring network protocols.
- 16K MAC address table, 12 Mbit SRAM packet buffer, and 12000-byte jumbo frame support.

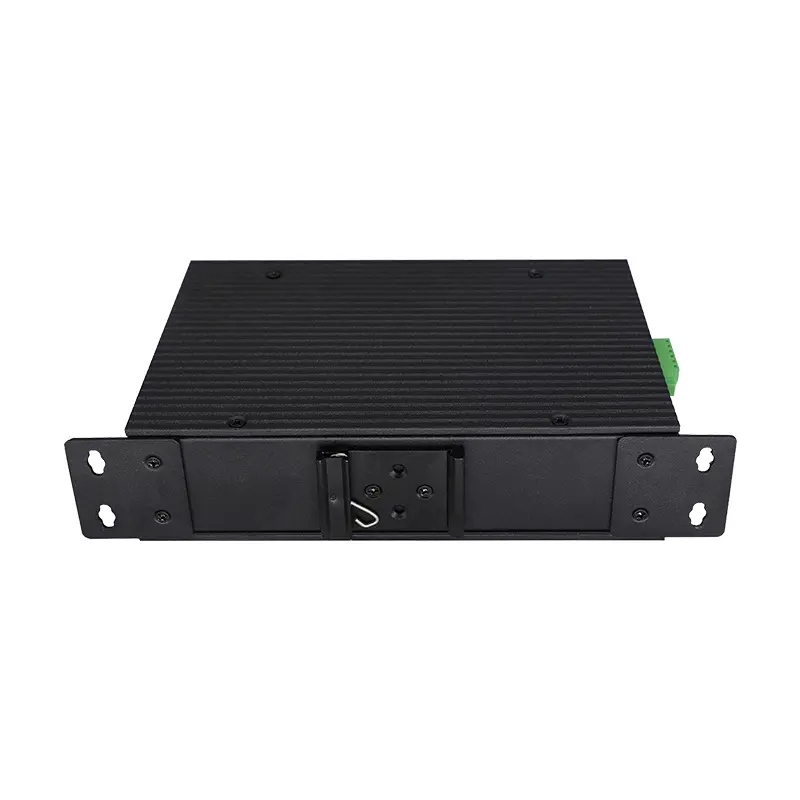

- DIN-rail mounting with wall-mount brackets included for flexible industrial installation.
Applications

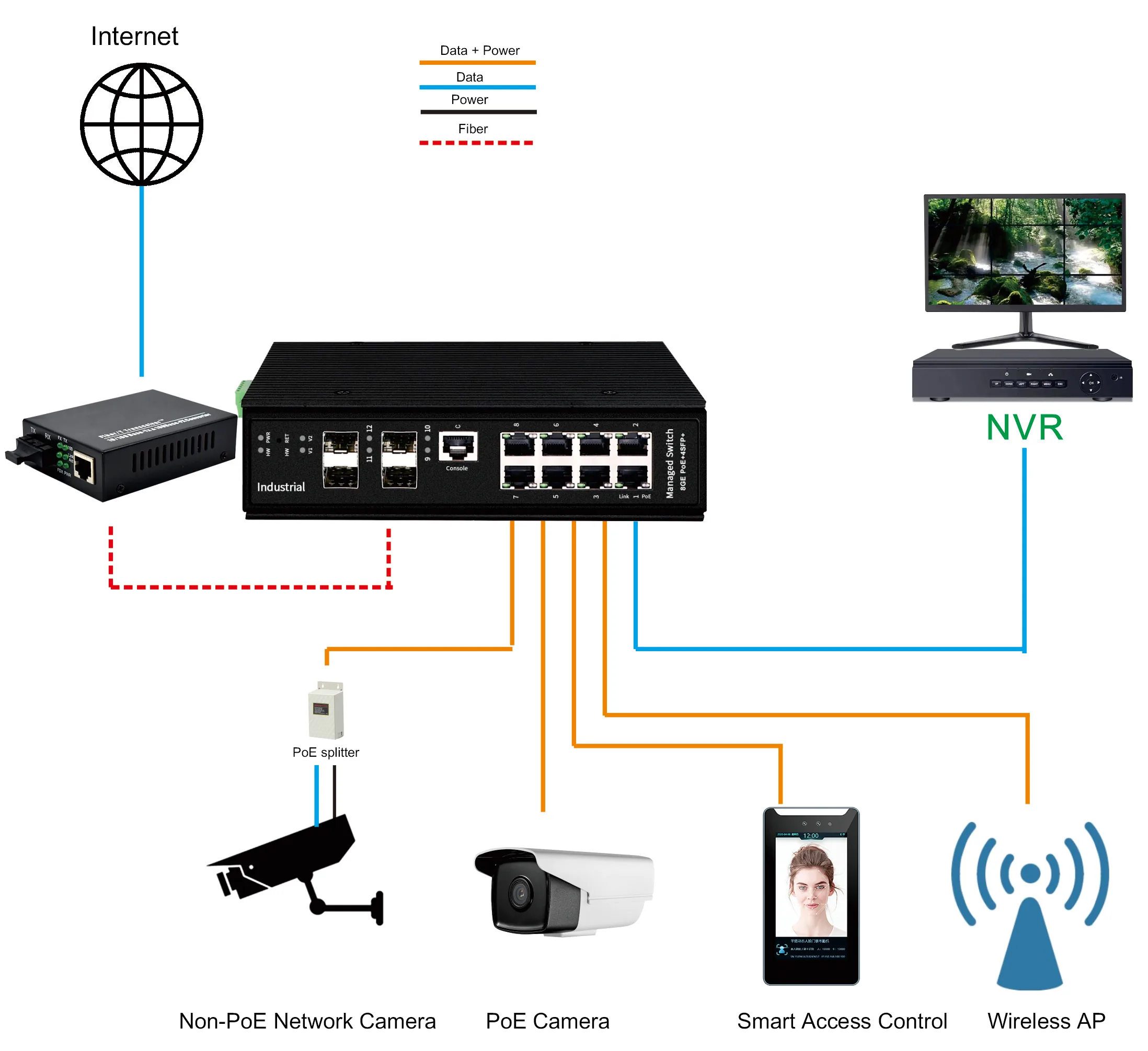

The IS830-8P4F Industrial L3 Managed PoE Switch 8GE + 4 10G SFP+ is suited to industrial networks that need reliable PoE, fiber uplinks, and wide-temperature operation. It can support IP surveillance systems where PoE cameras and 10G fiber backbones are required, factory automation cells that need DIN-rail mounting and redundant power, and intelligent transportation systems that benefit from -40°C to 75°C operation, surge protection, and ring protocols such as EPPS and EAPS. Its 10G SFP+ ports support single-mode or multi-mode optical modules with distances up to 120km depending on the module, making it suitable for distributed industrial deployments. The combination of 90W bt PoE on port 1 and 30W PoE on ports 2-8 also supports connected devices such as industrial access points, sensors, and controllers where compatible. With a Console management port, STP, RSTP/MSTP, EPPS, and EAPS, the switch can be integrated into redundant industrial network topologies.
