Managed Ethernet Switches

Wanglink’s Managed Ethernet Switches collection covers industrial-grade managed switches, managed PoE switches, and secure managed network switches for security and communication systems. As a source factory, we provide comprehensive product specifications, feature comparisons, and application guidance to help you select the right switch for your surveillance or industrial network. Discover reliable, scalable managed switching solutions designed for demanding environments.

Explore All Managed Ethernet Switches

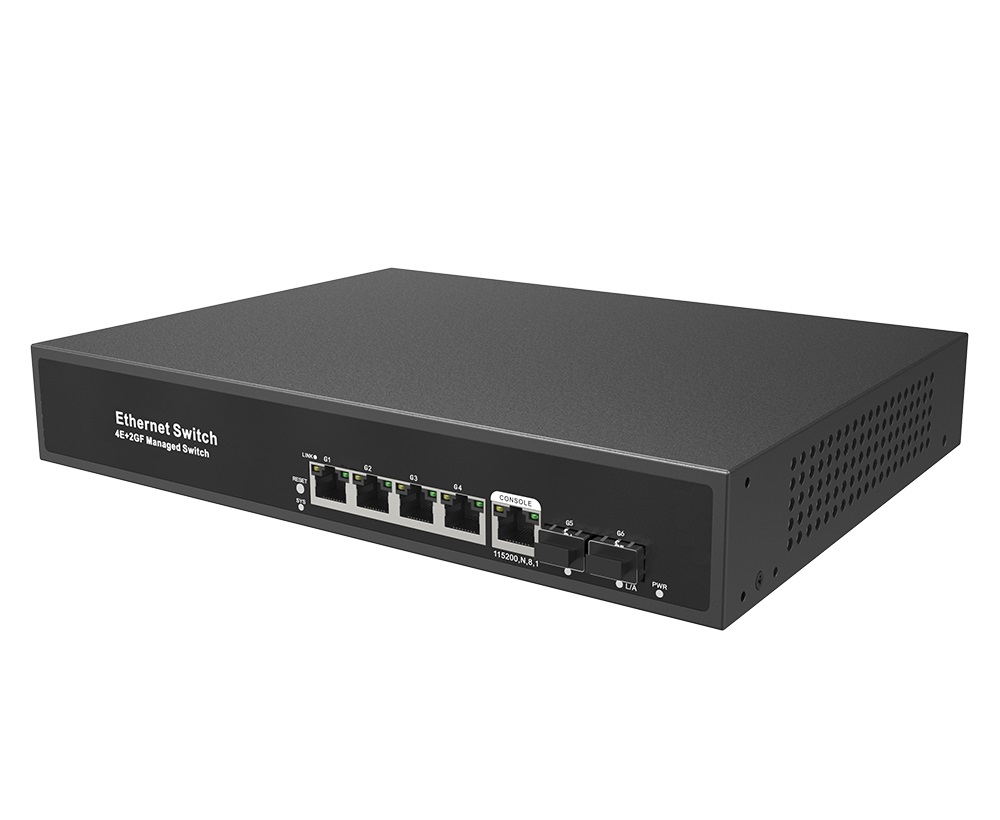

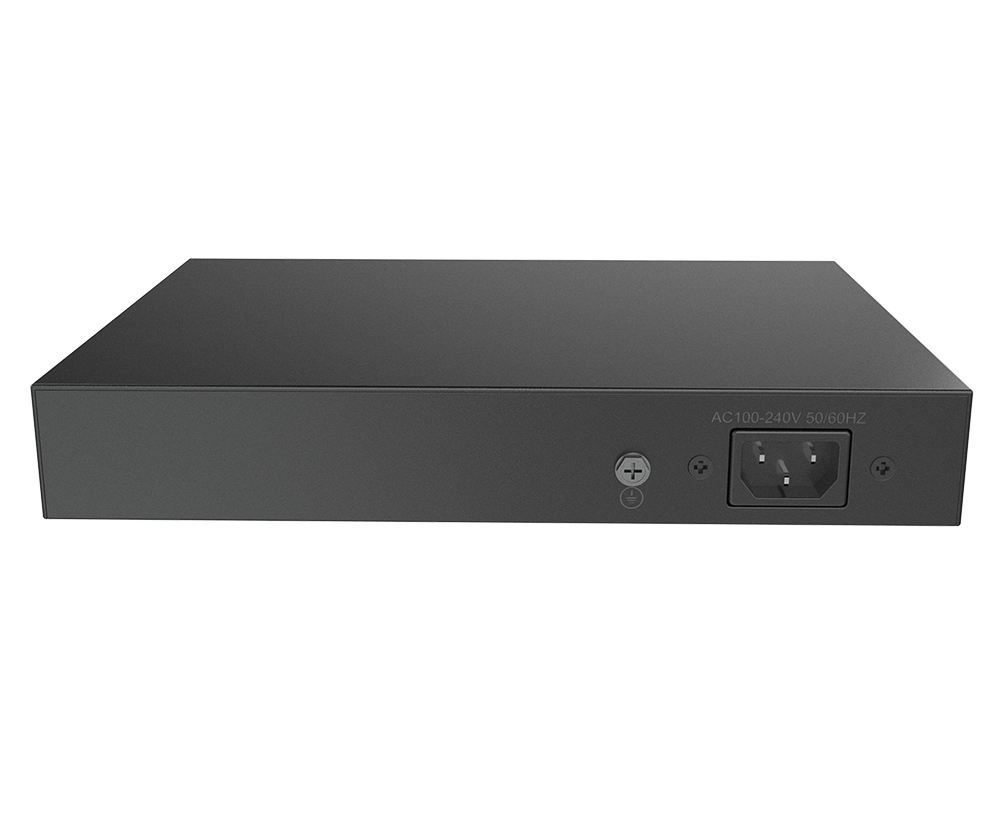

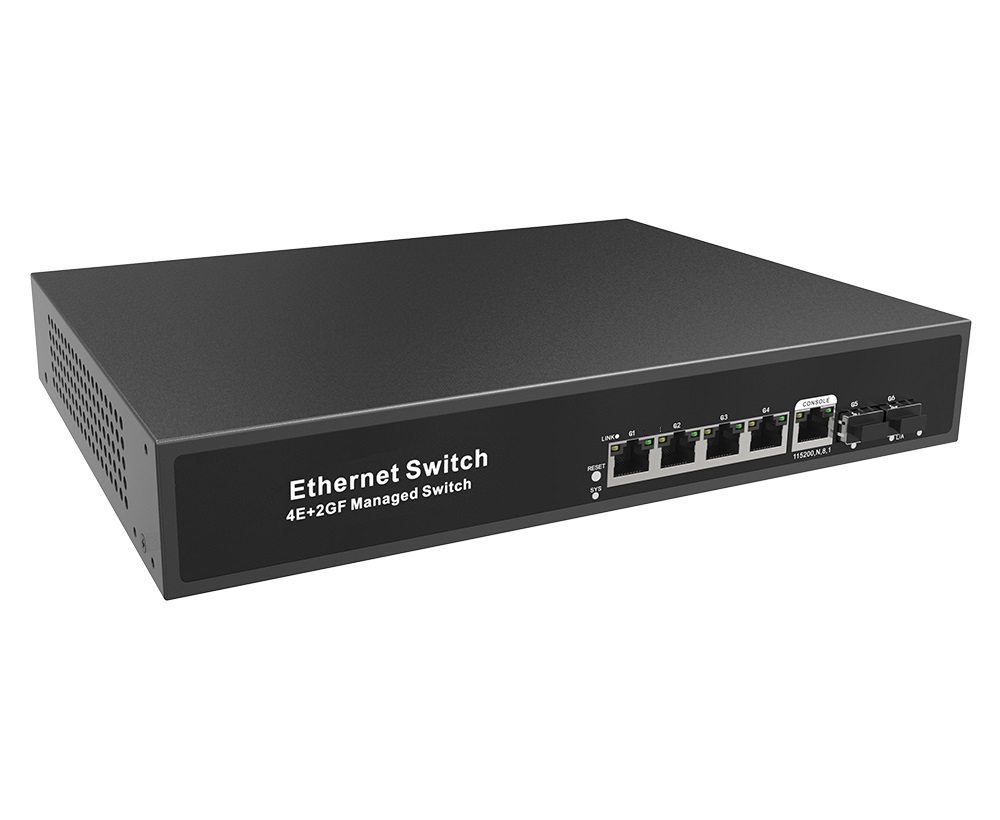

Managed 4 Port Gigabit L2 Switch, 2 SFP Uplink, 1U Rack Mount for Small Business & Enterprise Networks

A reliable 4 port managed switch with full gigabit access, 2 SFP fiber uplinks, L2+ management, and robust security. Ideal for hotels, campuses, and SMEs seeking stable, cost-effective network expansion.

L2W-SGH062F
Port Description

4 x 10/100/1000Base-T RJ45 ports (auto-MDI/MDI-X) + 2 x 100/1000Base-X SFP slots (fiber uplink).
  • Full gigabit wire-speed forwarding on all 4 RJ45 ports and 2 SFP uplinks
  • L2+ management with static routing, VLAN (up to 4K), QoS, ACL, and IGMP snooping
  • Redundancy via STP/RSTP/MSTP (<50ms recovery) for mission-critical links
  • Security: 802.1X, port isolation, IP-MAC-VLAN binding, ARP inspection, SSH/SSL
  • Easy management: Web GUI, CLI (Console/Telnet/SSH), SNMP v1/v2/v3, NMS platform
  • Galvanized steel casing, built-in 30W power, low power consumption (<10W full load)
  • Compact 1U height, supports desktop, wall-mount, or 19-inch rack installation









Why a 4 Port Managed Switch Still Matters in Modern Networks

Not every network needs a 48-port monster. For branch offices, retail stores, or small server rooms, a compact 4 port managed switch like this one hits the sweet spot between control and simplicity. You get four gigabit RJ45 ports for end devices (PCs, cameras, printers) plus two dedicated SFP slots for fiber uplinks – no need to waste a copper port on uplink duty. The L2+ firmware brings features once reserved for bigger boxes: static routing, VLAN segmentation, ACLs, and STP redundancy. This means you can isolate guest Wi-Fi traffic, prioritize VoIP traffic, and keep the network up even if a link drops.

We built this switch for IT admins who need to manage a handful of devices without drowning in complexity. The web GUI and CLI (via console or SSH) let you configure quickly. And because it’s a metal-cased unit with a built-in power supply, it can sit on a desktop, mount on a wall, or slide into a 1U rack without extra adapters. Power consumption stays under 10W under full load – that’s less than a typical LED bulb, so it won’t spike your electricity bill or overheat a small closet.

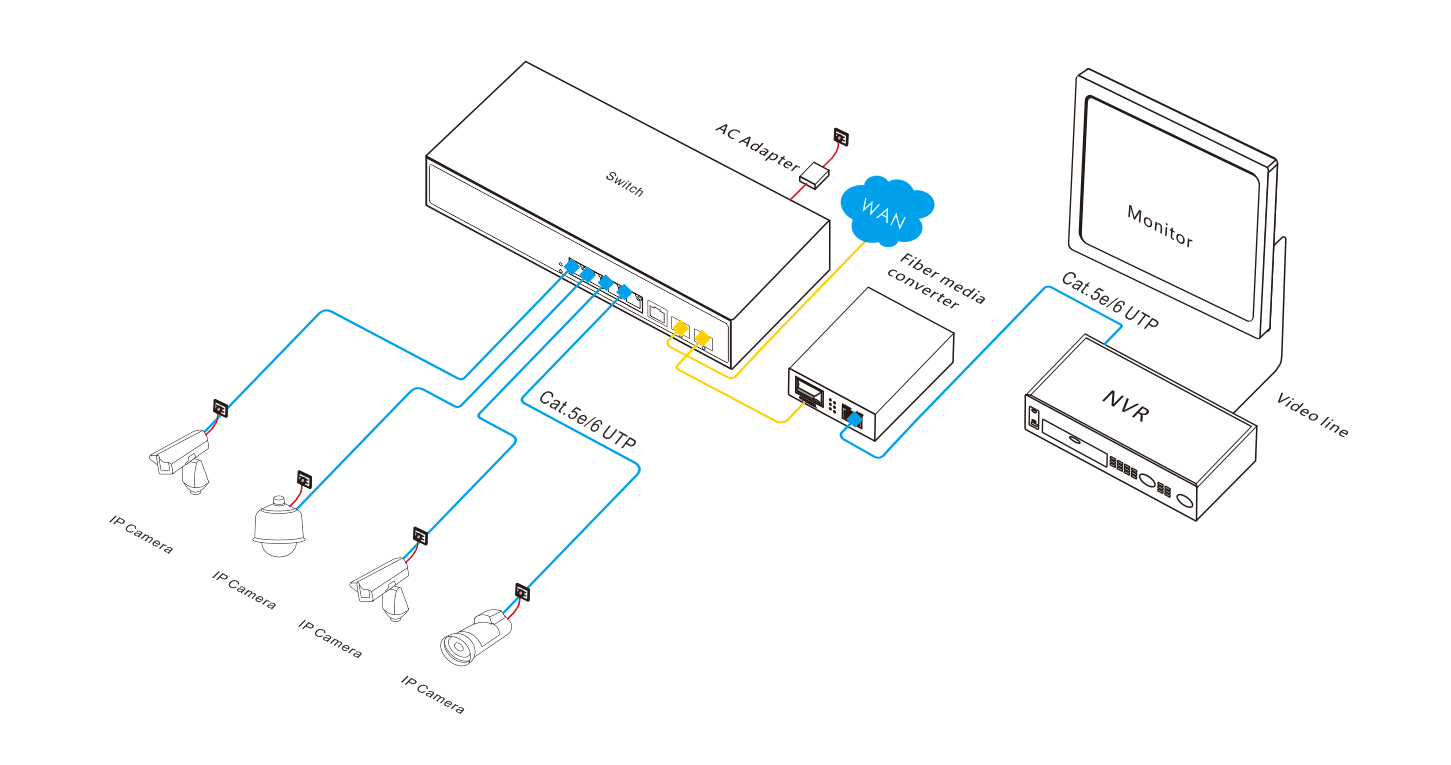

Whether you’re deploying IP cameras in a shopping mall, connecting workstations in a school lab, or extending a fiber backbone in a hotel, this 4 port managed switch gives you the tools to control traffic, enforce security policies, and troubleshoot without guesswork. The SFP ports support multi-mode or single-mode modules (sold separately), so you can reach up to 120 km over single-mode fiber. And with IEEE802.1X, port isolation, and IP-MAC binding, you can lock down access without a separate firewall.

Model L2W-SGH062F
Fixed Ports 4x 10/100/1000Base-T RJ45 + 2x 100/1000Base-X SFP
Console Port 1x RS232 (115200,N,8,1)
Switching Capacity 64 Gbps
Forwarding Rate (64-byte) 8.93 Mpps
MAC Table 8K
Buffer Memory 4M
Jumbo Frame 9.6K
CPU 500 MHz
DRAM 1 GB
Flash 128 MB
Power Input AC 100-240V, 50-60Hz, 0.65A (built-in)
Power Consumption Standby <6W, Full load <10W
Operating Temp / Humidity -20~+55°C, 5%~90% RH non-condensing
Storage Temp / Humidity -40~+75°C, 5%~95% RH non-condensing

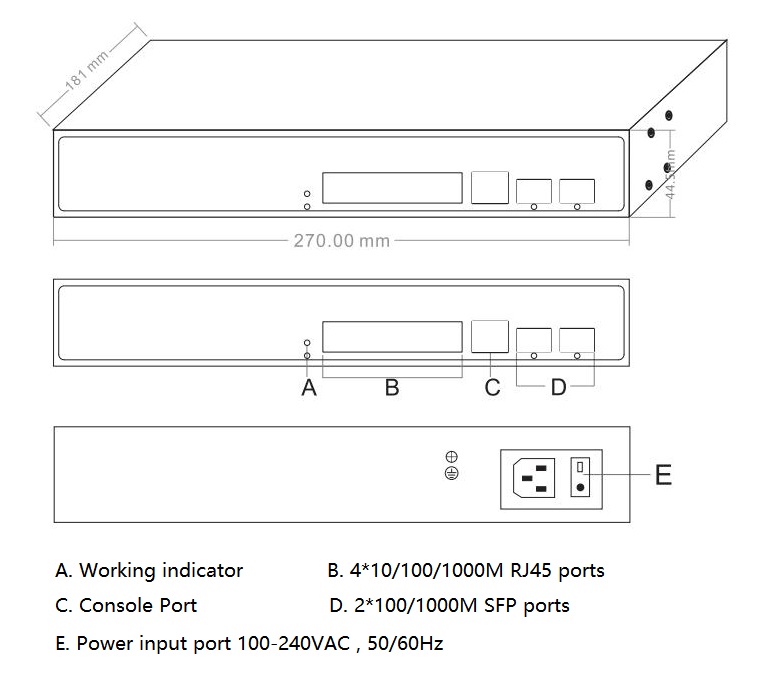

Dimensions (LxWxH) 270x181x44.5 mm
Weight (net/gross) <1.2 kg / <1.7 kg
Certifications CCC, CE, FCC Part 15 Class B, RoHS
Lightning Protection 4KV 8/20us, IP30
Warranty 3 years, lifelong maintenance
