Designed for Reliable PoE Deployment in Small-to-Mid-Size Networks

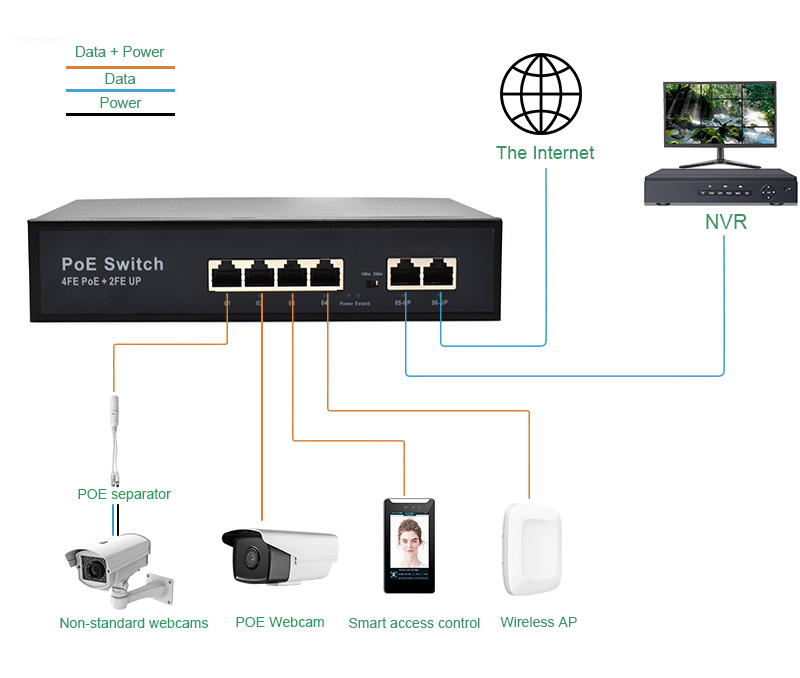

This 4 port PoE switch packs real-world flexibility for surveillance installers and IT admins who need a cost-effective solution without sacrificing stability. With four 10/100Base-TX PoE ports (IEEE802.3 af/at) delivering up to 30W each and a total budget of 65W, it easily powers fixed IP cameras, VoIP phones, and wireless access points. The two dedicated 10/100 uplink ports connect to your existing network backbone, while the built-in DIP switch lets you toggle between standard 100m mode and an extended 250m mode on ports 1-4—perfect for running cable longer distances in warehouses or parking lots.
Network isolation is another practical edge: in Extend mode, ports 1-4 are isolated from each other but can all reach the uplink ports. This cuts broadcast storms and collision domains, making the switch a smart fit for dense camera clusters or segmented LANs. No configuration needed—just plug in your PDs and the switch auto-detects PoE compatibility, protecting non-PoE gear from accidental damage.
If you’re managing a hotel, retail store, or small office with limited IT resources, this 4 port PoE switch offers the key benefits: easy setup, natural heat dissipation (no fans), and optional surge protection (6KV common/4KV differential) for extra reliability in unstable power environments. It also supports an AI watchdog option that automatically reboots connected devices if they lock up—a nice touch for remote monitoring.
- 4 PoE ports (IEEE802.3 af/at) with up to 30W per port
- Total PoE budget 65W, enough for 2-4 typical PTZ or bullet cameras

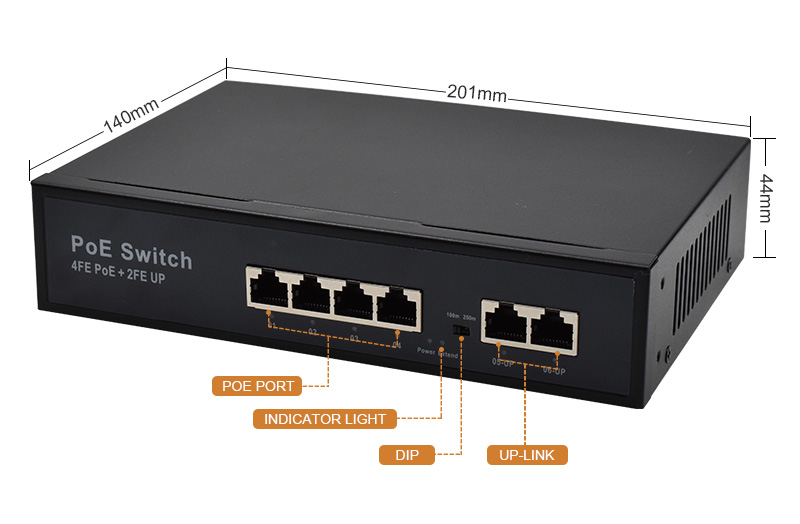

- DIP switch: standard 100m or extend to 250m on ports 1-4
- VLAN isolation on extend mode prevents broadcast flooding
- Plug and play, zero configuration required
- Optional surge protection & AI watchdog for mission-critical sites
Bottom line: if you need a 4 port PoE switch that handles basic surveillance or wireless coverage without breaking the bank, this is a straightforward, field-proven choice.
