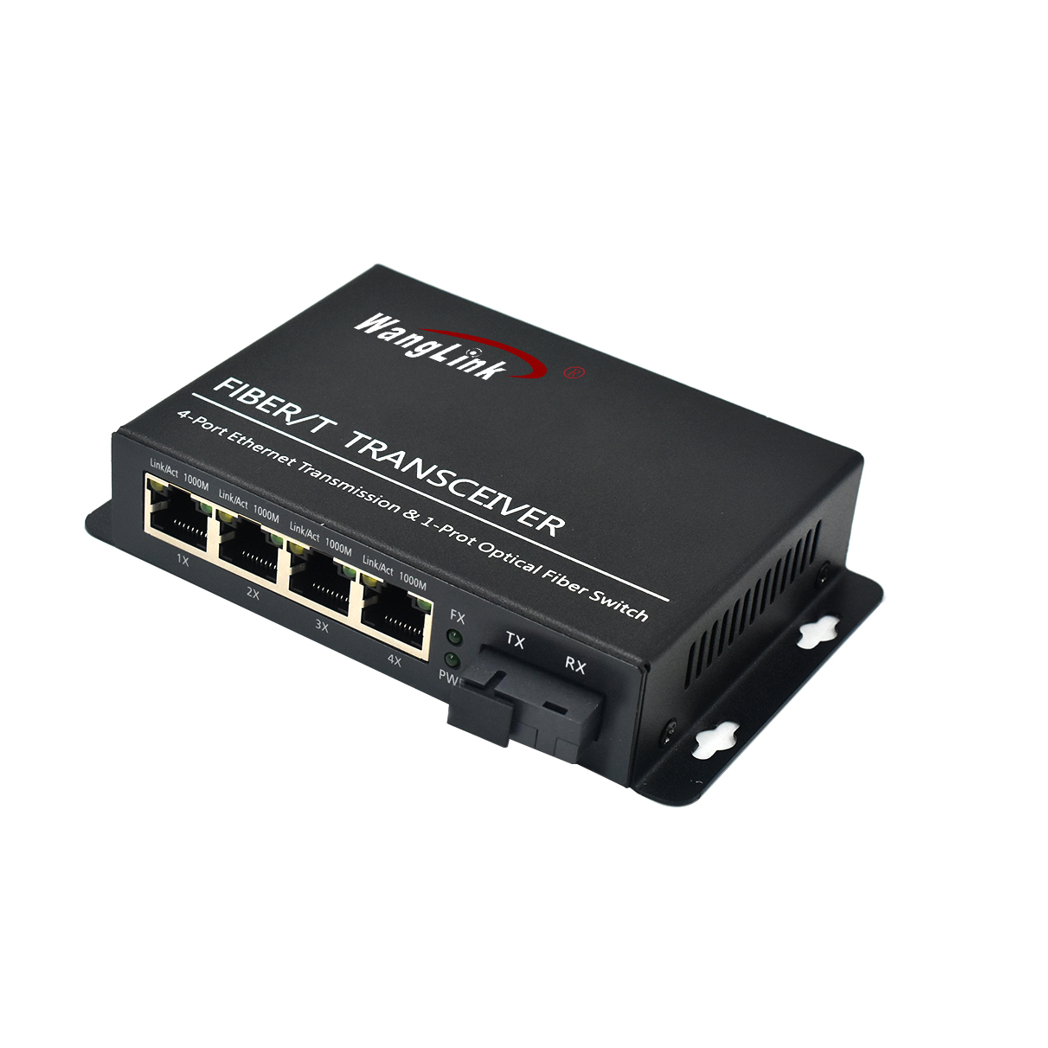

Tackle Tough Power Challenges with a 4‑Port Unmanaged PoE Switch
When you need to run an IP camera or ONU in an outdoor shed, a warehouse corner, or a remote telecom closet, the last thing you want is to run separate power lines or worry about standard PoE compatibility. This 4 port unmanaged PoE switch is built for exactly those situations. It delivers non‑standard PoE over pins 4/5+ and 7/8‑, so you can power non‑standard devices directly through the Ethernet cable without extra injectors or adapters.
With four 10/100/1000 Base‑T ports and one 1000Base‑SX/LX optical SFP slot, this switch lets you extend your network beyond the usual 100‑meter copper limit. The SFP uplink supports multi‑mode and single‑mode fiber distances from 550m up to 100km, making it a solid choice for connecting distant buildings or surveillance posts. Because it’s an unmanaged switch, there’s zero configuration — just plug in the cables, apply a DC power source between 12V and 48V, and the switch starts forwarding traffic and delivering power.
For network admins and small‑business IT staff, the real value lies in the flexibility. The wide input voltage range means you can run the switch off a battery, a solar panel, or an existing 24V/48V supply in the field. The metal housing acts as a natural heat sink, keeping internal temperatures stable even in environments that swing from -20°C to 60°C. And because each PoE port can source up to 500mA, you’re not limited to low‑power devices — many ONUs and mid‑range IP cameras will work without issue.

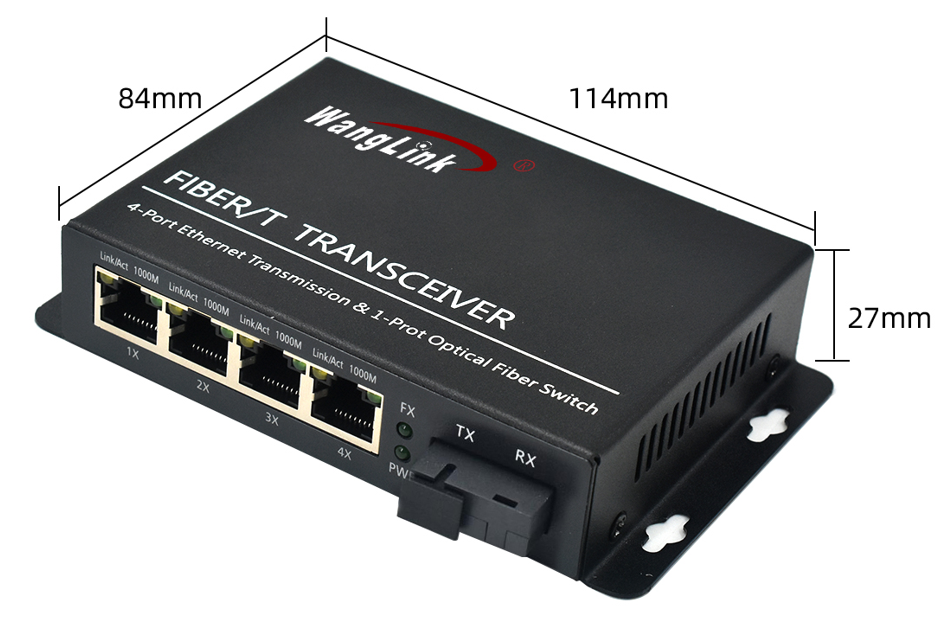

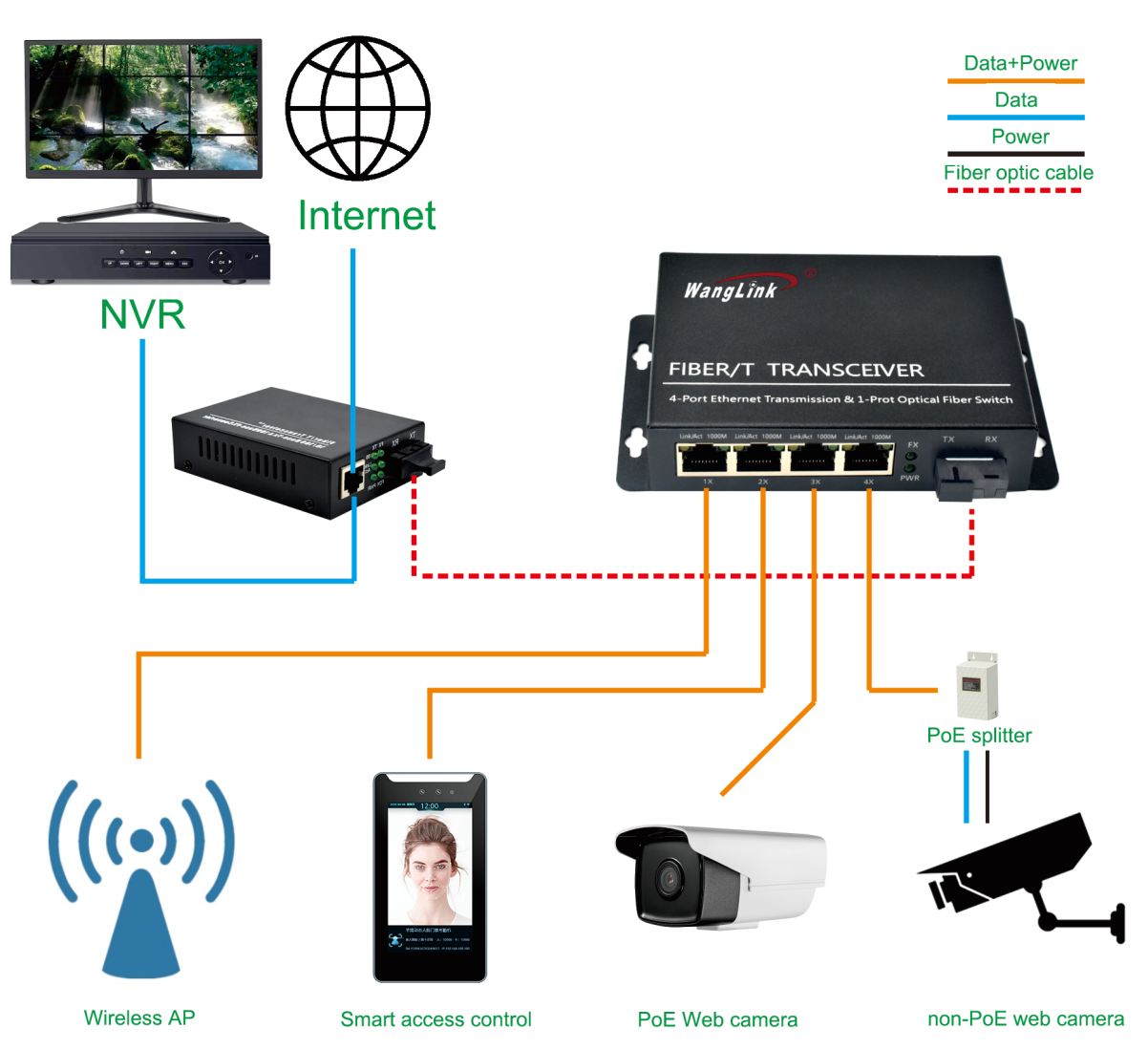

Typical use cases include powering ONUs in fiber‑to‑the‑home deployments where standard PoE isn’t available, running security cameras in parking lots or loading docks, and connecting access switches in industrial zones. The compact 114×84×27mm size fits on a desktop or can be wall‑mounted with the included brackets. It’s a practical, no‑frills tool that solves a specific power‑delivery problem without adding complexity.
