Unmanaged PoE Switches

Our Unmanaged PoE Switches category offers plug-and-play solutions for surveillance, VoIP, and wireless access points. Featuring affordable unmanaged PoE switch for cameras and basic PoE switch for surveillance models, these switches provide reliable power and data over a single cable. As a factory manufacturer, Wanglink delivers cost-effective 8/16/24-port options with no configuration needed.

Explore All Unmanaged PoE Switches

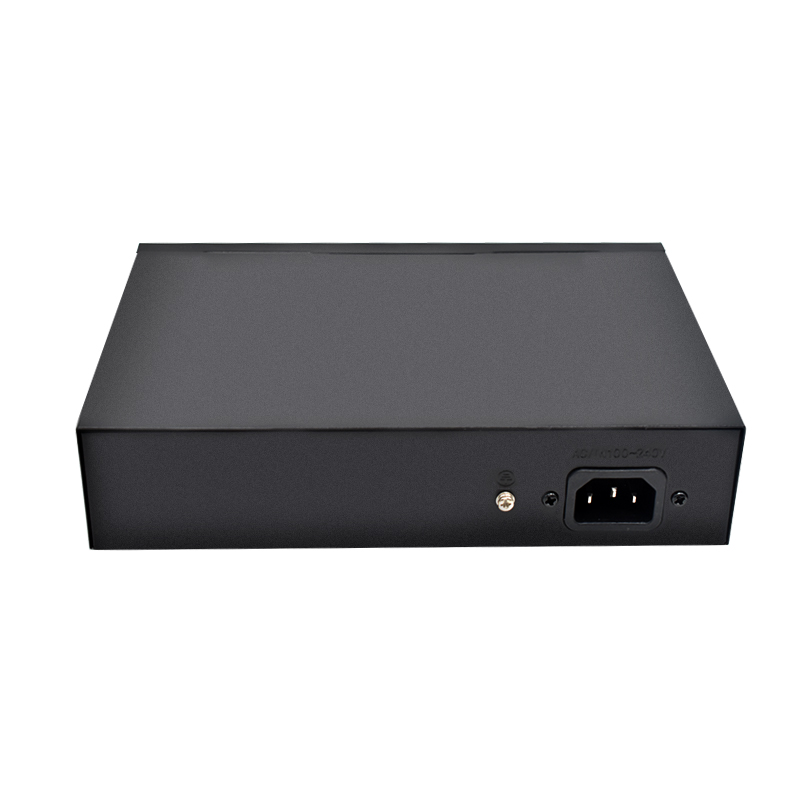

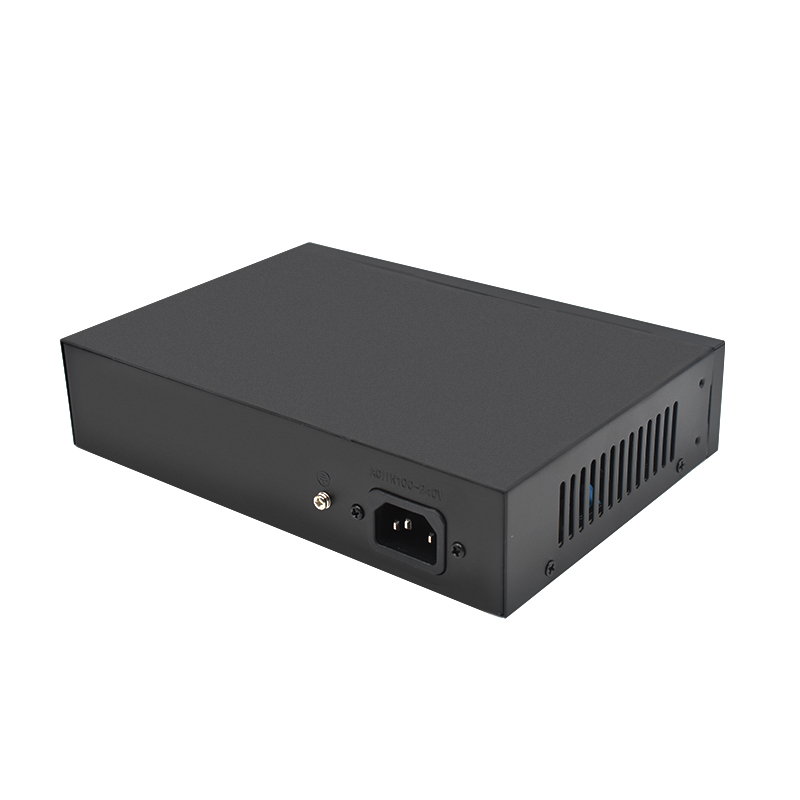

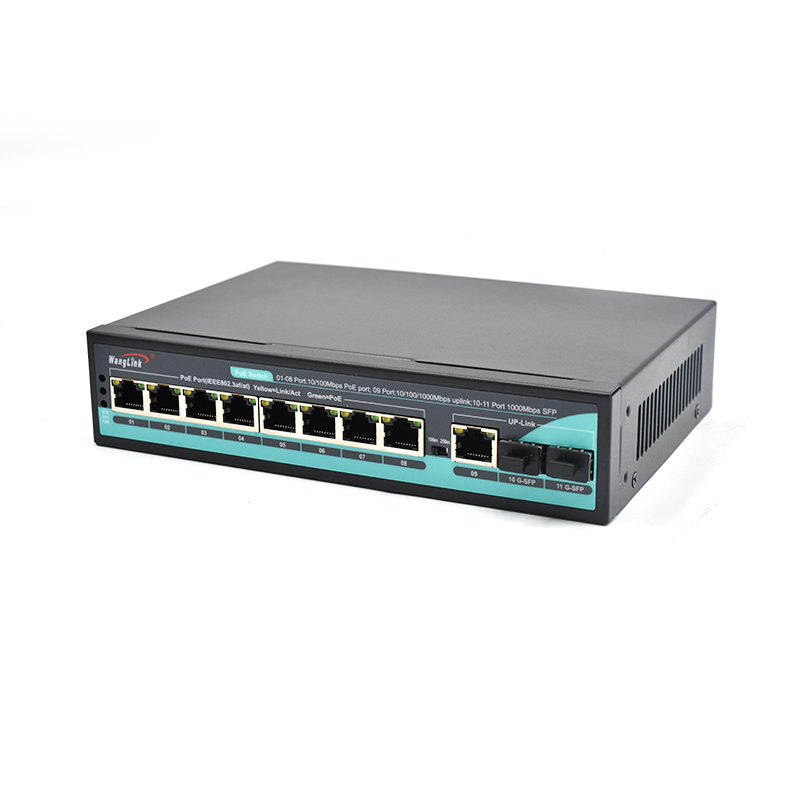

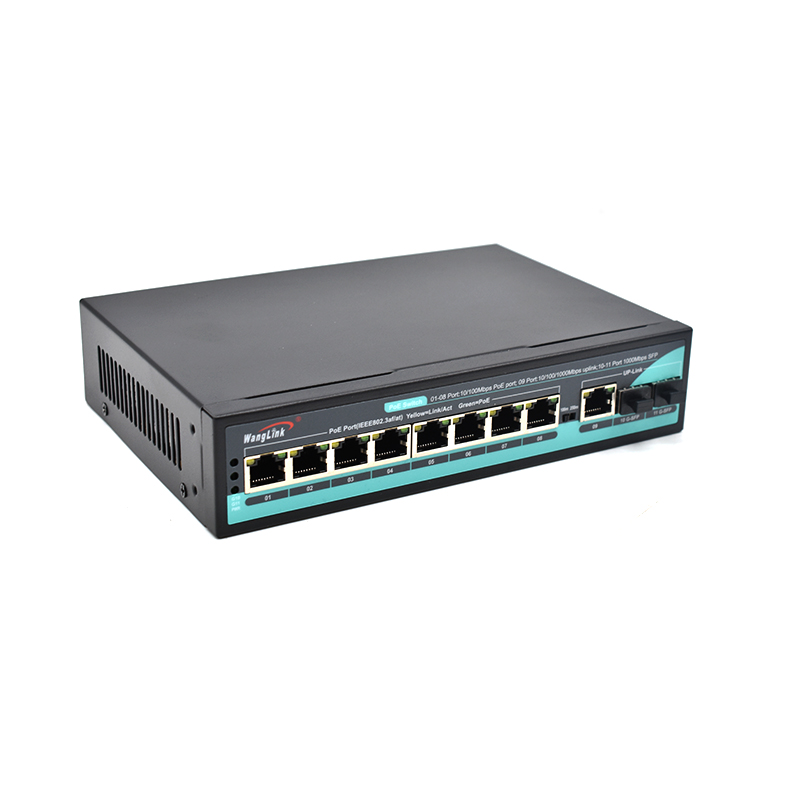

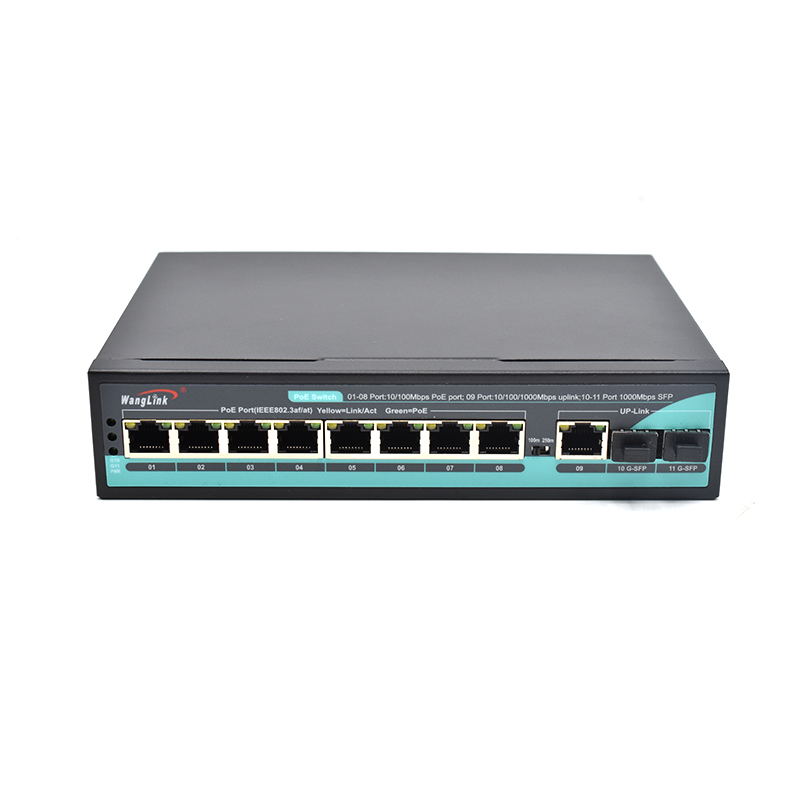

8 Port PoE Smart Switch, 8×10/100Base-TX PoE, 1×10/100/1000Base-T Uplink, 2x1000Base-X SFP, 250m Extend & VLAN Isolation, Desktop/Wall Mount for IP Camera Surveillance

8 port PoE smart switch with 8 PoE+ ports (25.4W each, 96W total), 2 SFP uplinks, DIP switch for 250m long-distance transmission and VLAN isolation. Plug-and-play, metal case, ideal for hotel, retail, and SMB video surveillance.

SL812P
Port Description

8 x 10/100Base-TX PoE RJ45 ports (25.4W max each, 96W total PoE budget), 1 x 10/100/1000Base-T RJ45 uplink, 2 x 1000Base-X SFP slots (1.25Gbps per slot).
  • 8 port PoE smart switch with 96W total PoE budget, 25.4W per port (IEEE 802.3af/at)
  • DIP switch toggles between standard 100m and extended 250m transmission mode
  • VLAN isolation on ports 1-8 reduces broadcast storms, improves security in camera networks
  • 2x Gigabit SFP slots for fiber uplink – perfect for long-distance backbone connections
  • Metal housing, internal power supply, natural heat dissipation – stable in -20°C to 60°C
  • Fanless, plug-and-play, zero configuration – ready out of the box









Why an 8 Port PoE Smart Switch Makes Sense for Your IP Camera Network

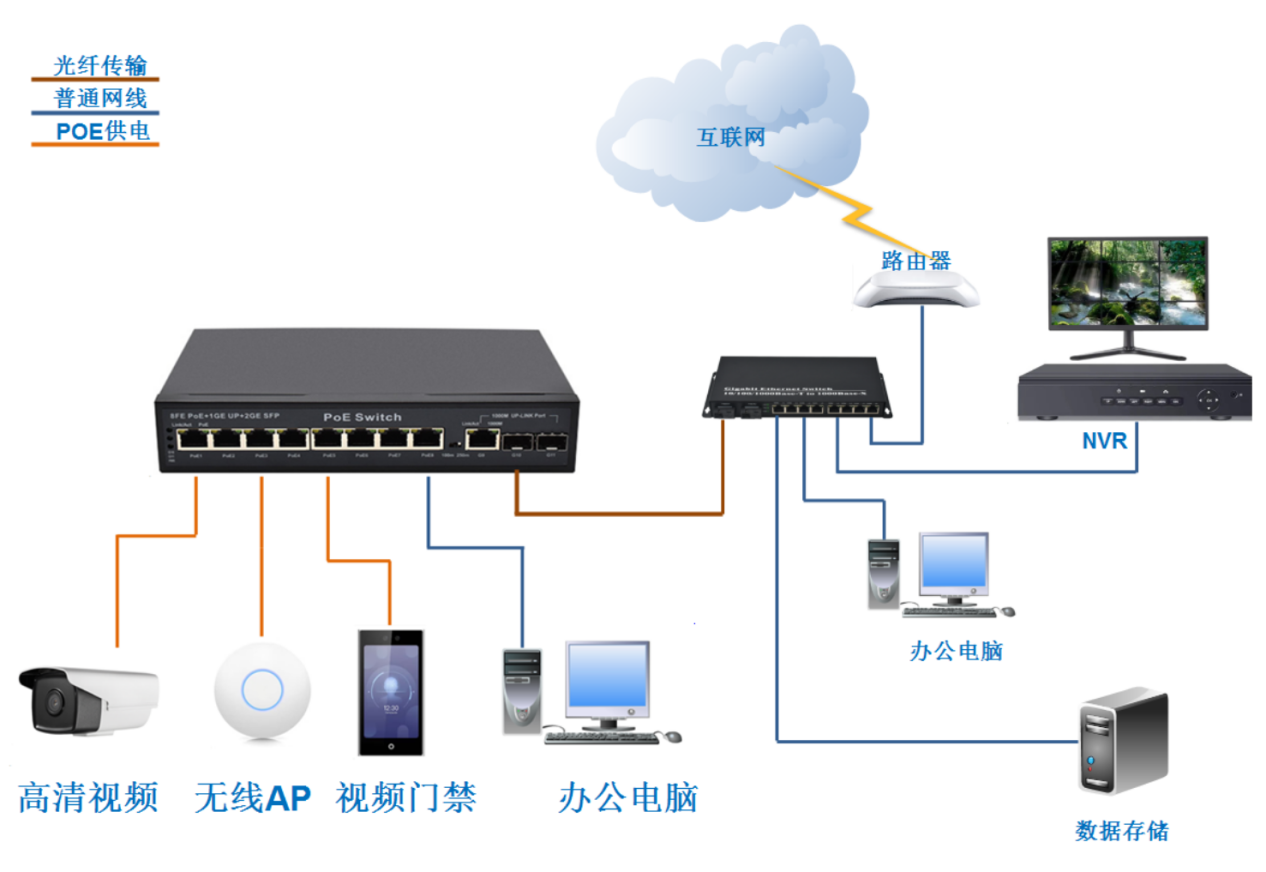

If you’re setting up a surveillance system in a hotel, retail store, or small office, you’ve probably run into two headaches: powering cameras over long cable runs, and managing broadcast traffic that slows everything down. That’s exactly what this 8 port PoE smart switch was built for. It’s not a fully managed switch with a web GUI—it’s smarter than that. With a simple DIP switch, you toggle between standard 100m mode and an extended 250m mode. Flip it, and ports 1–8 drop to 10Mbps but push signal up to 250 meters over Cat5e cable. Meanwhile, those same ports are isolated from each other, cutting down broadcast storms and keeping your video stream stable. No IT degree needed.

You get eight 10/100Base-TX PoE ports delivering up to 25.4W per port (96W total budget), enough for PTZ cameras or high-power APs. Plus, one Gigabit copper uplink and two SFP slots for fiber backbone connections—so you can link to your main network without bottleneck. The metal case and internal power supply handle -20°C to 60°C, so it’s happy in a dusty utility closet or an outdoor NEMA enclosure. And because it’s fully plug-and-play, you can drop it in and walk away.

Who’s this for? Small business owners, IT generalists managing a few sites, integrators deploying 8–16 camera systems. You don’t need CLI or VLAN tagging—just a switch that works, handles power, and stretches where copper normally can’t. That’s the 8 port PoE smart switch value.

Standards IEEE802.3 10Base-T, 802.3u 100Base-TX, 802.3ab 1000Base-T, 802.3z 1000Base-SX/LX, 802.3x flow control
PoE Pin Assignment 1/2+, 3/6-
MAC Address Table 2K
Jumbo Frame 9216 bytes
Packet Forwarding Rate 4.1664Mpps @64byte
Switching Bandwidth 7.6Gbps (non-blocking)
Input Voltage AC 100~240V, 50Hz
Power Consumption Standby ≤3W, Full ≤96W
Operating Temperature -20°C ~ 60°C
Storage Temperature -40°C ~ 85°C
Humidity 5% – 95% non-condensing

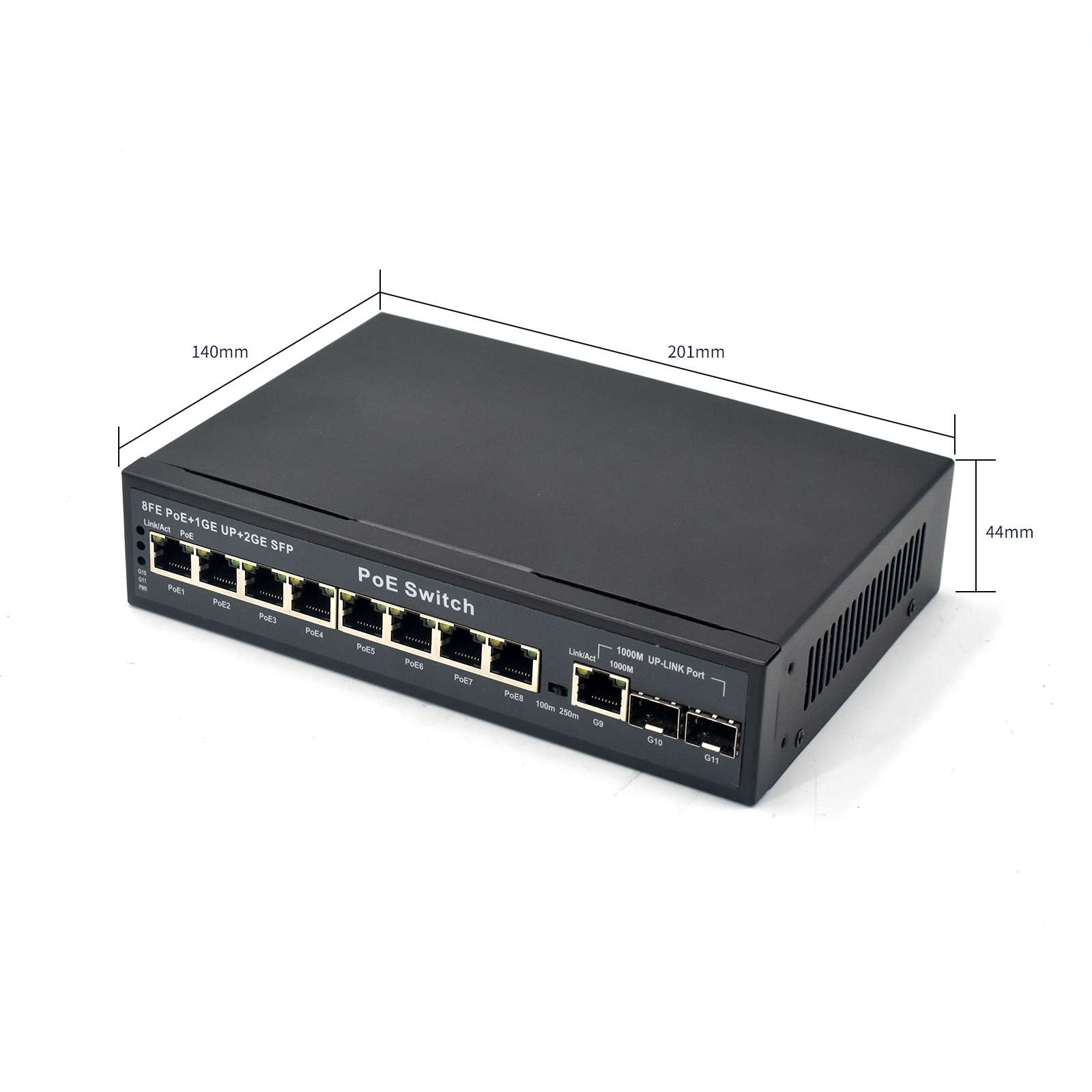

Dimensions 201×140×44mm
Weight Net 0.7kg, Gross 0.9kg
