PoE Media Converters

Explore Wanglink’s PoE Media Converters category, featuring Gigabit PoE Media Converters, Industrial PoE Fiber Converters, and PoE+ Media Converters for IP cameras. Our factory-direct products deliver reliable power and data over Ethernet, ideal for security surveillance and industrial networking applications.

Explore All PoE Media Converters

8-Port Unmanaged Gigabit Ethernet PoE to Fiber Media Converter, 2 SC Fiber Uplinks, 25.4W per Port, Desktop/Rack-Mount for IP Surveillance & SMB

8-port Gigabit PoE switch with 2 SC fiber uplinks, delivering 25.4W per port for IP cameras and access points. Plug-and-play, metal housing, no fan – ideal for extending PoE over long-distance fiber in hotels, shops, and offices.

CG208P
Port Description

8 x 10/100/1000Base-T RJ45 PoE ports (Auto MDI/MDI-X, Auto-Negotiation) + 2 x 1000Base-X SC fiber ports (1.25Gbps, Single-mode/Multi-mode optional)
  • 8 Gigabit PoE ports (IEEE 802.3af/at) delivering up to 25.4W per port – powers IP cameras, VoIP phones, and wireless APs directly

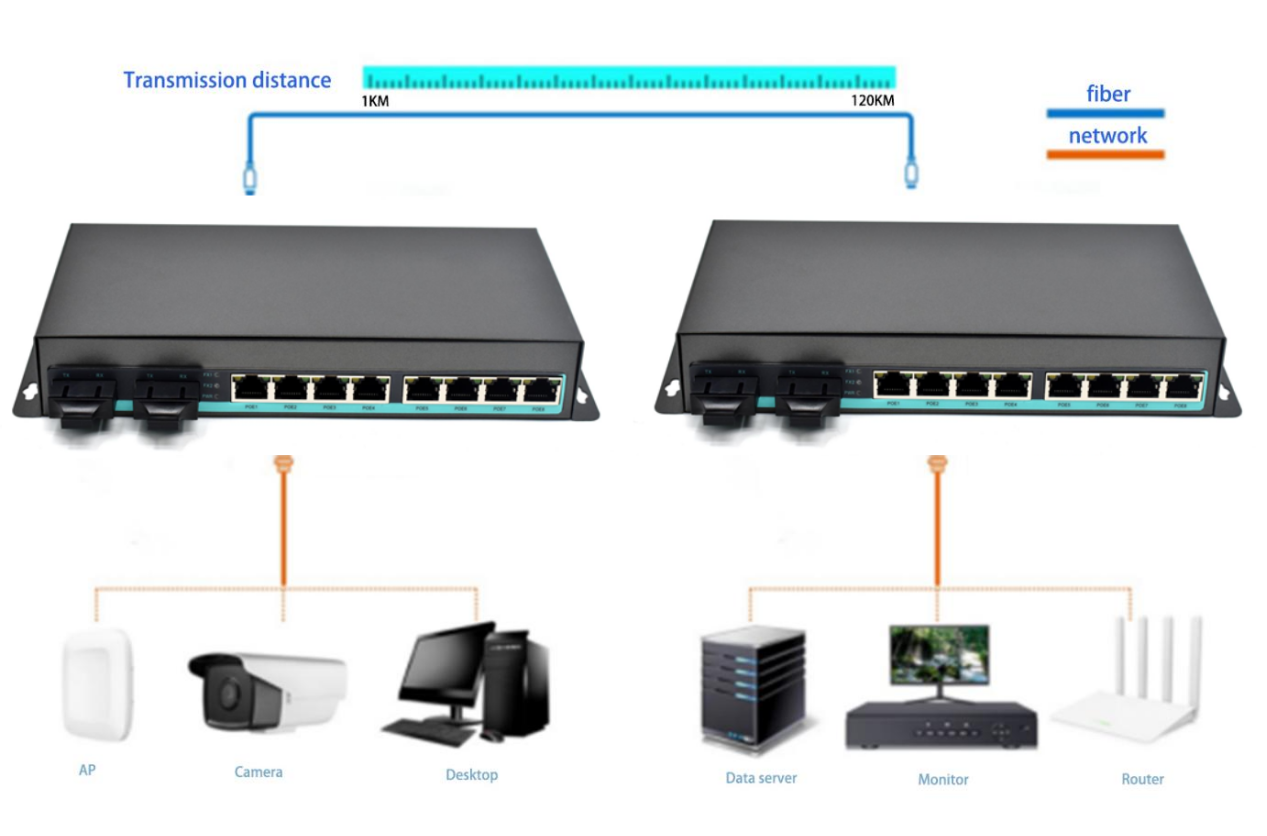

  • 2 x 1.25Gbps SC fiber uplinks for long-distance connectivity up to 100km (single-mode) – perfect for bridging buildings or extending PoE network range
  • Plug-and-play deployment: zero configuration, auto MDI/MDI-X, auto speed negotiation
  • Fanless metal housing with natural cooling – reliable in dusty or temperature-fluctuating environments
  • Low power consumption (<3W for switch itself) reduces operating costs, especially in 24/7 surveillance setups









Real-world PoE + Fiber Extension for Your Network

If you’ve been struggling to run PoE cameras or Wi-Fi access points beyond the 100-meter Ethernet limit, this 8 port ethernet PoE to fiber media converter gives you a straightforward fix. It combines an 8-port 10/100/1000Base-T PoE switch with two 1.25Gbps SC fiber ports, letting you bridge copper and fiber segments without extra gear. The switch auto-negotiates speed and duplex on all RJ45 ports, and it automatically detects PoE devices – so you can plug in a non-PoE laptop without worry.

We built this unit around low-power chips that keep heat down, and the metal housing acts as a natural heatsink (no noisy fan). For IT staff managing small-to-medium deployments, that means less maintenance and fewer failures in dusty or warm environments. The 25.4W per port covers most pan-tilt-zoom cameras and 802.11ac/ax access points, while the two fiber ports let you connect to a core switch hundreds of meters away using single-mode or multi-mode fiber.

Installing it is literally plug-and-play: no configuration, no VLAN setup needed. Mount it on a desk or slide it into a 19-inch rack with the included brackets. Typical users are system integrators wiring up retail stores, hotel surveillance systems, or extending a small office LAN across a parking lot. The switch handles jumbo frames up to 9K, so even high-bitrate video streams forward smoothly at wire speed.

Standards & Protocols
IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T, IEEE 802.3z 1000Base-SX/LX, IEEE 802.3af/at PoE, IEEE 802.3x Flow Control

Ports
8 x 10/100/1000Base-T RJ45 (PoE)
2 x 1000Base-X SC fiber ports (SC/FC/SFP optional)
Fiber rate: 1.25Gbps
Fiber distance: Multi-mode 550m / 2km; Single-mode 2/20/40/60/80/100km

Switching
Bandwidth: 20Gbps
Packet Forwarding Rate: 14.88Mpps
MAC Table: 4K
Packet Buffer: 1.5Mb
Jumbo Frame: 9K
Switching Method: Store-and-Forward

Power
Input: DC 48–53V
PoE Pin Assignment: 1/2+, 3/6-
Max PoE Budget per Port: 25.4W
Switch Power Consumption: <3W (no PoE load)

Mechanical
Material: Metal

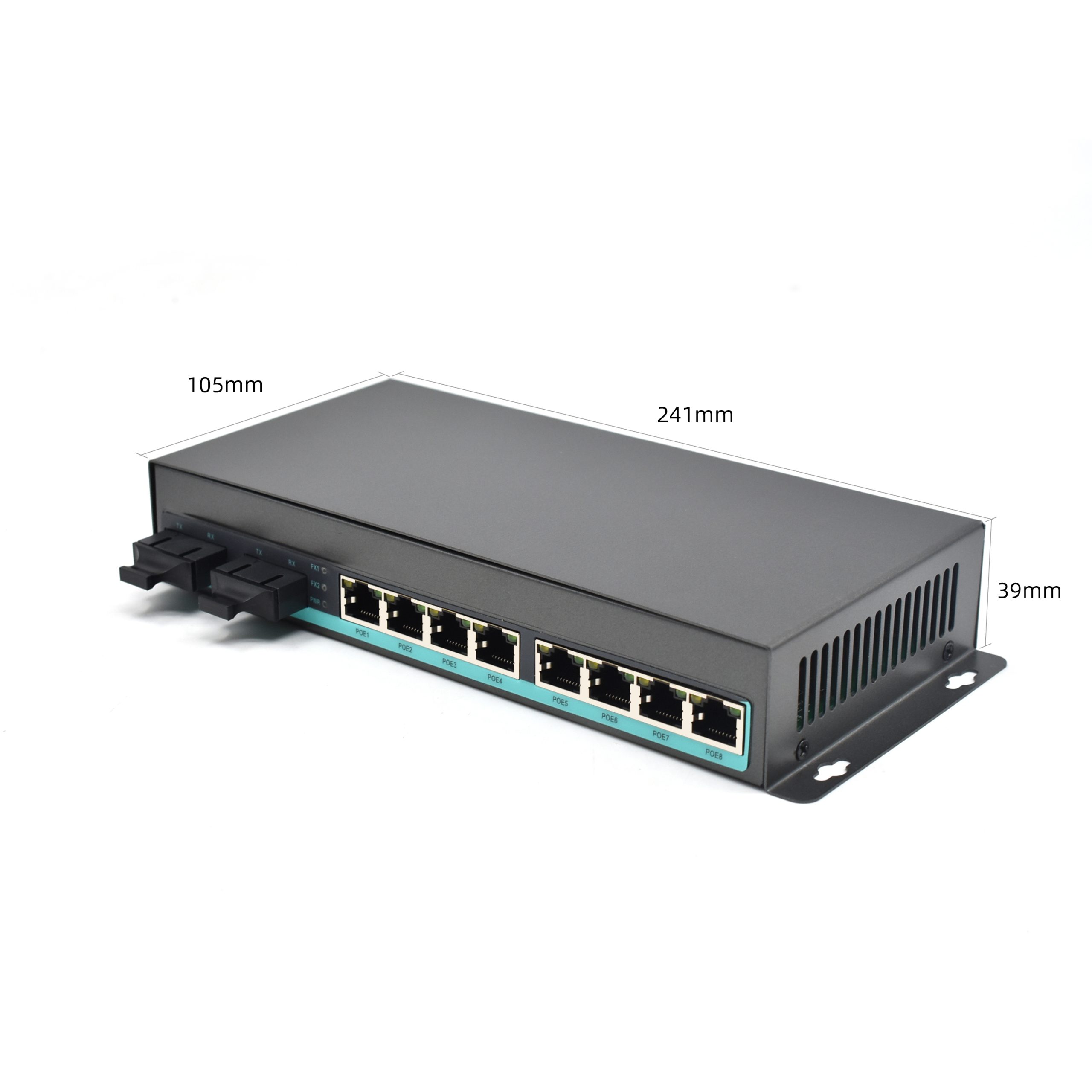

Dimensions: 241 x 105 x 39 mm
Weight: <0.6 kg
Installation: Desktop or Rack-mount
Cooling: Natural (fanless)

Environment
Operating Temp: -20°C~+60°C
Storage Temp: -20°C~+85°C
Humidity: 5%~95% (non-condensing)

Indicators
Power: Green LED
Ethernet Ports: PoE (Yellow), Link/Act (Green)
Fiber Ports: FX (Green)
