Can this 4 port PoE media converter power a non-PoE device without damage?

Yes. The device automatically detects whether the connected device supports PoE and only supplies power if it does. Non-PoE devices like regular computers or printers will simply receive data without power, so no risk of damage.

What type of fiber cable should I use with the SC port?

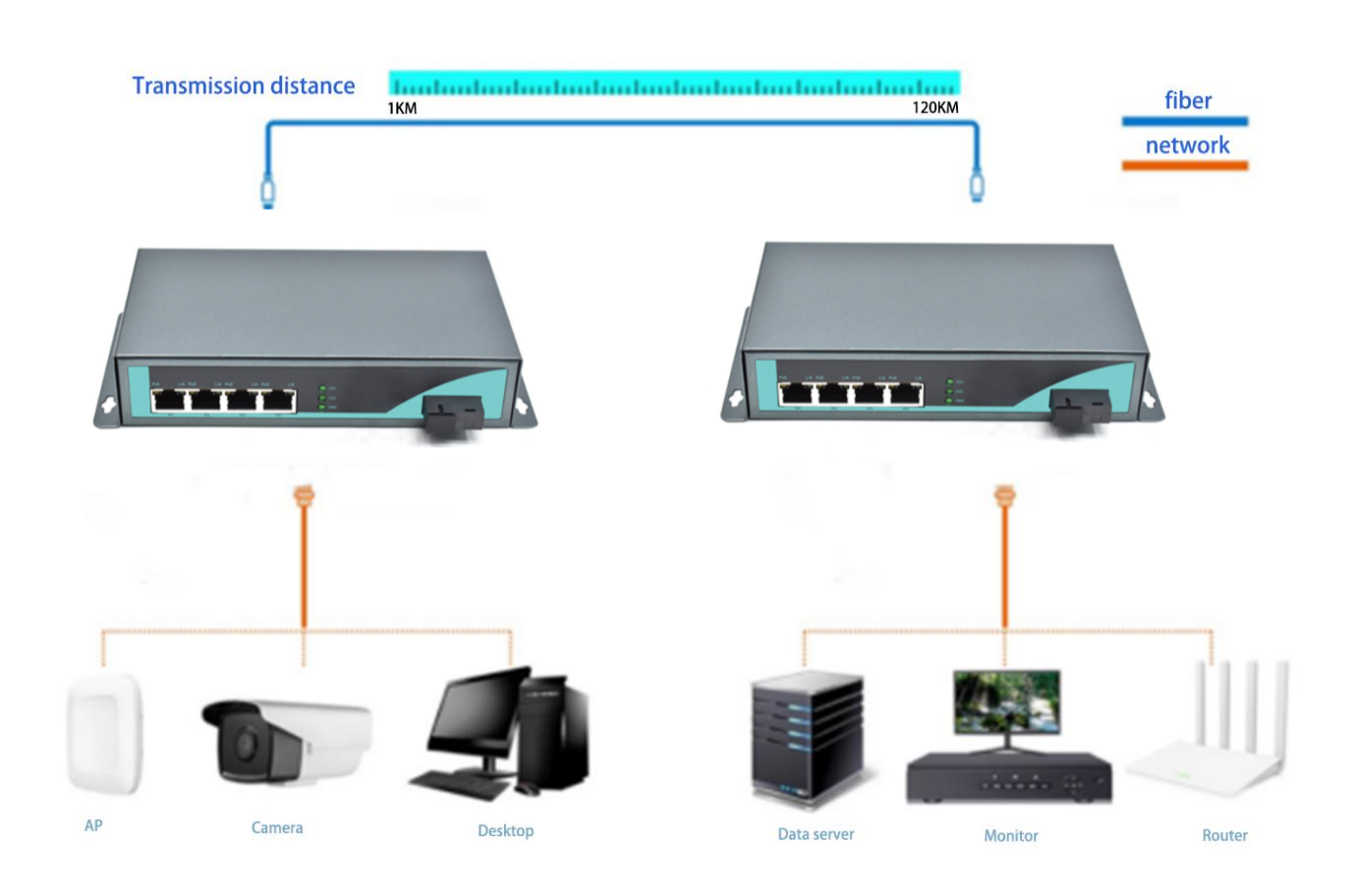

It depends on the distance. For short distances (up to 2km) use multi-mode fiber with 850nm or 1310nm optics. For longer runs (up to 100km) use single-mode fiber with 1310nm or 1550nm optics. The media converter supports both, but you need the matching SFP module or built-in SC connector (single-mode SC is standard on this model).

How do I set up this media converter? Do I need any software?

No configuration required. Just connect power (DC 48-53V adapter), plug your PoE devices into the RJ45 ports, and connect the fiber cable to your main switch. It starts forwarding frames immediately – true plug-and-play.

What’s the maximum PoE power per port – can it run a PTZ camera?

Each port delivers up to 25.4W under 802.3at (PoE+). Most PTZ cameras draw 12-20W, so yes, it can power them. But check your camera’s peak power; if it exceeds 25.4W you’ll need a higher-power injector or a different switch.

Can I use this 4 port PoE media converter with a 10/100Mbps camera?

Absolutely. The RJ45 ports auto-negotiate down to 10 or 100Mbps, so older cameras work fine. The fiber uplink still runs at 1.25Gbps, which won’t be a bottleneck for a few cameras.

Does the metal housing get hot? Is the fanless design reliable?

The metal housing acts as a heatsink and keeps internal temperatures within spec even under full PoE load. No fan means no moving parts to fail, and it’s silent – great for offices or hotel lobbies. Just ensure good airflow around the device.

What type of power supply do I need – can I use a standard 48V PoE switch power?

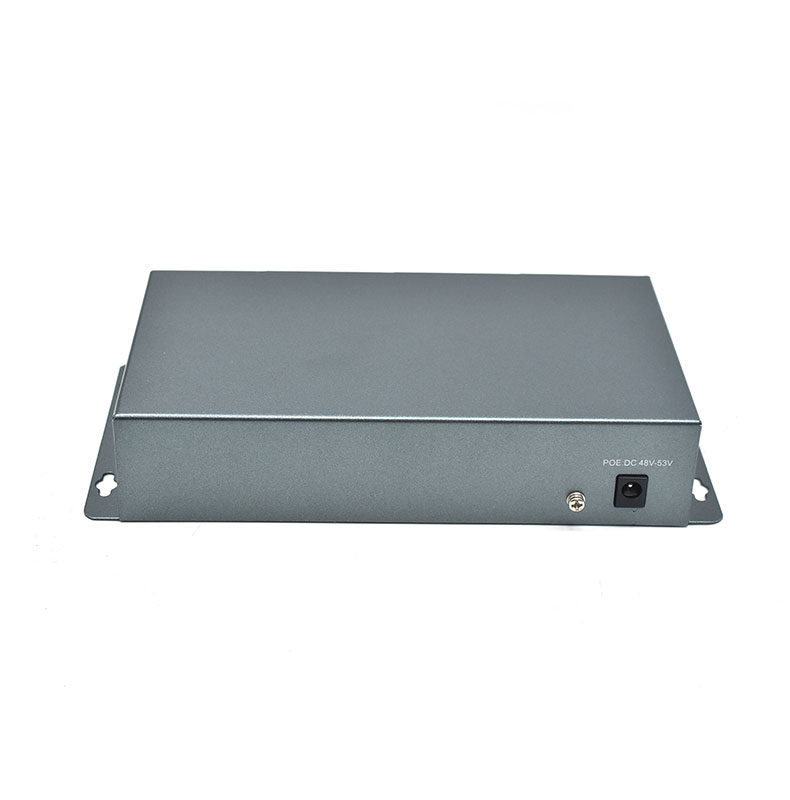

The input voltage is DC 48-53V. You need an external power adapter that matches that range (typically included with the unit). Do not use a standard 12V or 24V adapter – it won’t work and may damage the device. If you lost the adapter, order a 48-53V DC 1A or higher supply with a 2.1mm barrel plug.

Is this media converter compatible with SFP instead of the fixed SC connector?

The standard CG104P model comes with a fixed SC fiber port. If you need SFP flexibility, check with your supplier for the SFP version (often labeled CG104P-SFP). This fixed SC version works well for permanent fiber runs.

Can I rack-mount multiple units together?

Yes, the unit has mounting ears for a standard 19-inch rack shelf (optional kit). You can install several CG104P units side by side. The metal case and fanless design keep heat manageable in a rack if you leave ventilation gaps.

What kind of warranty and support do you offer for this 4 port PoE media converter?

Warranty terms vary by distributor, but typically these units come with a 1-year limited warranty. We recommend buying from authorized resellers to ensure genuine product and support. For technical issues, contact your vendor with model CG104P.

Ethernet Switches

PoE Switches

Industrial Switches

Media Converters

L2+ Cloud & Managed PoE/Non-PoE Switches

Gigabit Cloud Managed PoE Switches with 4/8/16/24 port options support dual APP cloud and web management, one-click cloud & VLAN isolation, 6KV full surge protection, and flexible desktop/wall/rack mounting for versatile industrial networking.

Click to know more

L3 Industrial Managed PoE/Non-PoE Ethernet Switches

Click to know more

DPM Series(Digital Power Meter PoE Switches)

This series consists of innovative switches independently developed by WangLink with proprietary patents, thoroughly engineered for long-term stability and reliability. Equipped with exclusive power monitoring technology, the product line supports real-time viewing of overall device operating power data, enabling intuitive visualization of power supply load and power consumption status. This facilitates rapid troubleshooting of overload and power supply abnormalities, greatly reducing network operation and maintenance workload, and ensuring consistent and stable operation of the entire system.PoE Switches – DPM Series(Digital Power Meter PoE Switches)

Click to know more

PoE Media Converters

Explore Wanglink’s PoE Media Converters category, featuring Gigabit PoE Media Converters, Industrial PoE Fiber Converters, and PoE+ Media Converters for IP cameras. Our factory-direct products deliver reliable power and data over Ethernet, ideal for security surveillance and industrial networking applications.

Explore All PoE Media Converters

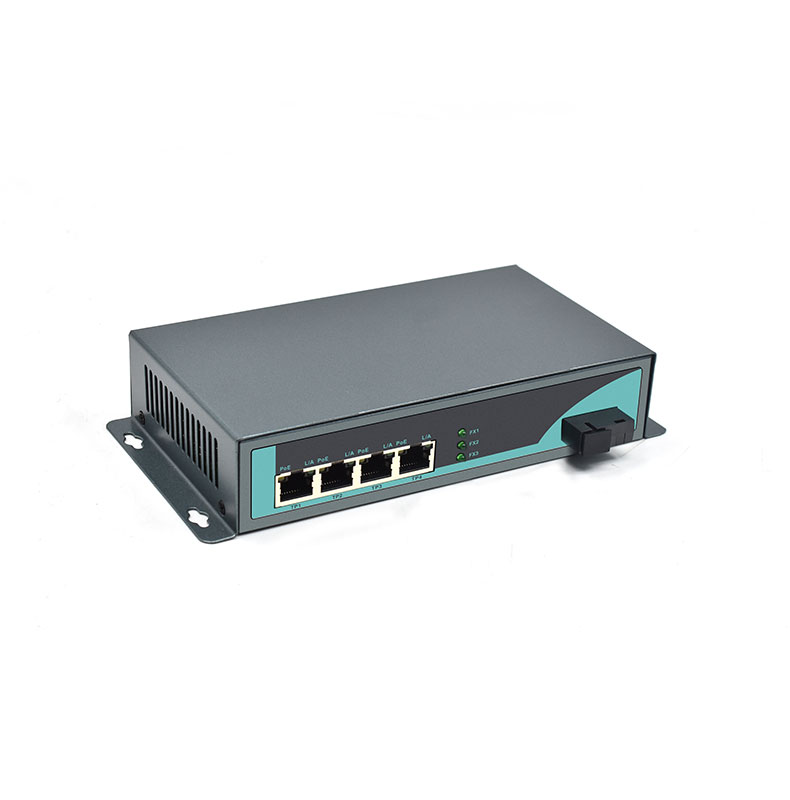

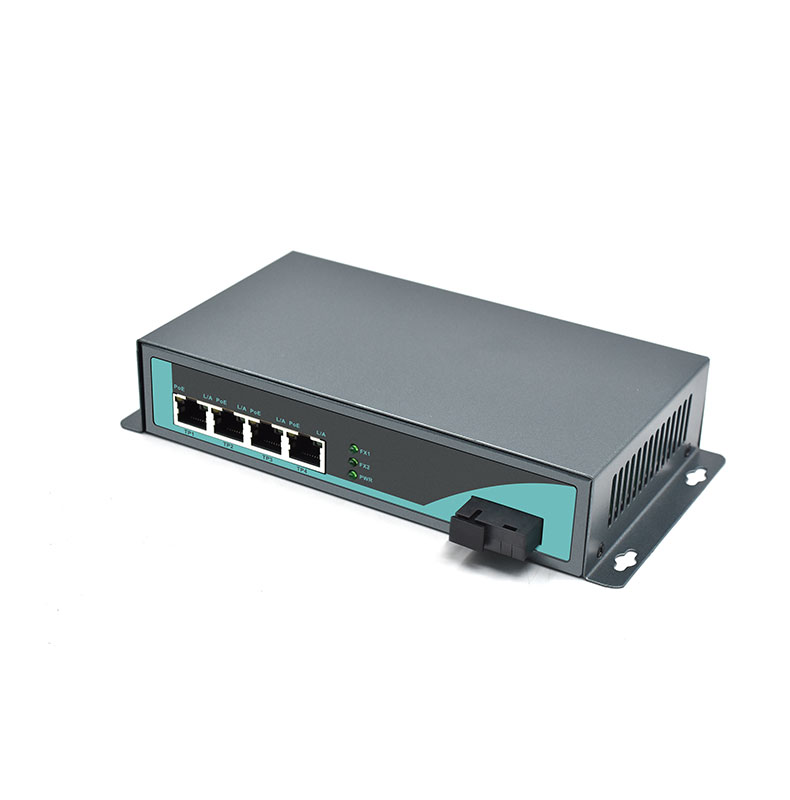

Unmanaged 4 Port PoE Media Converter, Gigabit Ethernet, 1 Fiber SC Uplink, Plug-and-Play, Desktop/Rack-Mount for Surveillance & SMB

Name: Unmanaged 4 Port PoE Media Converter, Gigabit Ethernet, 1 Fiber SC Uplink, Plug-and-Play, Desktop/Rack-Mount for Surveillance & SMB
Brand: WangLink
SKU: CG104P

4 port PoE media converter with 25.4W per port, 1 Gigabit fiber uplink, plug-and-play setup, metal housing – ideal for extending PoE cameras and network in small businesses.

CG104P

Port Description

4x 10/100/1000 PoE RJ45 ports, 1x 1000Base-X SC fiber port (1.25Gbps)
