Managed Gigabit Connectivity for Industrial Networks

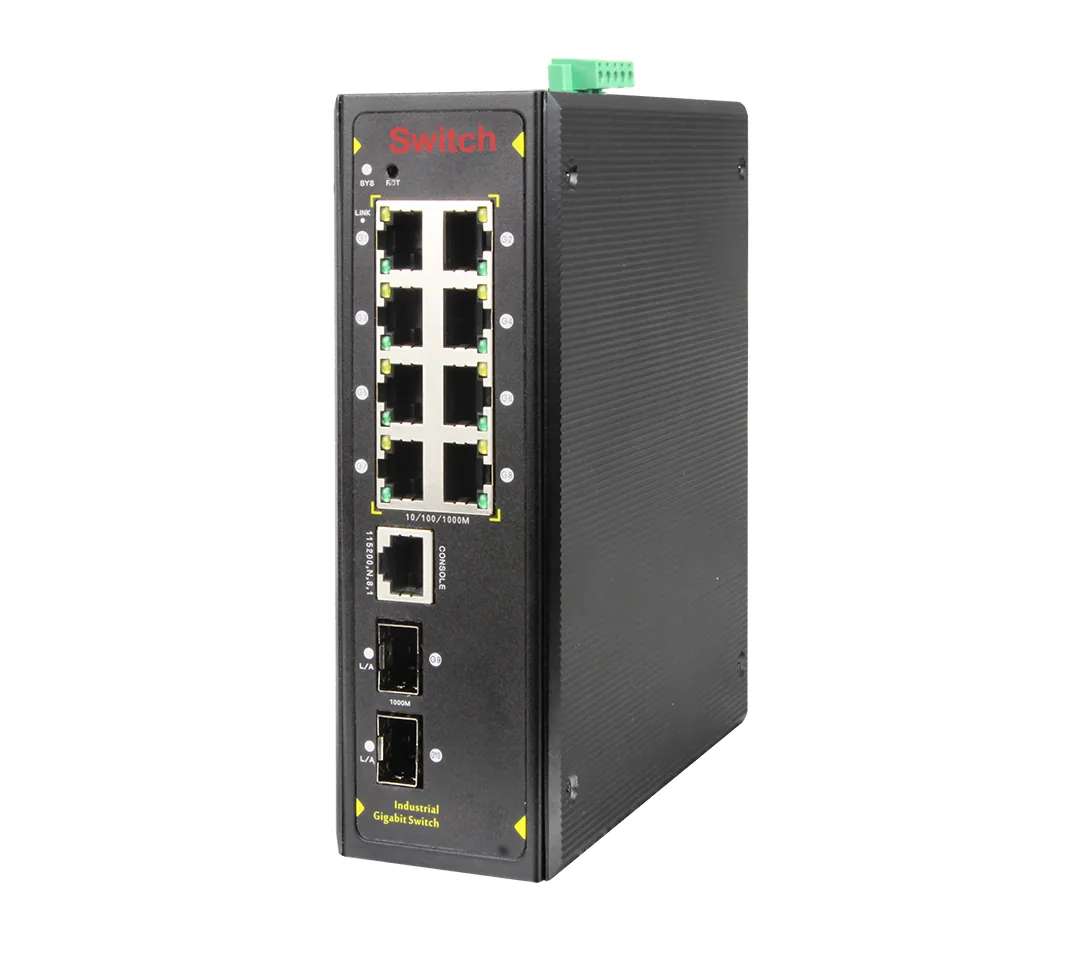

The IS700-8E2F is a managed industrial Ethernet switch for control cabinets, factory floors, surveillance networks, transportation systems, and small industrial server rooms. It provides eight 10/100/1000Base-T RJ45 ports for local devices and two 100/1000Base-X SFP slots for fiber uplinks. Each port supports wire-speed forwarding, so the switch can carry ordinary office traffic, camera streams, PLC data, and management traffic without becoming a bottleneck.
Before selecting equipment, some buyers search for a “24-port gigabit managed industrial PoE switch with 4 SFP fiber 30W.” That description refers to a different high-port-count PoE model. The IS700-8E2F has 8 copper ports, 2 SFP fiber ports, and does not provide PoE or 30W power delivery. This distinction matters in a real installation: use this model when connected devices have their own power supplies or when a separate PoE injector is already planned.
Designed for Practical Network Redundancy
Industrial links are rarely installed in a simple one-switch, one-cable layout. The IS700-8E2F supports STP, RSTP, MSTP, and ITU-T G.8032 ERPS for redundant network designs. ERPS recovery can be completed in less than 20 ms under suitable network conditions, helping restore communication quickly after a cable or link failure. It can be used in ring, chain, star, double-star, tangent-ring, intersecting-ring, and coupling-ring topologies. For automation cells, remote cabinets, and distributed IP monitoring, this gives the network a practical backup path instead of relying on a single uplink.
The L2+ management feature set is aimed at engineers who need control without deploying a separate routing platform at every cabinet. Port-based and 802.1Q VLANs, protocol VLAN, MAC VLAN, Voice VLAN, QinQ, static routes, default routes, link aggregation, IGMP Snooping, and MLD Snooping help separate and prioritize different types of traffic. Eight output queues per port, 802.1p and DSCP mapping, rate limiting, packet filtering, and SP or WRR scheduling can keep control or voice traffic usable when video or bulk data is active.
Security and Maintenance from the Control Room
For networks that connect contractors, cameras, controllers, and office systems, the switch supports ACL rules from Layer 2 to Layer 4, 802.1X and MAC authentication, IP-MAC-VLAN-Port binding, DHCP Snooping, ARP inspection, port isolation, storm control, MAC learning limits, and IP source protection. These tools help reduce accidental loops, unauthorized access, and noisy endpoints. SSH, HTTPS, SNMP v1/v2c/v3, RMON, system logs, LLDP, port statistics, ping testing, CPU and memory monitoring, and cable diagnosis allow technicians to check the network remotely before opening a cabinet.
The aluminum housing, fanless cooling, 12-48 VDC input, and dual redundant DC terminals suit installations where vibration, dust, heat, and difficult access make consumer switches a poor fit. The unit operates from -40 to +80°C, supports desktop or DIN-rail installation, and has an IP40 enclosure. Reverse-polarity protection and industrial EMC protection add another layer of field readiness. With low power consumption and no fan to replace, routine maintenance is kept simple. A five-year warranty and lifelong maintenance support help reduce replacement concerns for long-running projects.
Who Should Use It?
Choose this managed industrial gigabit fiber switch for machine-to-machine networks, factory automation, utility communication, railway or roadside cabinets, IP cameras with separate power, and small-to-medium industrial Ethernet expansions. It is also a practical option for IT administrators who need fiber distance, VLAN control, redundant links, and remote troubleshooting in one compact DIN-rail switch.
