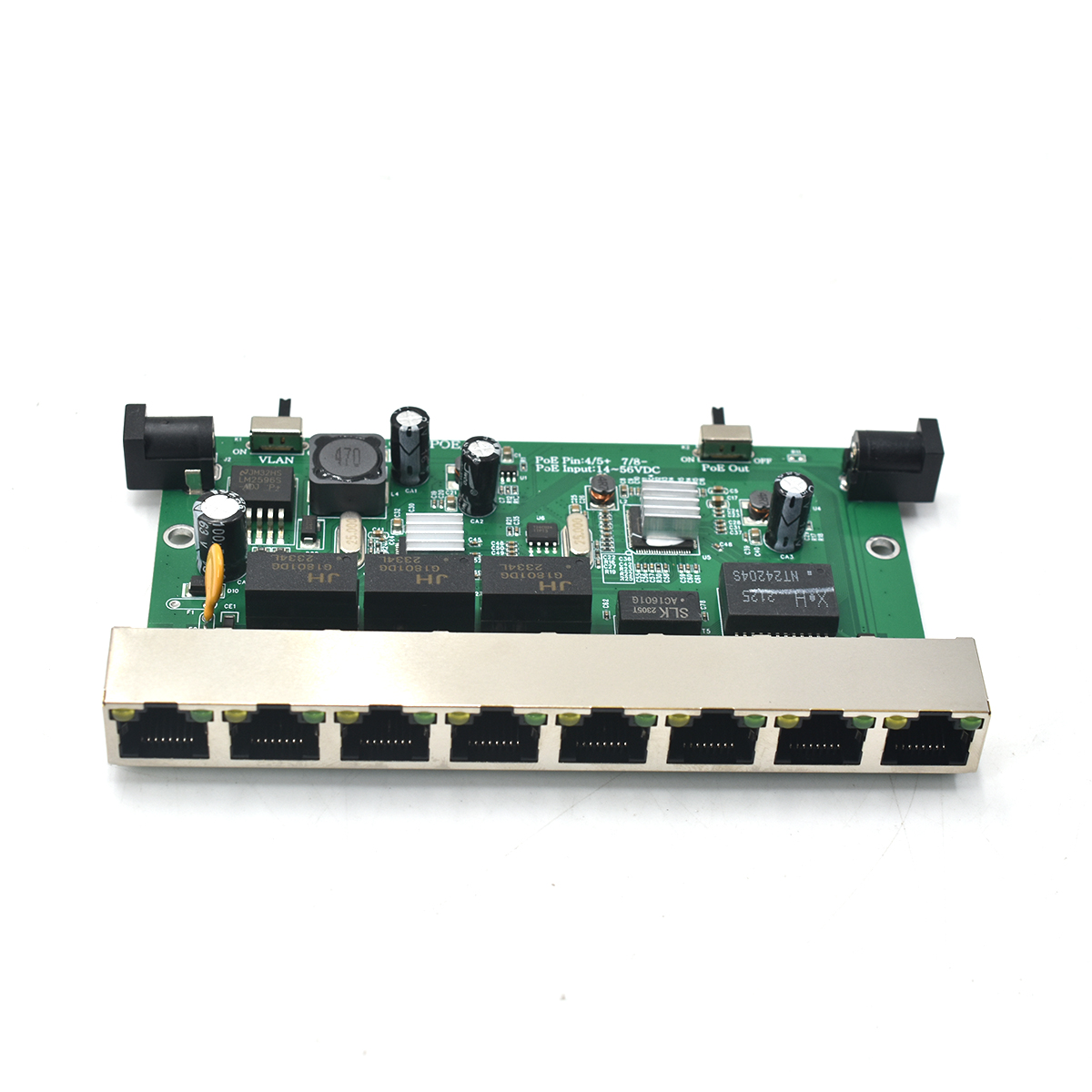

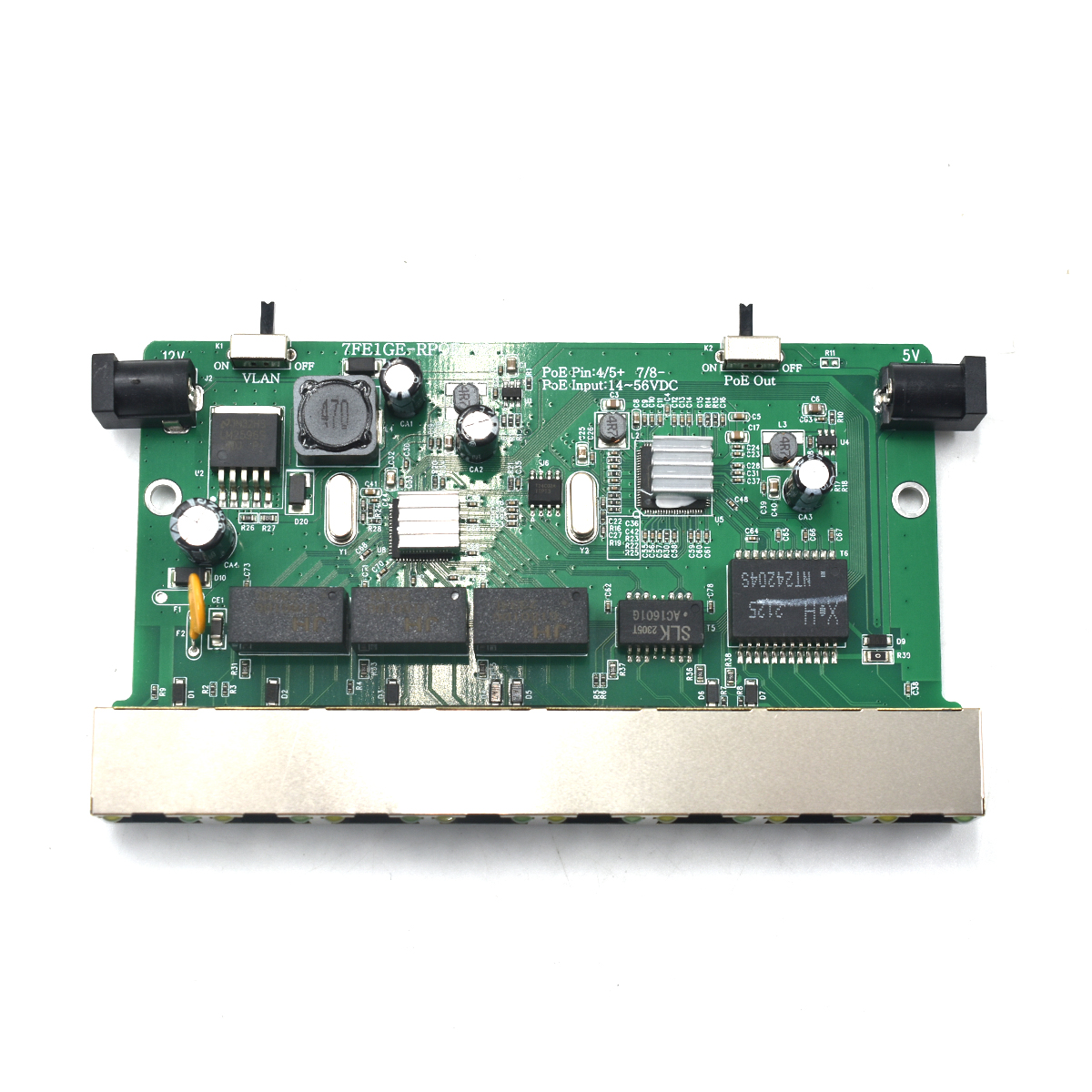

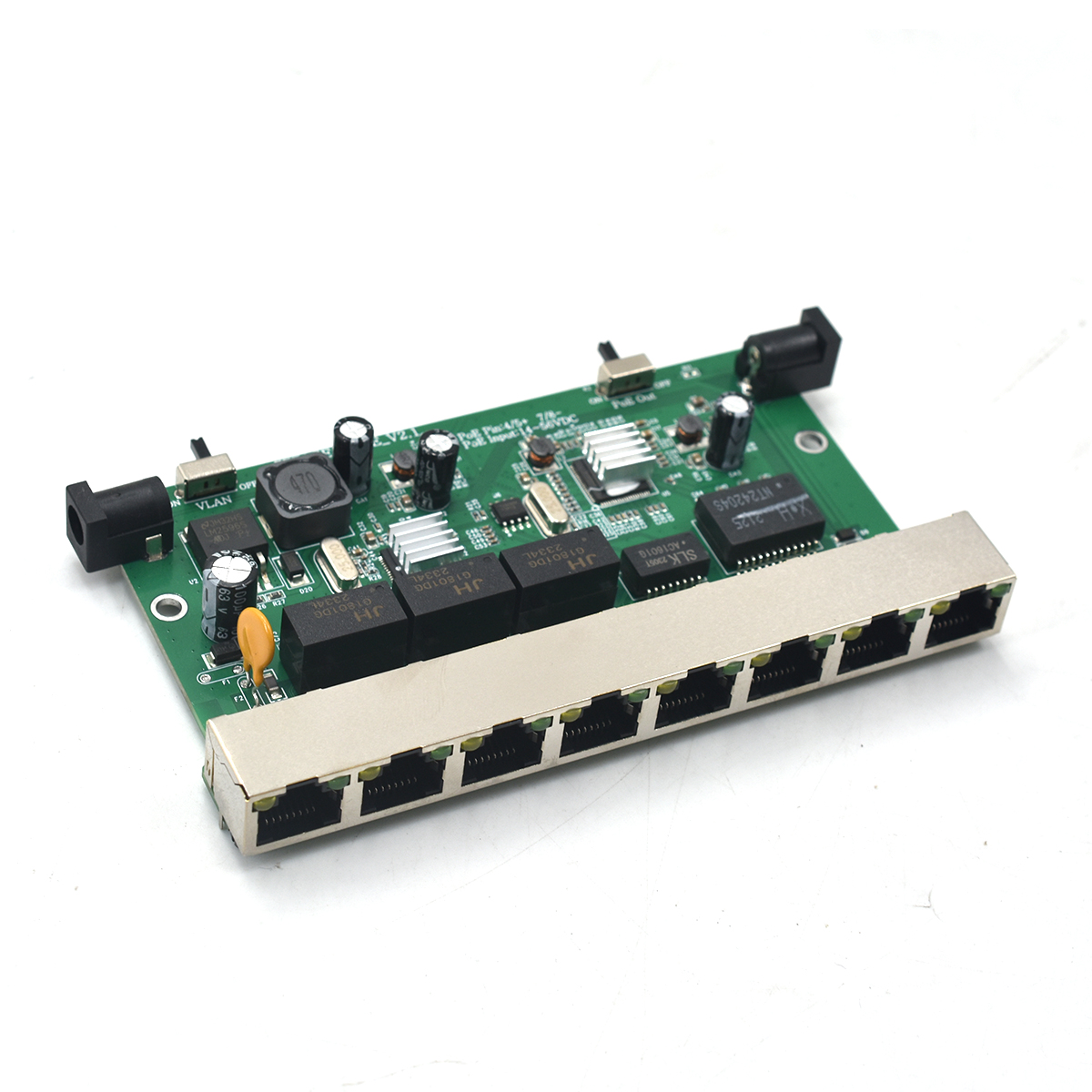

Reverse PoE Switch for Hard-to-Power Devices
When you need to install IP cameras, wireless access points, or VoIP phones in spots without a nearby power outlet, running separate electrical lines can quickly blow your budget and timeline. This unmanaged reverse PoE switch solves that by receiving power over the Ethernet cable itself, then passing it out to other devices. It is a practical fast ethernet reverse poe switch built for real-world network deployments.

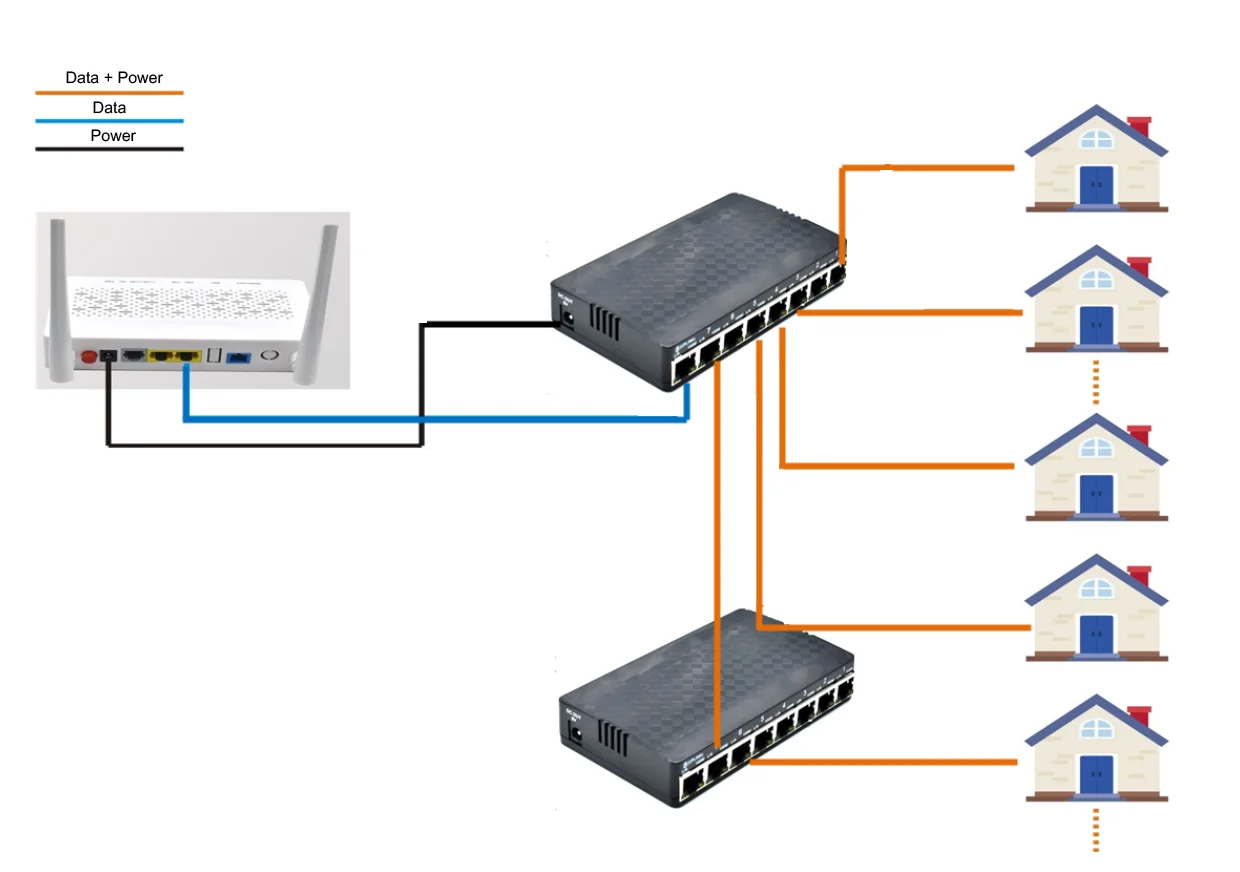

Unlike a standard PoE switch that injects power from a central power supply, this reverse PoE switch takes power in through its uplink port and distributes it to ports 2 through 8. That means you can daisy-chain devices or extend your network to remote corners of a building without adding a single power adapter. The switch also includes two DC output ports (12V and 5V) for powering small accessories like media converters or sensors.
In addition, the one-key VLAN isolation mode is a standout for security and traffic control. With a simple physical switch, ports 2-8 become isolated from each other and can only communicate with the uplink port. This stops broadcast storms and keeps guest traffic separate from sensitive devices. For IT admins managing a vlan pse dual switch fast ethernet reverse poe switch setup, this feature alone saves hours of configuration time.
The switch is fully unmanaged, so there is no software to learn. Plug in the cables and it works. All ports support auto-negotiation, auto MDI/MDI-X, and wire-speed forwarding. The wide input voltage range of 15-56VDC and fanless plastic housing make it reliable in temperatures from -20°C to 60°C. Whether you are setting up a small office network, an IP surveillance system, or a temporary event network, this reverse PoE switch delivers stable performance without the complexity.
- 7× 10/100Base-TX ports and 1× 10/100/1000Base-T uplink
- Reverse PoE power input on uplink, power output on ports 2-8
- One-key VLAN isolation for traffic separation
- Two DC output ports (12V and 5V) for auxiliary devices

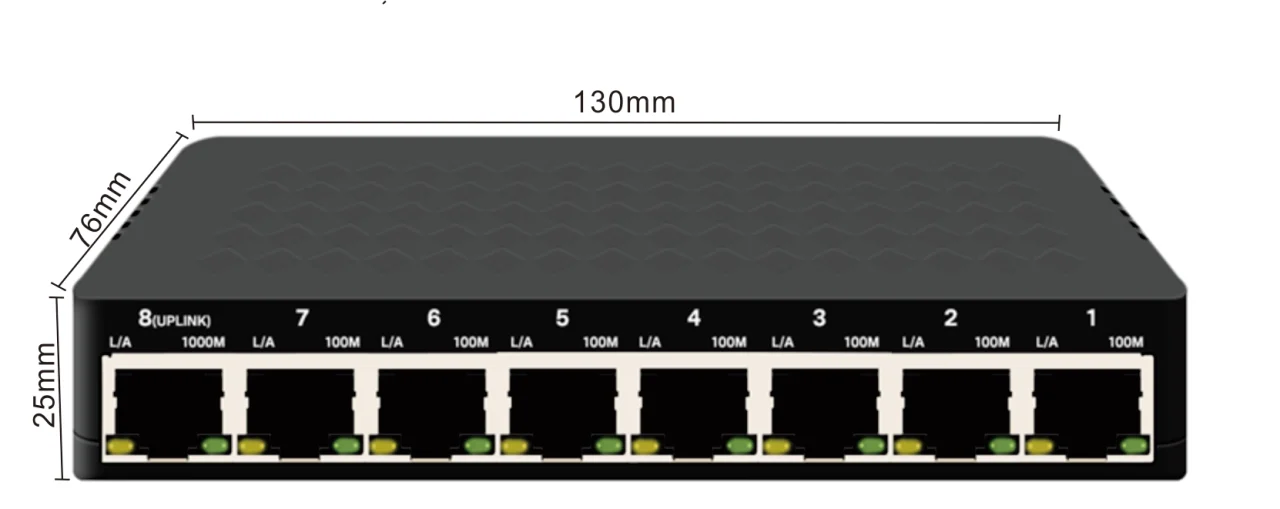

- Wide 15-56VDC input, fanless design, desktop or wall-mount
