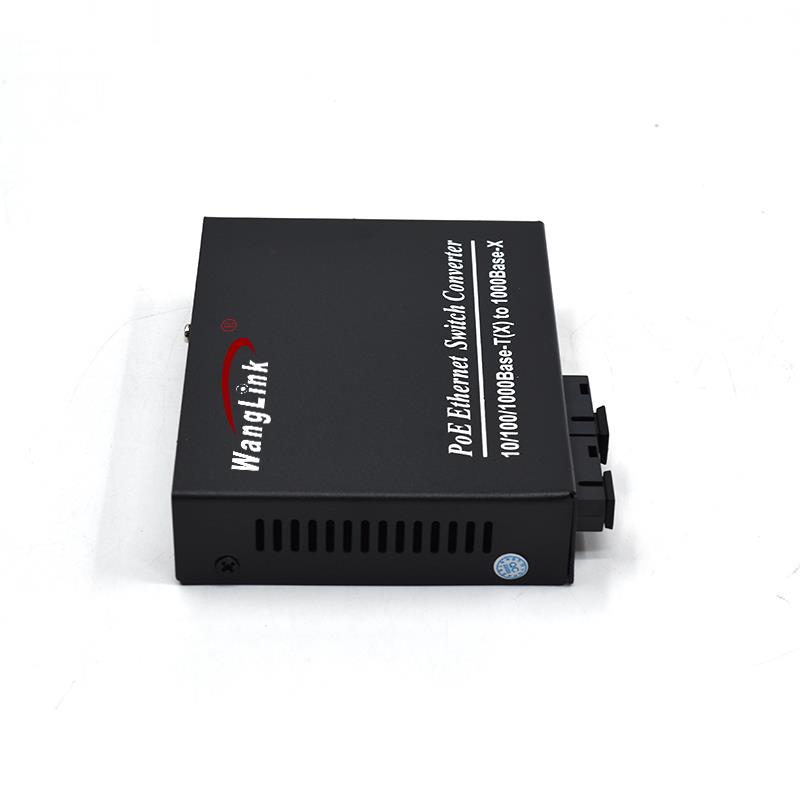

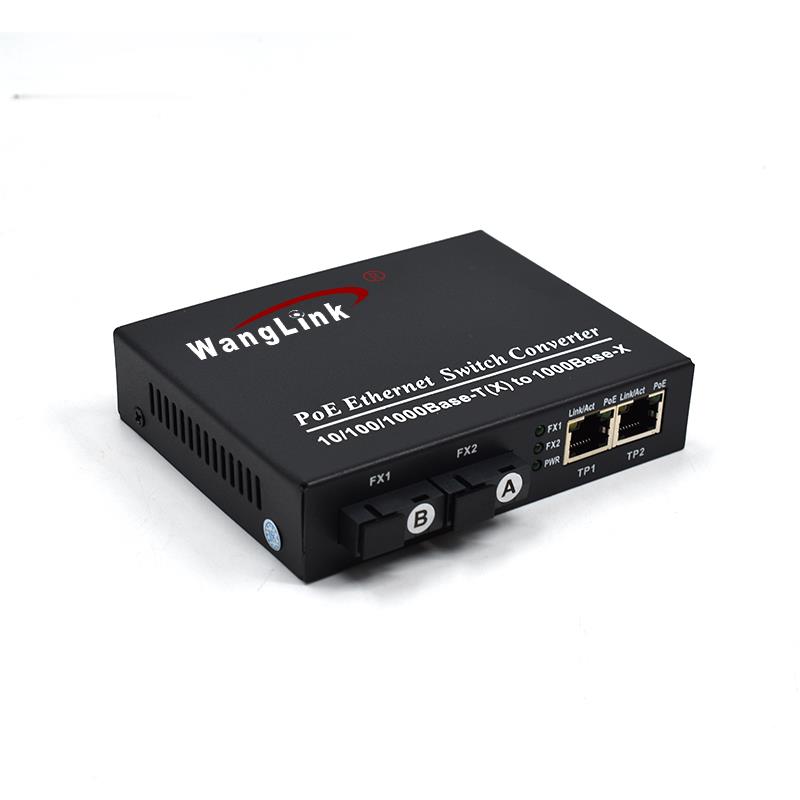

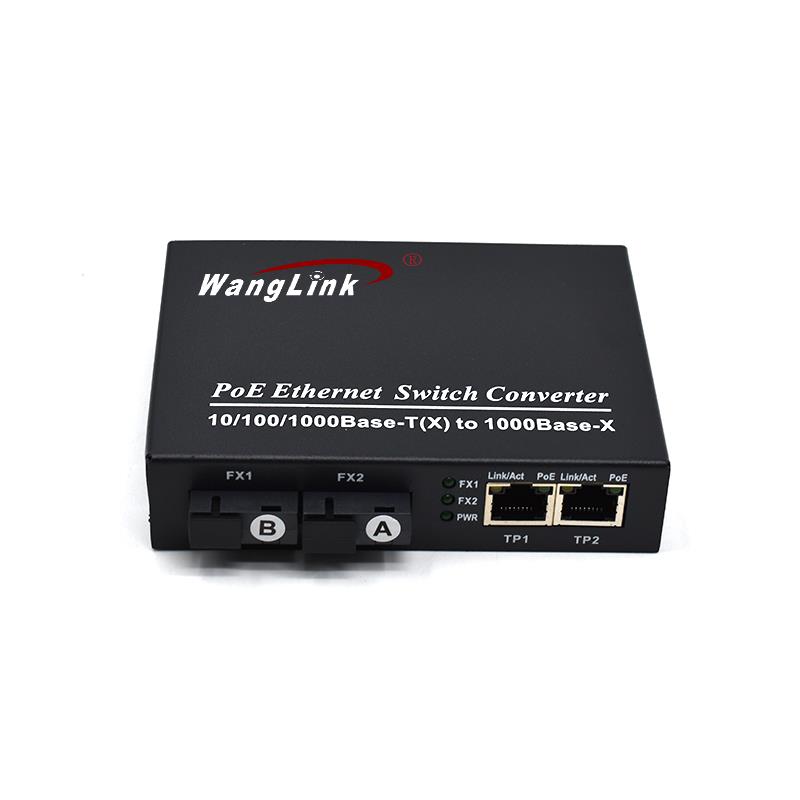

Unmanaged 2 Port PoE Media Converter, Gigabit, 2 SC Fiber Uplink, Metal Housing for Desktop & Wall Mount

2 Port PoE media converter with 2 Gigabit RJ45 PoE+ ports and 2 SC fiber uplinks, plug-and-play, metal housing, ideal for extending IP cameras and network over long distances.

CG202P
Port Description

2 x 10/100/1000Base-T RJ45 PoE+ ports (IEEE 802.3af/at, up to 25.4W each) + 2 x 1000Base-X SC fiber ports (1.25Gbps, single/multi-mode options).
  • 2 Gigabit PoE+ ports with 25.4W per port — powers cameras, APs, and VoIP phones directly
  • 2 SC fiber uplinks supporting 1.25Gbps, reach up to 100km with single-mode modules
  • Plug-and-play operation — zero configuration required, auto-negotiation on all copper ports
  • Metal housing for passive heat dissipation, fanless and silent
  • Dual installation options: desktop or wall-mount, comes with mounting ears









Extend Your Network with a Reliable 2 Port PoE Media Converter

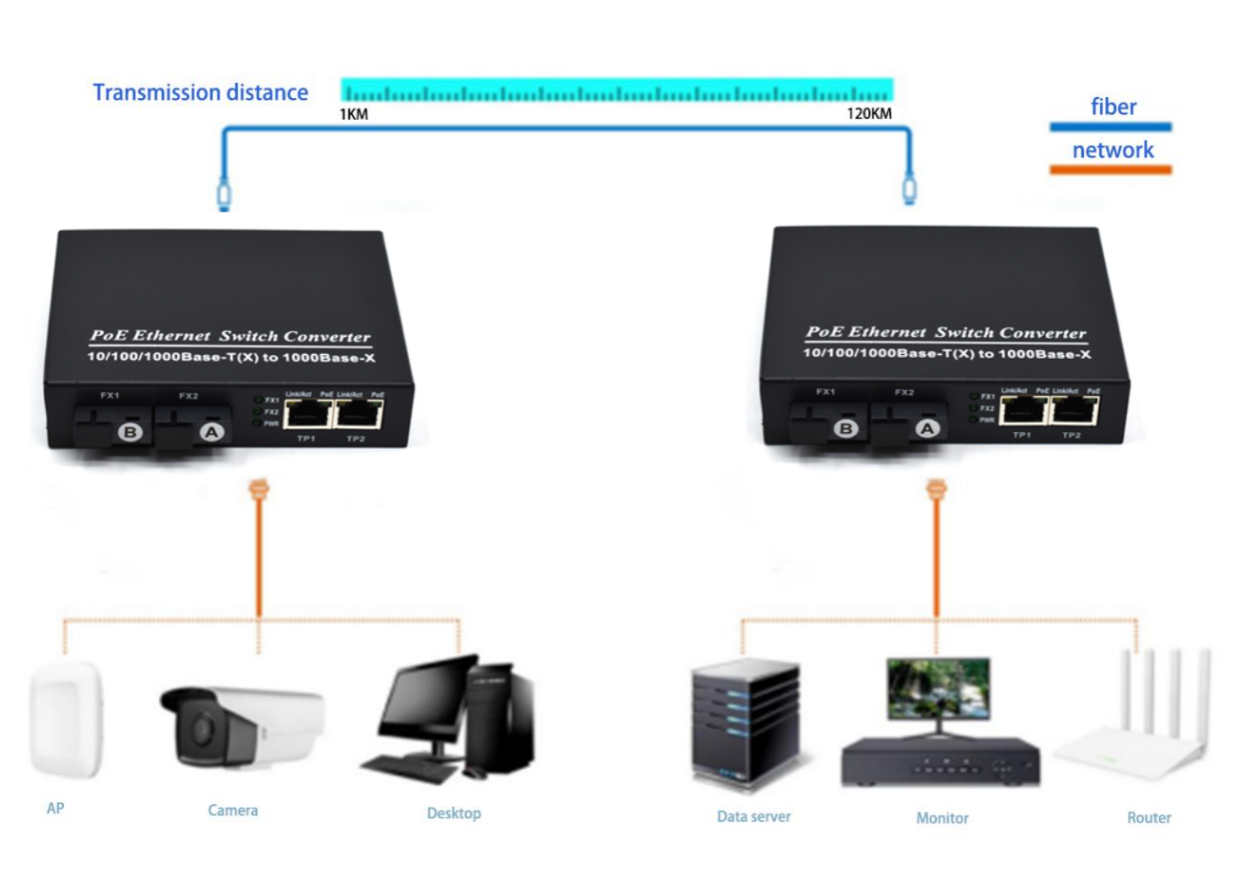

If you need to push power and data over longer distances than standard Ethernet allows, this 2 port PoE media converter is built to do exactly that. It bridges fiber optic cabling with two Gigabit PoE ports, letting you place IP cameras, access points, or small switches where copper runs just won’t reach. No configuration, no fuss — just plug in and it works.

The two SC fiber ports connect to your existing fiber backbone at 1.25Gbps each, covering distances from 550 meters on multimode up to 100 kilometers on single mode (depending on the SFP/SC module you choose). Downstream, each RJ45 port delivers up to 25.4W of PoE+ power, enough for a PTZ camera or a high-power access point. Auto-detection prevents power from being sent to non-PoE devices, so you don’t risk damaging gear.

We kept things simple: no software, no VLAN configuration, no web interface. It’s a unmanaged device that does one job reliably. The metal housing doubles as a heatsink, keeping internal chips cool even in a dusty warehouse or an unventilated comms cabinet. You can set it on a desk or screw it to a wall — both options are supported out of the box.

Typical users include IT admins wiring up remote buildings, security installers extending surveillance networks beyond the 100-meter Ethernet limit, and small business owners who need a cost-effective way to connect PoE devices over fiber. If you’re tired of link drops or power injectors cluttering your rack, this media converter offers a clean, stable alternative.

Standards: IEEE802.3 10Base-T, 802.3u 100Base-TX, 802.3ab 1000Base-T, 802.3z 1000Base-SX/LX, 802.3af/at PoE, 802.1p, 802.3x flow control
Copper ports: 2 x RJ45 10/100/1000Base-T with auto MDI/MDI-X
Fiber ports: 2 x SC (SC/FC/SFP optional) 1000Base-X, 1.25Gbps
Fiber distance: Multi-mode 550m–2km, Single-mode 2–100km (depending on optics)
PoE budget: Up to 25.4W per port, total depends on power adapter
Switching capacity: 8.0 Gbps
Packet forwarding rate: 5.952 Mpps
MAC table: 8K
Jumbo frame: 9K (10K supported per datasheet)

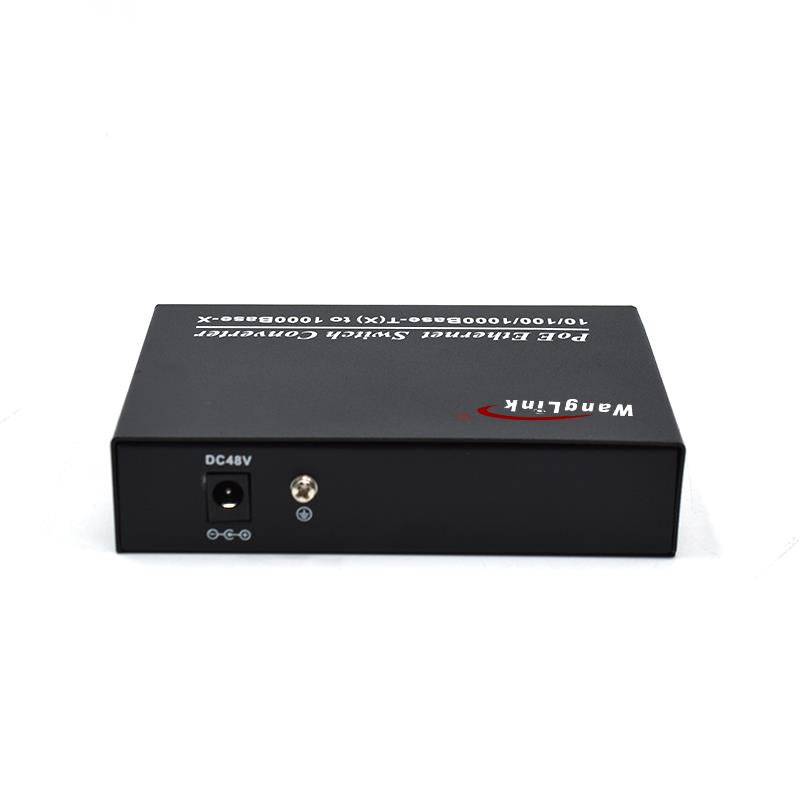

Power input: DC 44V–52V (external adapter included)
Power consumption: < 3W (without PoE load)
Operating temperature: -20°C to +60°C
Storage temperature: -20°C to +85°C
Humidity: 5%–95% non-condensing
Weight: < 0.25 kg
PoE pinout: 1/2(+), 3/6(-) for 802.3af/at
