Industrial PoE Connectivity for Small Field Networks
The IES200-4P1F is an unmanaged 4 Port Industrial Ethernet Switch with 1 Gigabit Fiber Port DIN Rail installation for applications that need both local PoE connections and a longer-distance fiber uplink. It provides four 10/100Mbps RJ45 ports for IP cameras, wireless access points, intercoms, sensors, access controllers, and other powered Ethernet devices. The 1000Base-X SFP port connects the field cabinet to a control room, building network, or aggregation switch without extending copper cabling through electrically noisy areas.
For installers and network technicians, the main benefit is straightforward deployment. The switch works as a plug-and-play PoE power sourcing equipment device, so there is no web interface or software configuration to manage. Each RJ45 port automatically checks whether the connected device supports IEEE 802.3af or 802.3at PoE before supplying power. This helps protect ordinary Ethernet equipment from accidental PoE output, while providing up to 30W per PoE port for compatible endpoints.
Practical Features for Surveillance and Automation

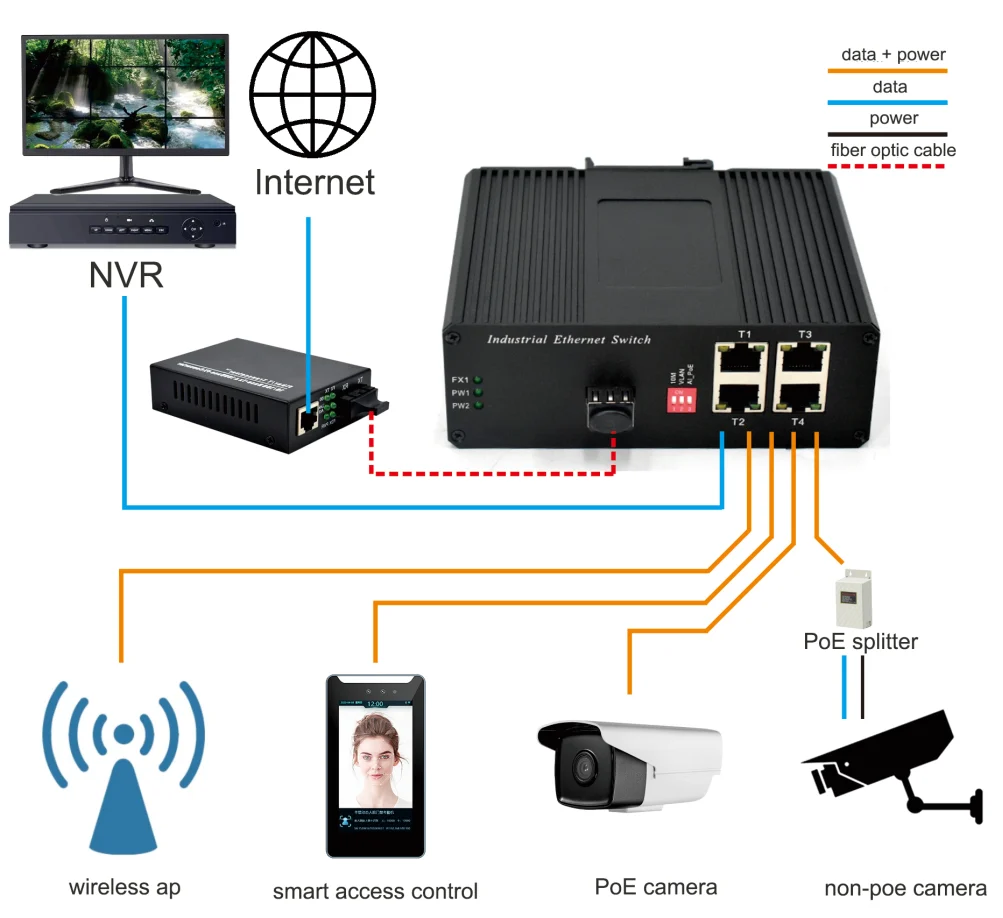

In a small IP surveillance system, four cameras can receive both data and power over standard twisted-pair cable, while the SFP fiber port carries traffic back to the monitoring or recording system. The switch supports 10/100Mbps auto-negotiation, full- and half-duplex operation, automatic MDI/MDI-X, and line-speed forwarding. These features reduce manual port planning and help keep video, control, and sensor traffic moving smoothly.
A three-position DIP switch gives field engineers a few useful controls without opening a laptop. The 10M mode can extend copper transmission to up to 250m in suitable conditions. VLAN mode isolates T1-T4 from one another while allowing each port to communicate with the fiber uplink, which is useful when several cameras or edge devices should not communicate directly. AI_PoE enables an intelligent watchdog function that can help recover a compatible PoE endpoint if it stops responding, reducing the need for a site visit.
Built for Cabinets, Plant Floors, and Outdoor Enclosures

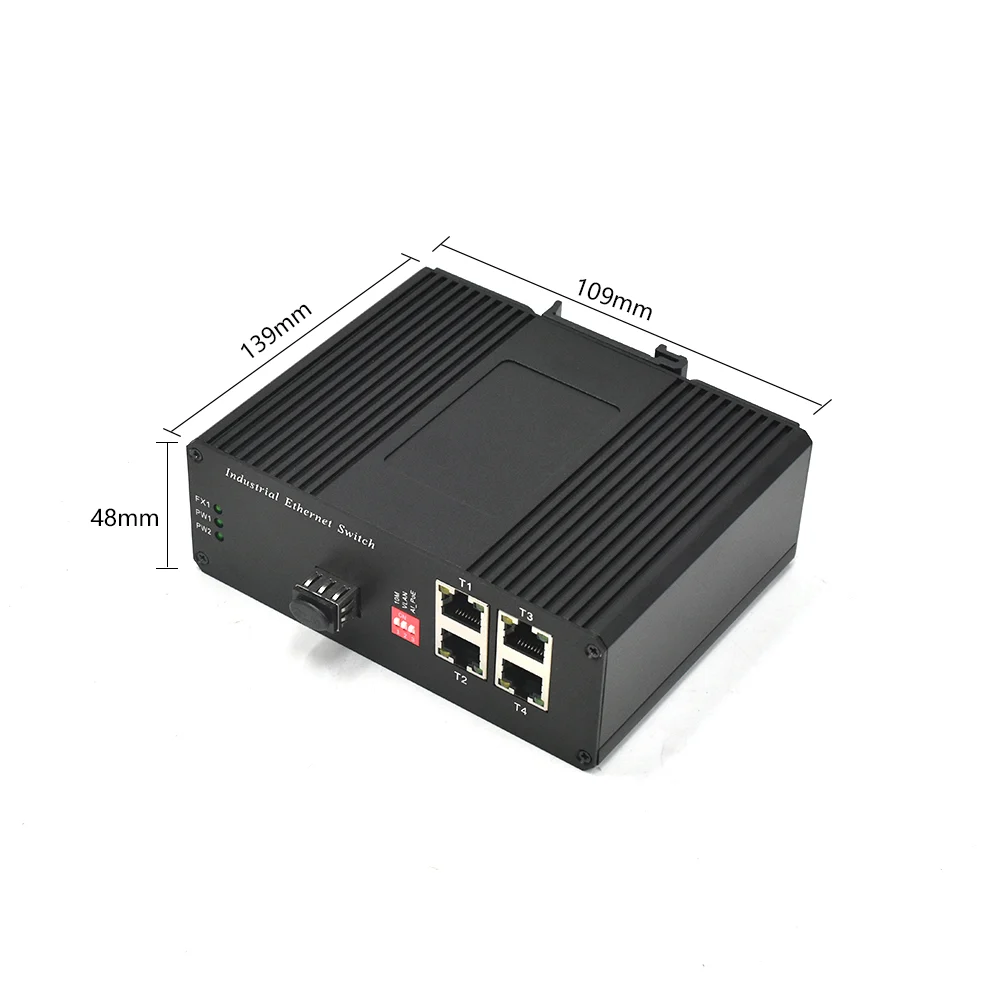

This DIN rail industrial Ethernet switch is designed for locations where office-grade equipment may struggle. Its aluminum alloy housing supports natural heat dissipation, and the operating temperature range of -40°C to 85°C suits roadside cabinets, factory control panels, transportation systems, security enclosures, and remote utility sites. Surge protection is provided on both power and data lines, helping the switch handle common electrical disturbances in industrial installations. The specified protection levels are ±2kV differential and ±4kV common mode on power lines, plus ±6kV differential and common mode on data lines.
Reliability also comes from the power design. The switch accepts dual redundant DC44-57V inputs, allowing a second power source to remain available if the primary supply fails. PW1 and PW2 indicators make it easier to check the status of each input during commissioning or maintenance. With desktop, wall-mount, and standard DIN rail installation options, the same unit can fit a temporary test setup, a compact control box, or a permanent industrial cabinet.
A Straightforward Choice for Edge Deployment
Choose this unmanaged 4 Port Industrial Ethernet Switch with 1 Gigabit Fiber Port DIN Rail mounting when the project needs dependable PoE at the edge without the cost or maintenance overhead of a managed switch. It is a good fit for small and medium IP camera systems, wireless access point links, factory automation, building security, and remote equipment monitoring. The combination of four 30W PoE ports, one SFP fiber uplink, redundant DC input, selectable VLAN isolation, and wide-temperature operation gives installers the functions that matter in the field while keeping day-to-day operation simple.
