Executive Summary (TL;DR)
- Industry: Education / Smart Campus Security & Video Surveillance
- Facility Scale: 25,000 m² campus area spanning 20 classrooms, administrative complexes, and student dormitories
- Products Implemented: Wanglink WSC-S5300-24P2F Managed 24-Port Gigabit PoE+ Switches (Core/Aggregation) and Wanglink SG-Series 8/18/28-Port Commercial/Industrial PoE Switches (Access)
- Core Results: Zero video frame loss under peak traffic bursts, 99.999% network uptime, 40% reduction in maintenance overhead, and seamless integration of CCTV, access control, and vehicle management sub-systems.
1. Project Background & Technical Challenges
Modern educational institutions face increasing operational complexity. As campuses expand, student density increases, and campus borders become more open, building an integrated, proactive security management system becomes a top strategic priority.
The project site—a prestigious secondary art school covering 25,000 square meters across 20 class units, multi-story living areas, and administrative buildings—faced significant challenges with its legacy security network infrastructure:
- Information Silos & Sub-system Isolation: Video surveillance, vehicle barrier control, RFID access control, and perimeter intrusion alarms operated on fragmented, standalone networks. The lack of a centralized data highway prevented real-time emergency coordination and cross-system event triggering.
- Video Streaming Latency & Frame Drops: High-definition IP surveillance cameras (1080p / 4K streams) generate asymmetric, upward-bursting traffic patterns. During shift changeover or evening hours, long-frame video bursts caused port congestion, buffer overflow, and severe video freezing on monitor walls.
- Harsh Environmental Strain & Transient Protection: Outdoor camera runs and building-interconnect links were highly susceptible to power surges, static discharge, and lightning interference, threatening core switch components and increasing hardware failure rates.
- Maintenance & Energy Costs: Managing hundreds of powered IP devices across multiple buildings required high standby energy consumption and continuous manual port resets during device lockups.
2. The Network Architecture & Solution Design

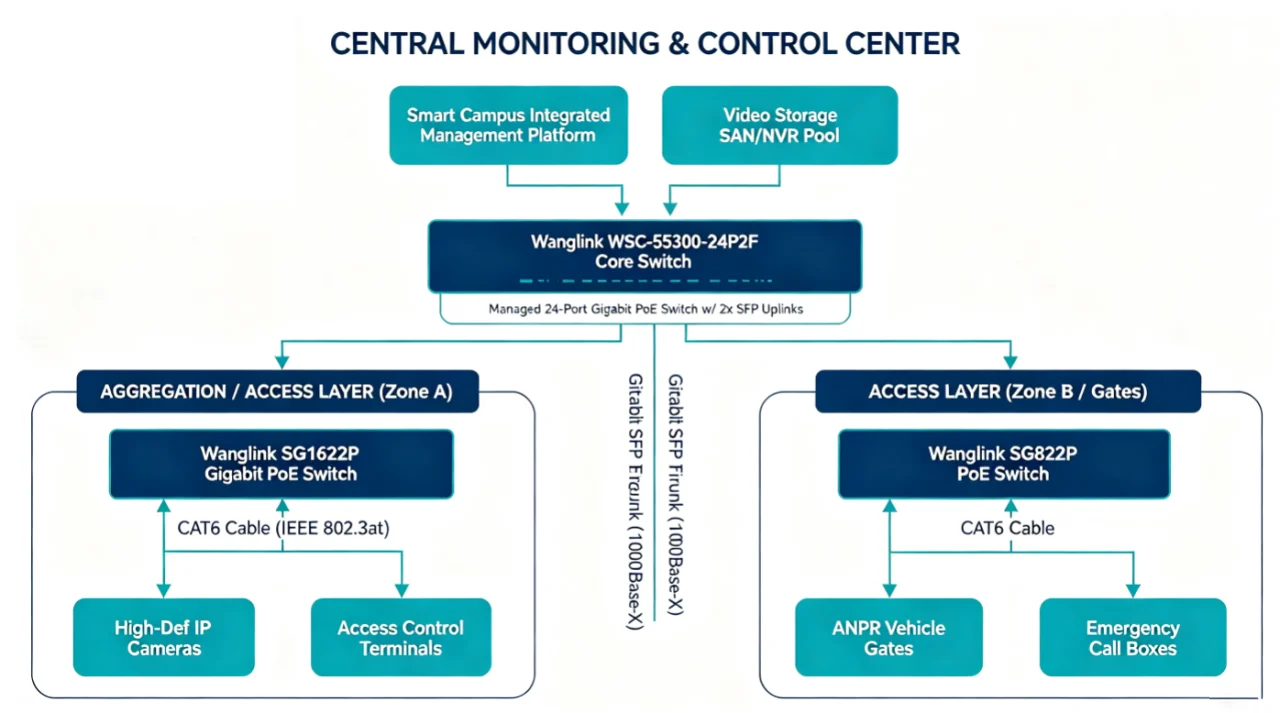

To eliminate bandwidth bottlenecks and integrate isolated security sub-systems, Wanglink designed a high-reliability, two-tier star topology powered by dedicated Gigabit PoE optical switches.
Key Technical Implementation Details:
- Star Topology Architecture: Deployed a simplified 2-tier (Access to Aggregation/Core) hierarchy to minimize hop latency, simplify routing paths, and eliminate multi-stage cascading failure points.
- Optimized Buffer Allocation for Burst Video: Outfitted access switches with dynamic, dynamic-cache buffer management. Unlike standard data switches that split buffers symmetrically, Wanglink switches prioritize ingress-to-egress uplink queues, accommodating long-frame video bursts (64–1536 bytes) without dropping packets.
- Structured Cabling & High-Bandwidth Uplinks: Utilized Category 6 (CAT6) copper cabling for edge connections up to 100 meters, paired with SFP Gigabit optical modules for long-distance building-to-building fiber links back to the core station.
- Smart Power Distribution: Full compliance with IEEE 802.3af/at protocols delivering up to 30W per port, dynamically negotiating power budgets across PTZ cameras, infrared illuminators, and access control pads.
3. Why Wanglink Switches Were Selected
The system integrator chose Wanglink networking hardware after rigorous side-by-side benchmarking against standard enterprise switches.
| Engineering Requirement | Standard Commercial Switch | Wanglink Smart Campus PoE Switch | B2B Value / Impact |
|---|---|---|---|
| Surge / Lightning Protection | 1KV – 2KV Basic | 4KV Network Port / 6KV Power Input | Prevents equipment damage during electrical storms |
| Buffer & Frame Transfer | Standard Equal Queue | Security-Optimized Non-Blocking Architecture | Eliminates screen distortion & frame drop in 4K streams |
| Enclosure & Shielding | Plastic / Thin Stamped Sheet | IP30 Heavy-Duty Galvanized Metal Chassis | Anti-corrosion, anti-rust, and EMI shielding |
| Energy Management | Continuous Constant Power | IEEE 802.3az EEE & Auto-Power-Down | Shuts down idle port power; reduces standby heat & cost |
| Transmission Range | 100m Standard Limit | 100m Standard / Up to 250m Long-Reach PoE | Eliminates need for mid-span extenders in large yards |
| Compliance & Standards | Basic CE | ISO9001, CE, FCC, RoHS, 3C Certified | Guaranteed MTBF > 100,000 hrs; enterprise reliability |
4. Measurable Results & Project Impact
Following full commissioning of the Wanglink smart campus network infrastructure, the school achieved major operational metrics:
- 99.999% Network Availability: System stability reached carrier-grade uptime, maintaining continuous 24/7 video recording and real-time perimeter monitoring across all 20 class zones.
- Zero Frame Drops During Traffic Peaks: Optimized switch cache scheduling resolved packet congestion, ensuring smooth video feeds even when all HD cameras transmit high-bitrate video streams concurrently.
- Unified Sub-system Convergence: Broken down previous information silos by interconnecting IP cameras, license plate recognition (ANPR) gates, card readers, and emergency alarm boxes onto one high-speed optical backbone.
- 35% Lower Total Cost of Ownership (TCO): Built-in 4KV/6KV surge protection drastically lowered outdoor device failure rates, while Energy Efficient Ethernet (EEE) features cut switch power dissipation by over 25%.
5. Recommended Products in This Case
Wanglink WSC-S5300-24P2F — 24-Port Managed Gigabit PoE Switch
- Ports: 24 x 10/100/1000Base-T PoE+ Ports + 2 x Gigabit SFP Uplink Slots
- PoE Budget: 370W total capacity (IEEE 802.3af/at auto-sensing)
- Switching Capacity: 54 Gbps non-blocking backplane bandwidth
- Protection & Housing: 4KV Ethernet surge protection, IP30 rugged metal chassis
- Key Features: Layer 2 VLAN isolation, QoS priority queuing, IGMP Snooping for IP multicast, EEE Green Ethernet saving
