1. Solution Overview
For small and medium-sized commercial venues including convenience stores, mini-supermarkets, barbershops, and real estate agencies, stable wireless networks and complete video surveillance systems are essential operational infrastructures.
Customer free Wi-Fi supports daily WeChat and Alipay payment scenarios, effectively improving customer experience and store reviews. Meanwhile, 24-hour security surveillance prevents theft, safeguards nighttime store safety, and provides valid video evidence to resolve disputes caused by cashier errors or lost customer items.
This integrated solution covers wired networking, wireless Wi-Fi coverage, and video surveillance. It supports flexible equipment collocation according to on-site existing devices. For stores already equipped with wireless routers or ordinary switches, only IPC cameras and NVR recording devices need to be added to complete the surveillance system deployment, realizing cost-effective upgrading.
2. Requirements Analysis
Store owners prioritize network aesthetics, deployment simplicity, operational stability, and low construction and maintenance costs. The core business and technical requirements are summarized as follows:
- High-bandwidth network access to support stable online connection of multiple concurrent terminal devices.
- Dual-network isolation design to completely separate internal management network and customer guest network.
- Standard PoE power supply for surveillance cameras, simplifying cabling and complying with fire safety specifications.
- Simple on-site installation and centralized unified management of all surveillance cameras.
- Support real-time video viewing, automatic video storage, historical playback, and alarm triggering, with remote mobile real-time monitoring capability.
- Low daily maintenance difficulty and flexible device expansion space to adapt to business growth.

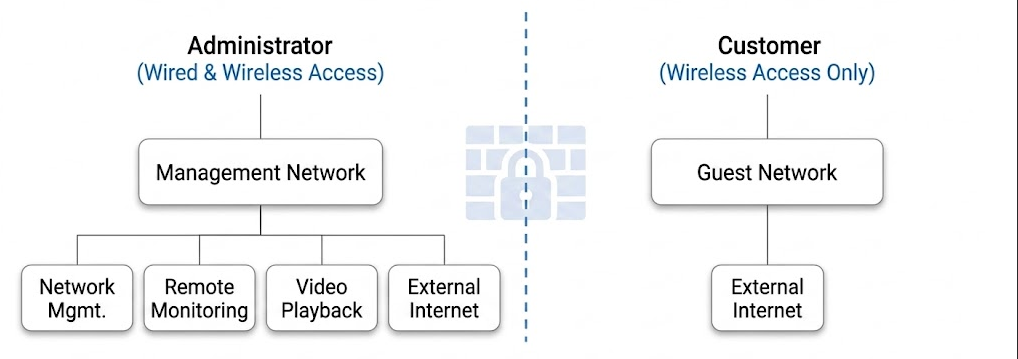

3. User Role & Permission Design
Network users are divided into two independent roles with clear permission isolation to ensure internal network security:
- Administrator: Obtain full access permissions for internal management network and Internet access, supporting all network configuration and device management operations.
- Customer: Only connect to independent guest Wi-Fi. The guest network is physically isolated from the internal management network, with no access permission to internal store devices, and only supports normal Internet access.

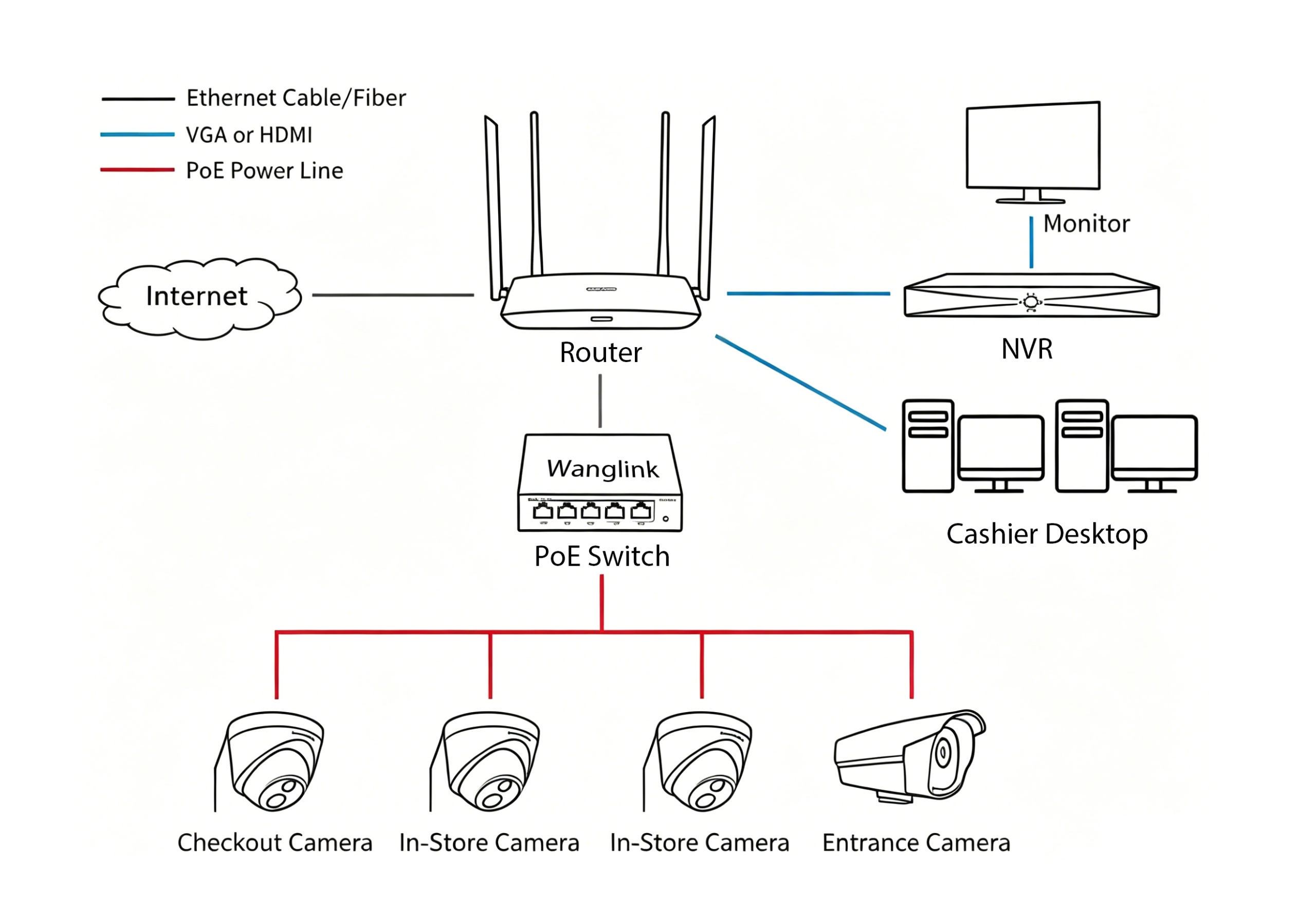

4. Network Topology
Suitable for small and medium-sized store scenarios with limited space. A single commercial wireless router can cover the full store area. Cameras are deployed at core monitoring points including cash registers, store entrances, and merchandise display areas to achieve full blind-spot-free monitoring.
Topology Description:
- Indoor dome cameras are deployed at cash registers and merchandise areas to realize full coverage of internal transaction and display areas.
- Outdoor bullet cameras are installed at store entrances to monitor doorway access and external public areas.
- PoE switches provide integrated network data transmission and power supply for PoE IPCs via a single network cable, eliminating independent power wiring. For stores with existing wireless routers and non-PoE switches, DC-powered cameras can be selected for flexible adaptation.
5. Installation & Deployment Guidelines
The following is the standard camera placement solution for commercial stores, supporting free adjustment according to actual store area and layout:
- Cash Register Area: Install a dedicated camera to record all cashier transaction processes for dispute traceability.
- Store Entrance: Deploy outdoor bullet cameras to monitor personnel entry and exit and external store environment.
- Merchandise Display Area: Equip with multiple indoor dome cameras for overlapping coverage to eliminate monitoring blind spots.
Note: The above scheme is a standard deployment recommendation. Users can increase or decrease the number of cameras and adjust installation positions according to actual on-site environments.
6. Solution Core Features
6.1 Tailored for Small and Medium Businesses
All equipment is customized for the actual business needs and budget of small stores. PoE one-cable integrated power supply and data transmission technology simplifies on-site wiring, ensures neat and beautiful store wiring, and avoids messy line layout affecting store image.
6.2 Complete and Practical Functions
Wanglink commercial wireless routers support independent guest network setting and strict dual-network isolation to protect internal network security. The surveillance system is equipped with rich functions including scheduled recording, video privacy masking, human motion detection, video playback and export. With IR-cut automatic day and night switching technology, it realizes 24-hour uninterrupted clear monitoring.
6.3 High Cost Performance
The solution adopts highly integrated Wanglink dedicated commercial equipment, which reduces the total number of on-site devices. It features low overall deployment cost, stable and reliable product quality, and effectively reduces the initial investment and later operation and maintenance costs of store networking and monitoring.
6.4 Simple Operation & Management
Both wireless network and surveillance devices are equipped with visual web configuration interfaces and intelligent setup wizards, realizing zero-basics rapid deployment. The NVR monitoring host supports automatic device discovery, one-click configuration and intelligent fault diagnosis, with intuitive and simple daily management.
6.5 Flexible Scalability
The network architecture supports flexible expansion. With the expansion of store business scale, users can add wireless APs, surveillance cameras and other devices at any time. Wanglink commercial wireless APs support PoE power supply and FAT independent working mode, which is convenient for subsequent network upgrading and expansion.
